Chillerton Down Isle of Wight
NGR: SZ475835 Maps: Google  Bing (Ord Surv) Site Height: 166m Structure Height: 228.9m
Digital TV:
BBC Radio:

Ind. National Radio:
Ind. Local Radio: Capital FM (South Coast): 103.2  Isle of Wight Radio: 107.0  Jack FM (South Coast): 106.0
  Wave 105 FM: 105.2
Digital Radio: Digital One: 11D        South Hampshire: 11C
Comments:



Campers are apparently not welcome at the Chillerton Down site!

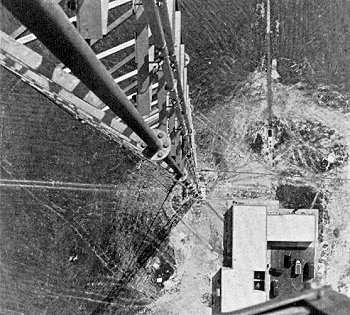

Photo: ITA Yearbook

The ITA station at Chillerton Down - on the Isle of Wight - opened on 30-Aug-1958 transmitting Southern ITV's VHF 405-line signals to the South of England.

Our first main photo was taken by Mark Carver in the early 1990s. It shows the two BT SHF dishes at the top, which at that time formed a telephone link between the UK and the Channel Islands. - the receive station on Alderney is probably line-of-sight from the top of the mast. The dishes were removed about 5 years ago, and presumably replaced by a fibre optic link.

The only broadcast use of the mast at that time was Southampton/Portsmouth ILR service; Power FM. The array can just be seen between the two dishes and our more recent shots show it still there unmoved

.

Our next two photos were taken by Max Freer in 2004...


The Rowridge site some 3-4 miles to the north-west

Finally a couple of aerial shots from Robert Whittaker:

Sending television signals by digital links - a first step

Rowridge
