DIGITAL SWITCHOVER
FACTS AND FIGURES
Will you need a new receiving aerial for digital switchover?
Mostly the answer is no, but this table gives more detail. It's as simple as I can make it - not exactly "at-a-glance", but almost...

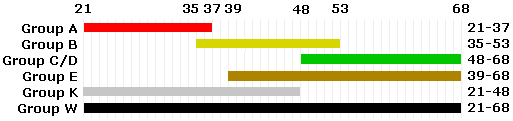

First though, a brief explanation about aerial groups: UHF television signals are broadcast on a range of channels which are numbered from 21 to 68. Aerials are manufactured which cover the whole range of channels but aerial design dictates that such wideband aerials are less efficient in terms of gain or sensitivity. Better performance can be achieved if the aerial is specifically designed for a narrower group of channels. The channels received by each such aerial group is shown in the table below.
Note that an aerial's performance deteriorates significantly beyond the range of channels it has been designed to receive, and whilst you may get lucky and receive 'out-of band' signals in favourable locations our second table shows where a change of aerial will improve reception if you find you are still missing some channels after switchover.
One factor worth pointing out is that the UHF aerials first put up for reception of BBC2 in the late 60s / early 70s will now be 40 years old, maybe older. Outdoor aerials and cables do deteriorate over time due to their exposure to the elements. If your aerial does not give you good, clear analogue reception it is quite possible that it may not give good digital reception. You may be prepared to watch a dodgy picture but a digital receiver will be less forgiving. For this reason it is possible that you may need to replace your tv aerial and cable even if the table below suggests that you may not need to. This is particularly relevant if you are watching a poor picture using an indoor or set-top aerial. You cannot expect digital tv to work in these circumstances.
Now to the main table of which shows which aerial group is required for each main station around the country.
You will see from this list that there is only one of the 50 high powered main stations where the PSB channels will be broadcast on channels which will not be received well using an existing/legacy aerial which was installed for the original analogue channels. That transmitter is Heathfield, which serves the East Sussex area.
A number of relays have also been included in the table where the details published by Ofcom confirm that new aerials will improve digital reception for either the PSB and/or COM channels.
In some cases we have suggested that a new aerial 'maybe' needed, where the new channel allocations are in a lower group than previously. Finally, we do suggest that you DO NOT invest in a new aerial until you are sure you need to, because you find that you have poor reception and/or missing channels.
COLUMN: 1 | 2 | 3 | 4 | 5 | 6 |
MAIN STATION Relay station |
Analogue - MAIN 4 - Aerial Group |
Post DSO PSB Aerial Group |
Post DSO COM Aerial Group |
New Aerial required for PSB |
New Aerial required for COM |
ANGUS | C/D | C/D | C/D | ||
BEACON HILL | C/D | C/D | E | Yes | |
Bovey Tracey | B | C/D | Yes | ||
Clennon Valley | B | C/D | Yes | ||
Harbertonford | B | C/D | Yes | ||
BELMONT | A | A | W | Yes | |
BILSDALE | A | A | W | Yes | |
BLACKHILL | B | B | B | ||
Glengorm | C/D | B | Maybe | ||
BLAENPLWYF | A | A | A | ||
BLUEBELL HILL | E | B | E | ||
BRESSAY | A | A | A | ||
BROUGHER MOUNTAIN | A | A | A | ||
CALDBECK (England) | A | A | A | ||
Jurby (IoM) | C/D | B | Maybe | ||
Kimmeragh (IoM) | C/D | B | Maybe | ||
Laxey | C/D | B | Maybe | ||
Ramsey (IoM) | C/D | B | Maybe | ||
CALDBECK (Scotland) | A | A | A | ||
CARADON HILL | A | A | A | ||
Plympton | C/D | C/D | E | Yes | |
CARMEL | C/D | C/D | C/D | ||
Tenby | B | C/D | Yes | ||
CHATTON | B | B | B | ||
CRAIGKELLY | A | A | W | Yes | |
CRYSTAL PALACE | A | A | A | ||
Greenwich | C/D | B | Maybe | ||
Guildford | B | B | E | Yes | |
Hemel Hempstead | B | B | E | Yes | |
Reigate | C/D | C/D | W | Yes | |
Wonersh | C/D | B | Maybe | ||
DARVEL | A | A | A | ||
Ardnadam | B | C/D | Yes | ||
DIVIS | A | A | A | ||
DOVER | C/D | C/D | C/D | ||
Margate | A | B | Yes | ||
DURRIS | A | A | A | ||
EITSHAL | A | A | A | ||
EMLEY MOOR | B | B | B | ||
Chesterfield | A | A | W | Yes | |
Idle | A | A | W | Yes | |
Sheffield (Crosspool) | A | A | W | Yes | |
FREMONT POINT | B | B | |||
HANNINGTON | E | B | B | ||
HEATHFIELD | C/D | B | B | Maybe |
Maybe |
Bexhill | New site | B | Yes | ||
HUNTSHAW CROSS | C/D | C/D | C/D | ||
KEELYLANG HILL | B | B | B | ||
KNOCK MORE | A | A | W | Yes | |
LIMAVADY | C/D | C/D | C/D | ||
LLANDDONA | C/D | C/D | E | Yes | |
MENDIP | C/D | C/D | C/D | ||
Bristol KWH | B | B | E | Yes | |
Bristol IC | B | B | B | ||
Porlock | B | A | Maybe | ||
MIDHURST | B | B | B | ||
MOEL-Y-PARC | B | B | B | ||
Cefn Mawr | B | C/D | Yes | ||
Storeton Wales | New site | C/D | Yes | ||
OXFORD | C/D | C/D | C/D | ||
PONTOP PIKE | C/D | C/D | C/D | ||
PRESELY | B | B | B | ||
Newport Bay | C/D | B | Maybe | ||
REDRUTH | B | B | B | ||
Bossiney
|
C/D | B | Maybe | ||
Perranporth |
C/D | B | Maybe | ||
RIDGE HILL | A | A | A | ||
Presteigne | C/D | B | Maybe | ||
ROSEMARKIE | B | B | B | ||
ROWRIDGE | A | A | A | [V pol added] | [V pol added] |
Hangleton | B | C/D | Yes | ||
Ventnor | B | C/D | Yes | ||
RUMSTER FOREST | A | A | W | Yes | |
SANDY HEATH | A | A | W | Yes | |
SELKIRK | C/D | C/D | C/D | ||
STOCKLAND HILL | A | A | A | ||
Budleigh Salterton | New site | A | Yes | ||
Chideock | B | C/D | Yes | ||
SUDBURY | B | B | E | Yes | |
Burnham on Crouch | New site | B | Yes | ||
Clacton | New site | B | Yes | ||
Rouncefall | New site | B | Yes | ||
SUTTON COLDFIELD | B | B | B | ||
Bromsgrove | A | A | W | Yes | |
Lark Stoke | A | A | W | Yes | |
TACOLNESTON | C/D | C/D | E | Yes | |
Creake | B | C/D | Yes | ||
Gt. Yarmouth | New site | B | Yes | ||
Lowestoft | New site | C/D | Yes | ||
Wells-next-the-Sea | C/D | B | Maybe | ||
THE WREKIN | A | A | W | Yes | |
Haden Hill | B | C/D | Yes | ||
TOROSAY | A | A | A | ||
WALTHAM | C/D | C/D | W | Yes | |
Ambergate | B | A | Maybe | ||
Nottingham | A | A | W | Yes | |
WENVOE | B | B | B | ||
Cwmfelinfach | B | C/D | Yes | ||
Rhondda | E | A | Maybe | ||
Usk | B | C/D | Yes | ||
WINTER HILL | C/D | C/D | C/D |
Relay station data for the Tyne Tees, and Ulster regions will be incorporated when the information becomes available from Ofcom
With thanks to Mark Carver
Download the latest regional info from Ofcom updated 5-Jan-2011 (PDFs)
