THE TRANSMISSION GALLERY
THE TRUNDLE
| Photos by Mike Smith | Page last updated: 2012-04-01 |
| Mike reports: I visited The Trundle in March 2012 and found that nothing had changed greatly, so being as the weather was pleasant I took the opportunity to grab a few more shots of the site with some close ups of the antennas. |

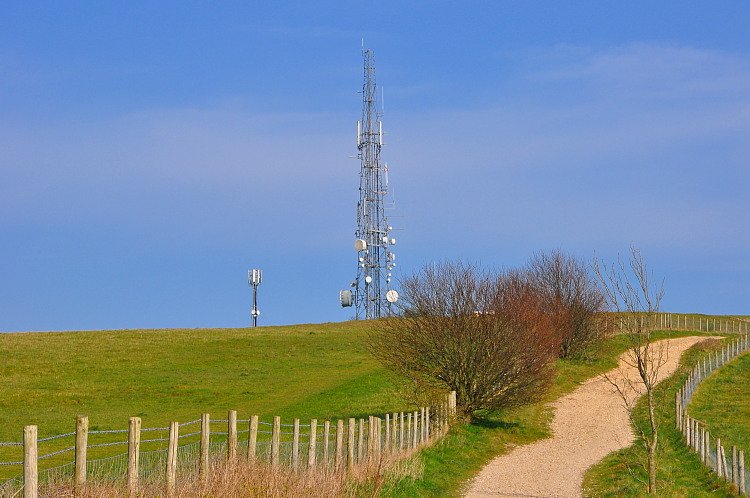

| Path to The Trundle from the nearby car park, looking roughly eastwards. |
| Looking towards the north east. |

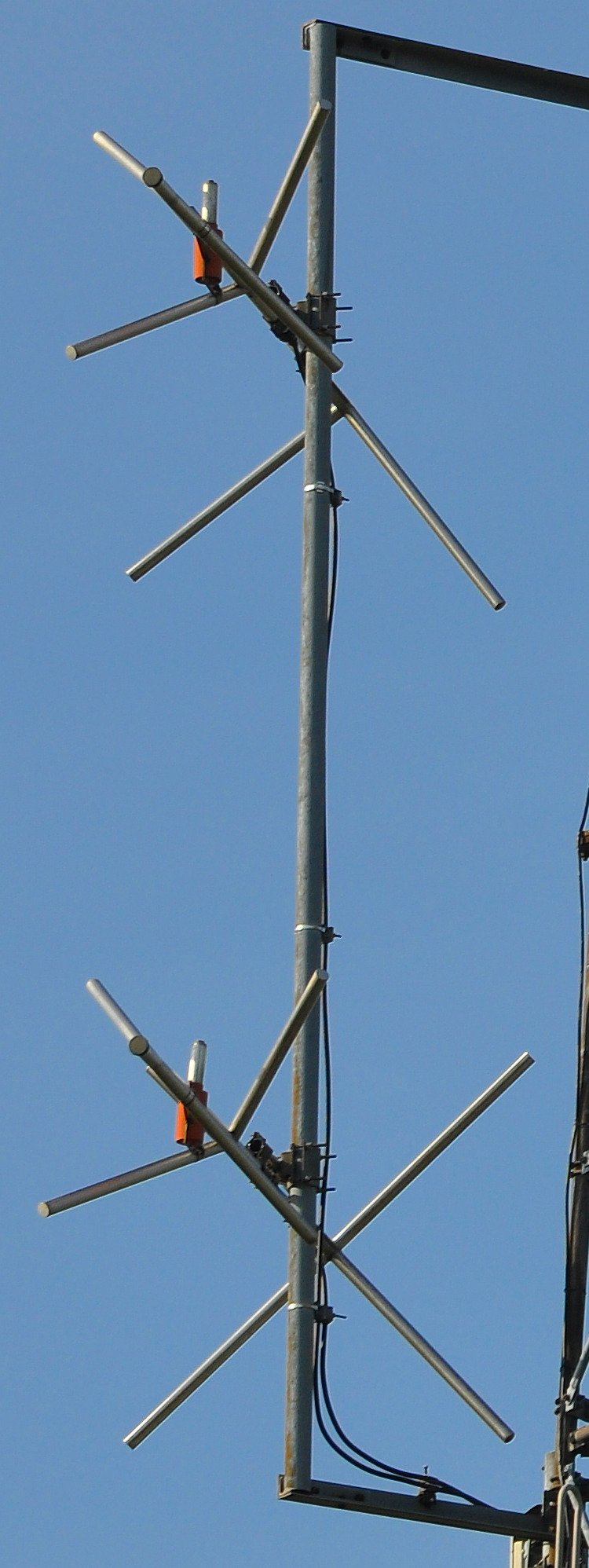

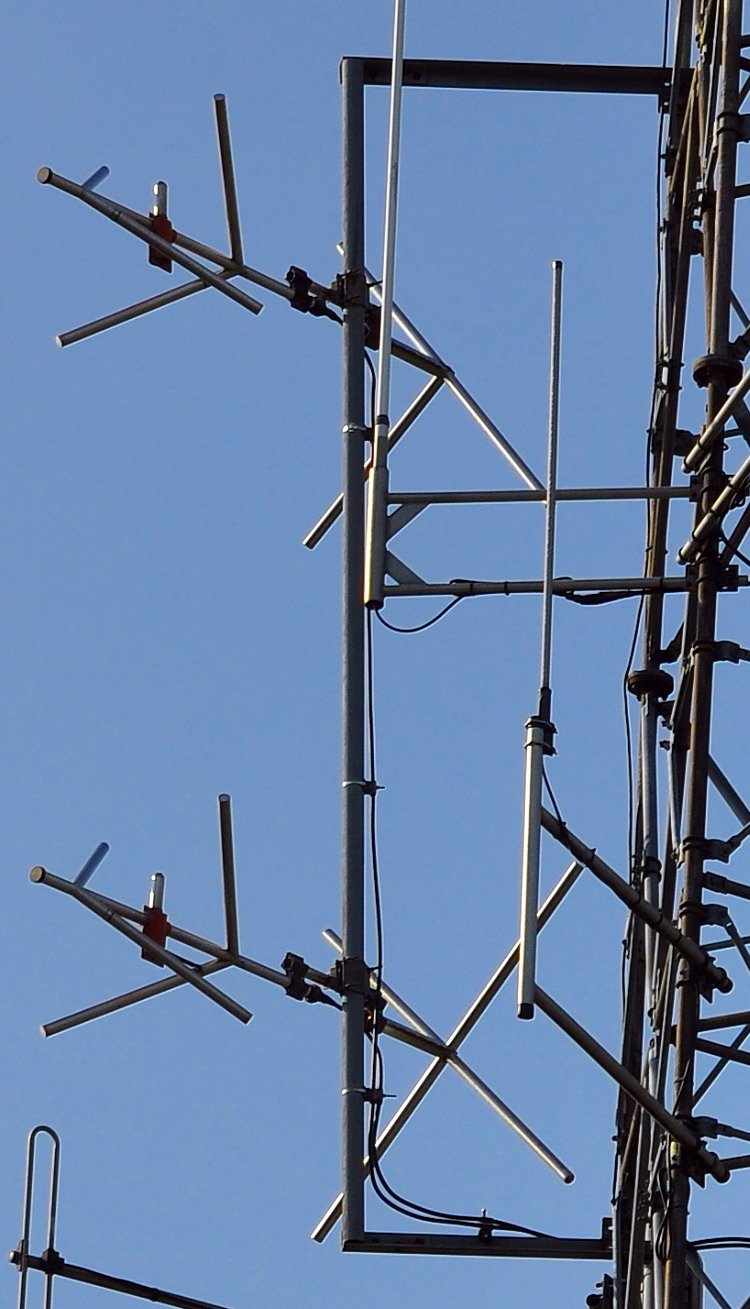

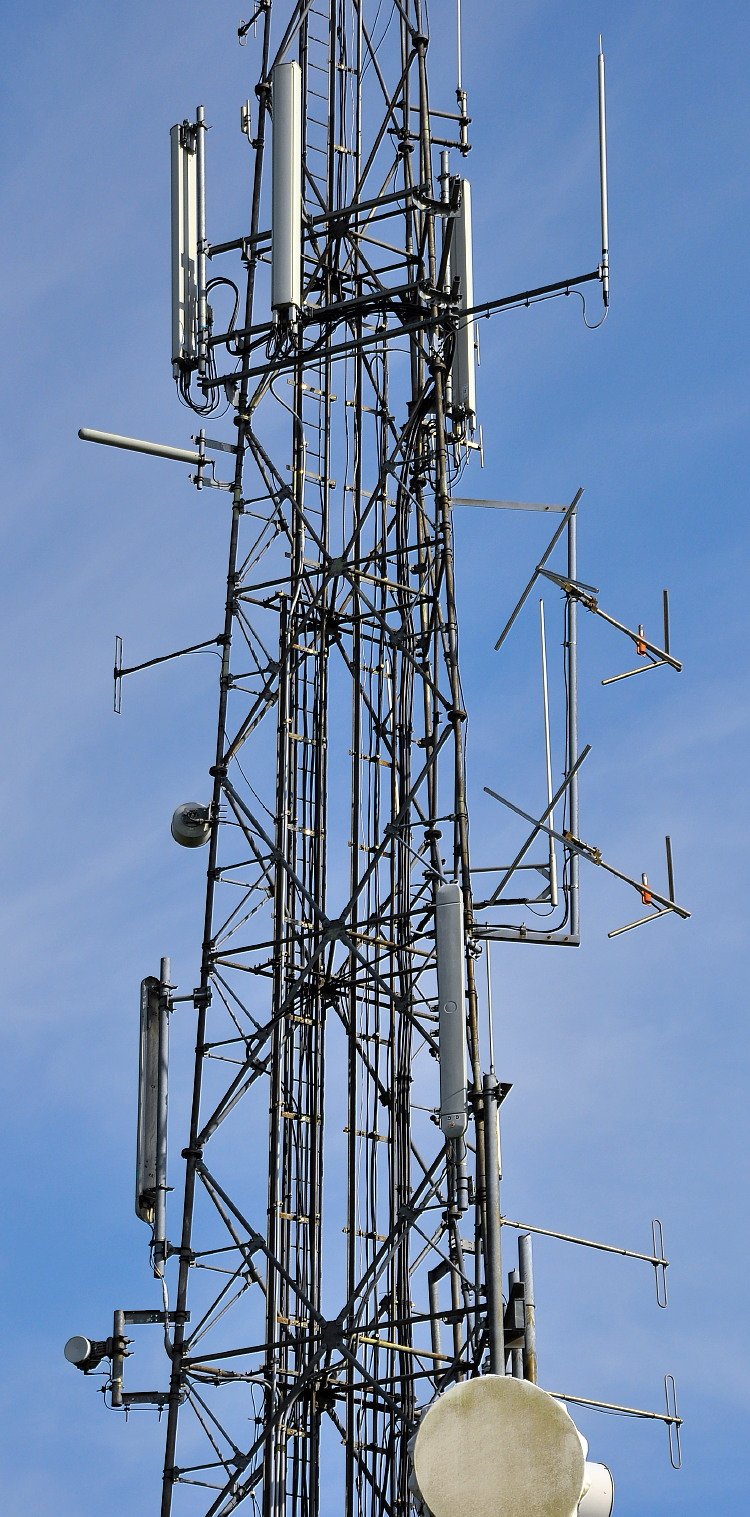

| Close up shot of VHF / FM and DAB radio antennas. |

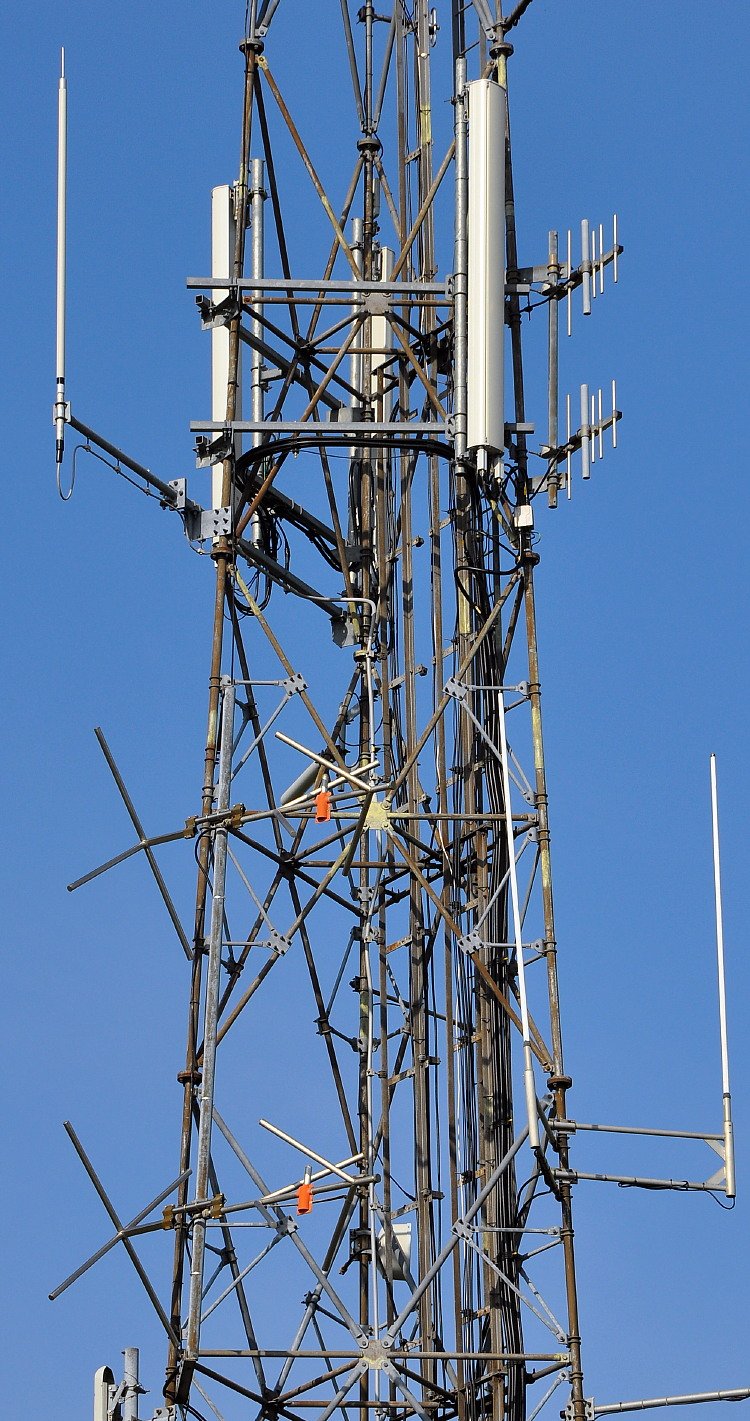

| Shot taken looking towards the north west. The top VHF / FM broadcast radio antenna still has a part of its reflector missing. |

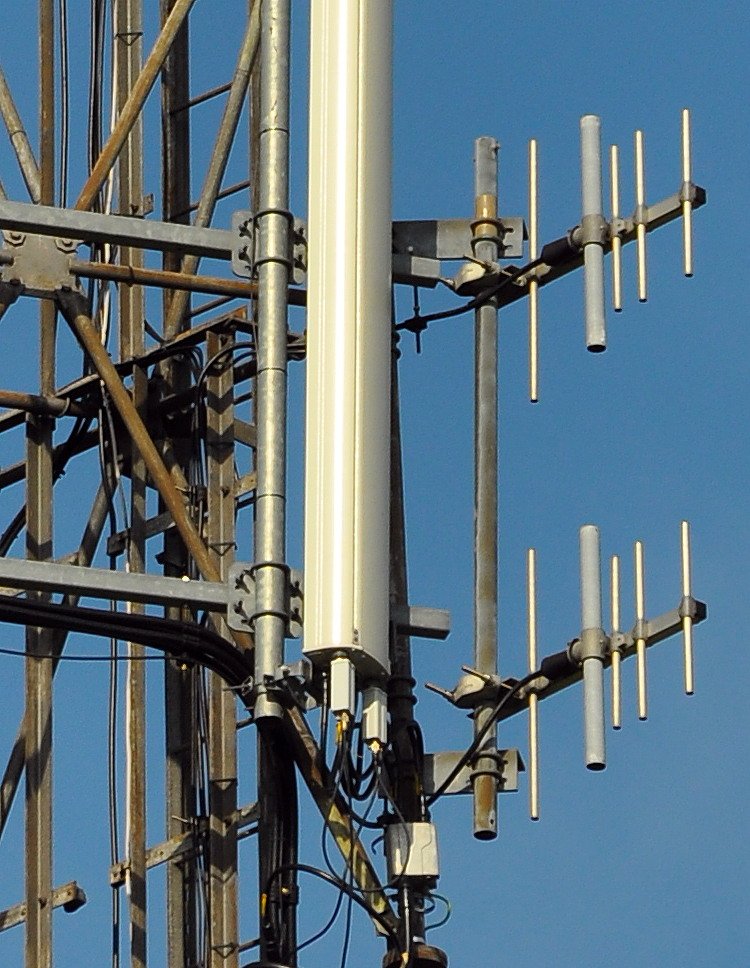

| Close up of the DAB antennas. |
| Looking to the south east. |

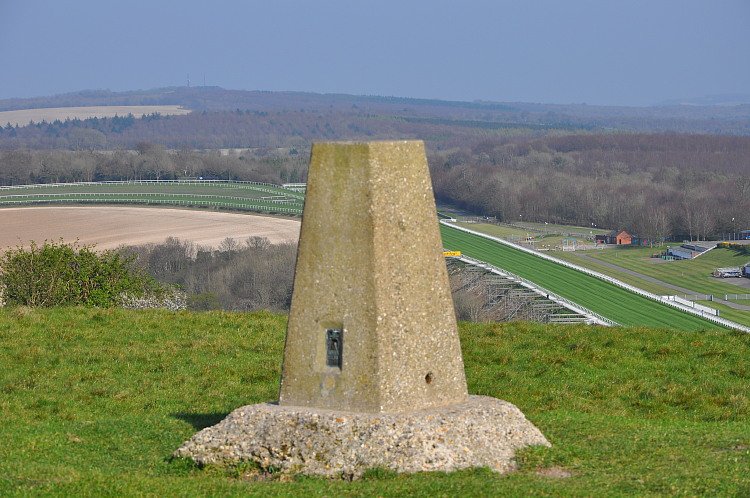

| View from The Trundle looking east towards the two radio masts on Burton Down which can be seen in the distance. The triangulation point is seen in the foreground with the Goodwood racing track in the middle distance. |

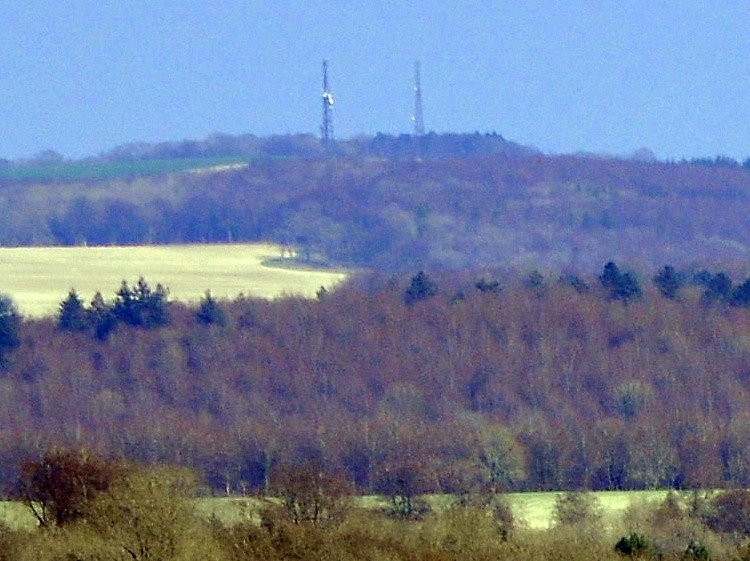

| Extreme crop of the above photograph showing the two masts on Burton Down in the distance. |

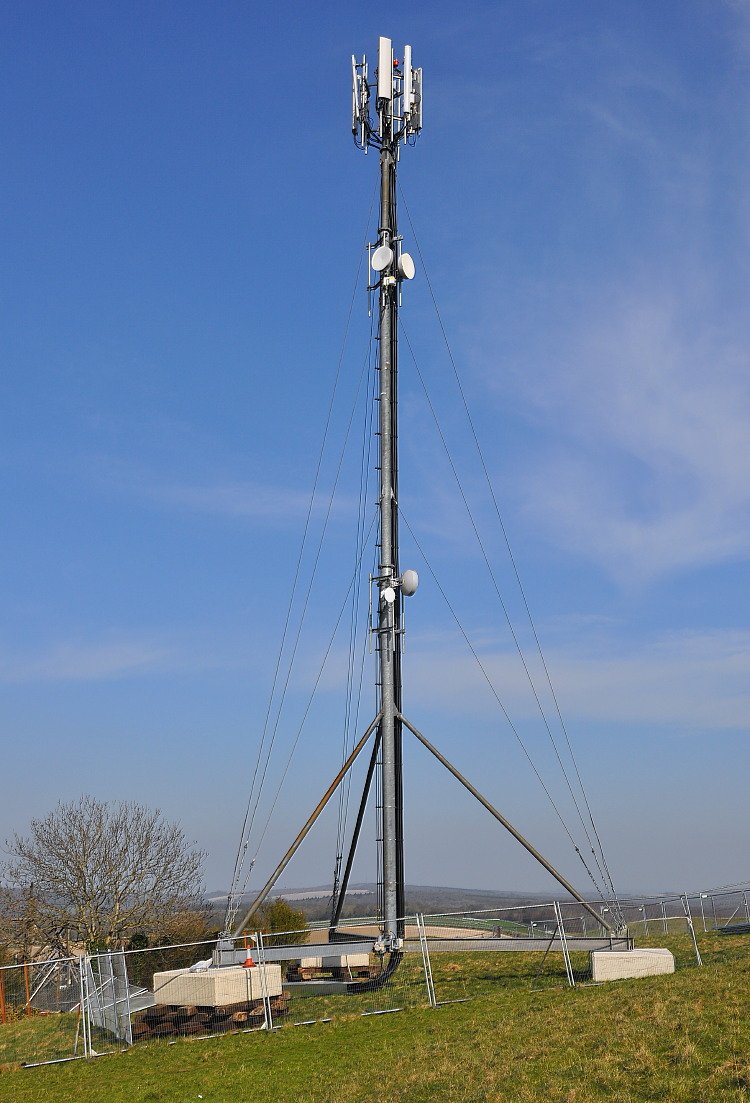

| Also located nearby on the Trundle is a temporary mobile phone mast, overlooking the Goodwood racing track. The sloping ground seems to have presented a bit of a challenge... |
| |
