ULLAPOOL
| Photos by Alex Gray | Page last updated: 2012-11-02 |
| These photos are from a visit in October 2012, which is post-DSO, and identify the Lochbroom FM antennas mentioned in the existing Ullapool site. |
| General view of both masts at the Braes of Ullapool site. |

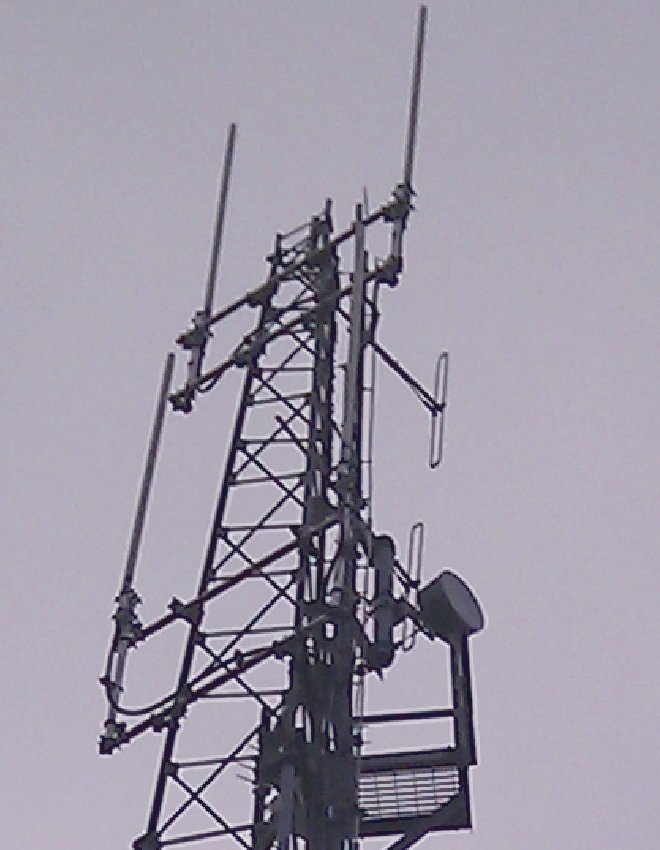

| Top of mast showing Lochbroom FM antennas - a pair of Band II folded dipoles to the top right. The same antennas are used both for reception of the Band I studio-transmitter link and for the 102.2 MHz FM broadcast. There is one heliax feeder into the transmitter building, where filters are used to split the antenna between the Band I receiver and the Band II transmitter. |

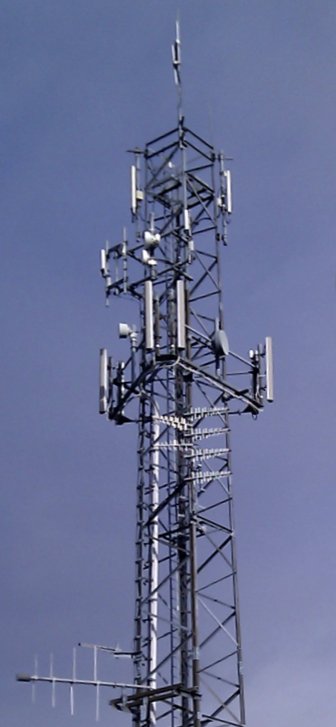

| Close-up of the other mast, carrying various services including local DVB-T and more cell services. |
| |
