STRACHUR
| Photos by Martin Briscoe | Page last updated: 2014-01-06 |
| Strachur entered service with 3 UHF TV channels during September 1980, with Channel 4 from July 1986. BBC FM radio was added on 23rd February 1983, with Radio's 1 & 4 from 3rd December 1993. Martin notes: "Originally there was a wooden pole for Band II and a lattice pole for TV. Later these were replaced for site sharers and a mobile phone company also built a site alongside" |

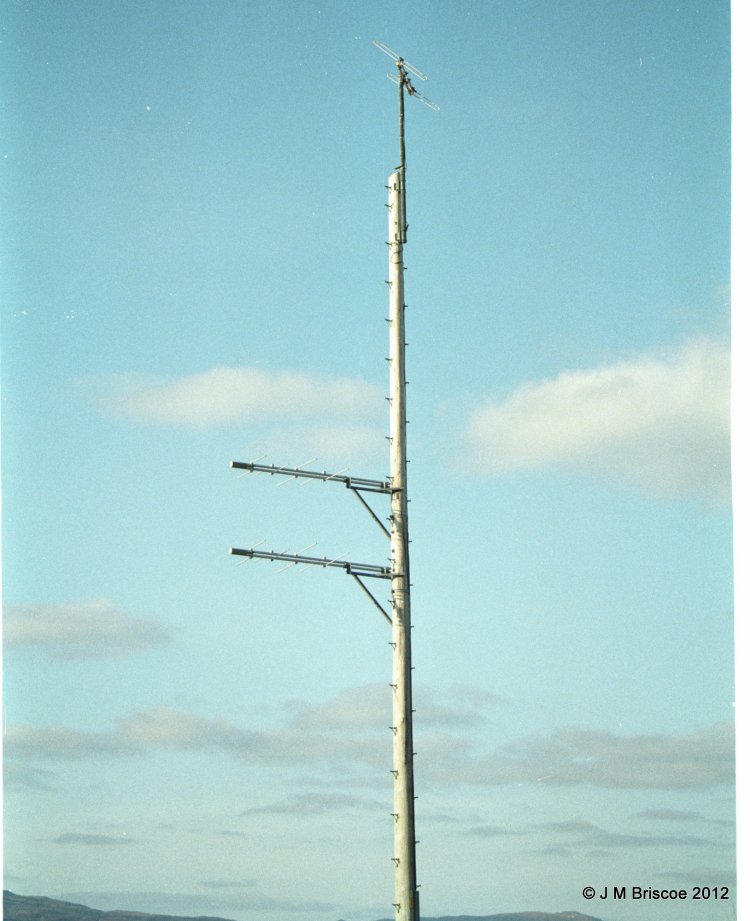

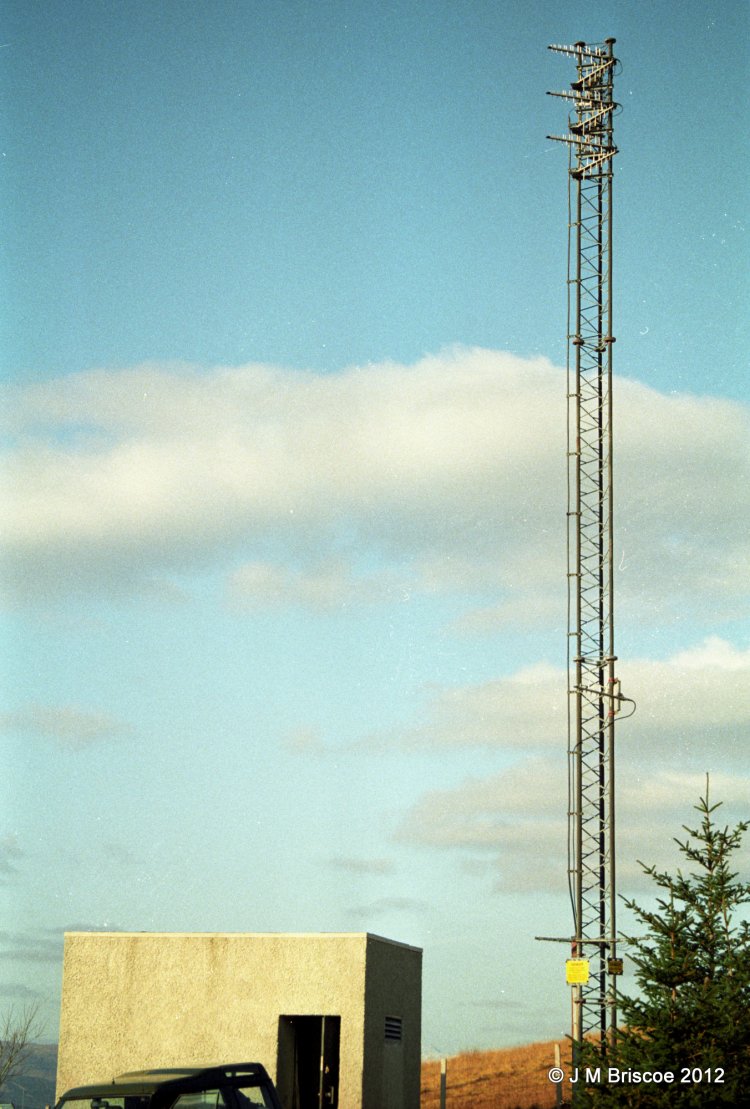

| Date unknown, showing the wooden pole for Band II and lattice pole for TV |

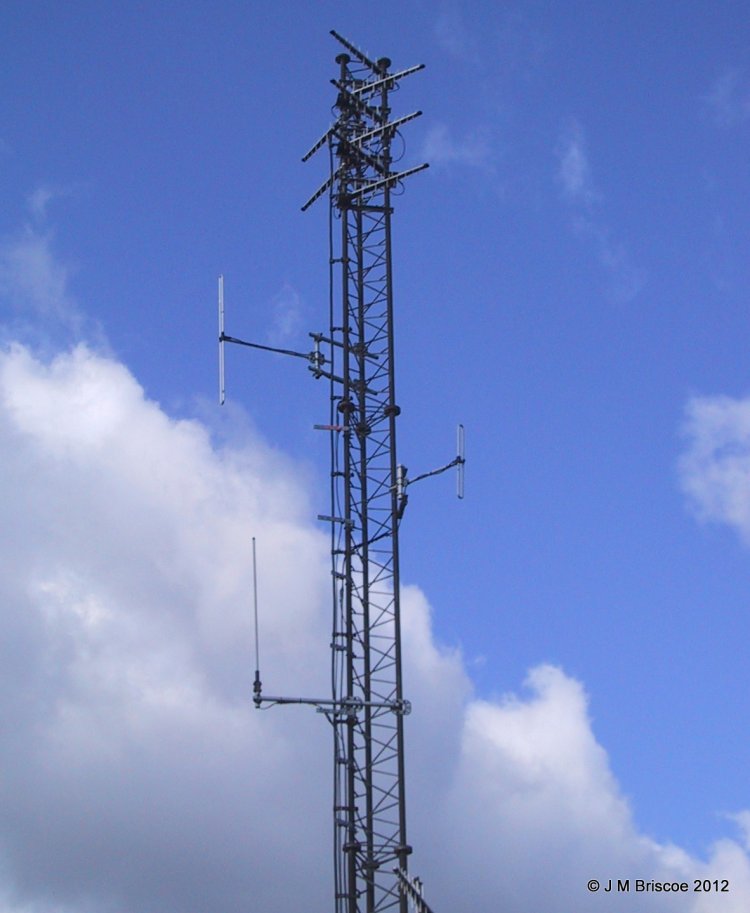

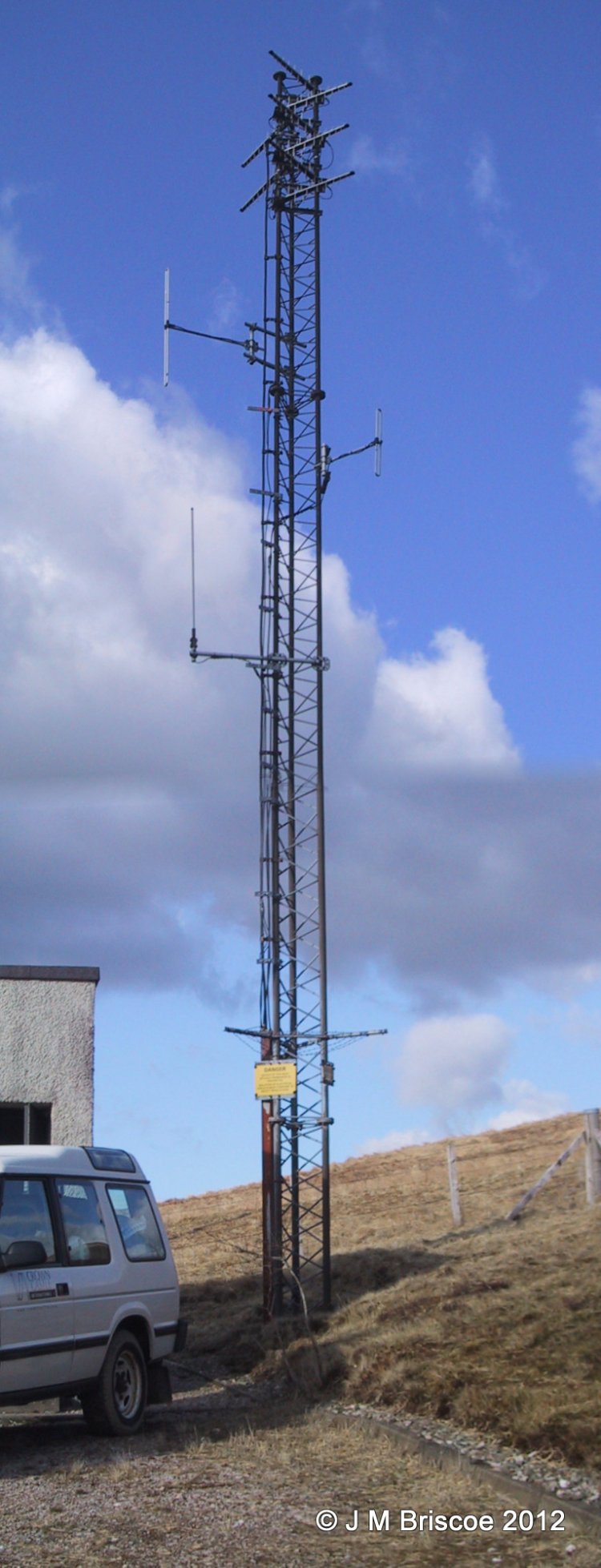

| By 2001 site sharers had been added to the "TV" structure... |

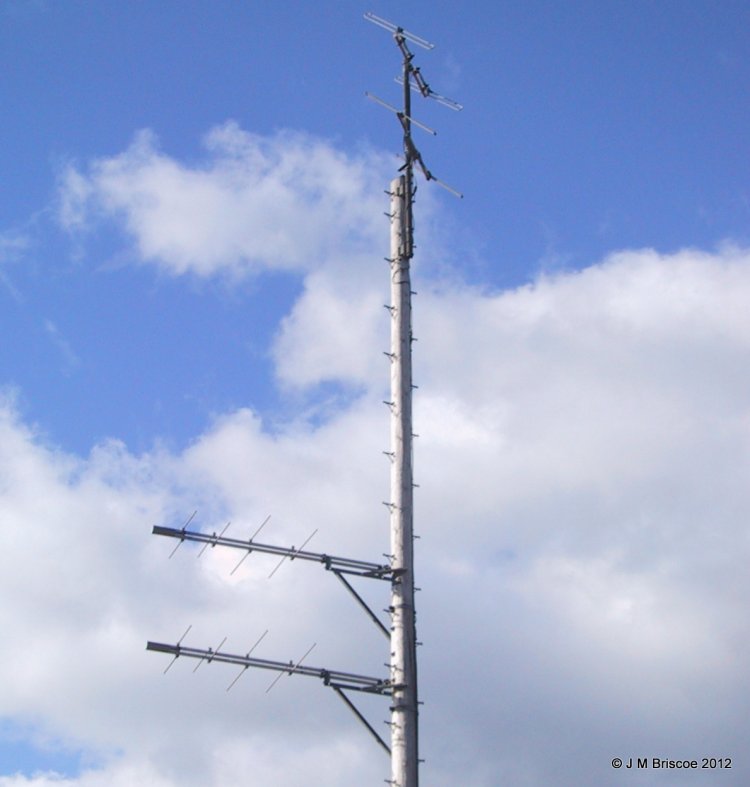

| ...and a second pair of slant polarised dipoles had been added to the Band II pole |

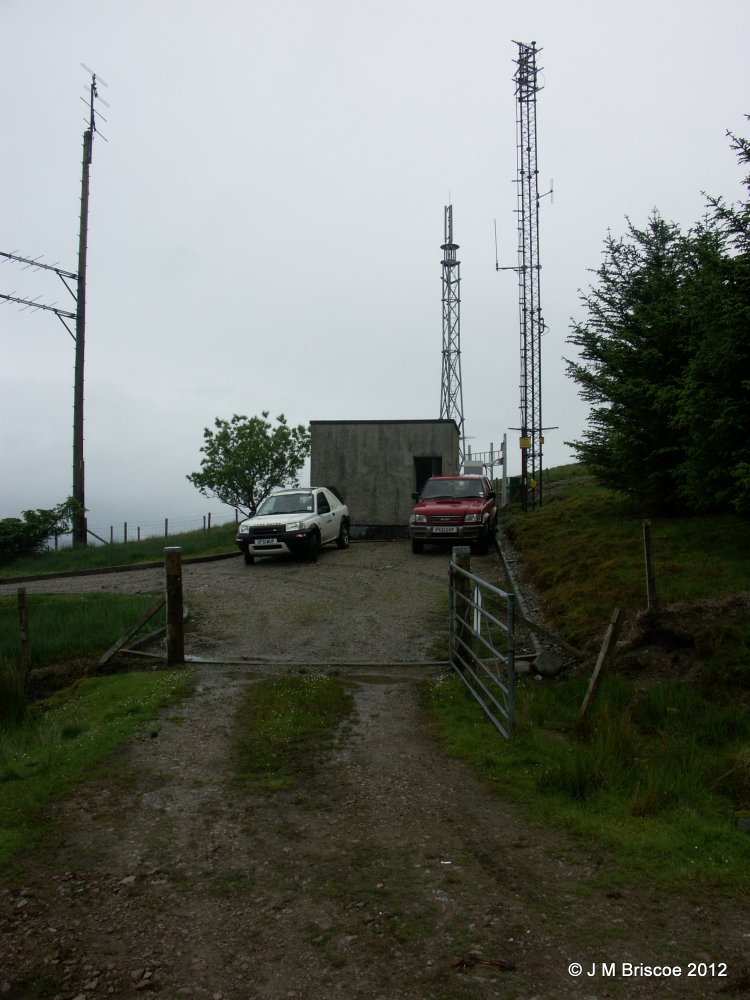

| By 2005 the third structure had been added |

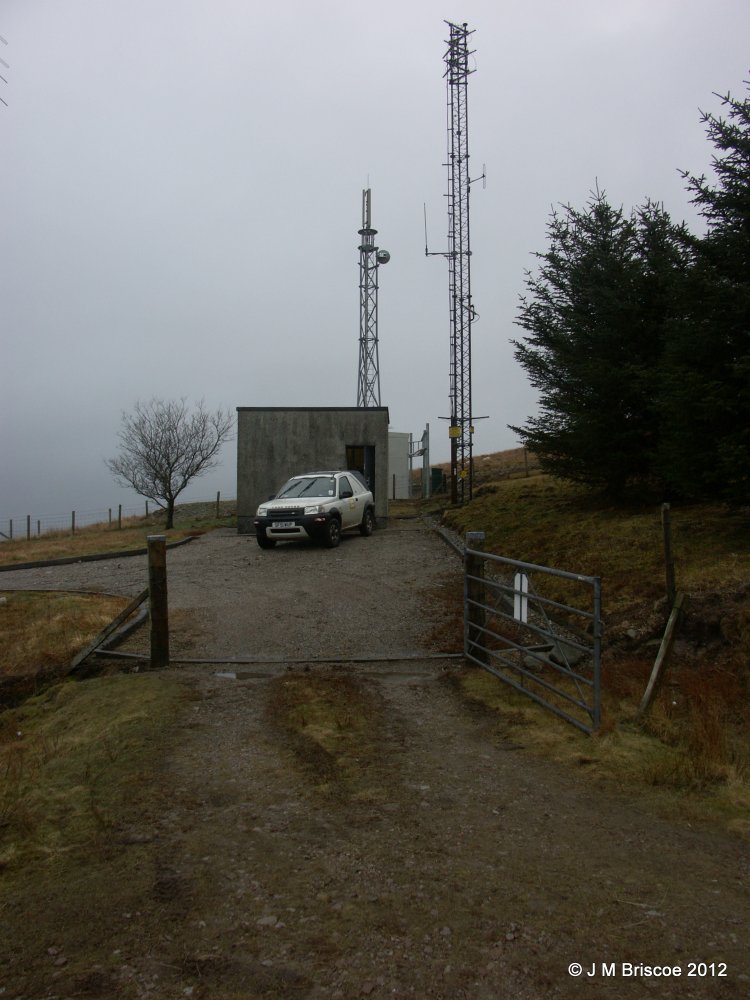

| The Band II pole is just out of view in this 2006 photo (ends of the dipoles just visible top left) |
| |
