GRASSINGTON
| Photos by Robert Whittaker | Page last updated: 2016-11-21 |
| Robert revisited Grassington in August 2015. Not much had changed since Lee's pre-DSO visit several years before, including the spectacular views. |

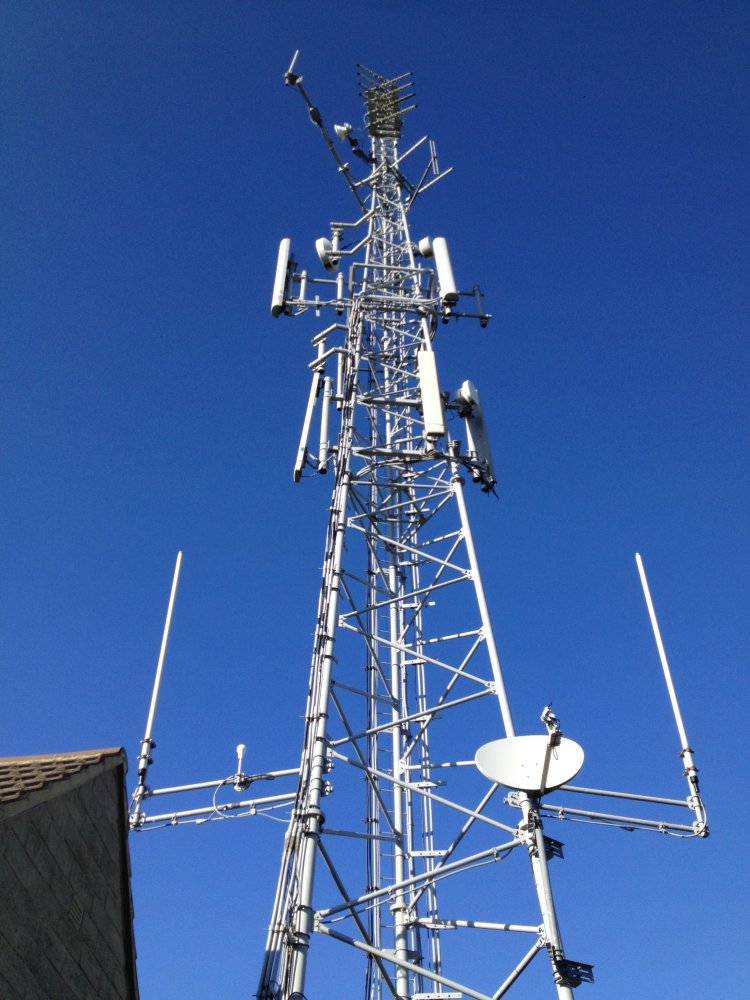

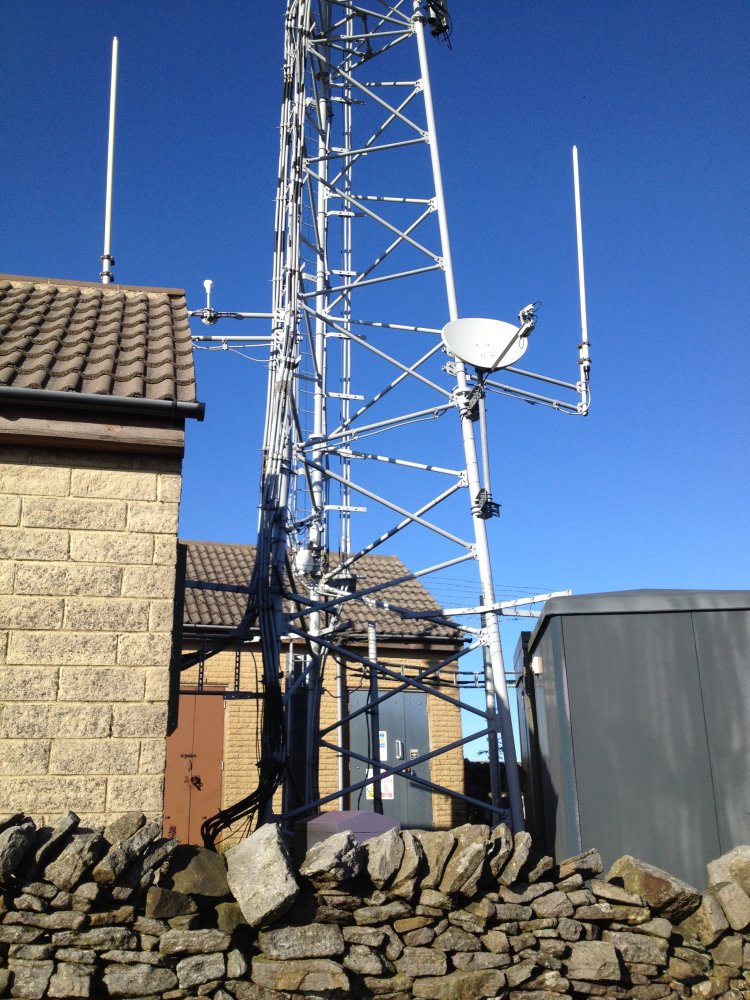

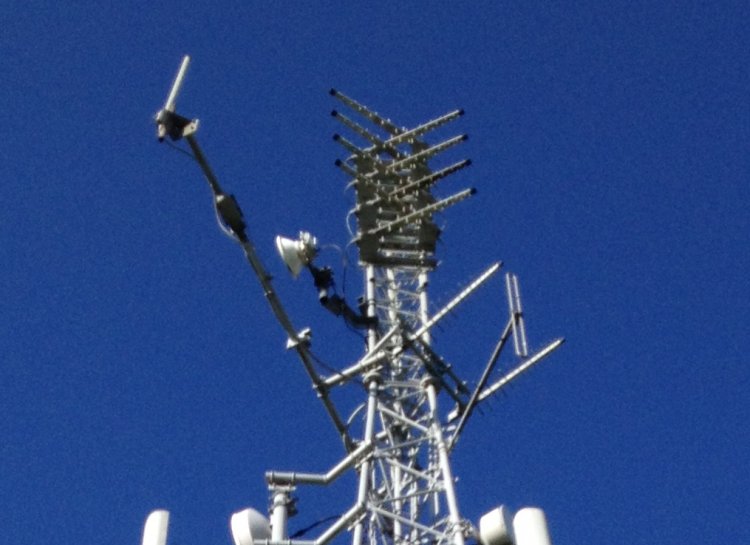

| Nothing much has changed with the tx/rx arrangements post-DSO. Two rx logs on Emley Moor to the south east. Four pairs of crossed logs pointing east and west along Wharfedale |
| View south east towards Hebden |
| View south west towards Linton and Threshfield |
| This part of Wharfedale benefits from wireless broadband, with this installation a few metres from the Grassington UHF relay site |

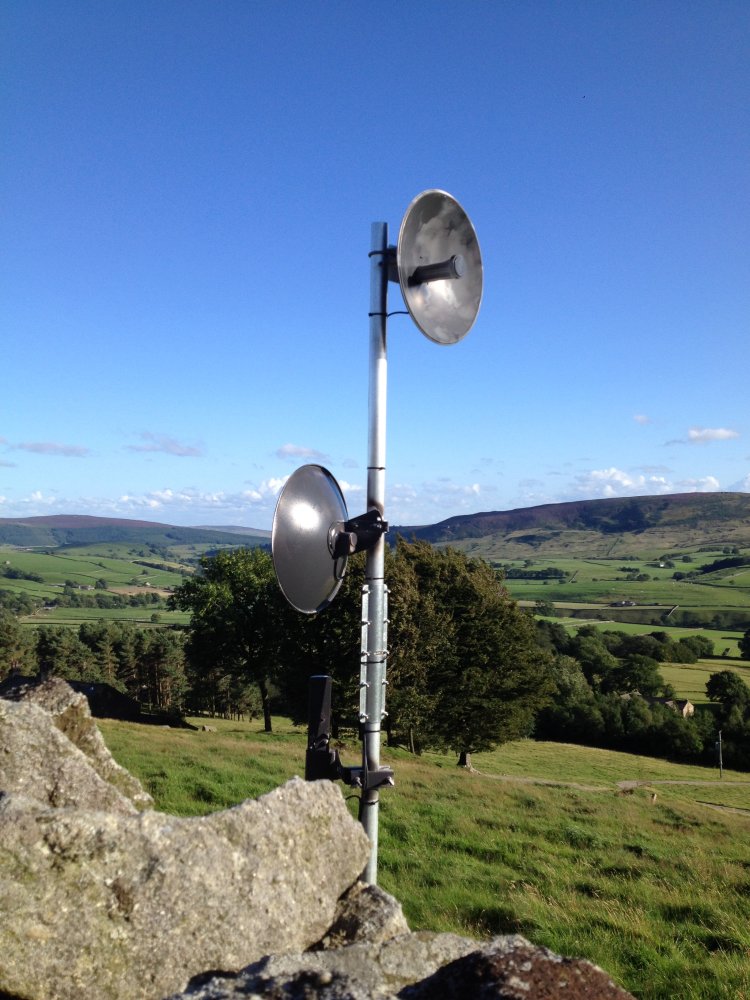

| The dishes seem to provide point-to-point links, with the white vertical panel probably being the broadcast antenna. There is probably an array of a dipoles within the panel, which will have a cardiod radiation pattern or similar. |

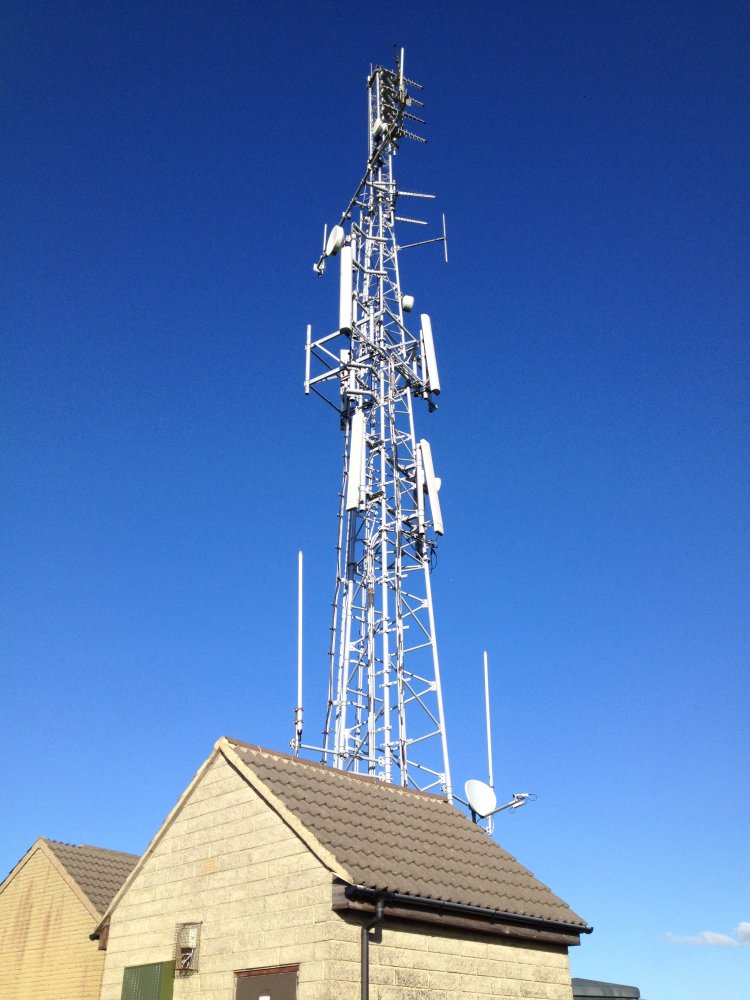

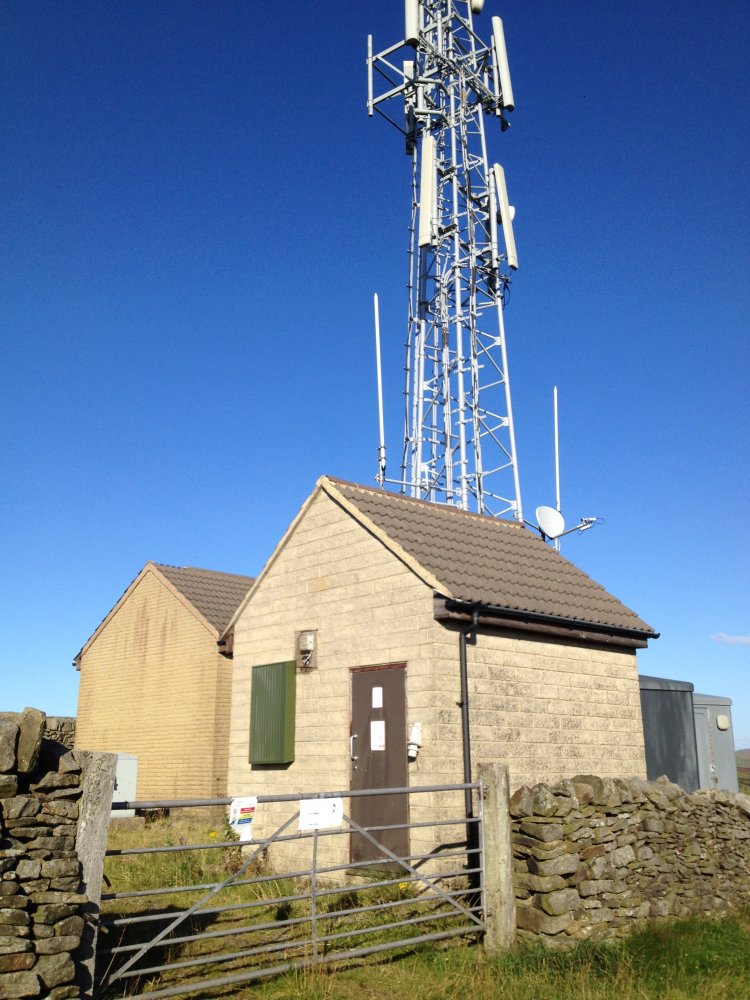

| Grassington UHF in the background |

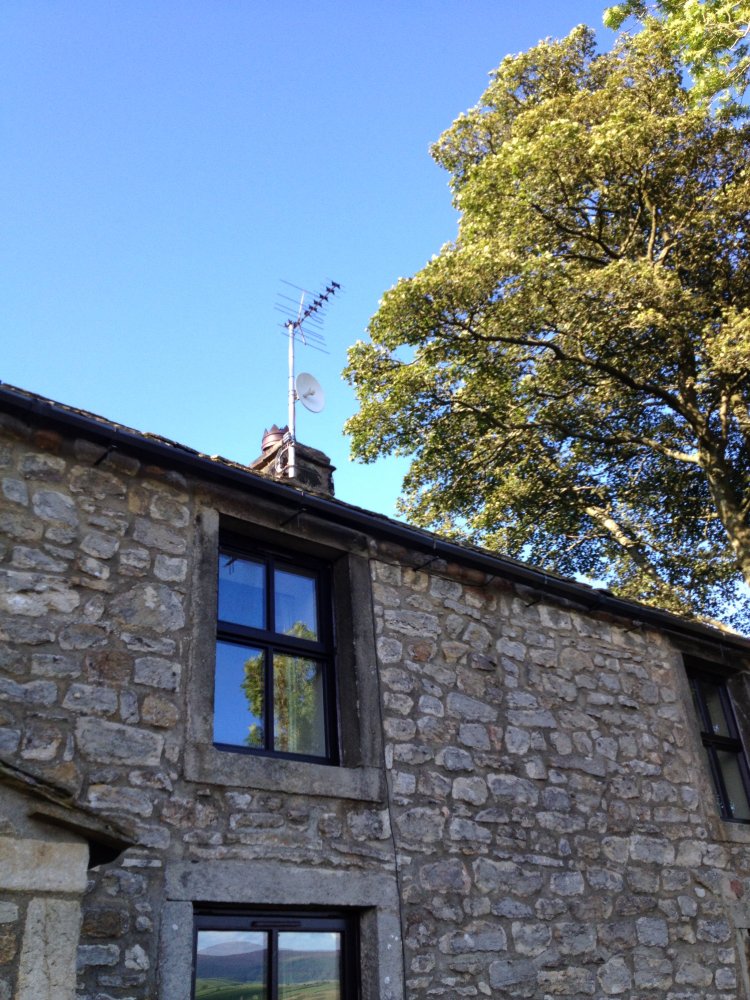

| The guest house in which we were staying. Wireless broadband receive dish on the chimney. The house was high up in the valley to the north west of Hebden, only a few hundred metres from Grassington UHF and afforded great views over Wharfedale to the south east and Hebden Beck valley to the east |

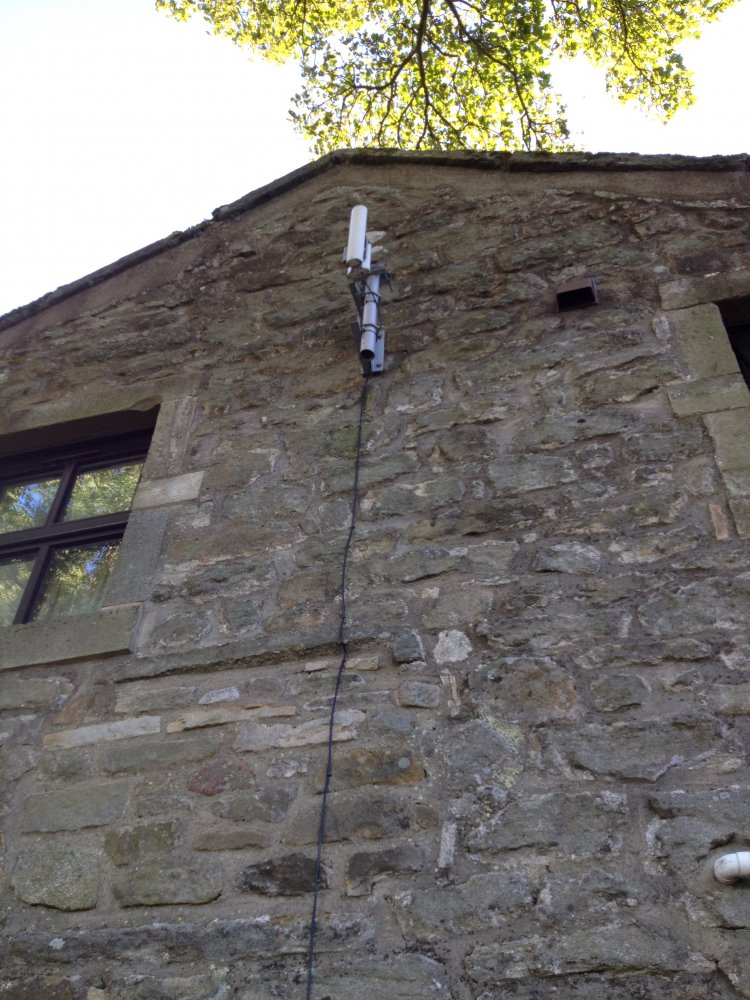

| Around the side of the house was this (probably) broadcast panel, which had a great view looking down over the houses lower down in Hebden Beck valley |
| |
