CATERHAM
| Photos by Martin Brown | Page last updated: 2024-11-09 |
| In preparation for 700 MHz band clearance, where the UHF channel allocations at Caterham are expected to move into upper band IV, the UHF transmit open cardioid aerial was replaced on the 19th September 2017. |

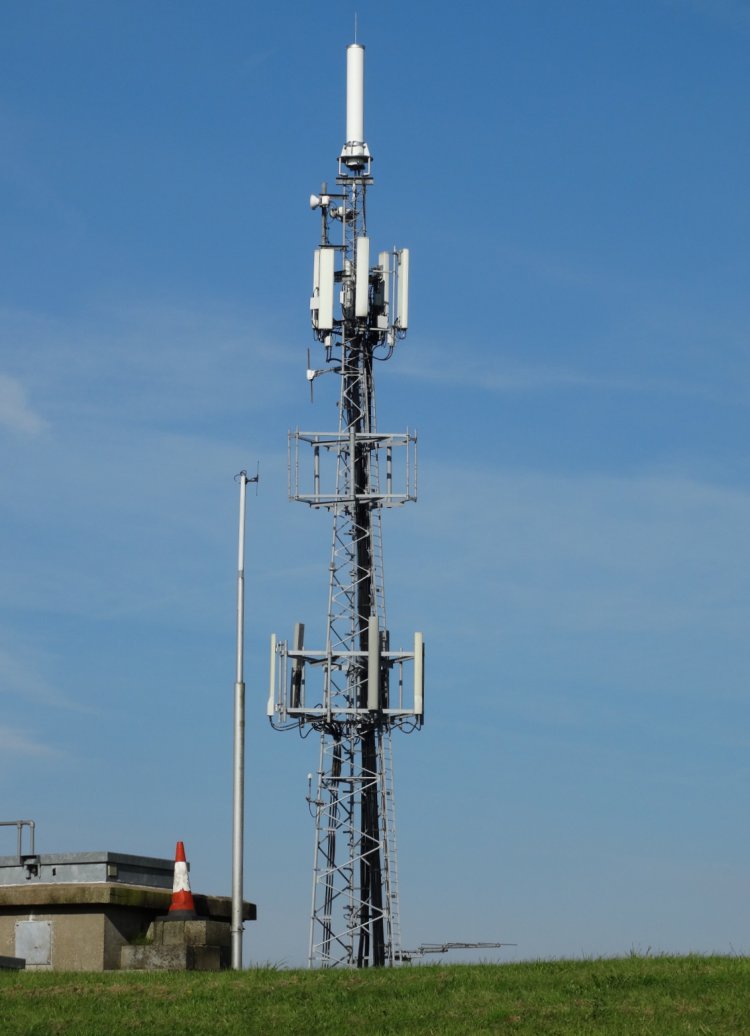

| The Caterham transmitter tower with its new UHF cylinder at the top. |

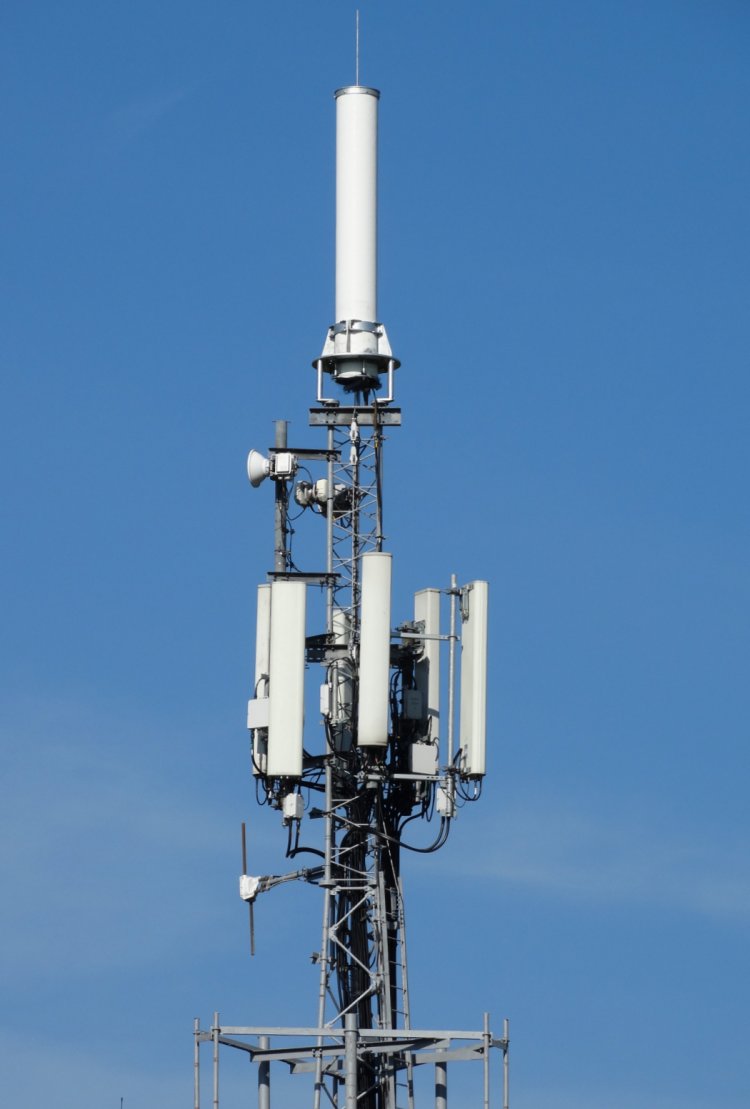

| The top half of the tower with the band II transmit dipole on the left. |

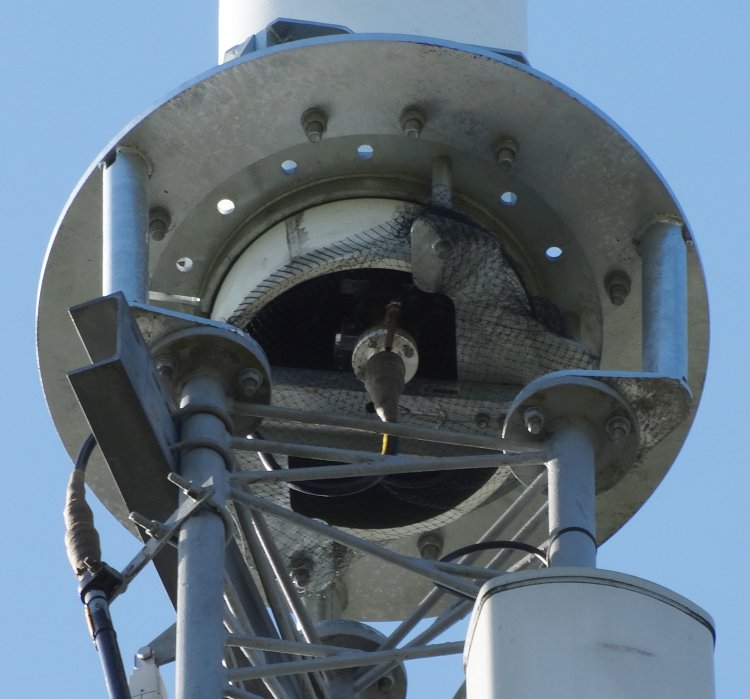

| The new UHF transmit cylinder. This is most likely manufactured by RFS, who seem to be Arqiva's supplier of choice for these low powered vertically polarised cardioid aerials. |

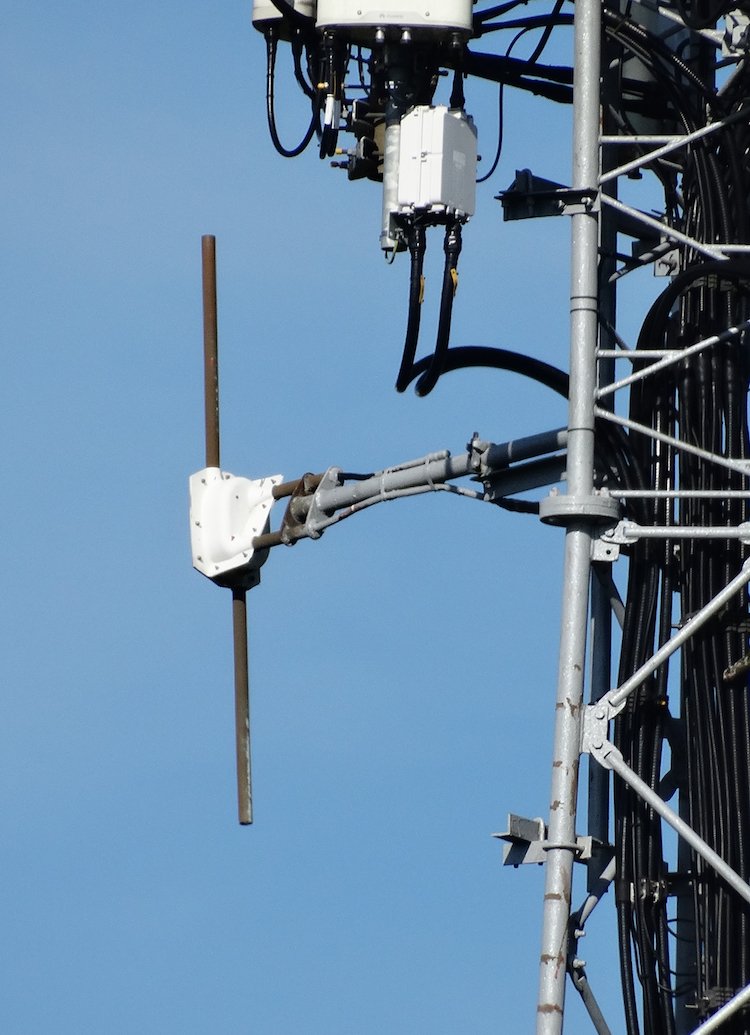

| The band II transmit dipole looking a bit rusty. |

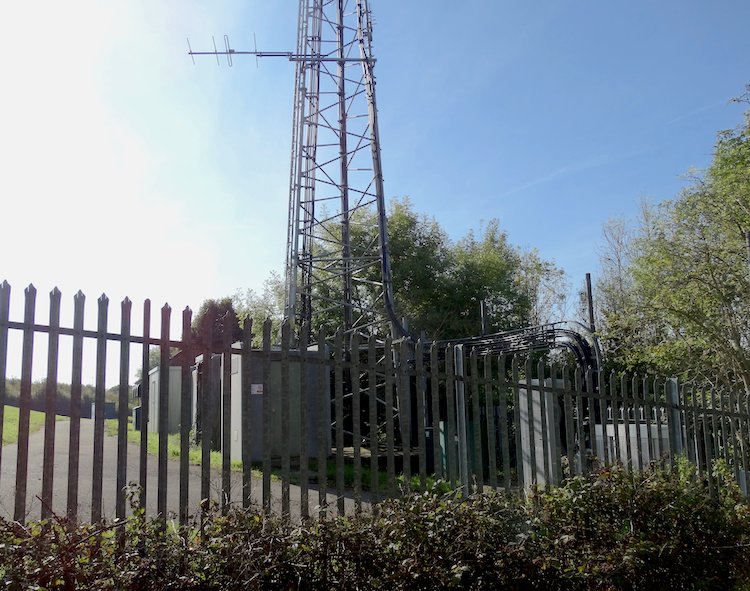

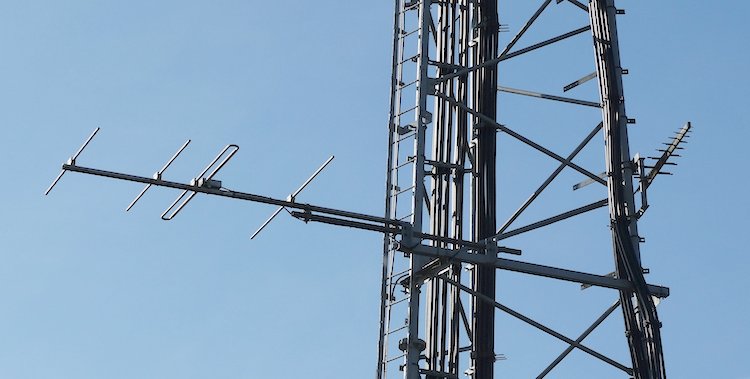

| Receive aerials. |
| |
