ALDEBURGH
| Photos by Martin Brown | Page last updated: 2019-02-25 |
| The upper UHF receive aerial was replaced ahead of the 700 MHz band clearance event at Tacolneston which was in June 2018. The 1968 vintage trough receive aerials here at Aldeburgh, were narrowband. They were designed for upper band V (aerial group C/D) only. Tacolneston now transmits the three PSB multiplexes in lower band V. UHF ch's 40/43/46. |

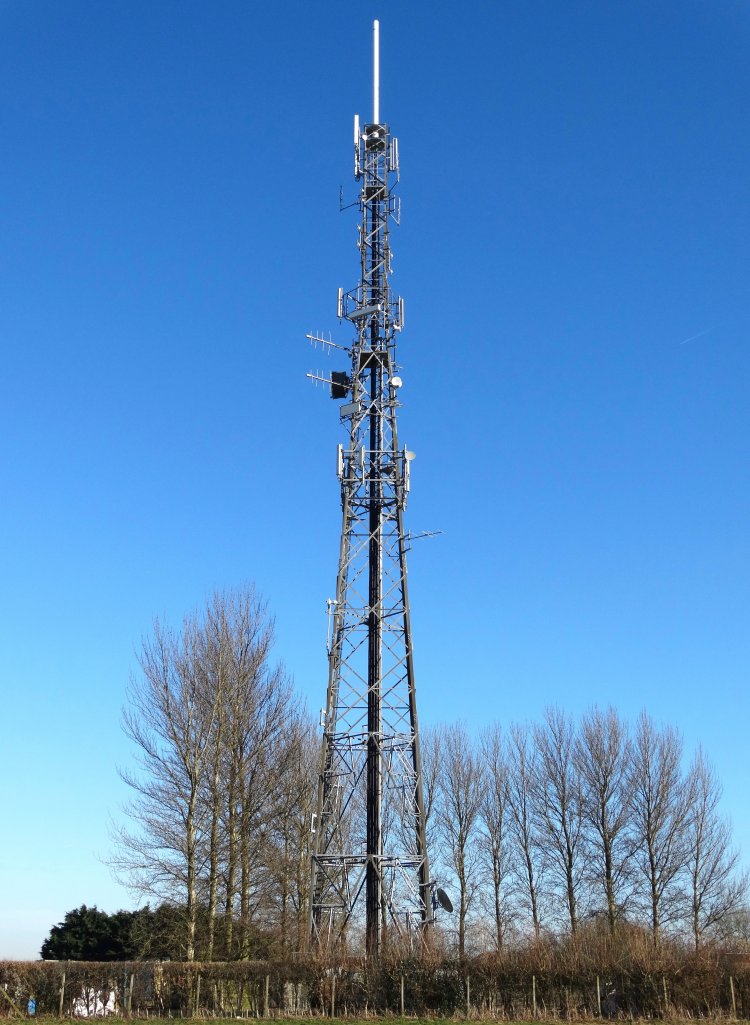

| A pleasant sunny February day in Suffolk. |

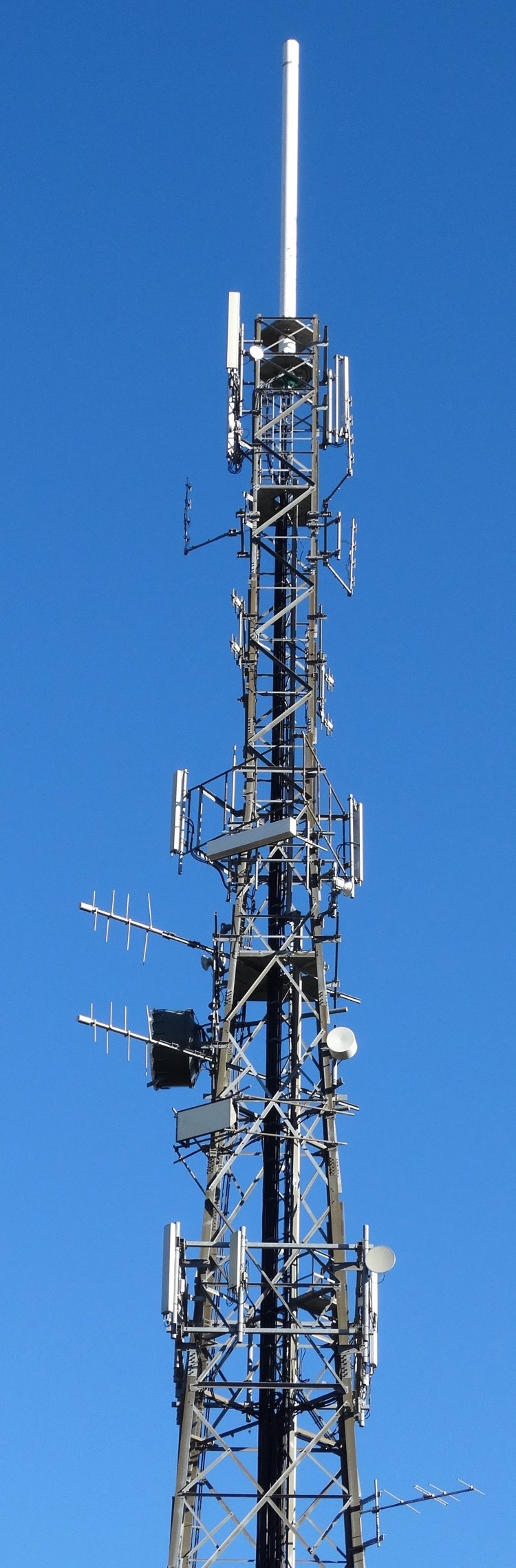

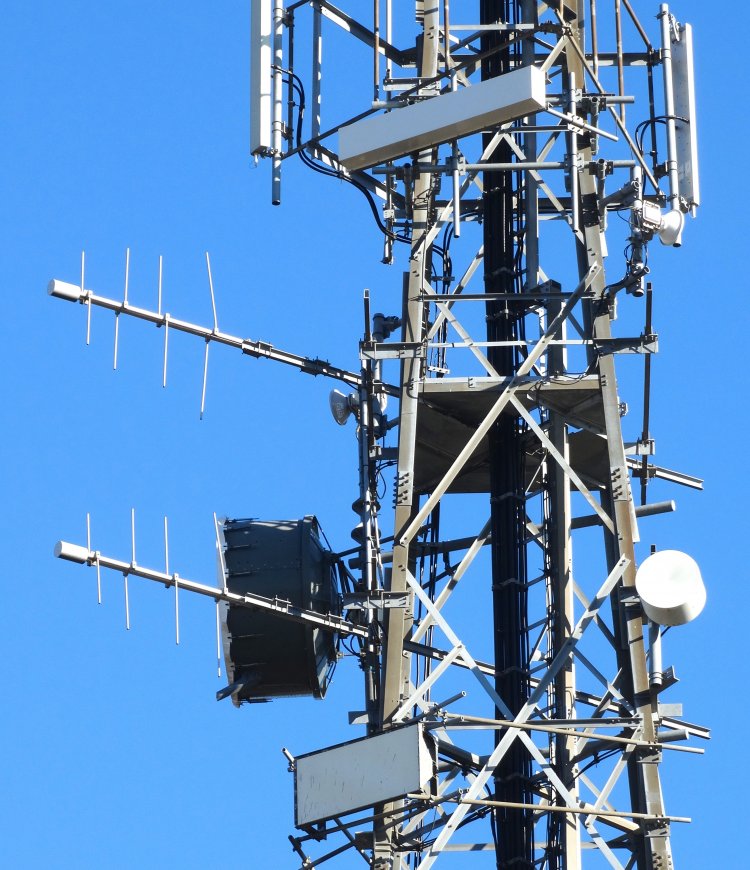

| The upper UHF receive trough has been replaced with a Sira panel. The lower trough is no longer used. In between, on the left are the twin band II log perioidcs used to transmit Radio Suffolk. |

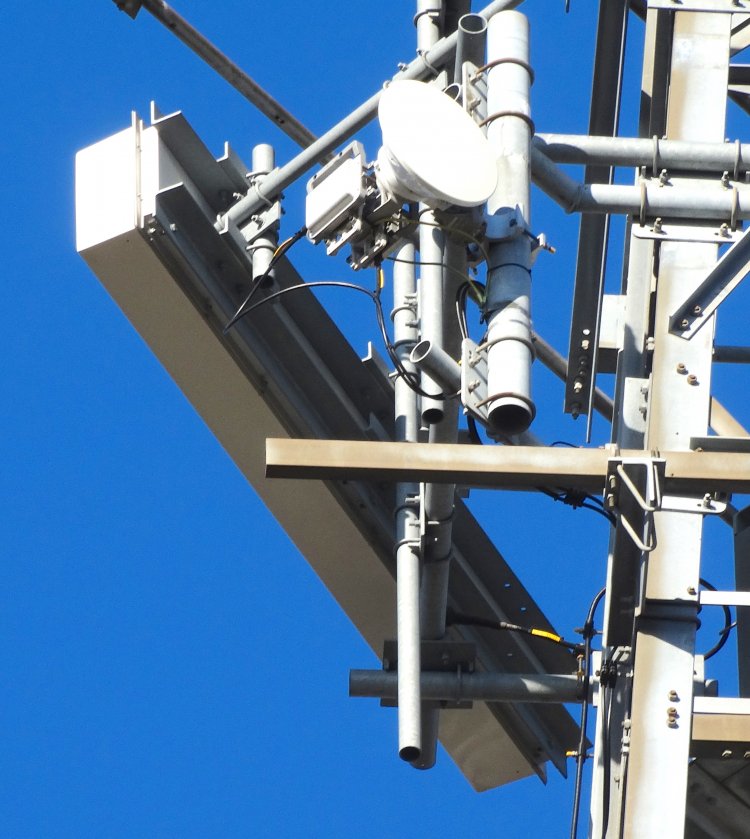

| The new Sira panel close up. |
| And around the back. |

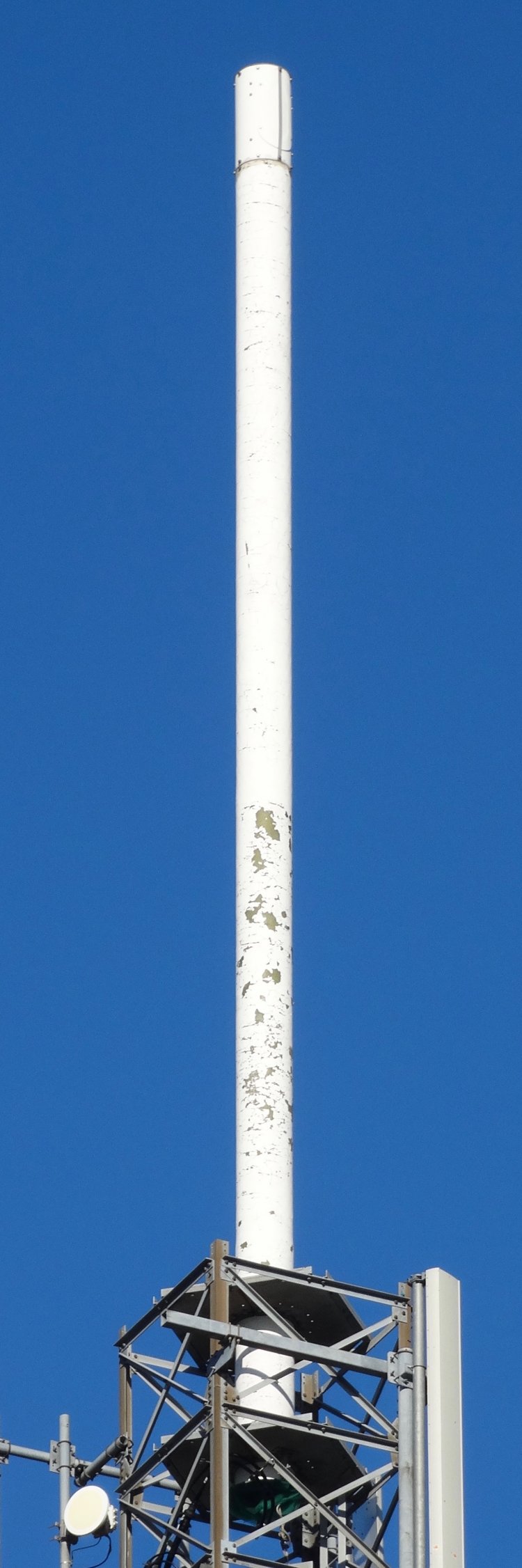

| The paint continues to flake from the UHF transmit cylinder. |

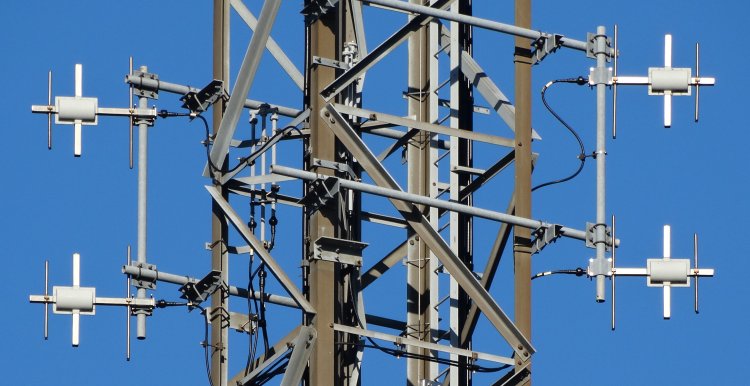

| The band III DAB Yagis. |
| |
