GWAENYSGOR
| Photos by Martin Brown | Page last updated: 2022-08-09 |
| Band III dipoles have been added to the top of the Arqiva tower at Gwaenysgor for the North West Wales local DAB multiplex. Ofcom data gives a service date of 30-Aug-2016. |

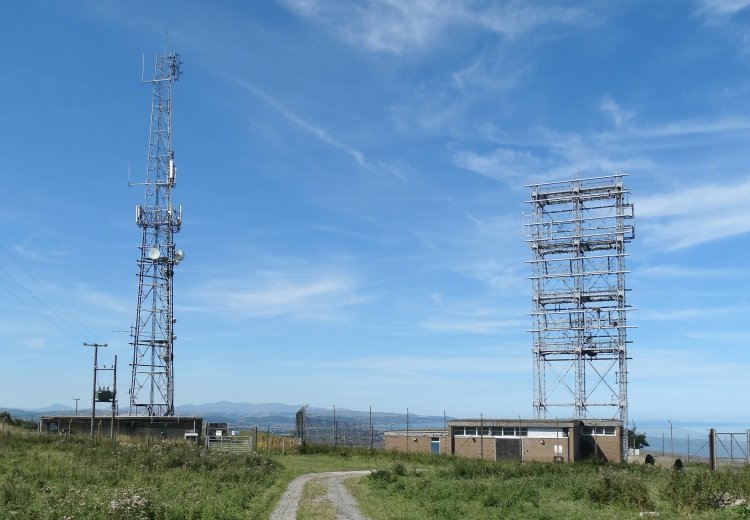

| The Arqiva tower |

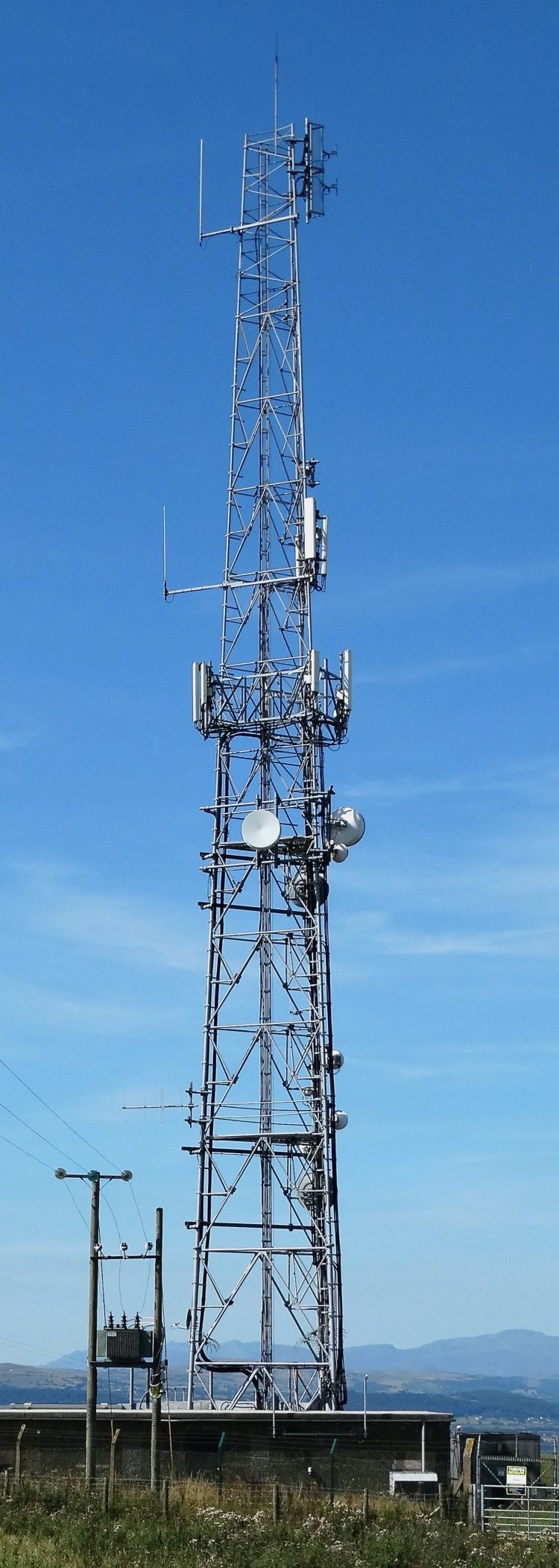

| The transmit aerials. |

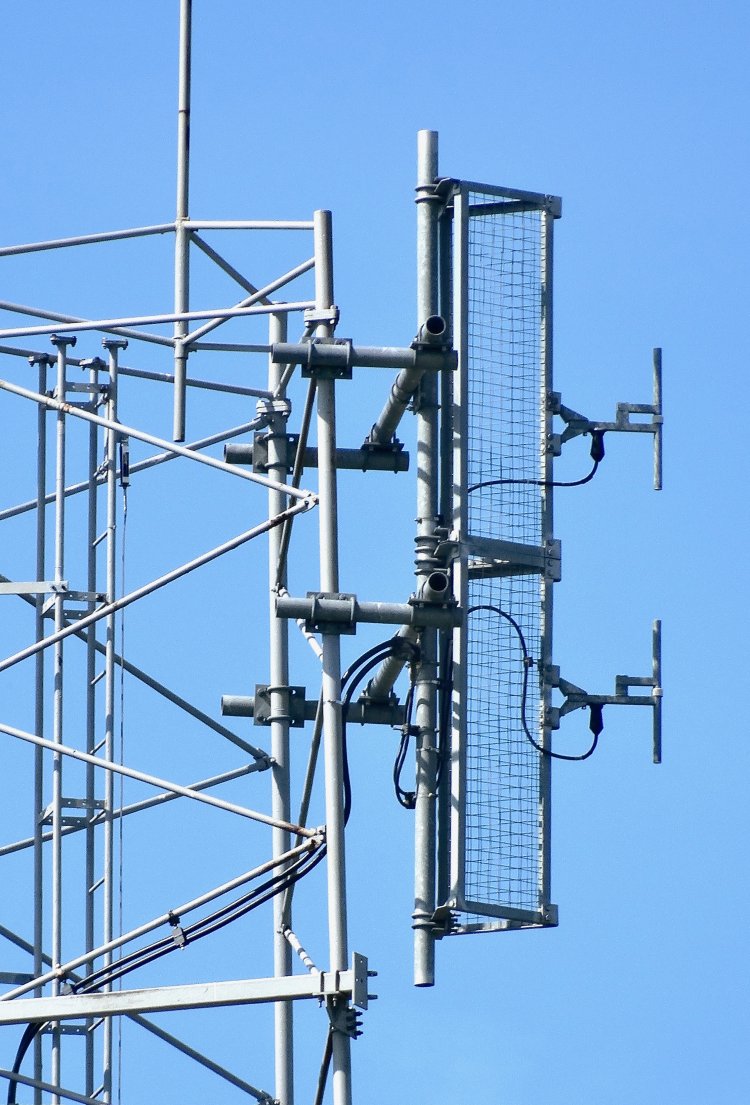

| Two tiers of band III dipoles in front of a screen for DAB transmit. |

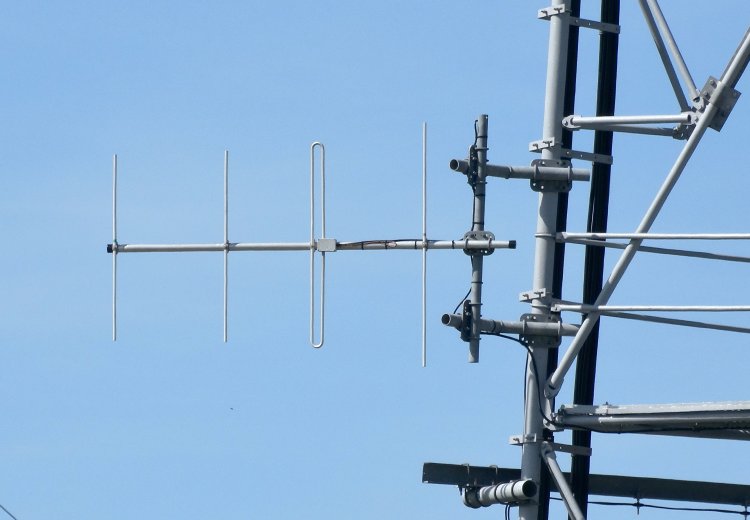

| A slant polarised 4 element band II Yagi transmits FM local radio. |

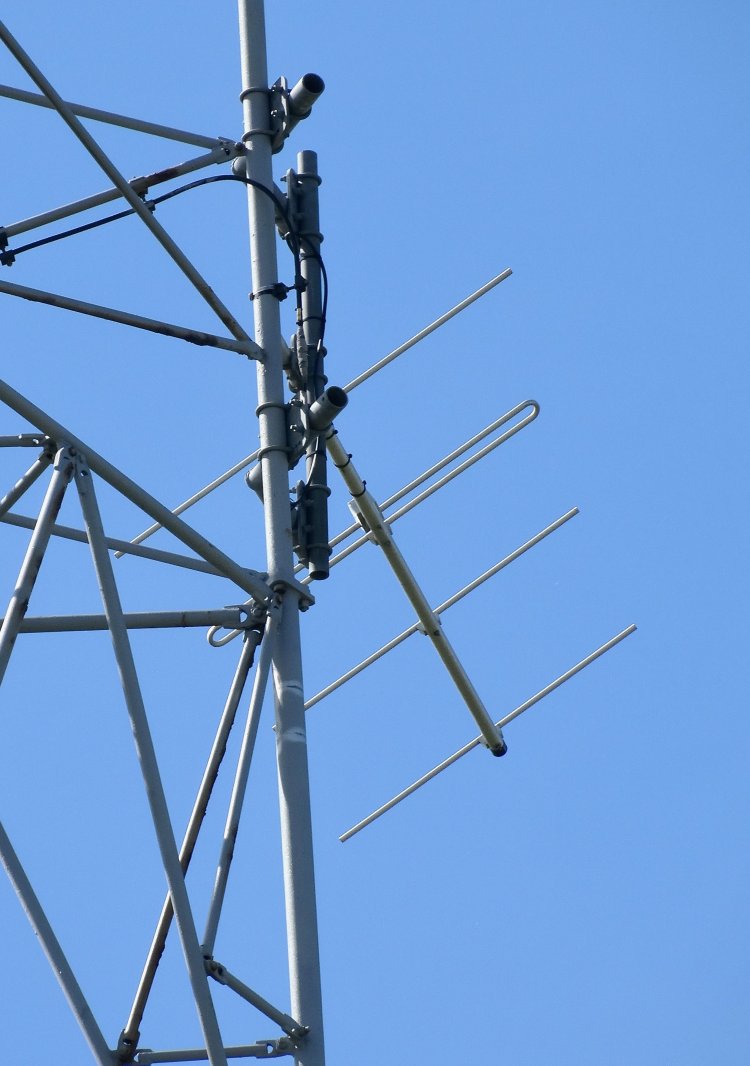

| The band II receive aerial has been repaired since Dan Glover visited in 2012. It is pointing at Moel-y-Parc. |

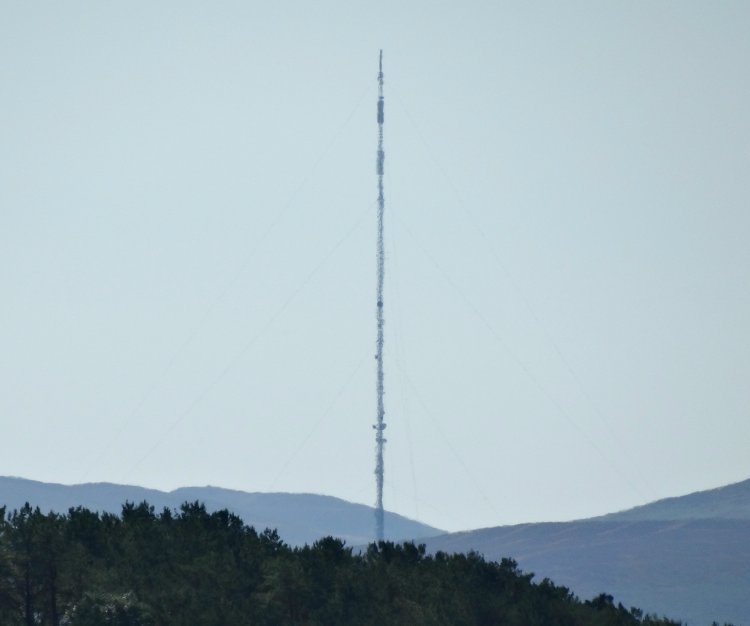

| Moel-y-Parc is visible from Gwaenysgor. It lies 7.8 miles to the south-southeast. |
| |
