WALSDEN SOUTH
| Photos by Martin Brown | Page last updated: 2022-10-12 |

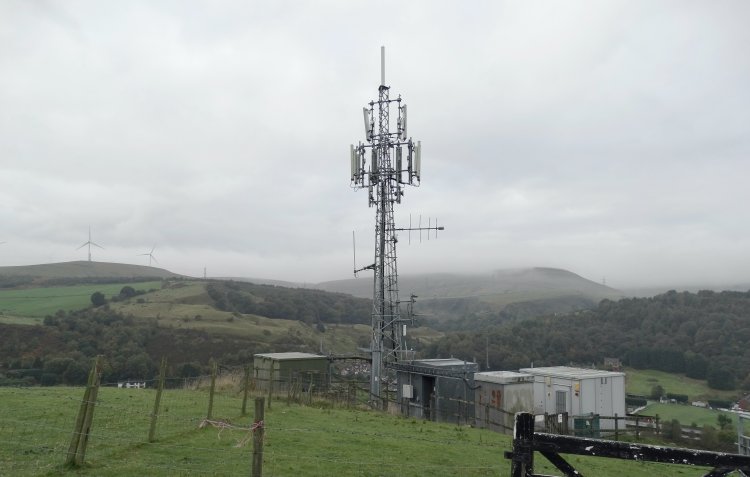

| The UHF transmit aerial has been replaced at Walsden South as a consequence of 700 MHz band clearance. B700 channel changes were implemented on 5-Feb-2020. |

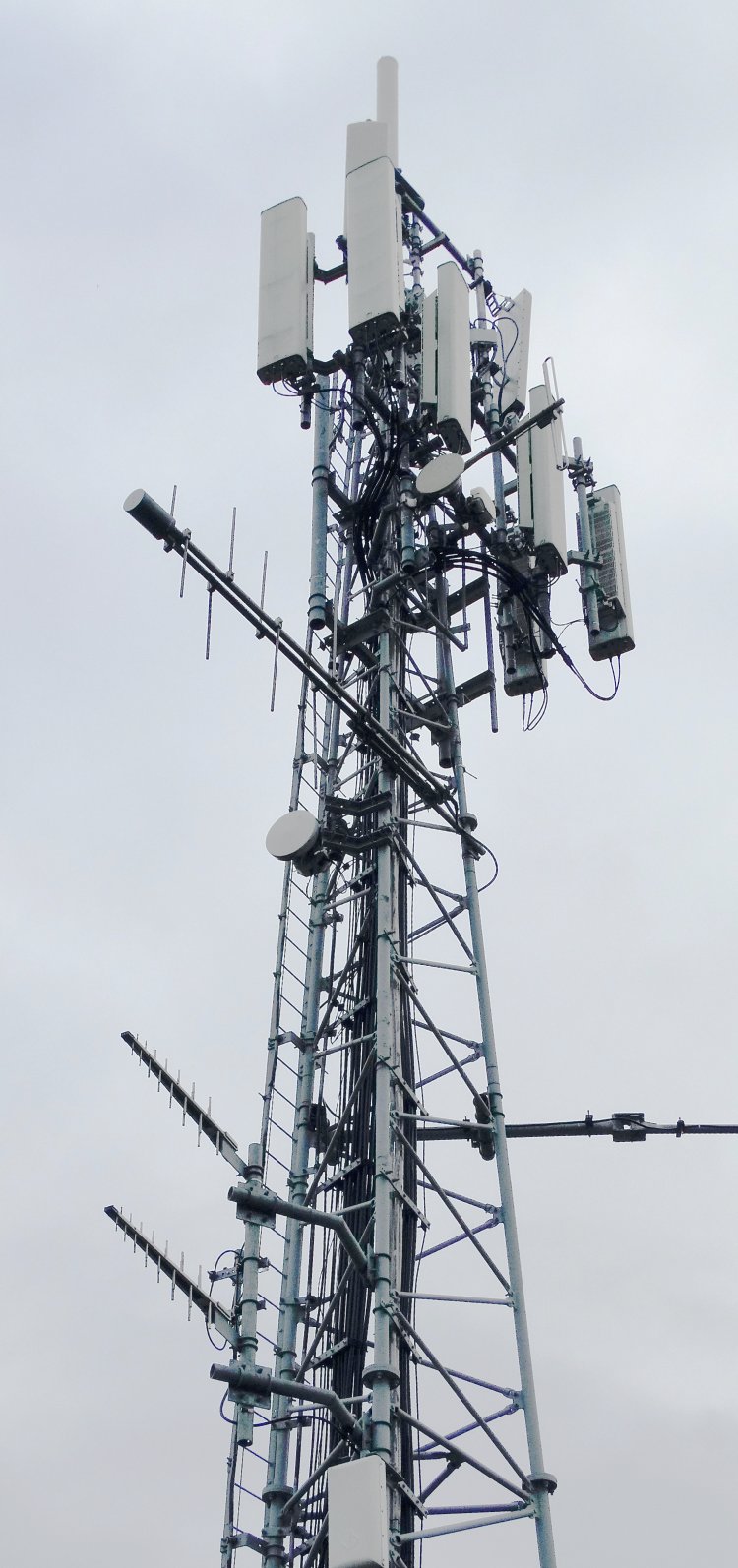

| Receive aerials. The band II log periodic receives from Cornholme. UHF from Walsden. I calculate a 6 degree pointing angle difference between the two sites. Can you spot the difference? |
| The four tier open cardioid UHF transmit aerial has been replaced with this cylinder. |

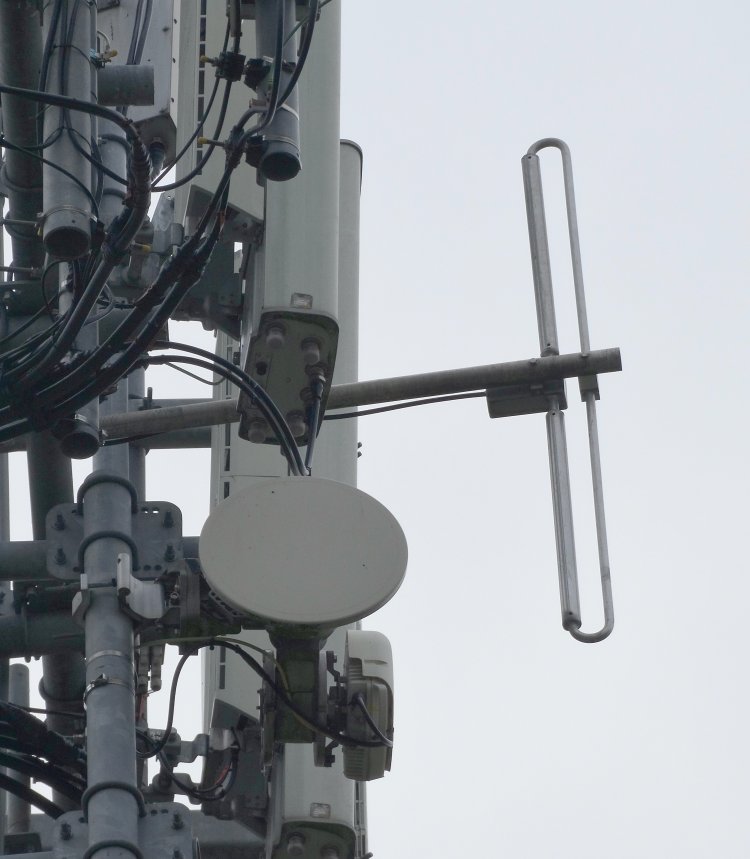

| The band II FM radio transmit folded dipole is now surrounded by mobile phone antennas. |

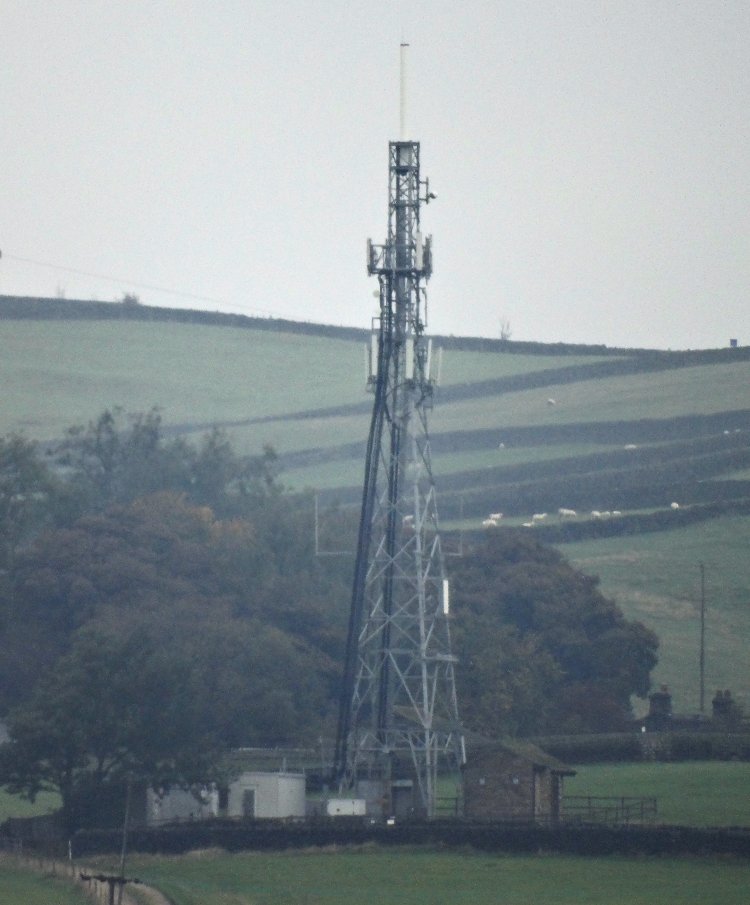

| Walsden 2.2 km to the northwest of Walsden South and on the opposite, west side of the valley. |
| Walsden, the town. |
| |
