ROTHERHAM
| Photos by Martin Brown | Page last updated: 2023-02-08 |
| An aerial to transmit the Sheffield and Rotherham local DAB multiplex has been added at Rotherham. |
| DAB is on the shorter tower on the left. FM radio is on the taller tower, which has lost all of its SHF antennas and the four large Yagis, observed by Bill Wright in 2007. |

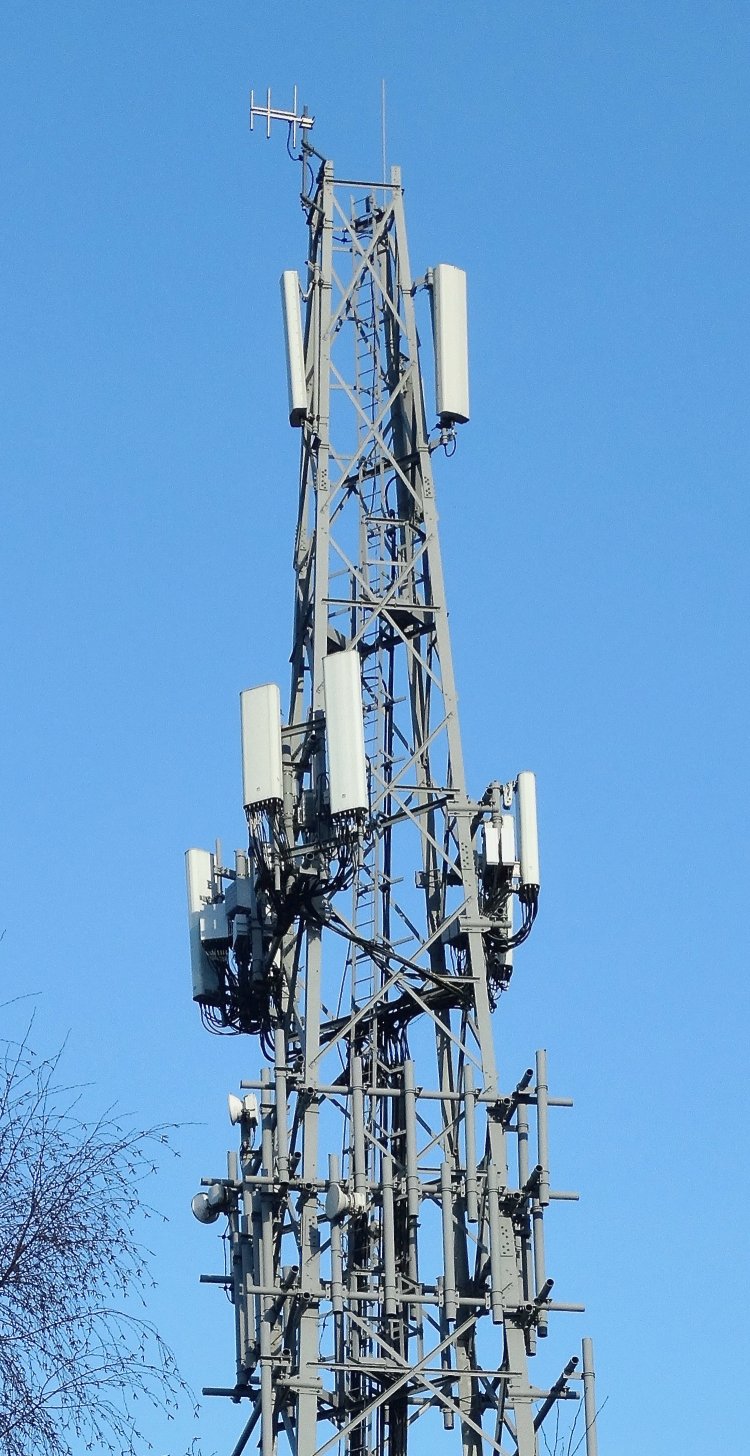

| The DAB tower viewed from the sunny side. |
| A three element band III log periodic is used to transmit DAB. Ofcom Tx Parameters indicate that the aerial is pointing southwest (220 degrees), which is the direction of Sheffield city centre from here. |
| No change to the FM transmit aerial. I believe that it is a Shively Labs 6810. Link at foot of this page. |
| The view towards Sheffield. |
| |
