ARMITAGE BRIDGE
| Photos by Martin Brown | Page last updated: 2024-05-12 |
| The original curved profile band V transmit panels have been replaced at Armitage Bridge as a consequence of the channel changes for 700 MHz band clearance (B700). All 3 multiplexes now transmit in band IV. B700 clearance at Armitage Bridge was implemented on 5-Feb-2020. |

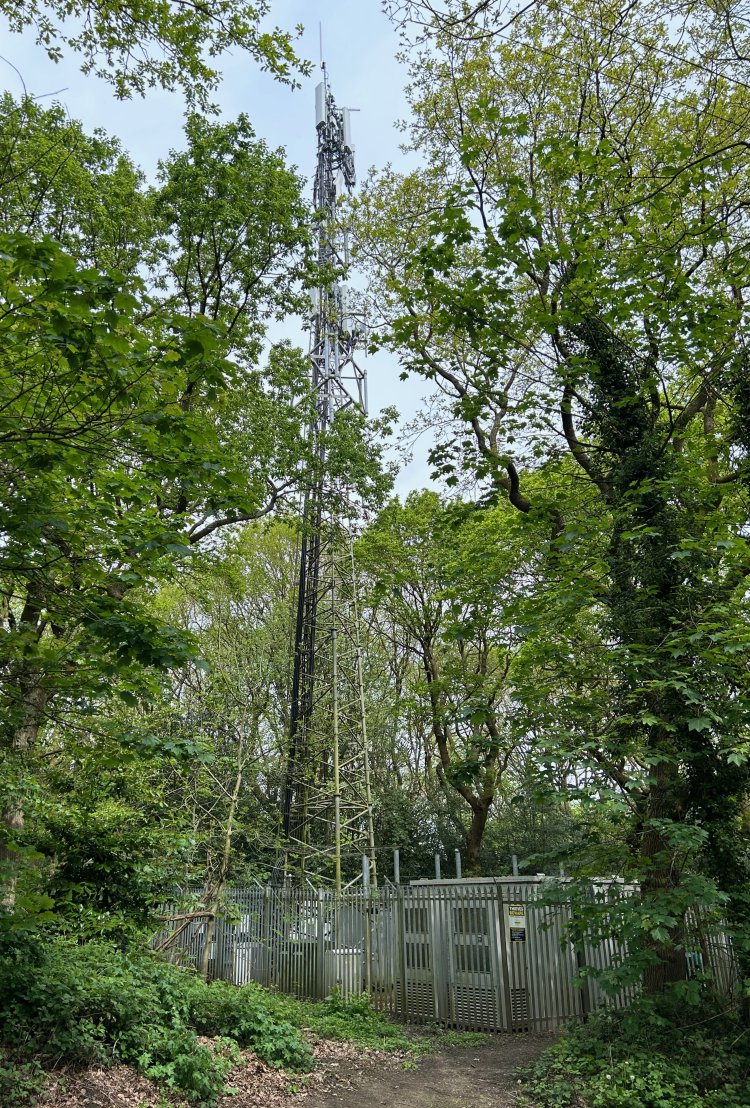

| Although the site is beside a road, it lies within a woodland area making photography of the aerials somewhat challenging, particularly as the broadcast aerials face away from the road. |

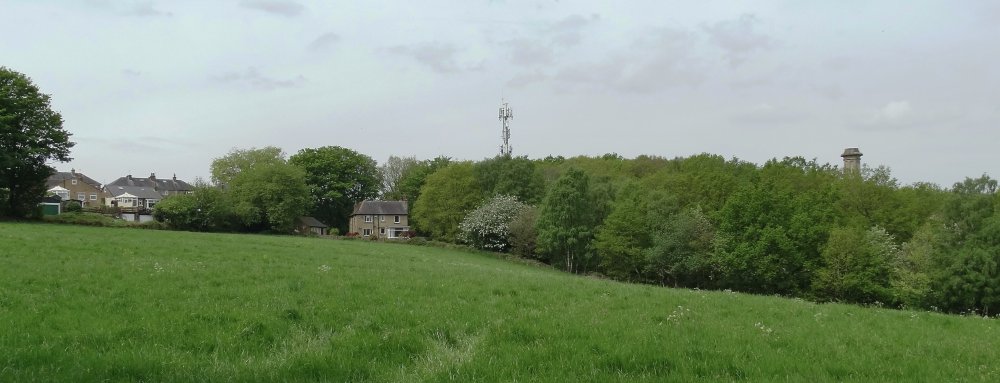

| 270m from the tower at the far end of a field, a clear view of the top section with all of the aerials is available. |
| By the power of a zoom lens we can get a closer view of the aerials. |

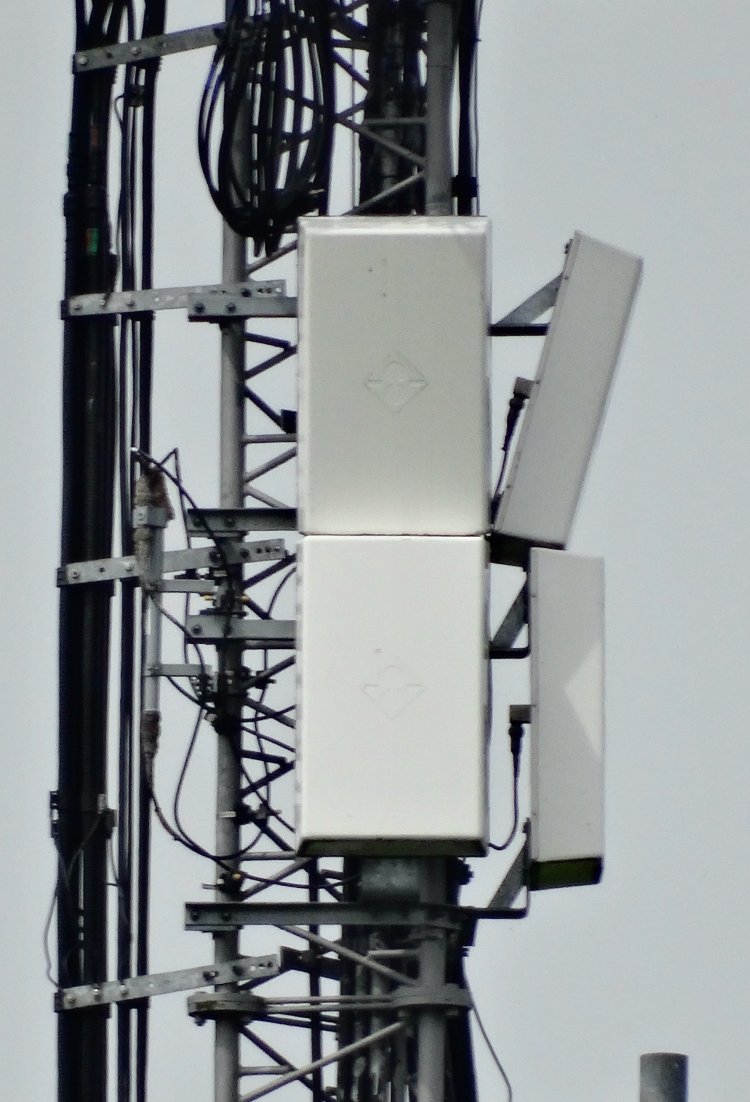

| The new UHF transmit panels embossed with the Sira logo. The top tier panels have quite a significant downward tilt. |

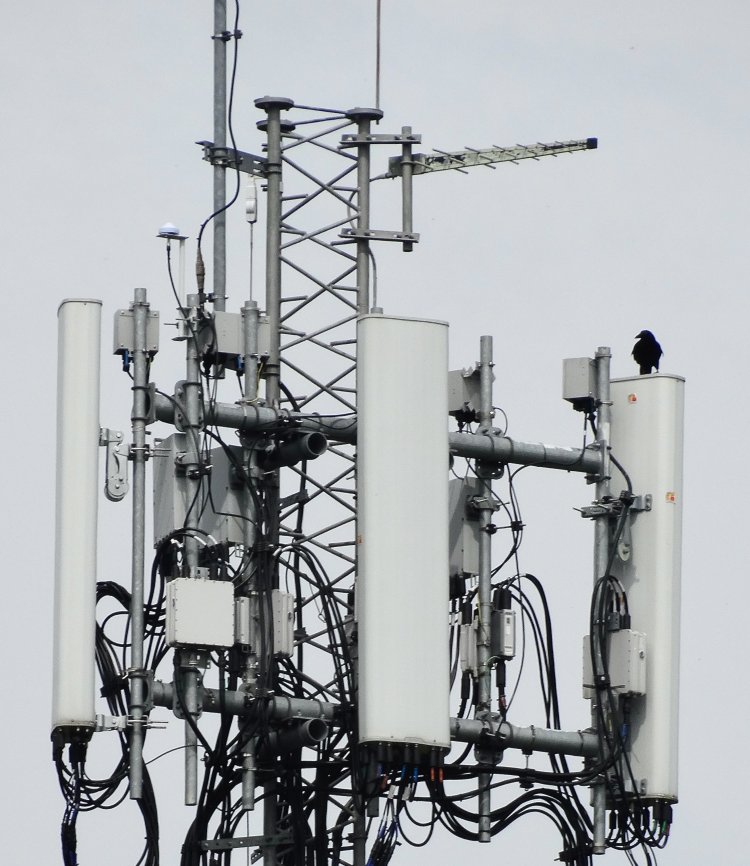

| A single UHF log periodic at the top is used to receive Emley Moor. |

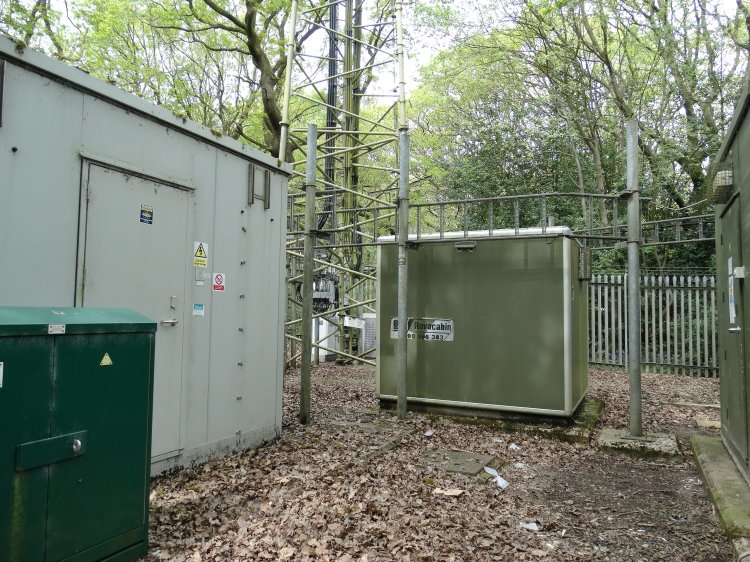

| The compound. |
| The service area |
| |
