HARROP EDGE

Photos by Ringway Manchester Page last updated: 2024-08-05

New transmit aerial - August 2024

The original vertical dipole transmit aerial for Tameside Radio at Harrop Edge has been replaced with a circularly polarised aerial.


Tameside Radio launched on 30 September 2007 but its roots began in a station called 8 Towns Radio, originally known as Heartbeat Radio, which broadcast to the patients and staff at Tameside Hospital, Ashton-under-Lyne, from 1983 until 1997. From October 1992, the station could be heard across the borough of Tameside in a series of 28-day 'trial' broadcasts, firstly on medium wave and later on FM. These special 'limited period' broadcasts helped to generate much-needed funds to keep the hospital radio service on the air and also gave Tameside its first taste of what a truly local, licensed radio station could offer to listeners of all ages, across the borough. The dream finally came true more than a decade later and a full-time community radio station was eventually launched in 2007 when Timperley superstar and singing sensation Frank Sidebottom switched on 103.6 FM Tameside Radio on the Market Ground in Ashton-under-Lyne, on Sunday 30th September in front of a packed crowd.

Today the station has a variety of presenters and broadcasts a wide variety of music 24 hours a day from its studios at Cavendish Mill.

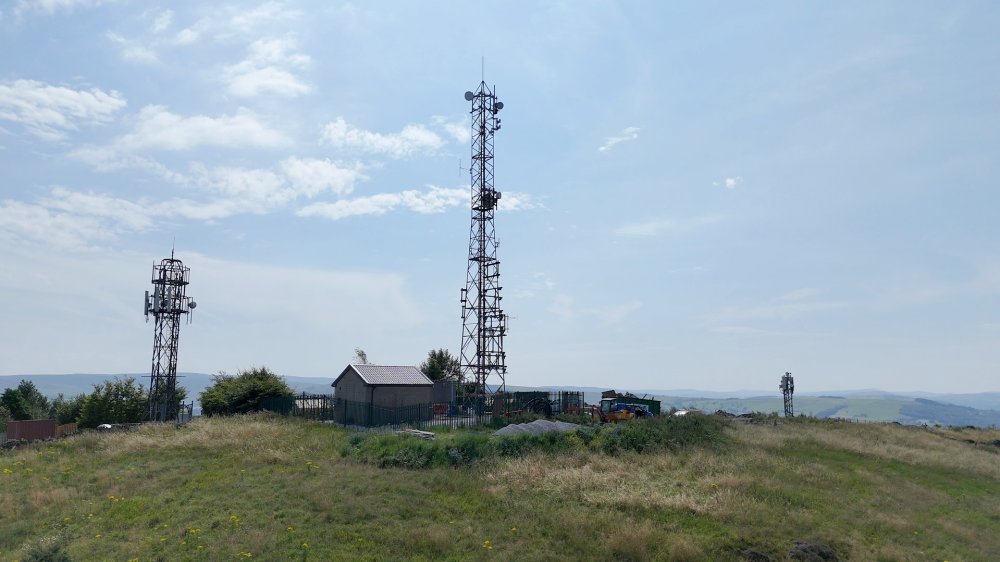

The transmitter for Tameside Radio is located on the main tower at Harrop Edge. The transmit aerial, located around 10m above the ground, used to be a folded dipole, but in recent years, it’s been replaced with this.


Antennas like this have been designed to obtain circularly polarized radiation patterns, and are ideal for low and medium powered FM radio transmitters. [Ed.] The new antenna looks like a Label Italy AKG/8

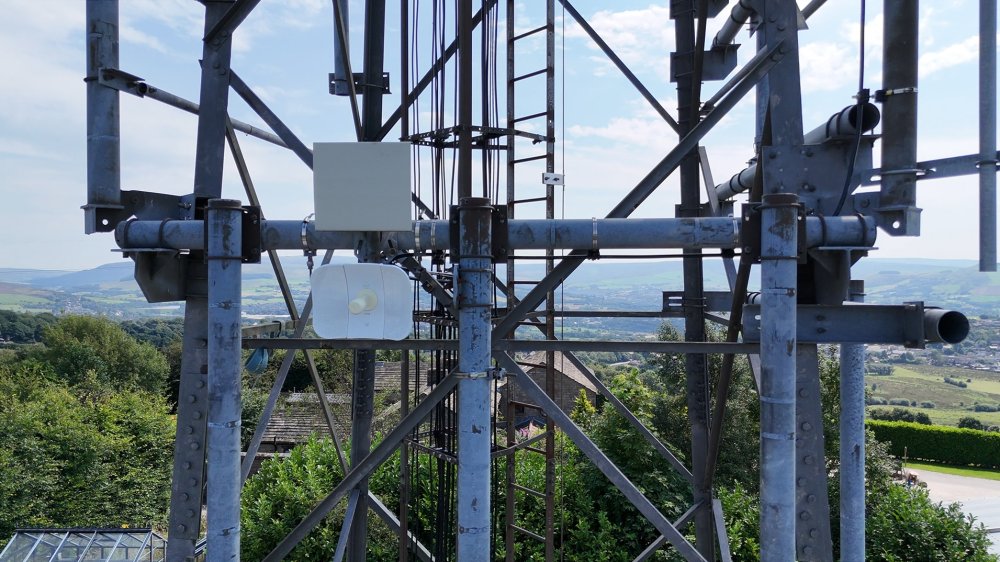

The panels next to the transmit antenna form the studio to transmitter link. This is a Ubiquiti LiteBeam and I believe its operating in the 5GHz band. As for the panel, I’m not certain what this is. It could be a backup or something else and I’m sure. These both point towards Ashton Under Lyne (Cavendish Mill), 3.2 miles away to the north west.

Harrop Edge index

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
