ALDERNEY
| Photos by Thomas Hudson | Page last updated: 2025-07-22 |

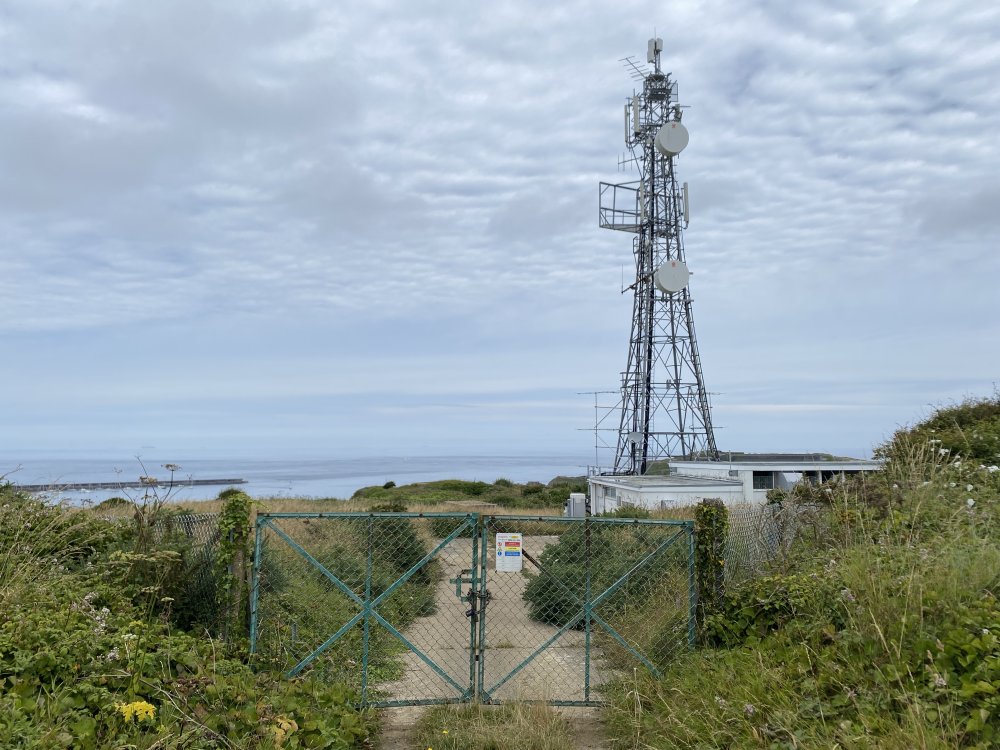

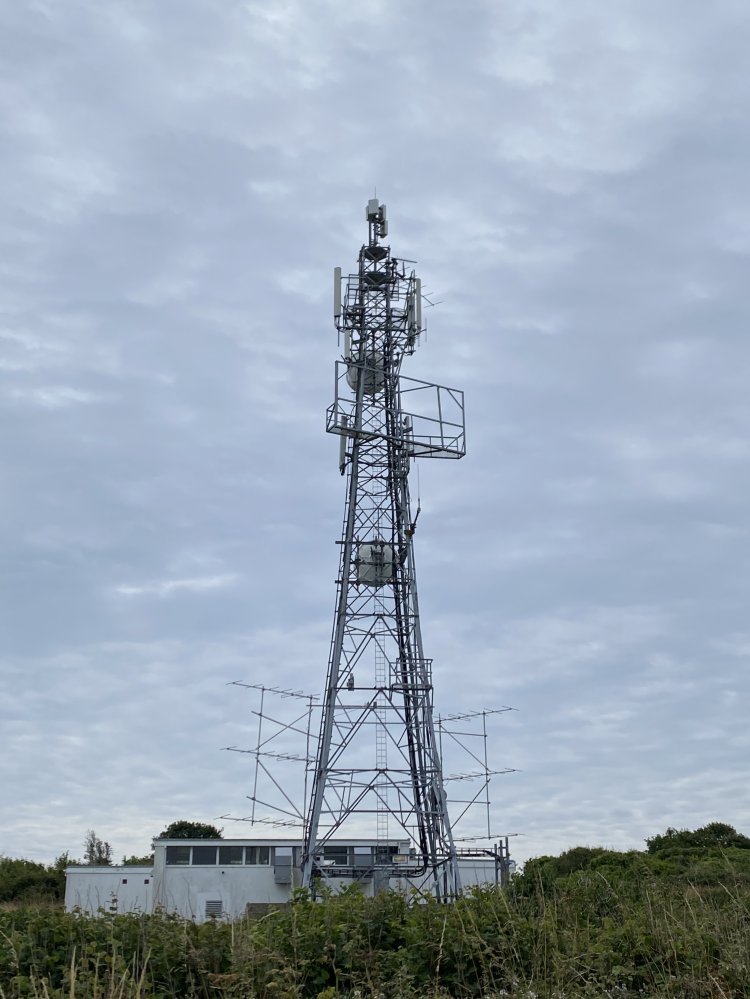

| Site entrance, viewed from the south. |
| Using Thomas' original photo we've been able to usefully crop and zoom - as above. |

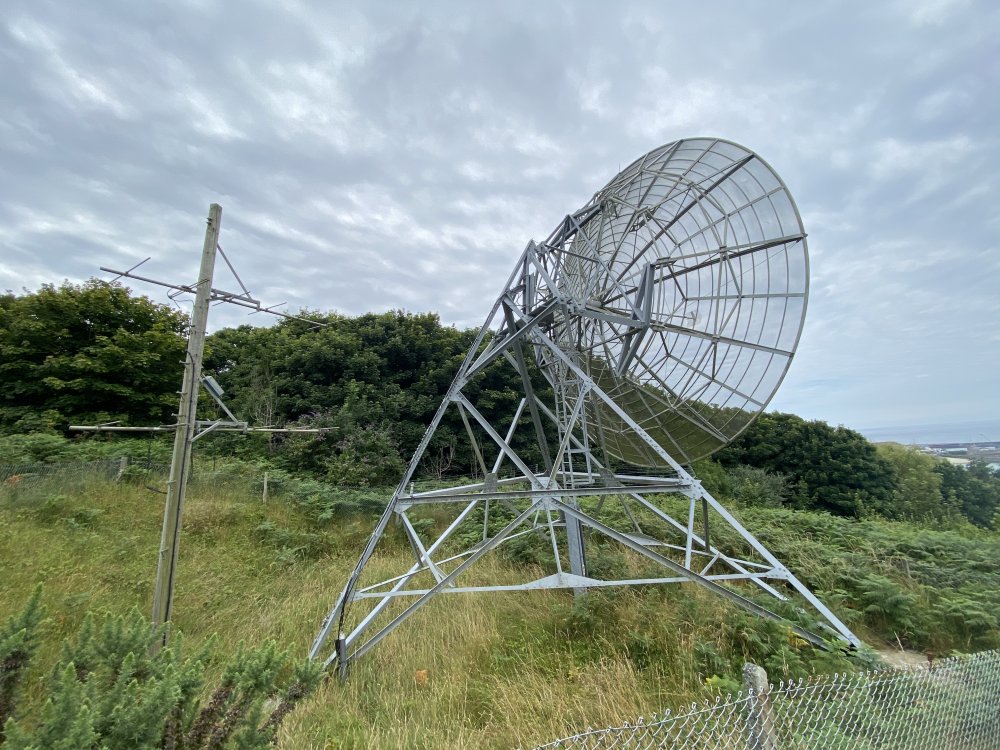

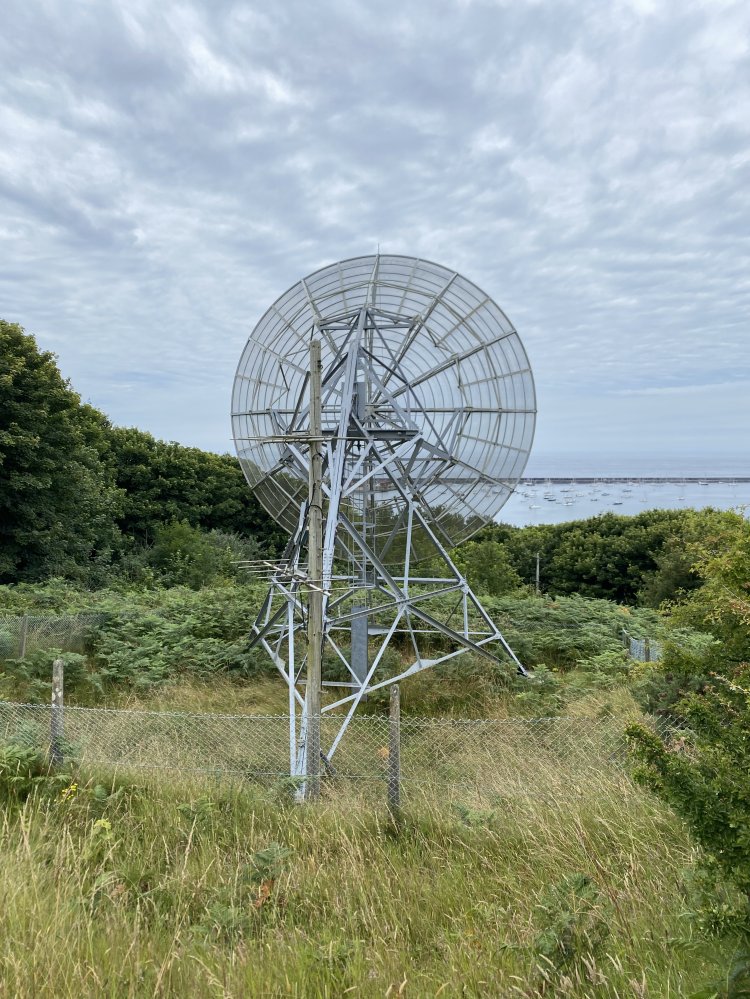

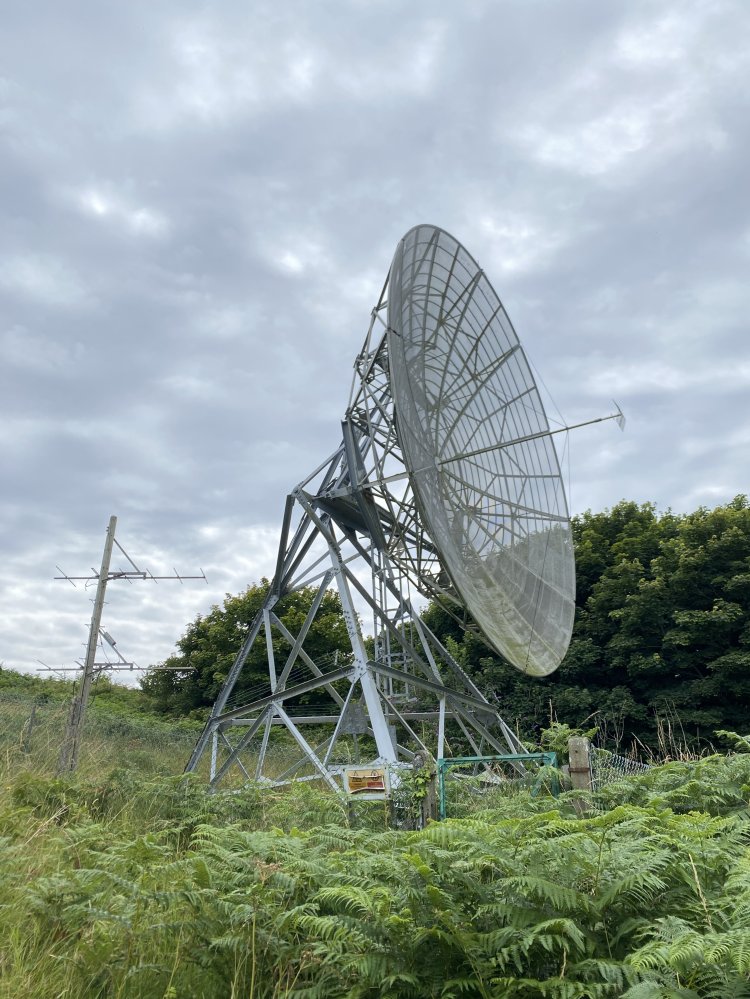

| Looking south west with the main mast on the left and large dish on the right |
| In this photo we've cropped and zoomed and rotated from the original photo at the head of this page, and although other distortions have appeared it gives us an alternative view of the structure. |

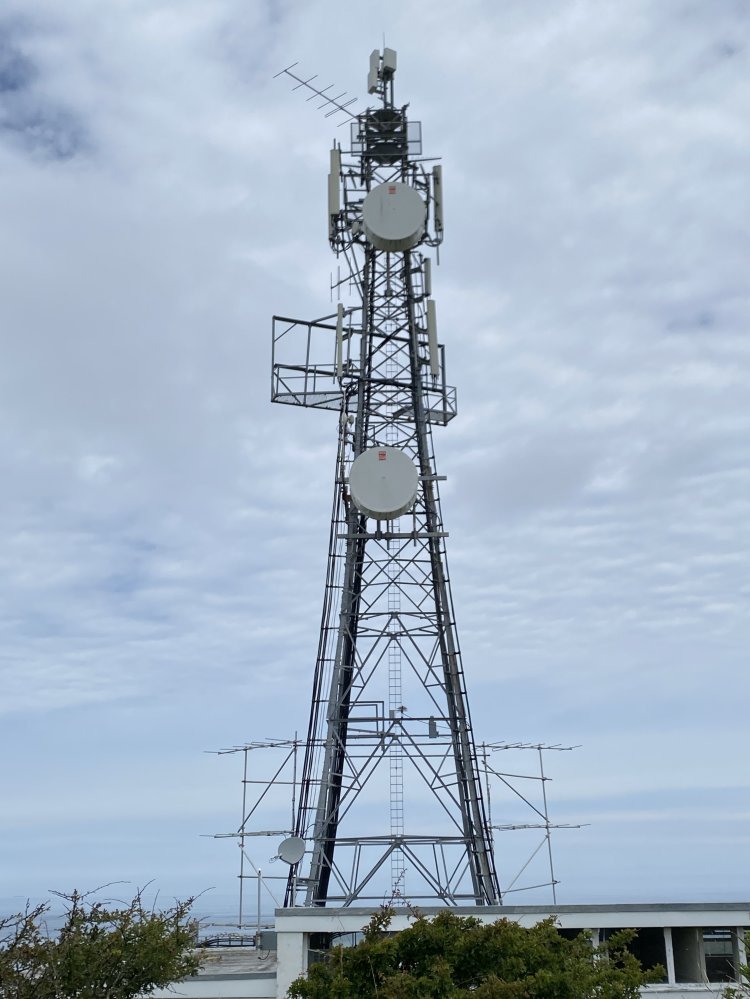

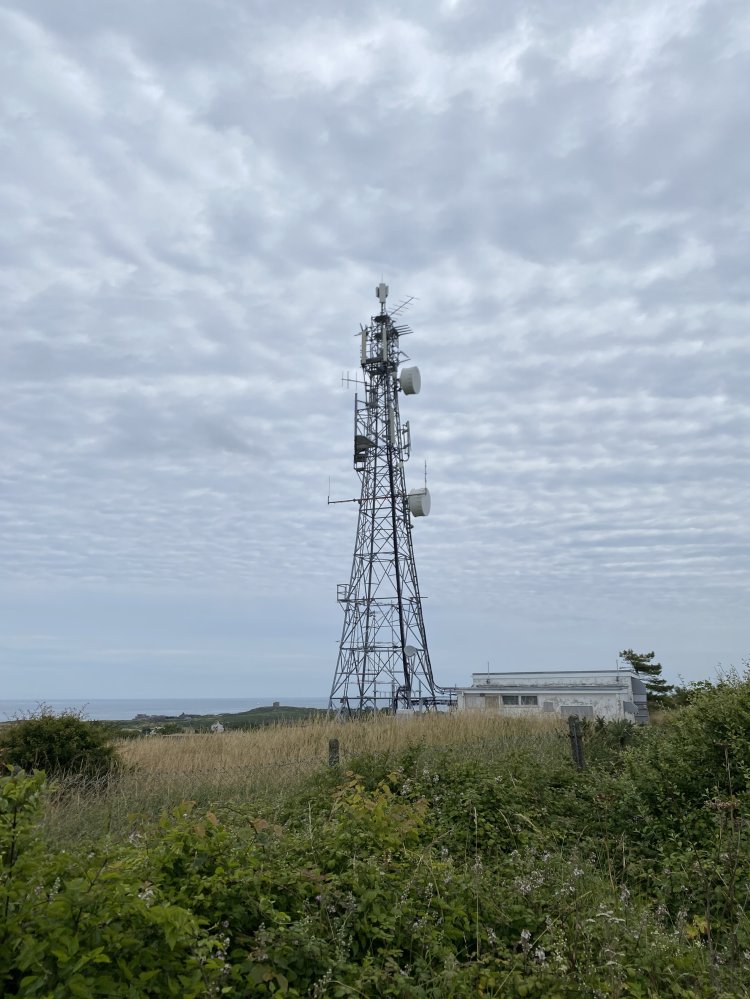

| View of the tower looking north. |

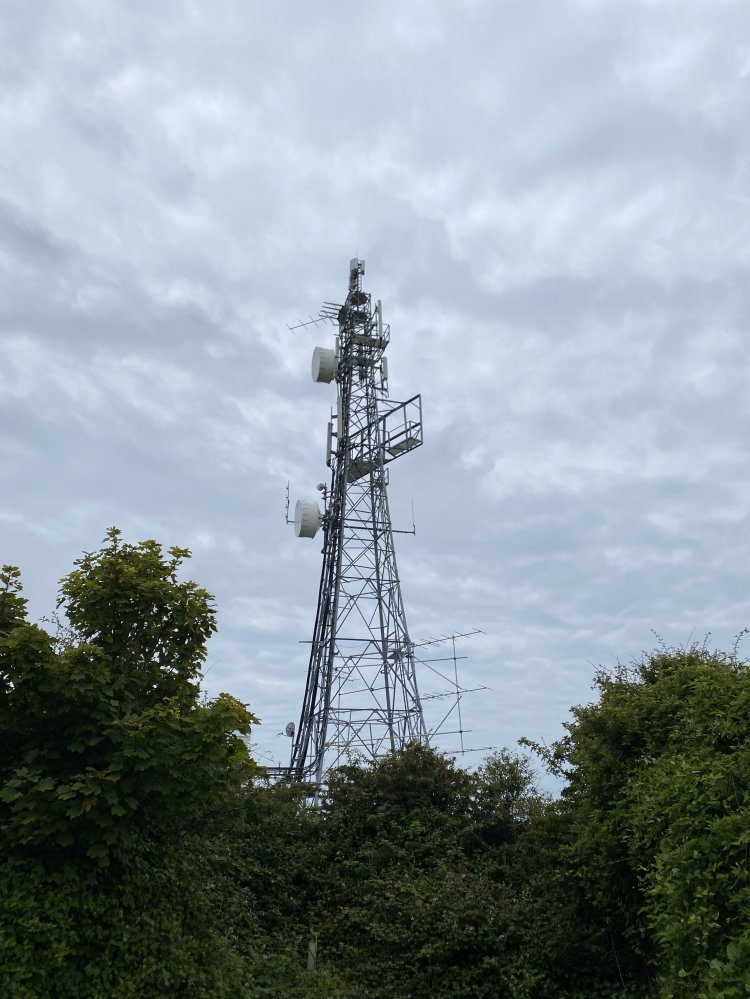

| Tower view looking to the south. |
| Tower view - looking west. |

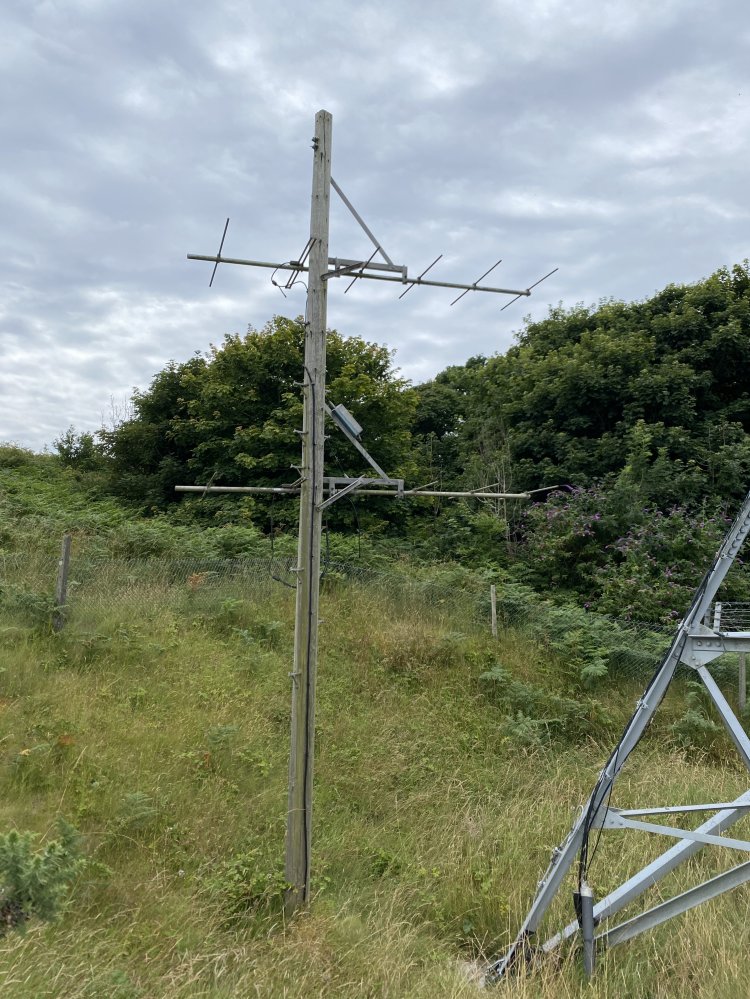

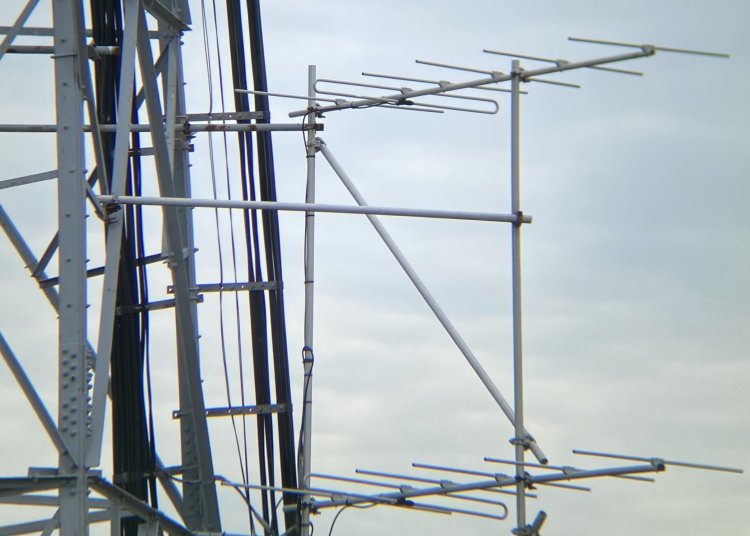

| North west facing yagis at base of tower. |

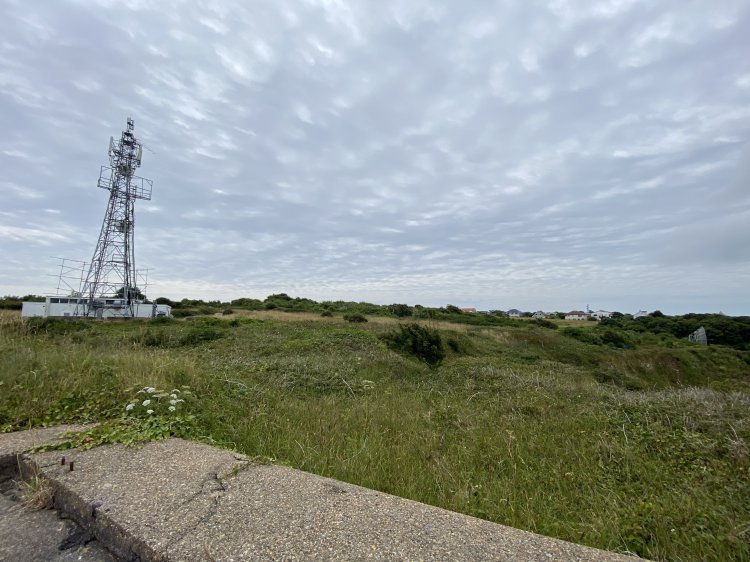

| Site view - looking south east. |

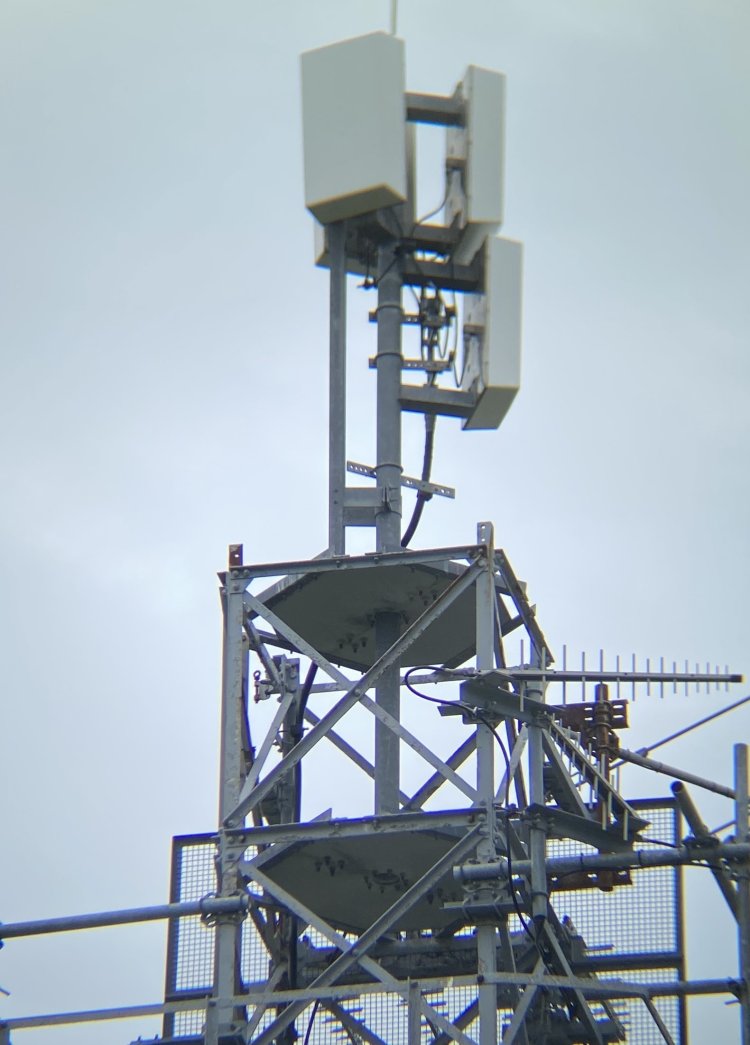

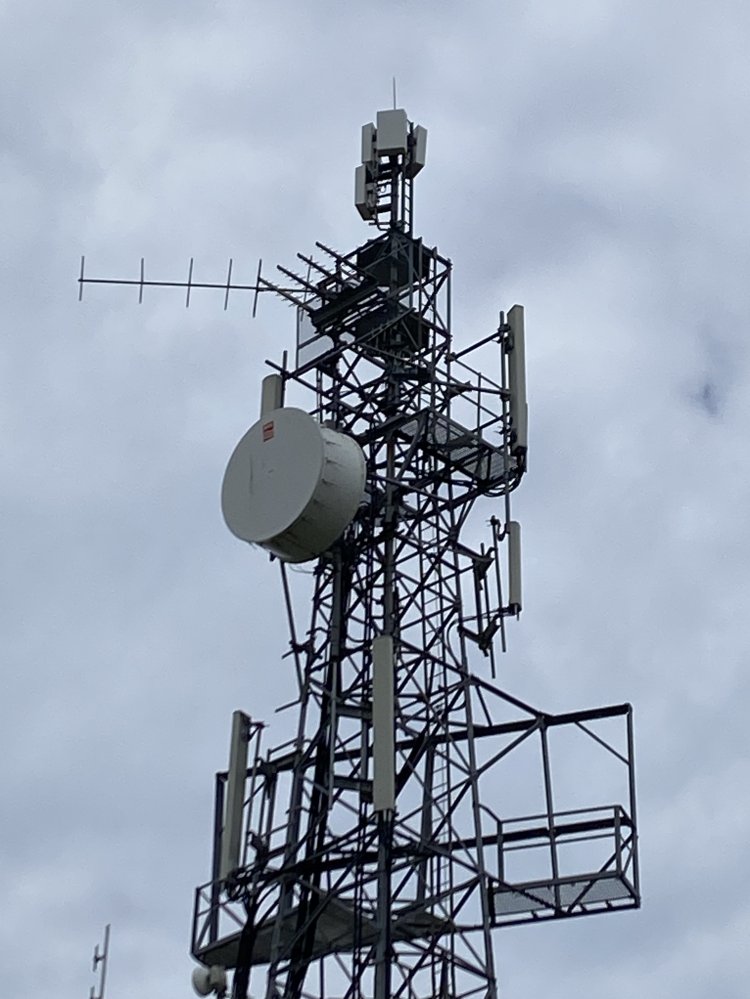

| Top of tower, viewed from the north. The two vertically polarised logs (facing roughly north and west) would appear to be back-ups. |

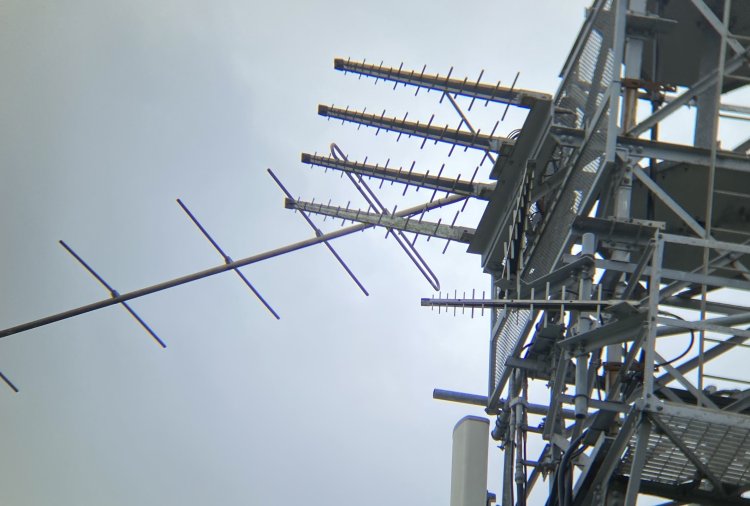

| A detailed view of the former RBL logs on Fremont Point (no longer in use, Alderney uses the same channels as Fremont, although whether it's an SFN in the strict sense is unclear). In addition, there are two more vertically polarised logs, which appear to be further back-up to complete the HRP with the logs shown in the previous photo. |

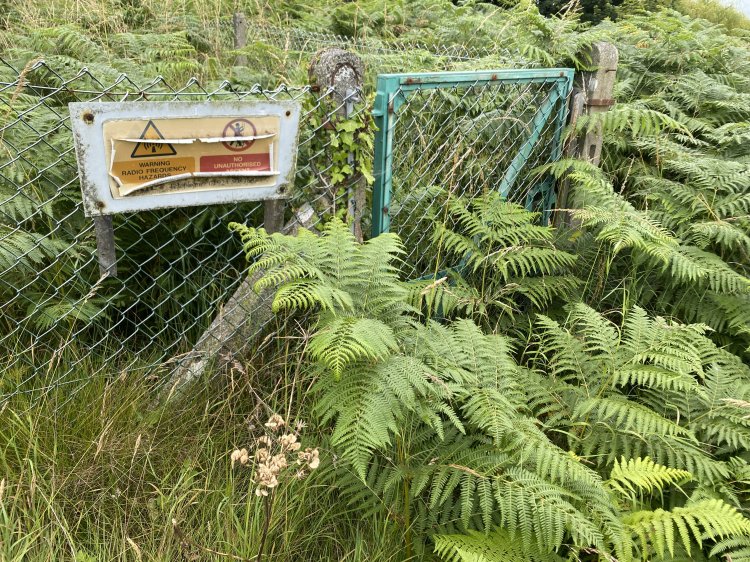

| Dish area entrance gateway. |
| TX viewed from Braye beach |
| |
