ABERDARE

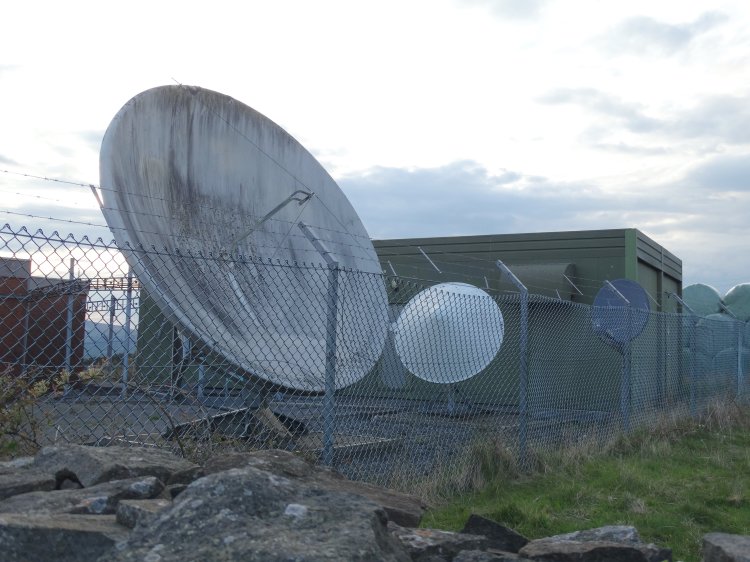

| Photos by Martin Brown | Page last updated: 2025-05-19 |
| Even though it is 19 years since Anthony Salmon visited this site, the only change to the broadcast aerials is the removal of the lower UHF trough. |
| These picture were taken around 8pm after earlier rain had stopped and the skies were clearing but only 45 minutes before sunset. |

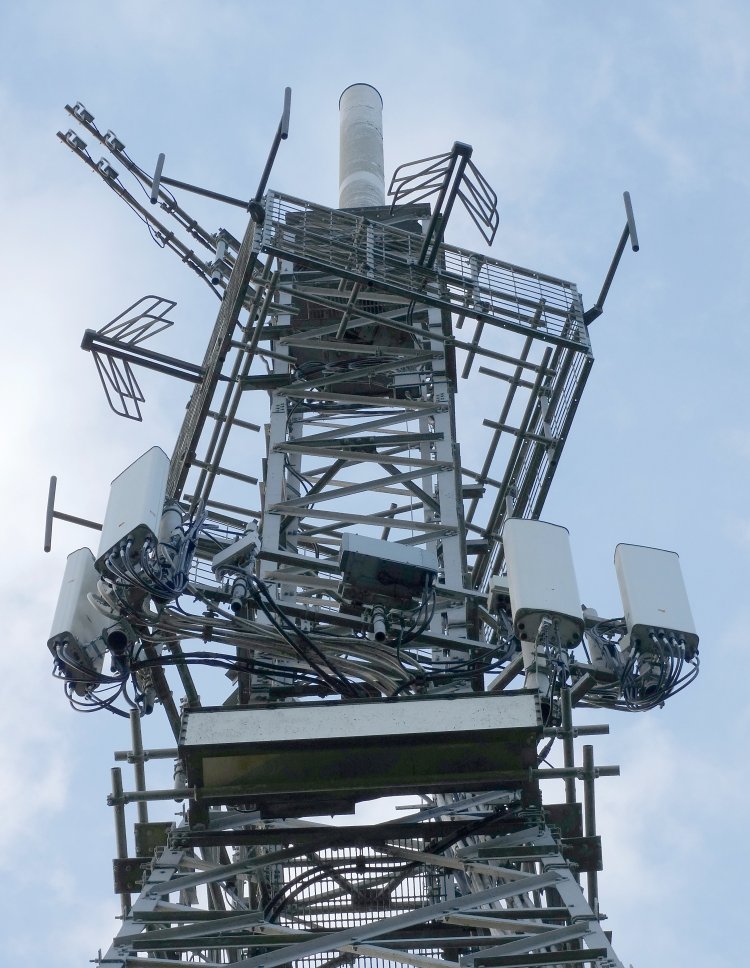

| The UHF cylinder looks to be the original from 1967. |

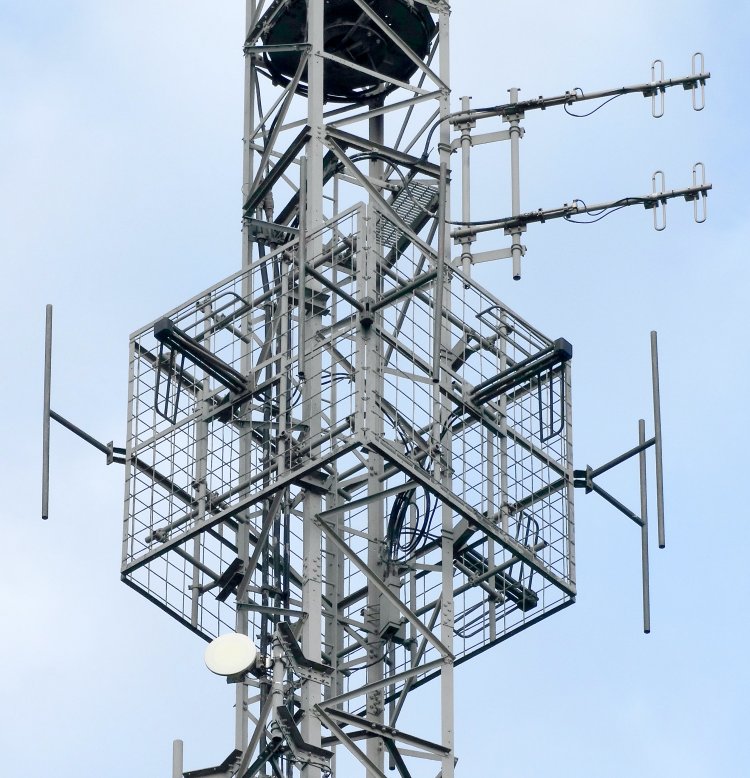

| Radio transmit aerials. CSA band II circularly polarised panels for FM radio and two tiers of 210 degree facing, band III cardioids for DAB. |

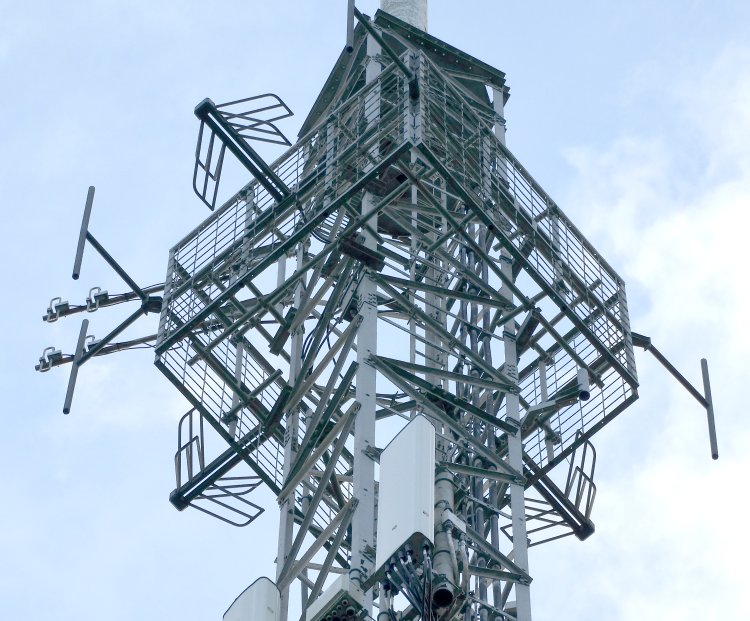

| From this angle you can clearly see that there is no aerial on the northeast facing panel of the band II FM radio transmit array. |

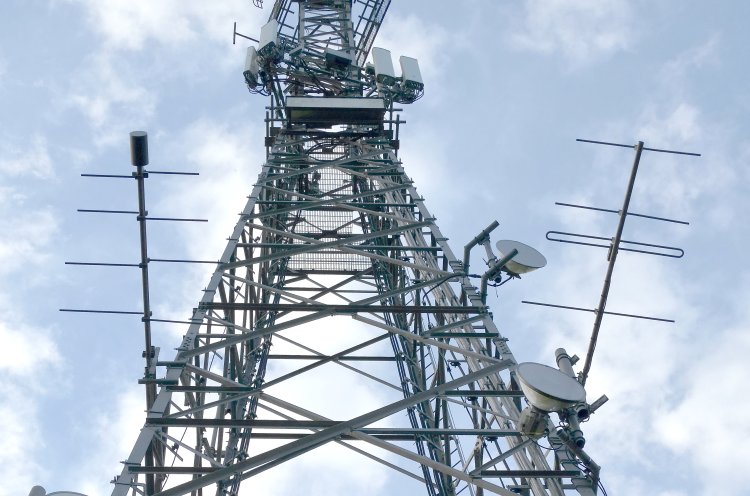

| Band II receive. The 4 element Yagi on the right is redundant. Was used to receive Radio Wales from Wenallt until that service was transferred to Wenvoe. |
| |
