THE TRANSMISSION GALLERY
HASLEMERE
| Photos by Martin Brown | Page last updated: 2025-06-17 |
| The UHF transmit panels at Haslemere were replaced in November 2017 ahead of the addition of the 3 Com multiplexes and 700 MHz clearance. The 3 Com muxes were added on 21-Mar-2018 with B700 PSB channel changes on 16-Oct-2019. Haslemere now forms a single frequency network with Midhurst for all 6 muxes. |

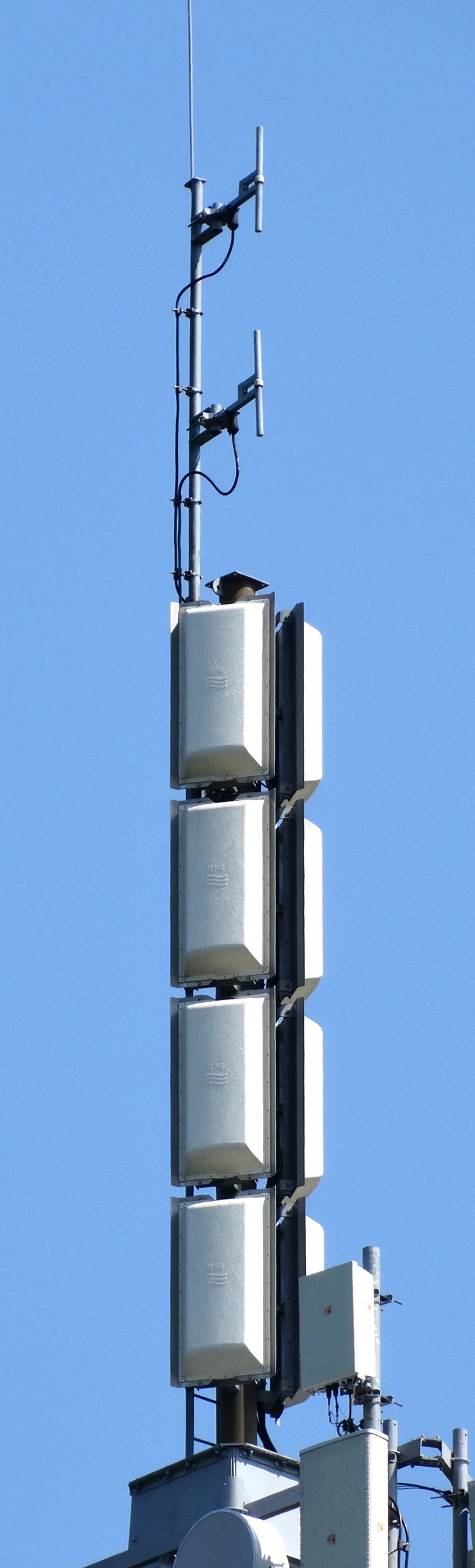

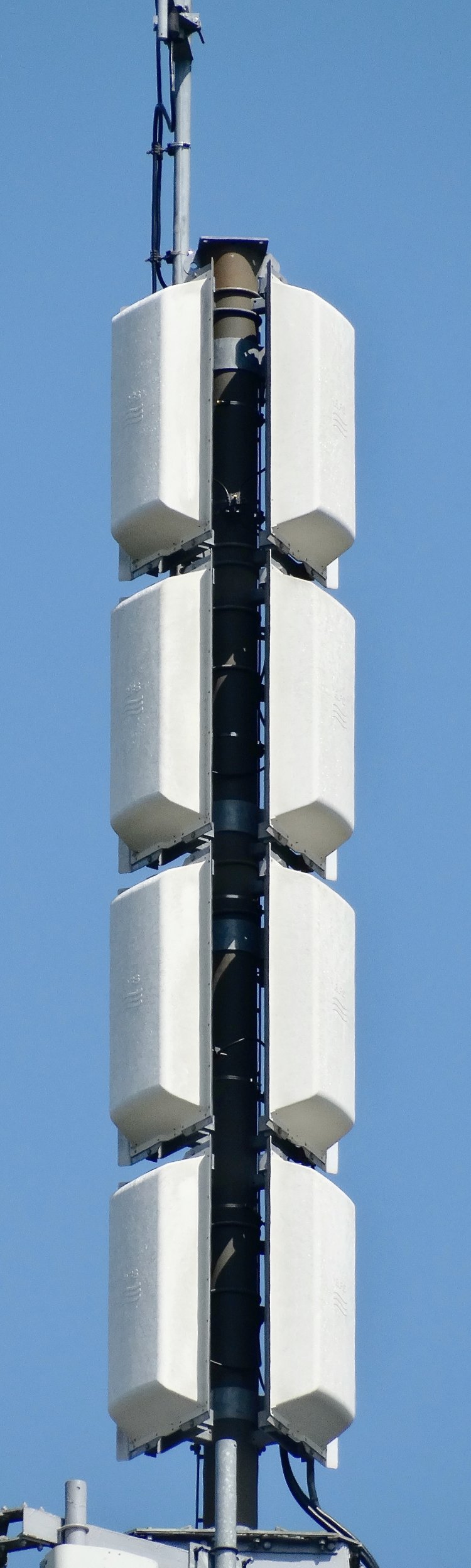

| The new RFS UHF panels with the two band III DAB dipoles above. |

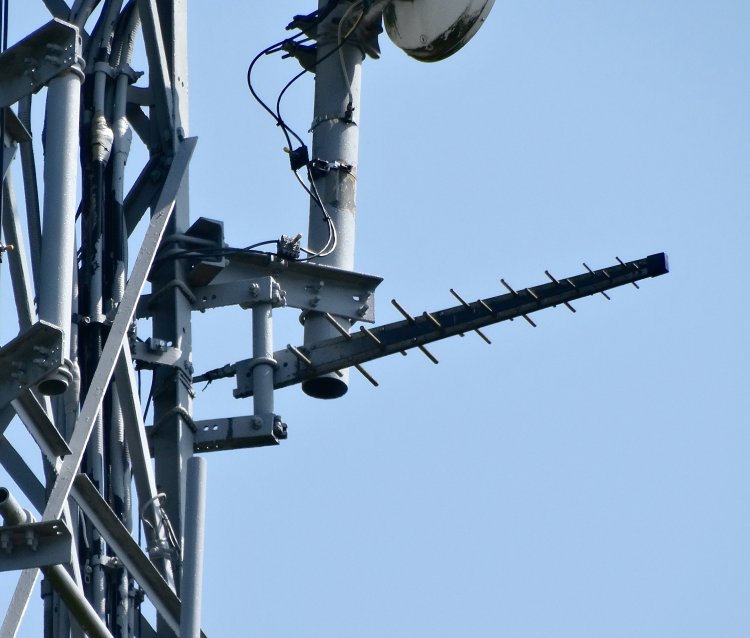

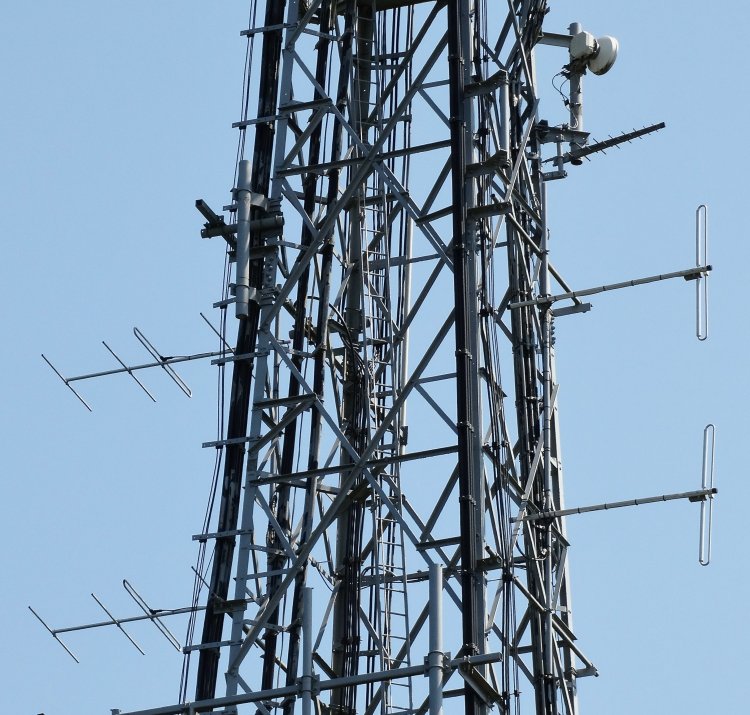

| FM radio receive on the left with FM radio transmit and UHF receive on the right. The two, 4 element receive Yagis appear to be pointed towards Brockham Hill, which also transmits the East Hampshire version of Greatest Hits Radio. The FM radio service was originally called Delta FM and there is a link a Wikipedia page at the foot of this page. |
| |
