CALLANDER
| Photos by Nicholas Coulter | Page last updated: 2025-10-25 |
| A wee update for the Callander relay. Last photographed by Alexander Sives in 2006 as a simple UHF relay. It now supports the full monty of telecommunications equipment too. DTT equipment appears unchanged. |

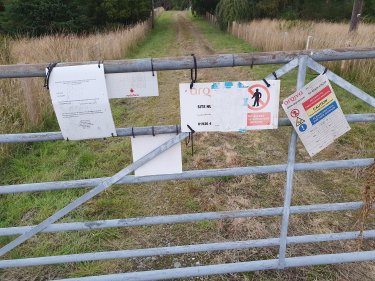

| Access gate and signage. |

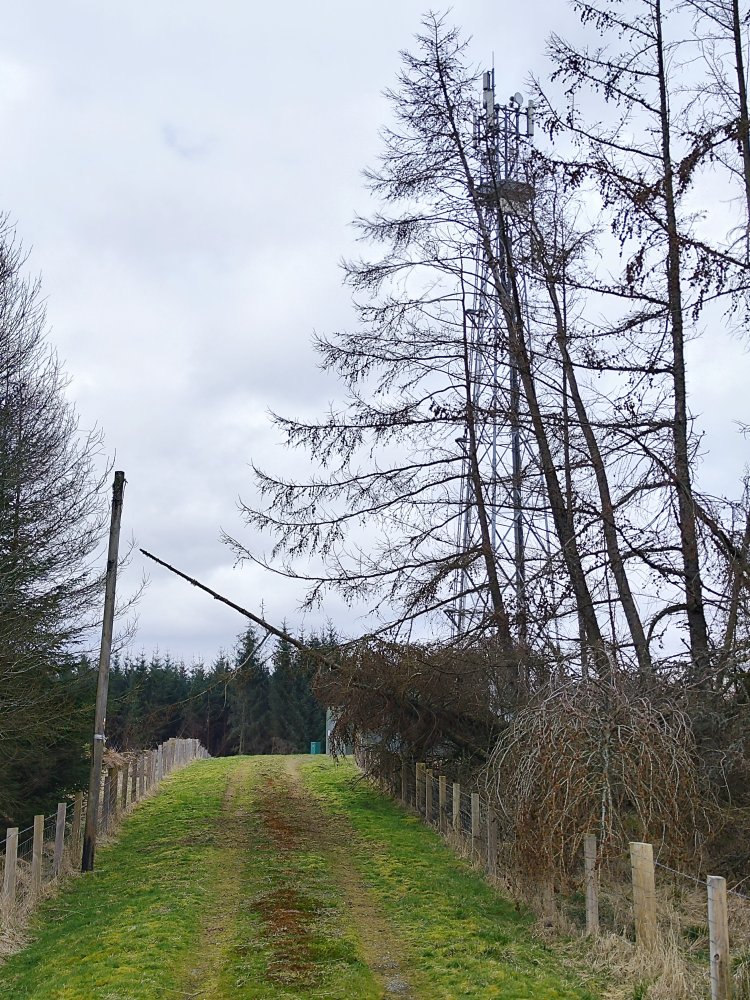

| The path leading towards the site. |

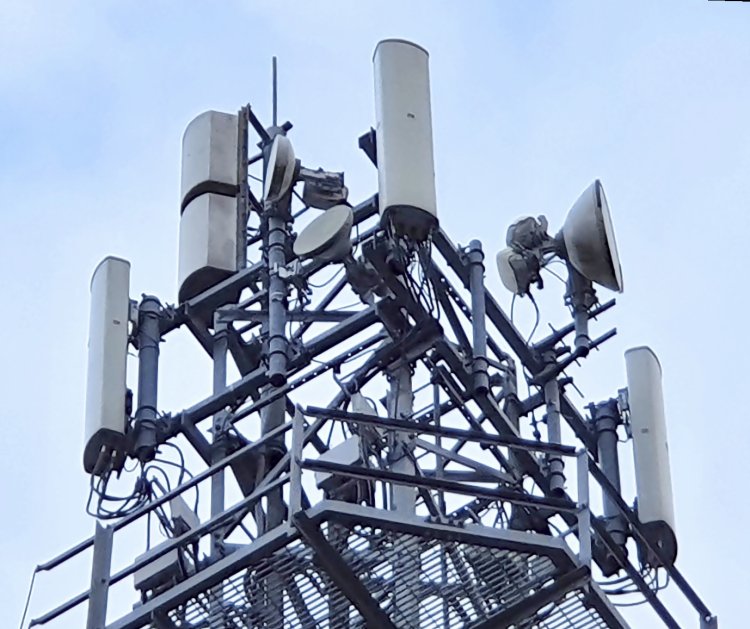

| Various antennas at the top of the mast. From left to right - Mobile Antenna - DTT Transmit - 2 Microwave Links (when mapped these clearly link to the 4G site in Callander itself as well as Ben Gullipen) - Mobile Antenna - Microwave Link (when mapped this appears to link with a site next to the M80 Services in Stirling, there is line of sight between these sites as well as a corresponding dish) - Mobile Antenna |

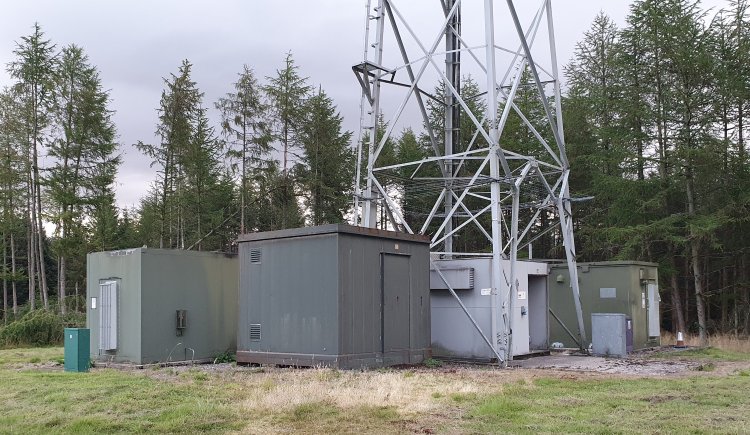

| Transmission cabins for the UHF relay and 4G equipment. |

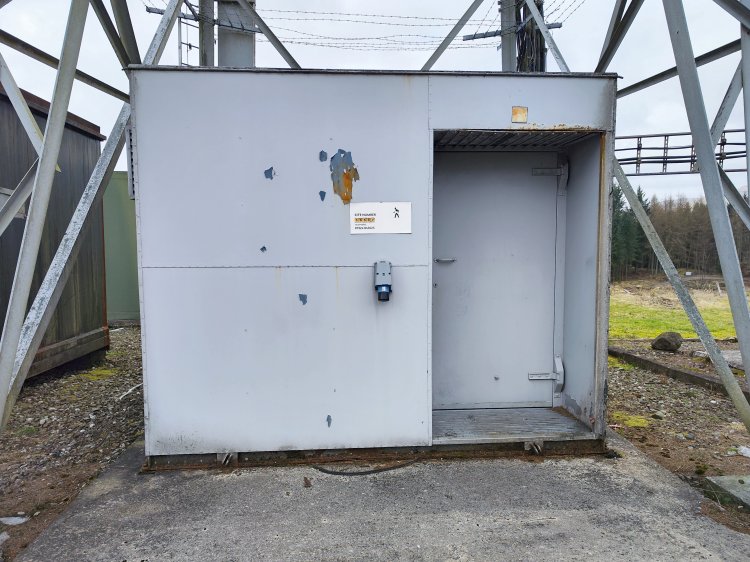

| A typical 1970's style IBA cabin. |

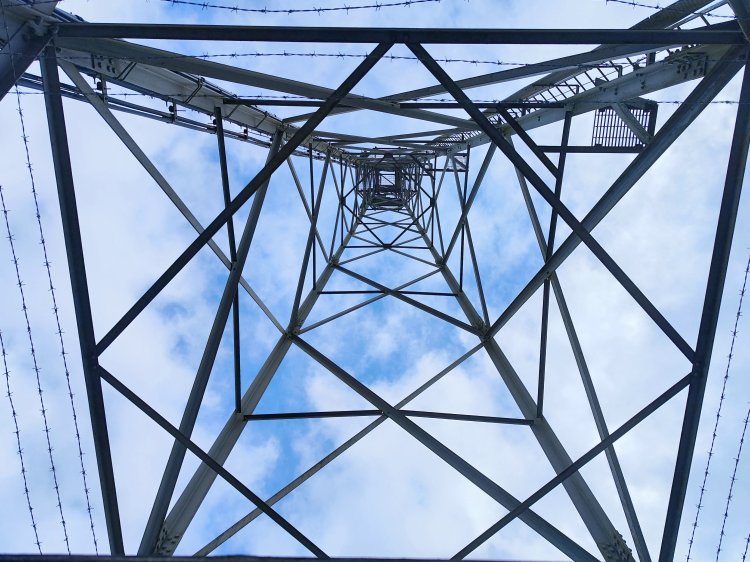

| Looking up the skirt of the tower |

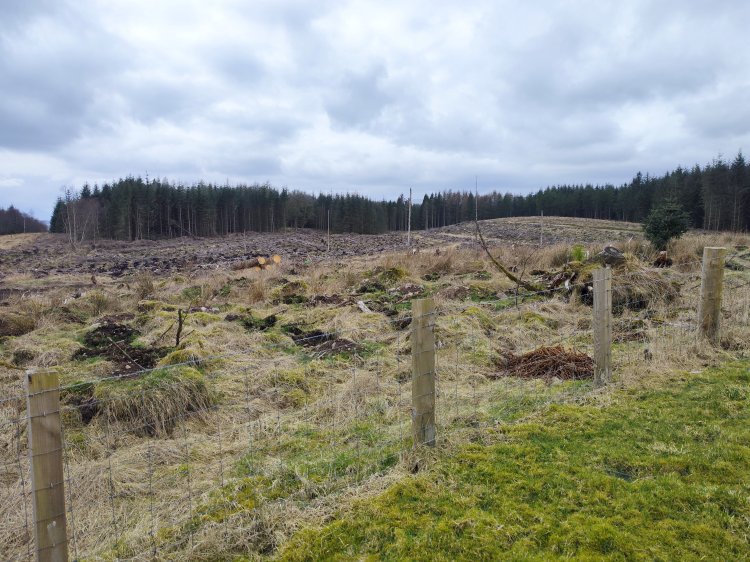

| Forest recently removed adjacent to the site. I wonder if this improves reception as a side effect? |

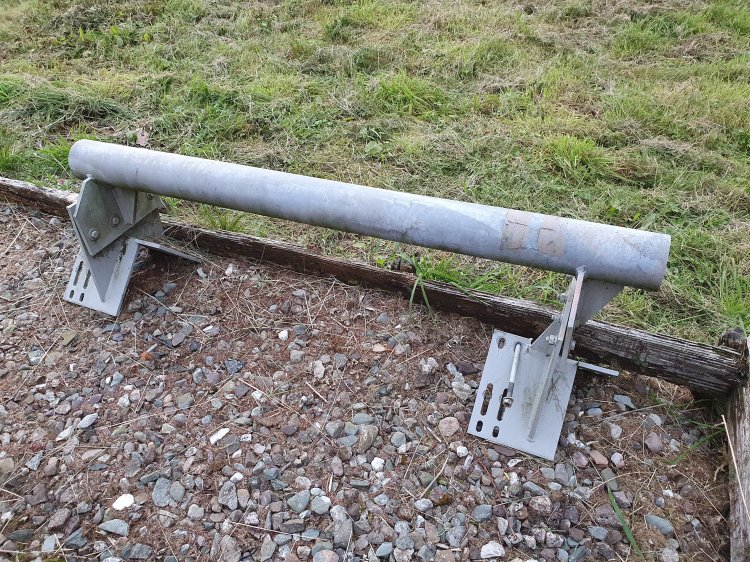

| A spare bracket |

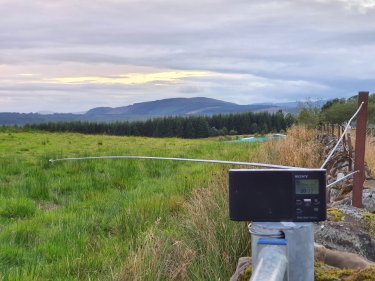

| Relaxing to Smooth 105.2 fm (Black Hill) just outside the relay site. |
| |
