BALLYCASTLE FOREST
| Photos by Martin Brown | Page last updated: 2026-07-16 |

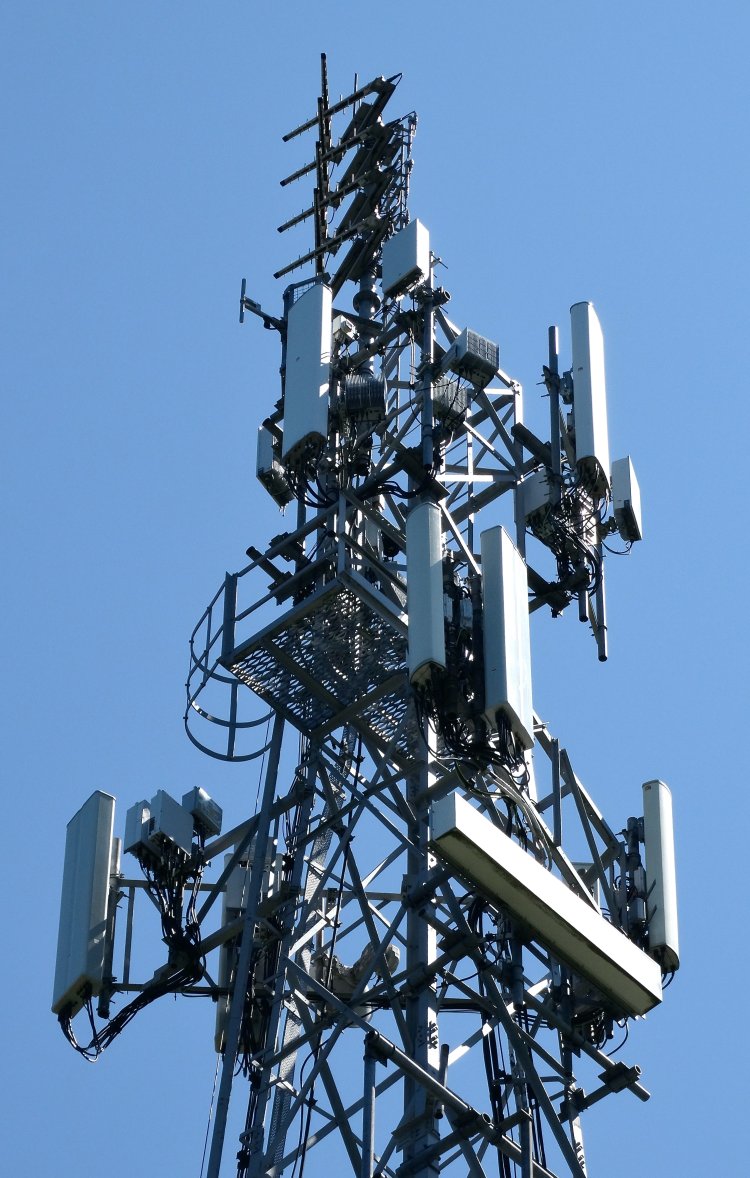

| The BBC National DAB multiplex was added at Ballycastle Forest from 23-Sep-2015. The UHF receive trough was replaced due to the 700 MHz clearance channel changes at the parent site at Limavady. Although not at first obvious, closer examination of the UHF transmit array of log periodics reveals that these have also been replaced. Again, a requirement of 700 MHz band clearance. |

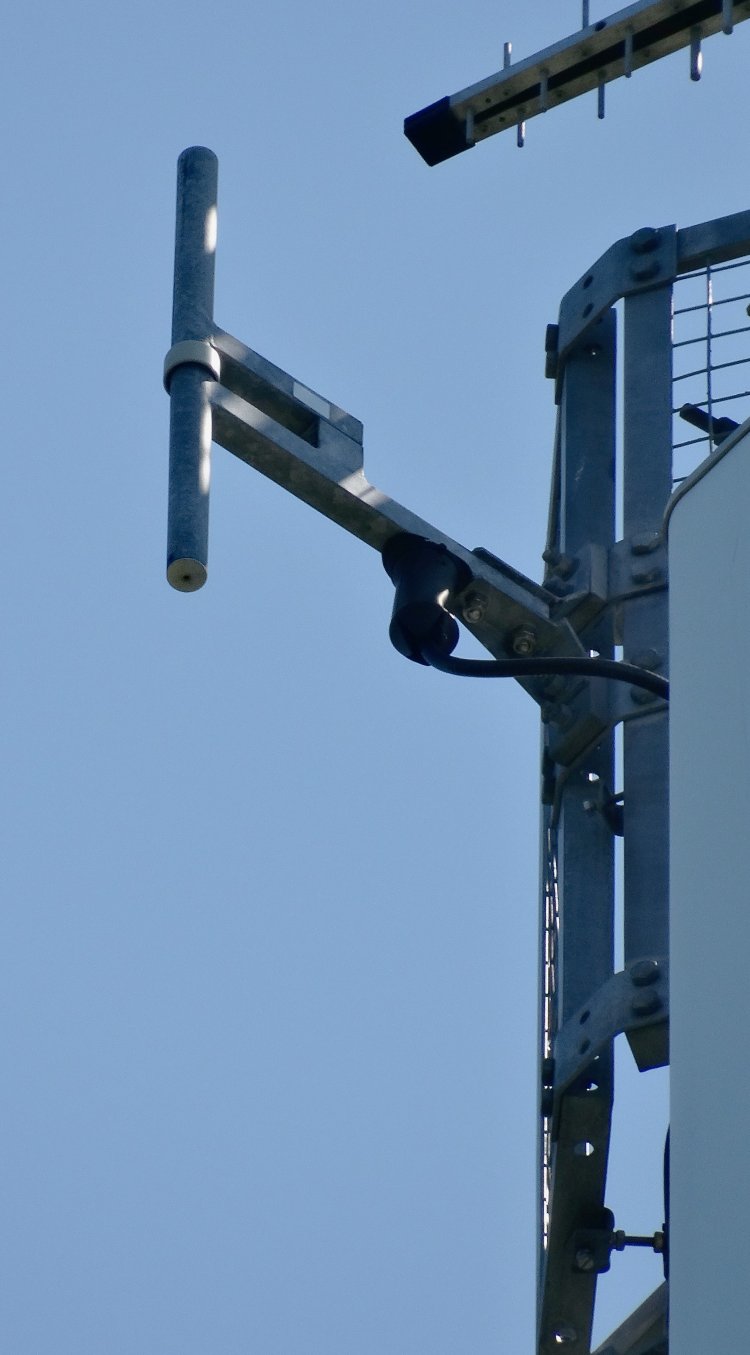

| A single band III dipole in front of a screen, transmits the DAB service. |

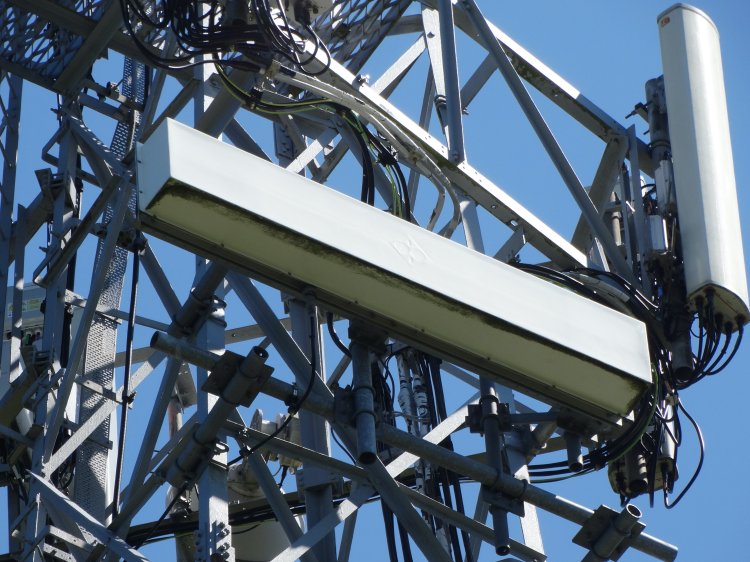

| The new UHF receive antenna, with the Sira logo embossed on the front. |

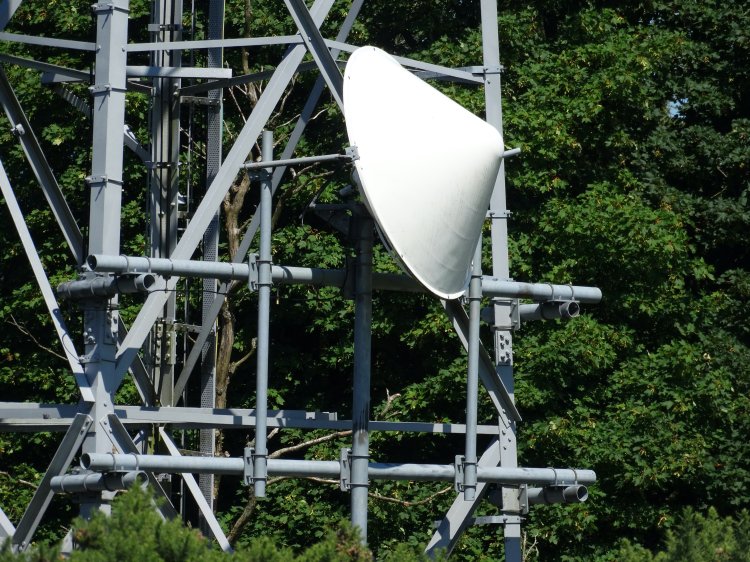

| Satellite dish receiving the DAB programme feed. |
| |
