UK Broadcast Transmission |
         |
|
    |
|
|
|
|
|||||||||
|
|||||||||||
THE TRANSMISSION GALLERY
LIMAVADY
| Photos by Martin Brown | Page last updated: 2026-07-18 |
| The only significant change since Sam Reid visited in 2011 is that the main UHF antenna appears to have been replaced. A consequence of 700 MHz band clearance. |
| The two towers at Limavady |

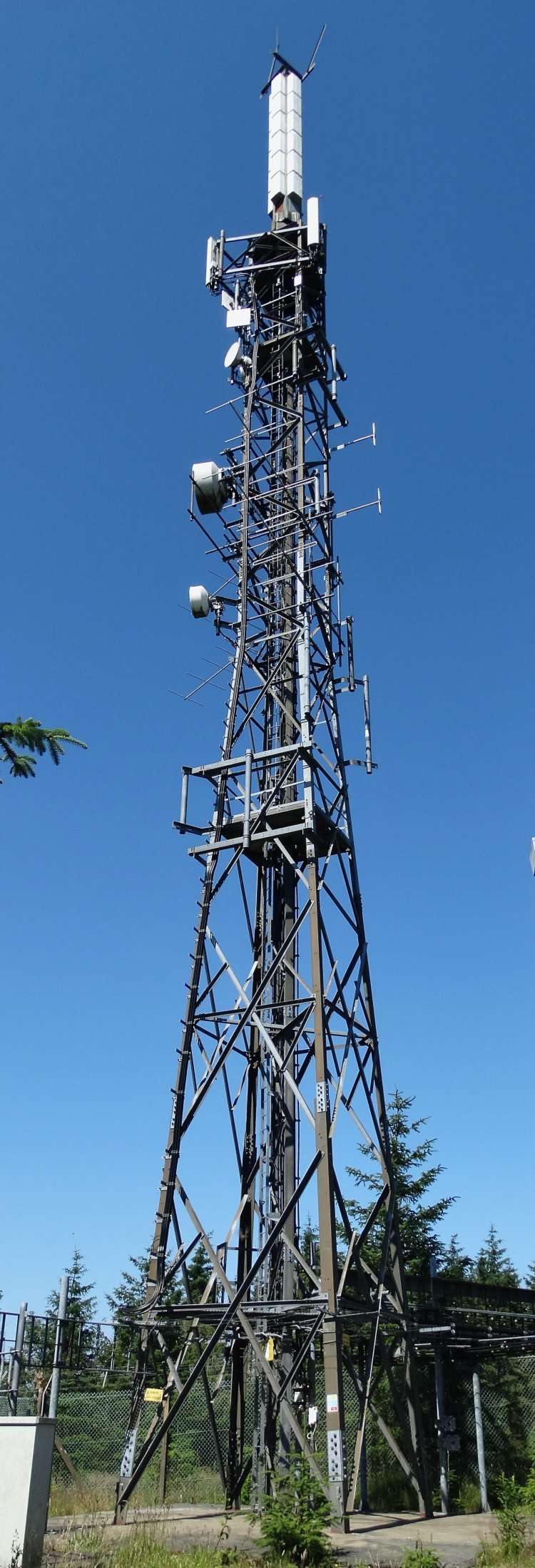

| The main tower transmitting TV, FM radio and DAB. |

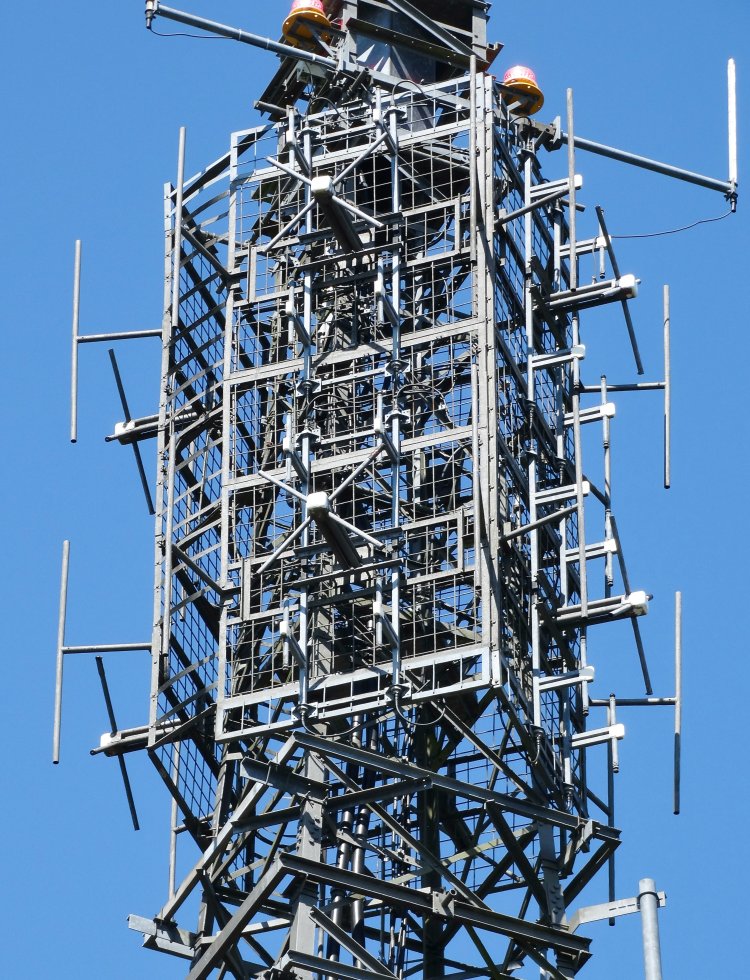

| The interleaved FM and DAB panels |

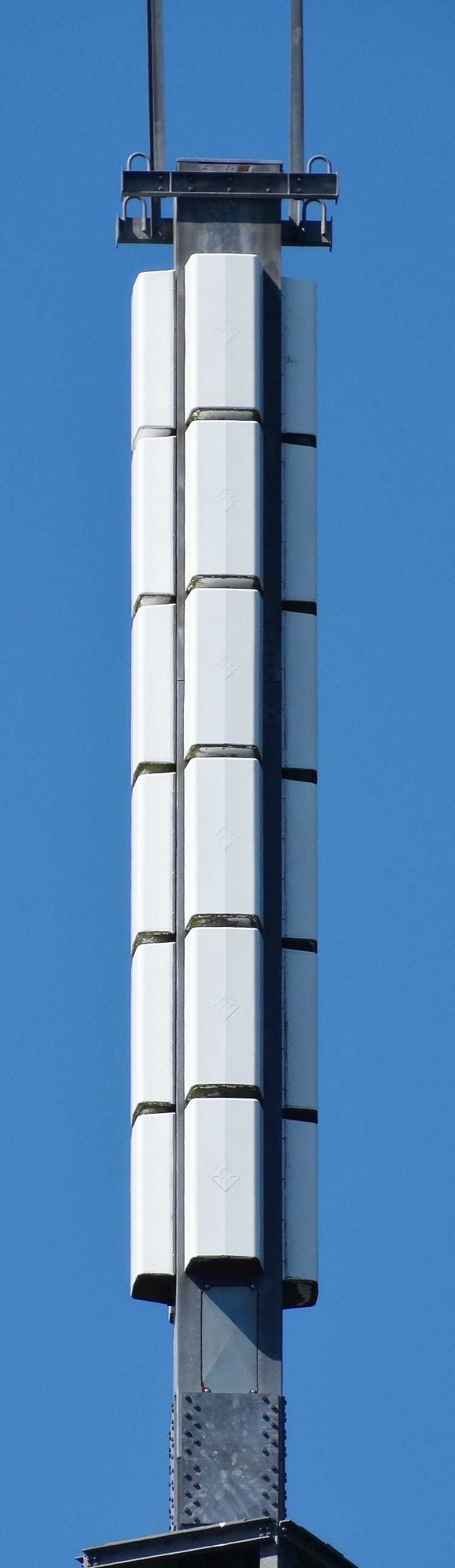

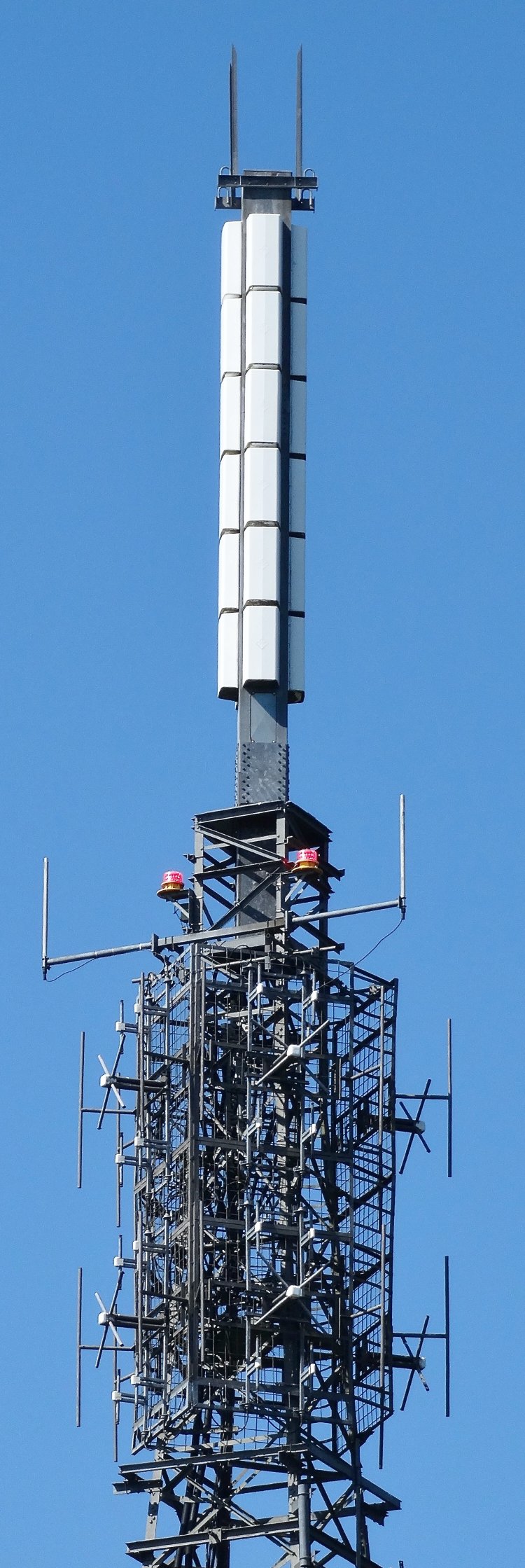

| UHF transmit embossed with the Sira logo. These appear to be fairly new as they were probably replaced for 700 MHz band clearance. |

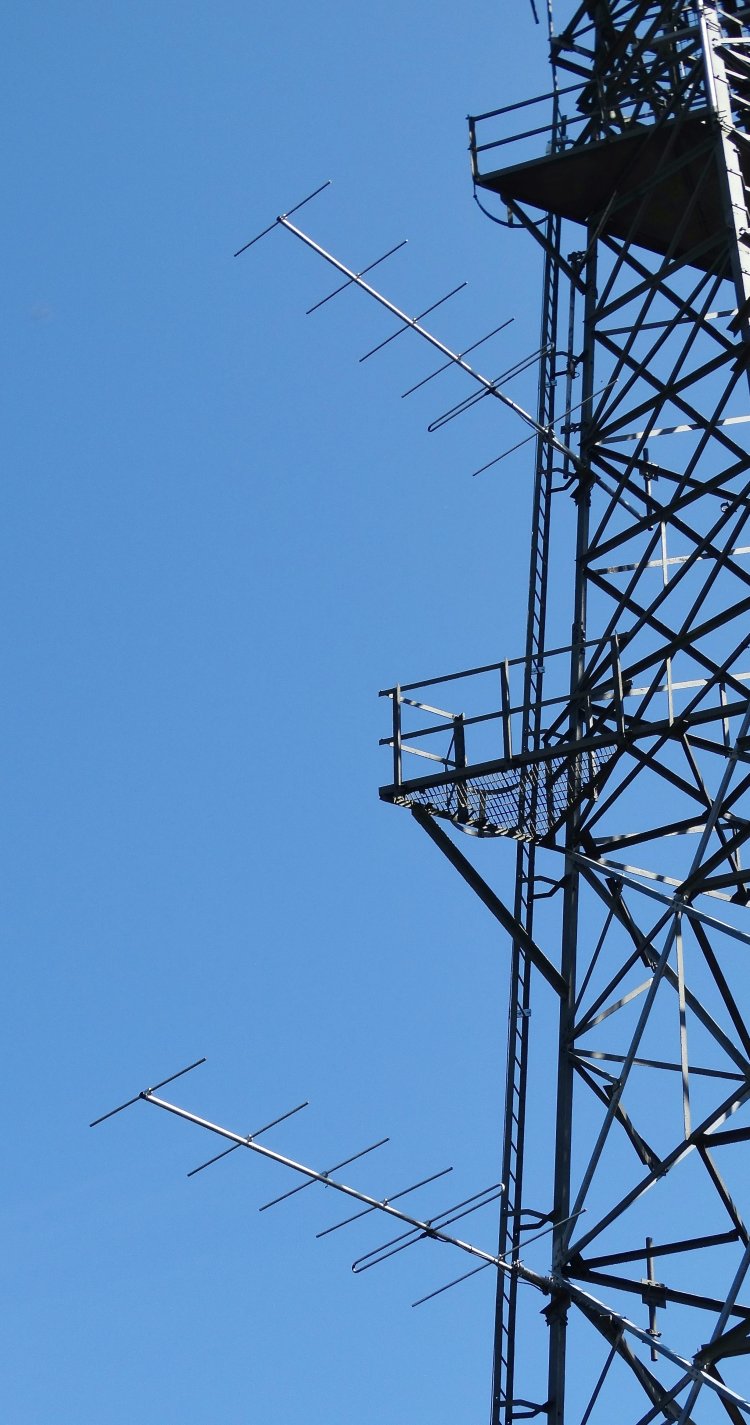

| Twin 6 element band II Yagis on Londonderry. Believed to be used for ILR RBL. |

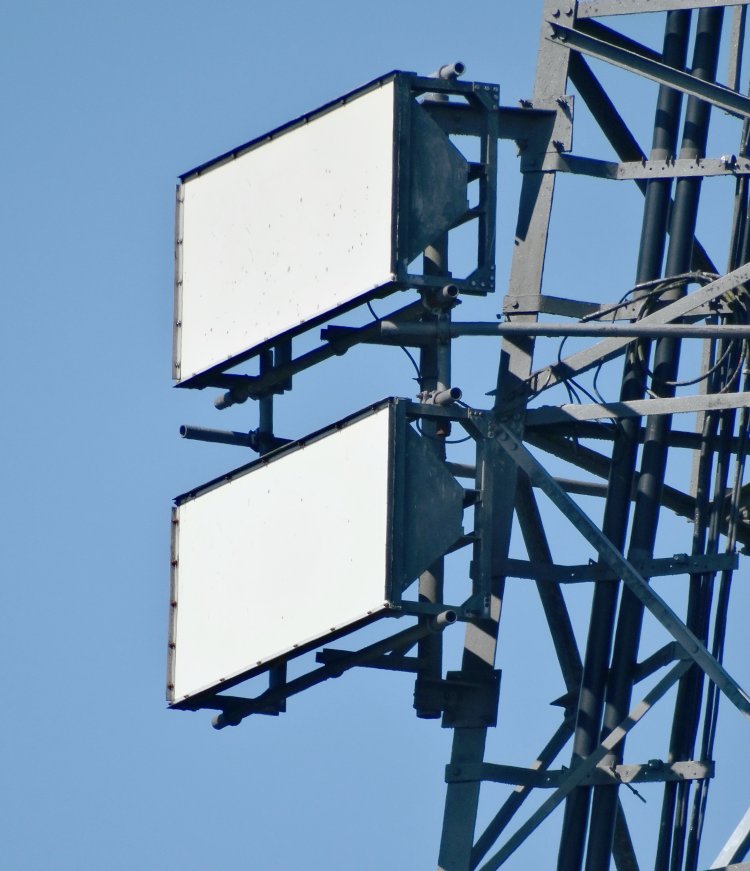

| The original twin troughs on Divis. They may still be used for RBS. |
| The other tower |
| Reserve UHF transmit. These panels appear to be more weathered so are probably the originals from DSO, which must have been wideband. |

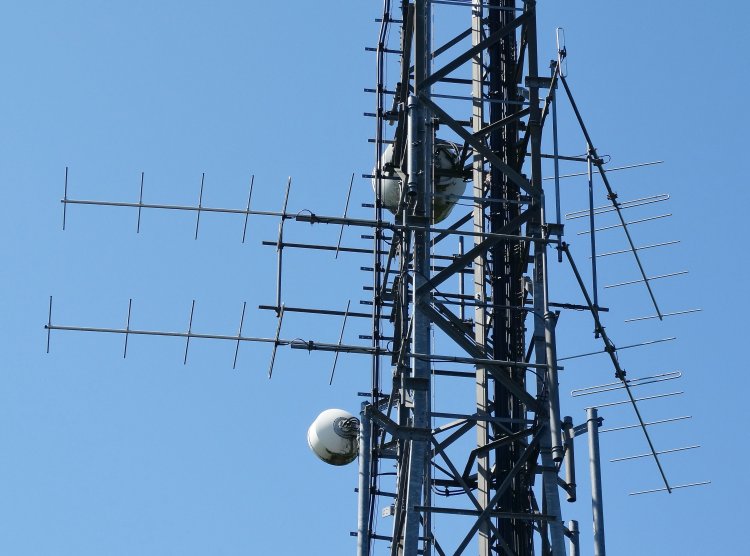

| BBC band II receive aerials on Divis (left) and Londonderry (right). |
| |
