THE TRANSMISSION GALLERY
PORTSLADE
| Photos by Dan Glover | Page last updated: 2024-10-16 |
| As noted in Dick Coppen's photos from 2002, the original wooden pole was due to be replaced by a slightly taller and more substantial affair, including a GSM site share. TV transmissions were transferred to the new structure on 5-Jun-2003. By October 2012 the original equipment enclosure had been replaced, but this seems to be the only change for DSO |
| The sign had faded somewhat in the sunshine - and the replacement enclosure is unlabelled |
| 2010: The broadcast arrangements appear unchanged but the compound now hosts a couple of additional cabinets. |

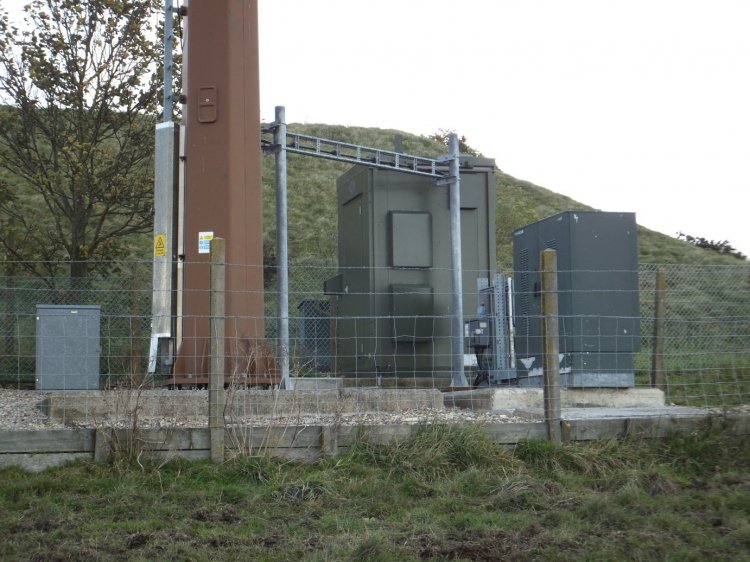

| 2012: New cabin, same pole and antennas. Different weather |

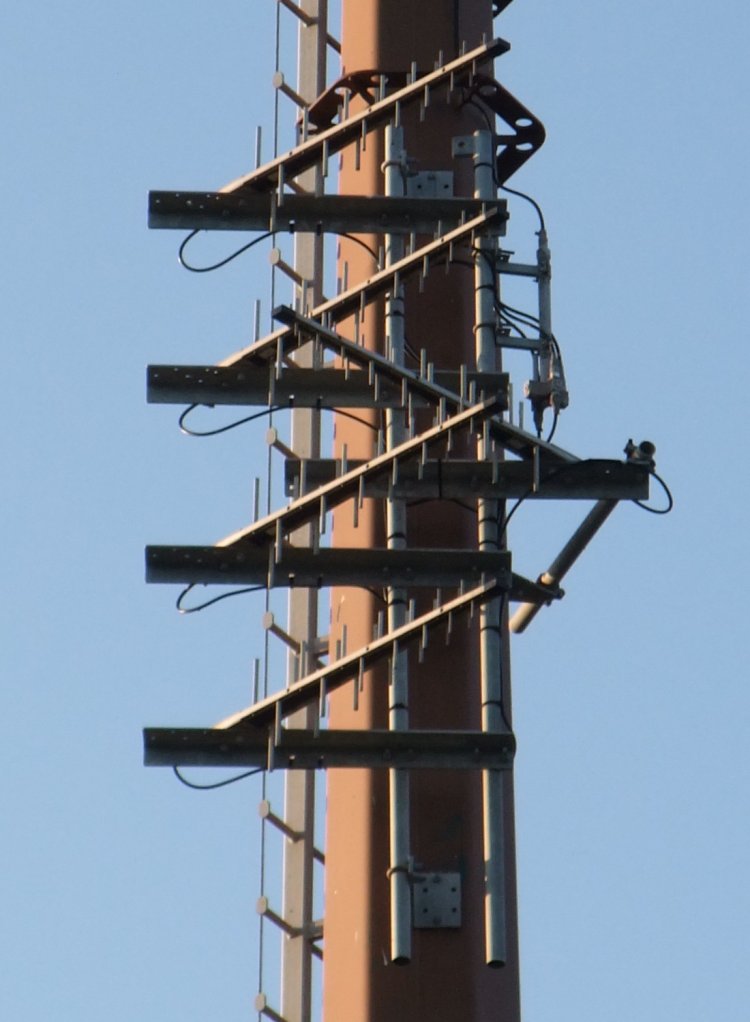

| For transmit an arrangement of 4 + 1 logs, as before. |

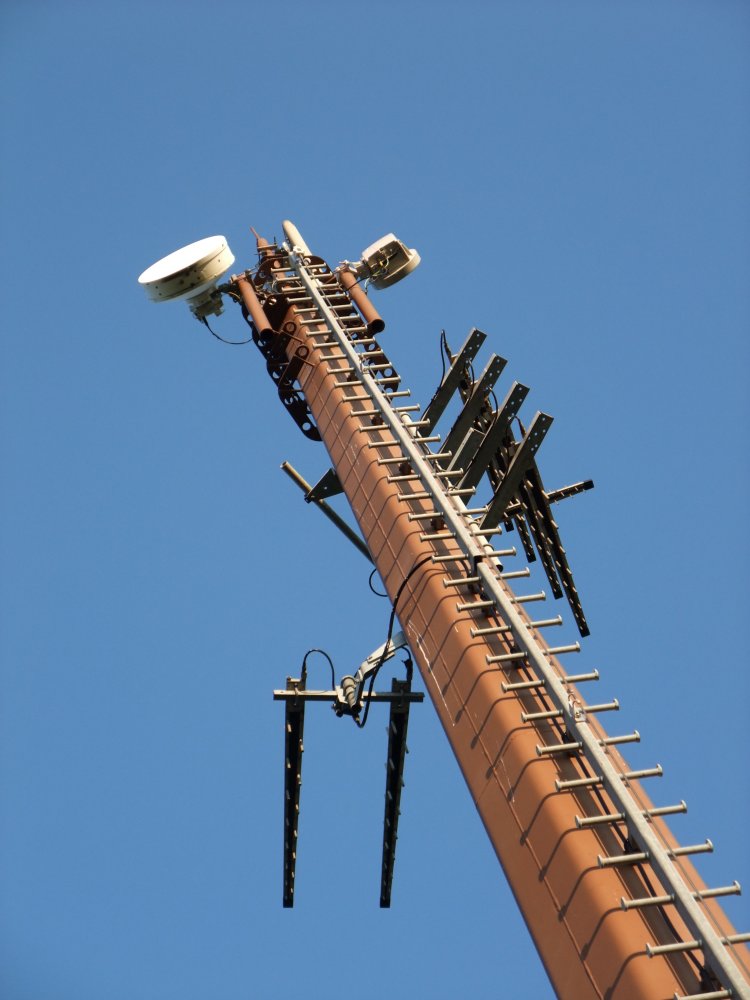

| There are two VP logs for receive - maybe some difficulty in receiving a clean feed at this site? |

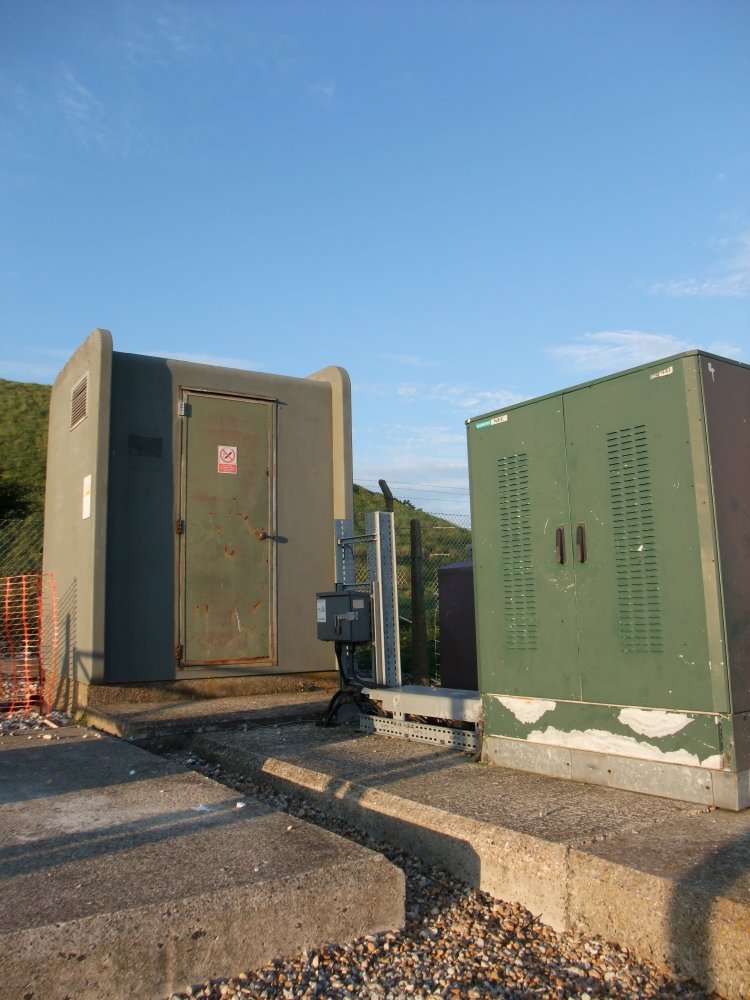

| 2010: the original enclosure, on the left, showing signs of age... |

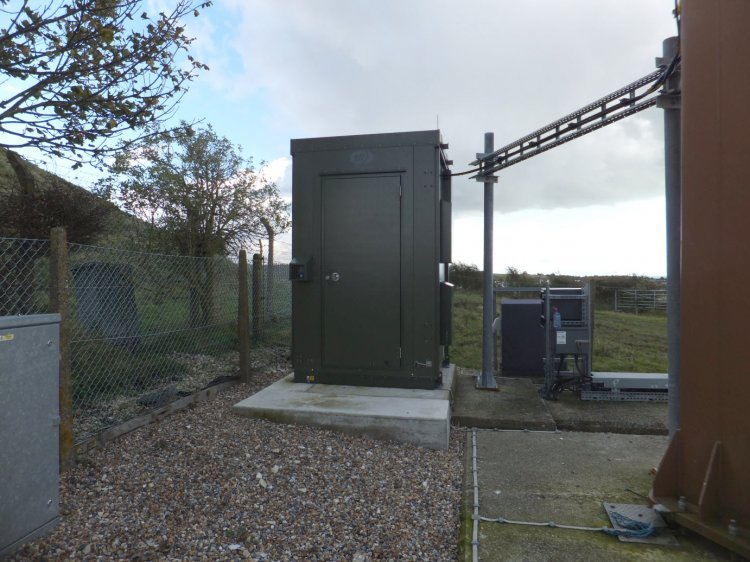

| 2012: DSO-style replacement and feeder ladder |
| The site is on high ground near the eastern portal of the Southwick Hill Tunnel on the A27 |

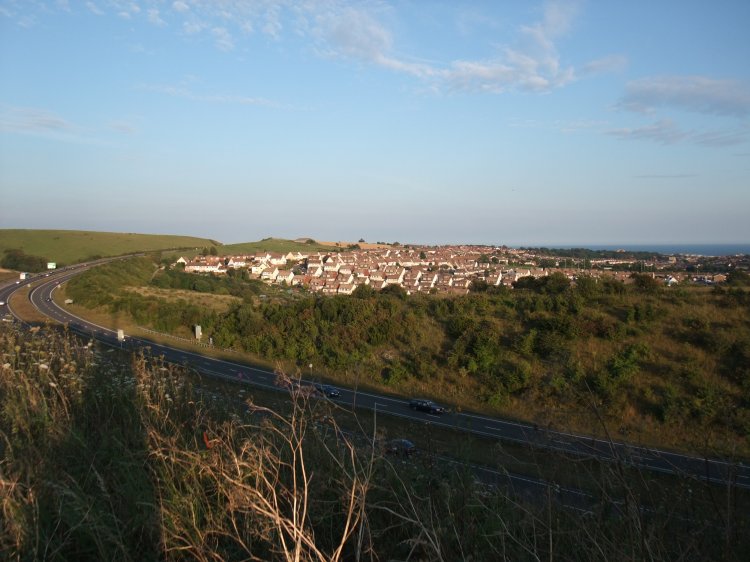

| The intended service area is in a hollow, across the main road. |
| |
