THE TRANSMISSION GALLERY

Photos by Ben Smith Page last updated: 2017-06-28
Kirkoswald South Ayrshire
NGR: NS231075 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height: 30m
Digital TV: BBC A: 28 D3&4: 25 BBC B: 22
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Kirkoswald is a relay of Darvel (via Girvan)

Kirkoswald was originally an IBA landlord site which eneterd service on 5th June 1981, with Channel 4 from January 1987.

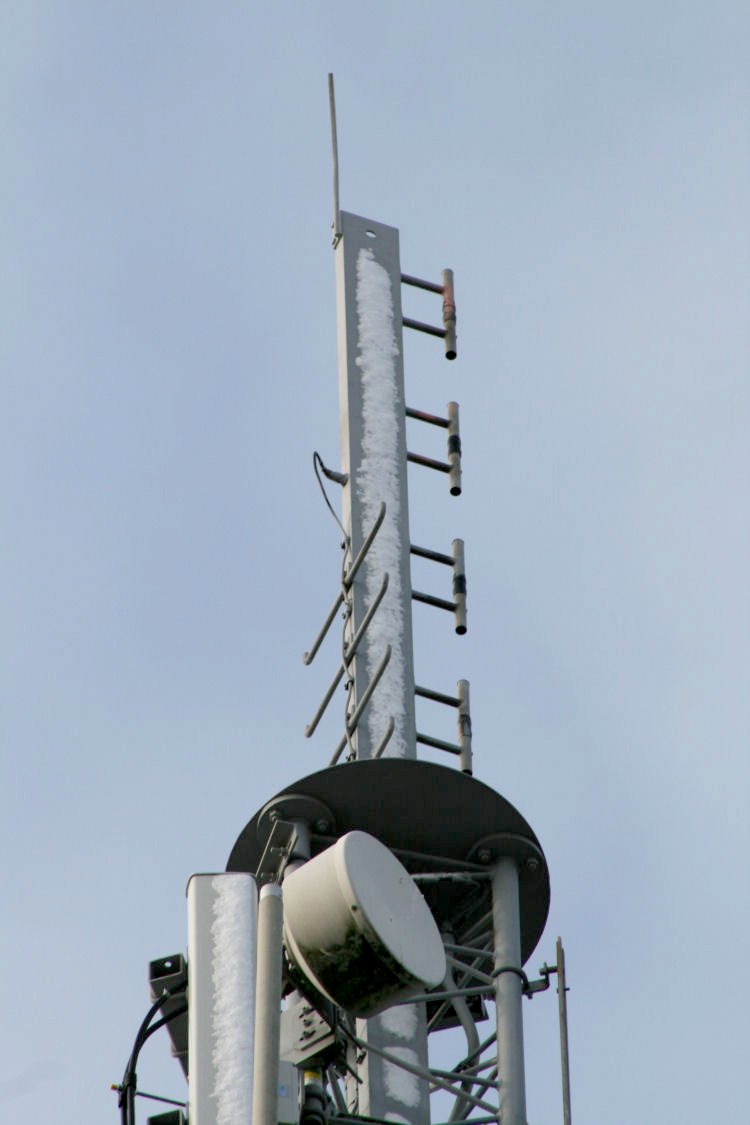

The main vertically polarised cardioid transmit aerial.

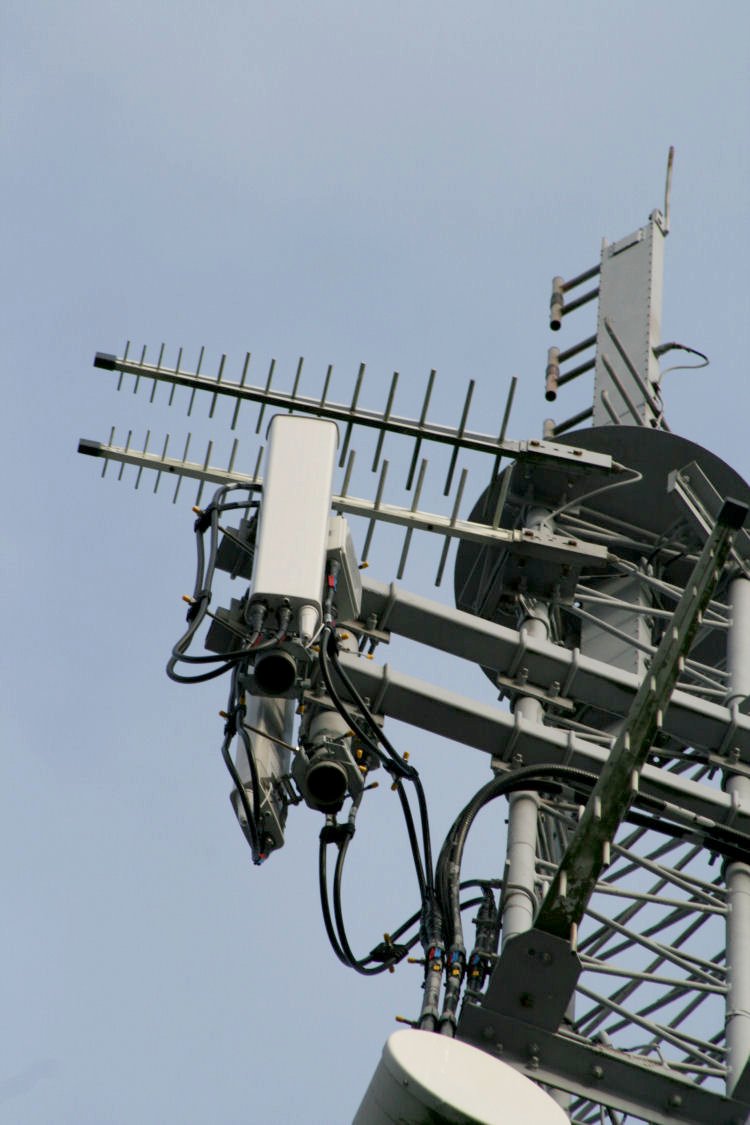

These two log periodics transmit a horizontally polarised beam to the northwest. They were added much later.

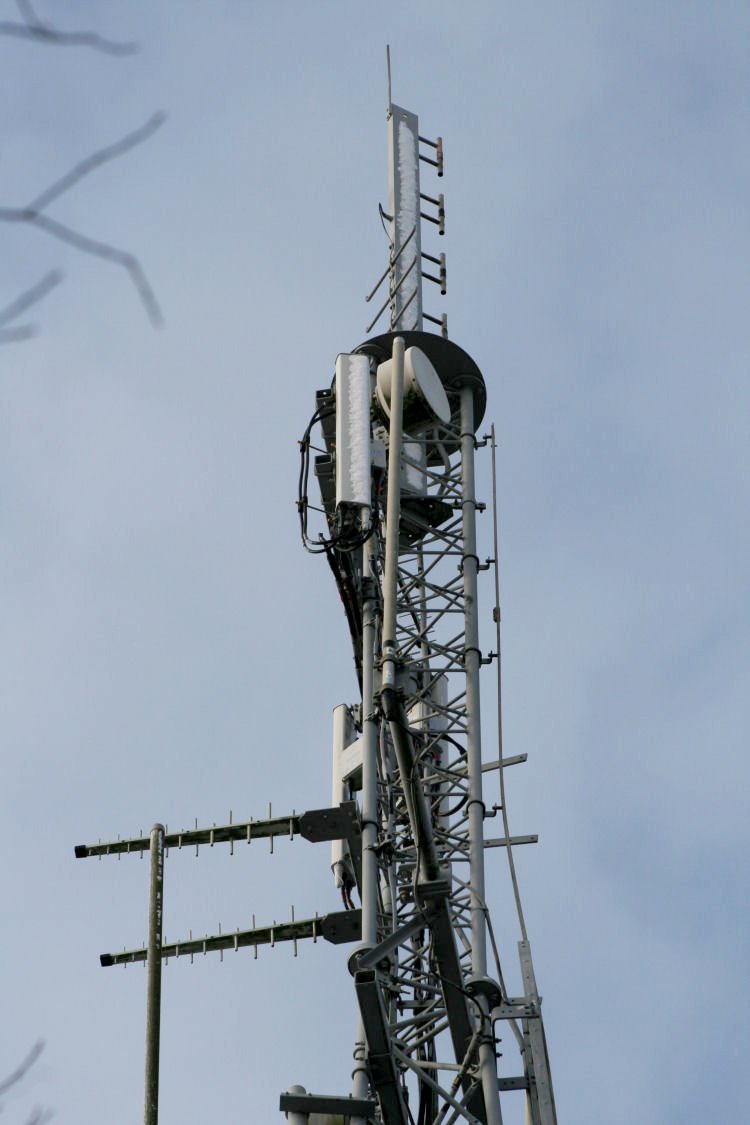

Twin receive log periodics pointing towards Girvan.



Girvan
