Knowsley Merseyside NGR: SJ442908 Maps: Google  Streetmaps (Ord Surv)   Site Height: 31m       Structure Height: 57m Digital TV: National Radio: Local Radio: KCC Live: 99.8   Digital Radio: Comments: Used to broadcast KCR on 106.7, now discontinued.

Show historic services

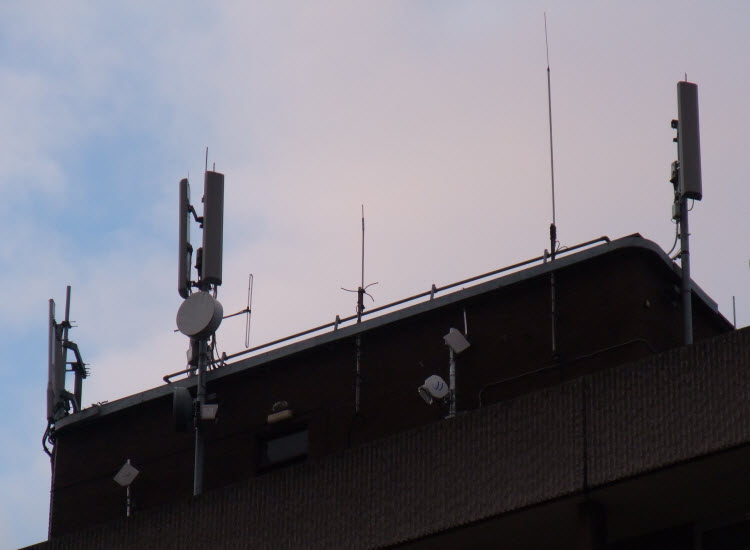

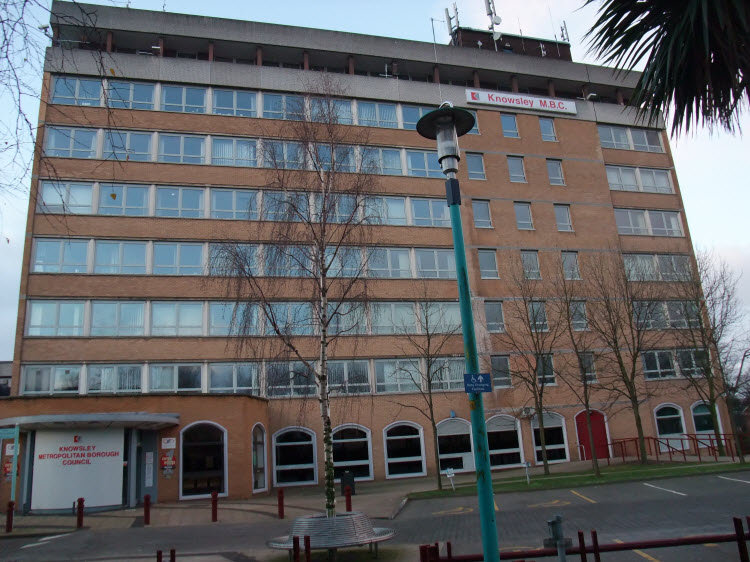

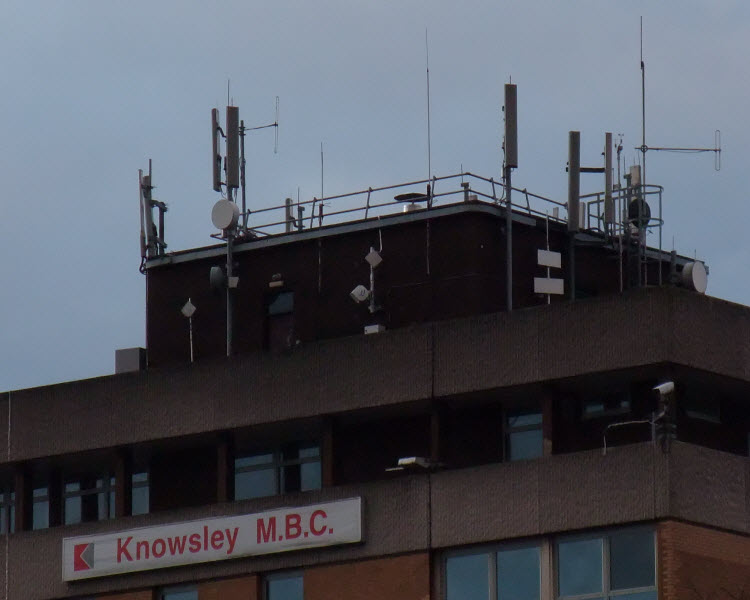

This was a low power AM station at Knowsley Community College, on air since December 2003. Operation on FM under a CR licence started in May 2009. The tx site is the council office not far from the College. There may be an SHF link in use - but it's not obvious to me which of the many panels up there would be aimed in the right direction. Ofcom data shows a maximum direction of 300 degrees with about 4dB reduction centered on 120 degrees. This would fit with the use of a side-mounted dipole, however the vertical with the kinked radials looks like a Veronica 5/8 antenna which was specified in the licence application (but for a different site).
