THE TRANSMISSION GALLERY

Photos by Mike D Smith and Dan Glover Page last updated: 2011-12-27
Esher TE Surrey
NGR: TQ150638 Maps: Google  Streetmaps (Ord Surv)   Site Height: 24m      Structure Height:
Digital TV:
National Radio:
Local Radio:
Digital Radio: Digital One: 11D
Comments:

Show historic services

Updated December 2011

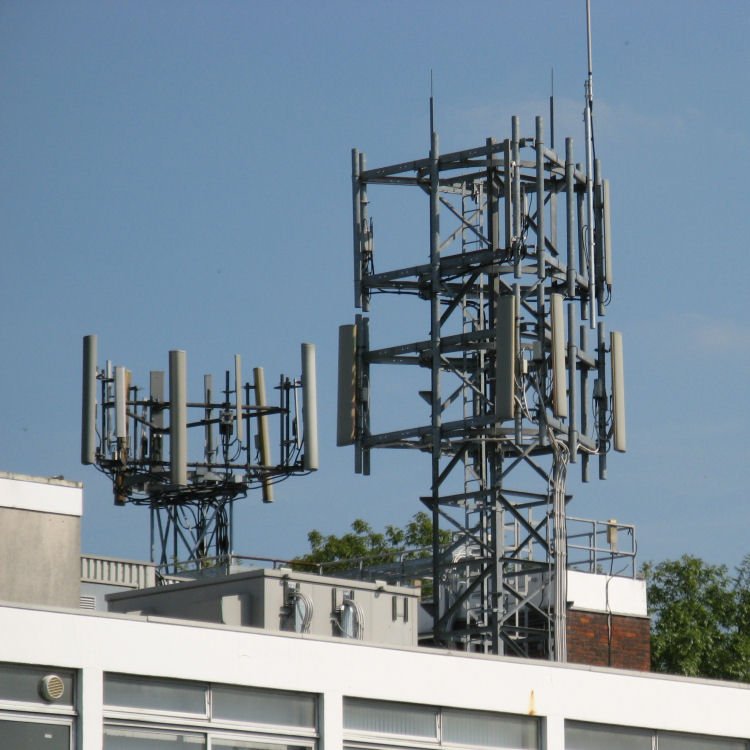

Mike visited in September 2007 and commented "OK. Here we are then. Erm... Esher Telephone Exchange. Ironically adorned by several mobile phone aerials and, apparently a DAB site for Digital 1. As you can see, the DAB aerials are obviously... umm... quite difficult to spot. Any ideas, anyone?"

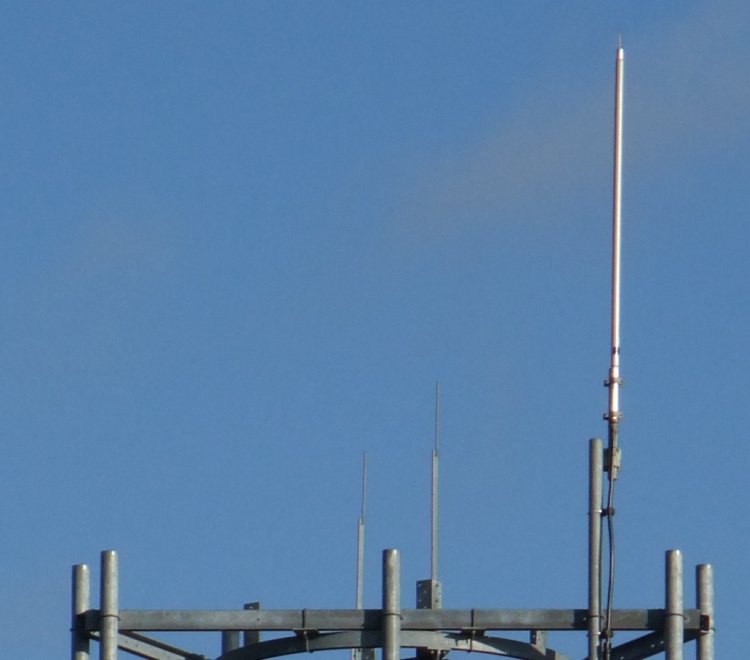

Later experience with London-area DAB sites on telephone exchanges means we now know to look for a co-linear.








The DAB antenna is cut off at the top of the frame in Mike's photo...

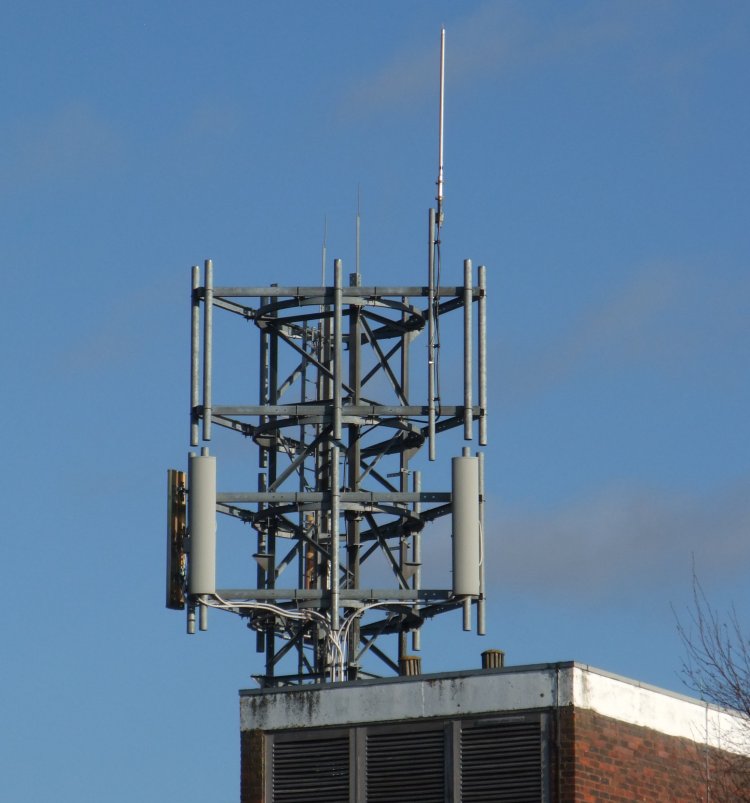

...so here's another view from the rear of the site


Planning documents included provision for a 5-element yagi. This was either not installed or has been removed subsequently.

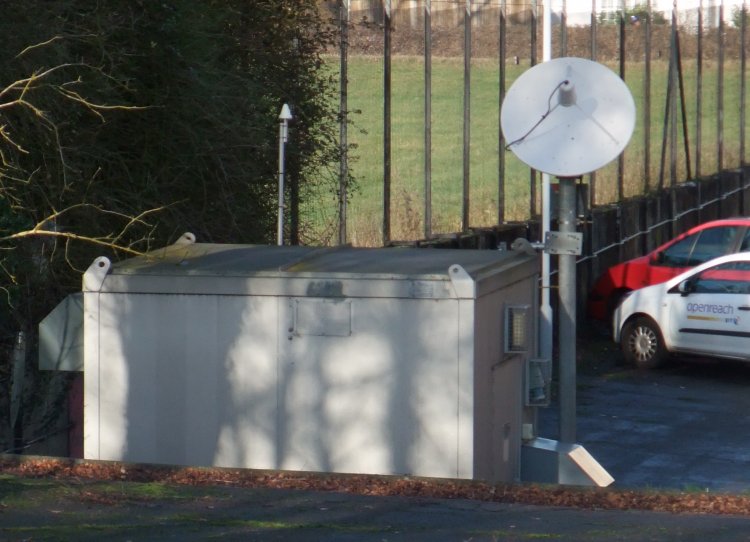

The equipment is sited in the car park alongside

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
