Crimpsall South Yorkshire
NGR: SE566032 Maps: Google  Streetmaps (Ord Surv)   Site Height: 12m      Structure Height: 60m
Digital TV:
National Radio:
Local Radio:
Digital Radio:
Comments: Transmitted ILR Doncaster on 990 kHz until December 2023.

Show historic services

October 2011

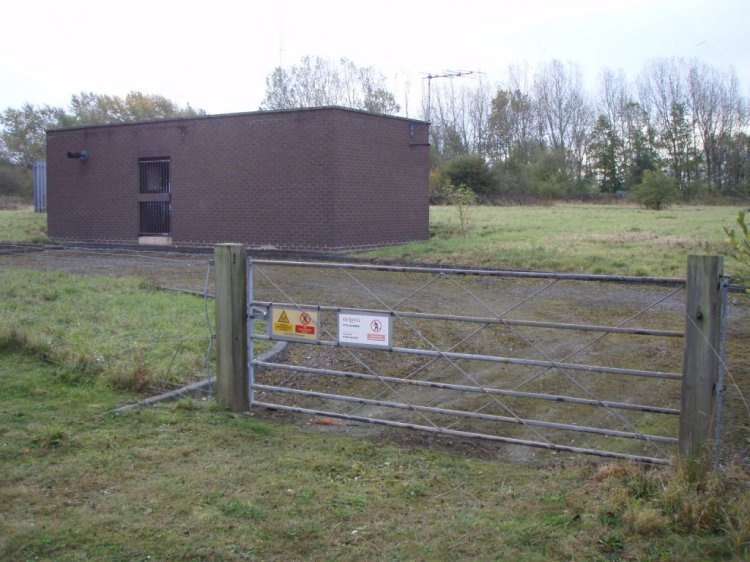

These photos were taken during a maintenance visit. The site, next to the River Don, is accessible only via private roads controlled by the adjacent prison.

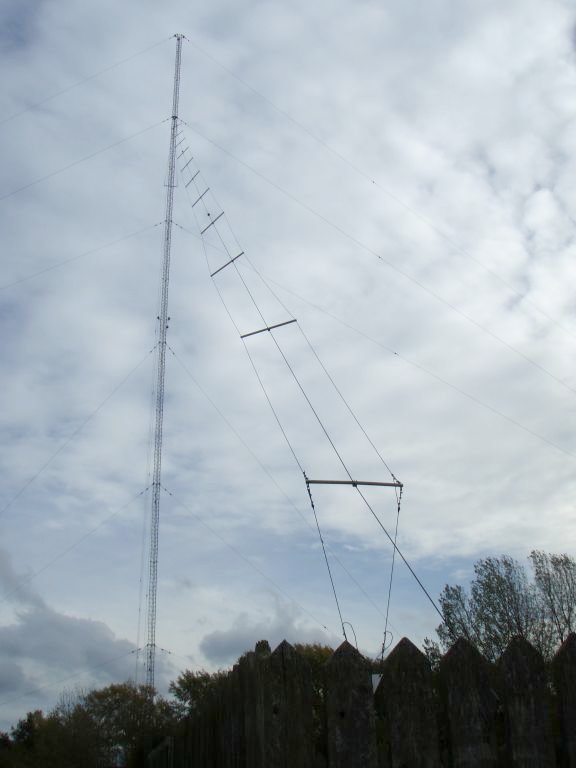

The antenna is a mast radiator, with tuned "ladder" reflector




The Band II yagi probably dates from the time when this site was used by Radio Hallam

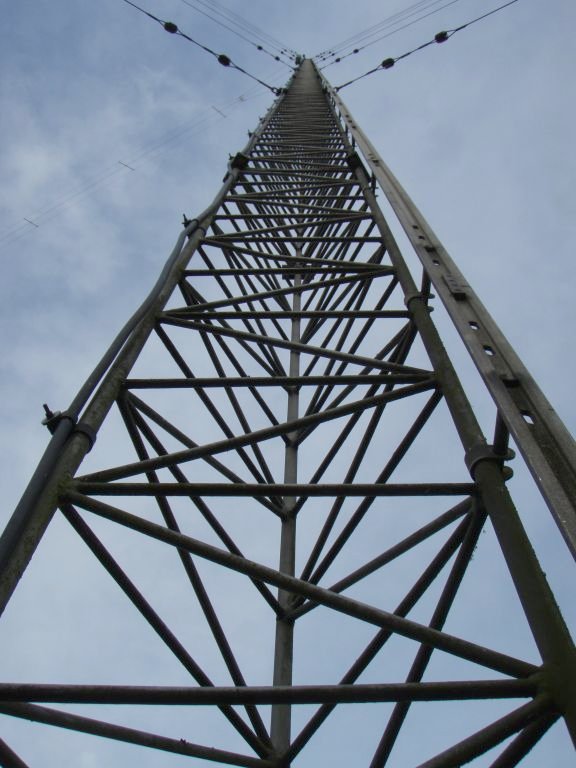

There's work to do up there. Back in a bit...

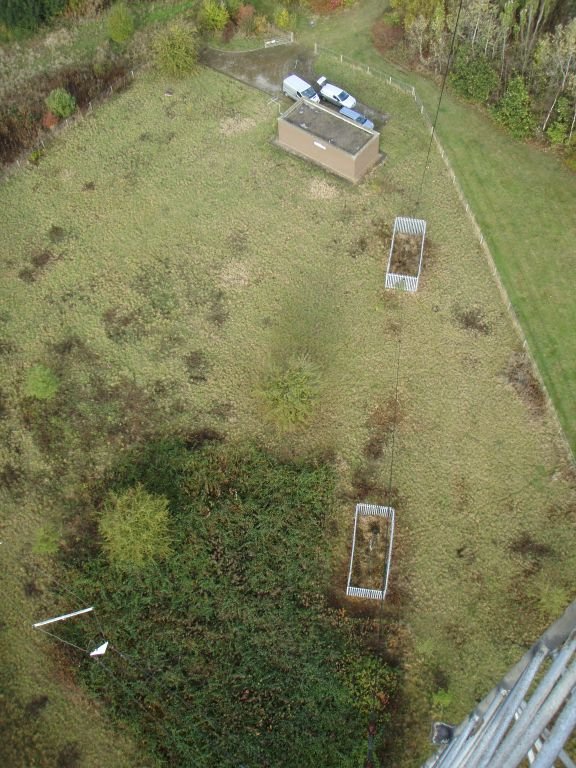

Looking back towards the tx building...

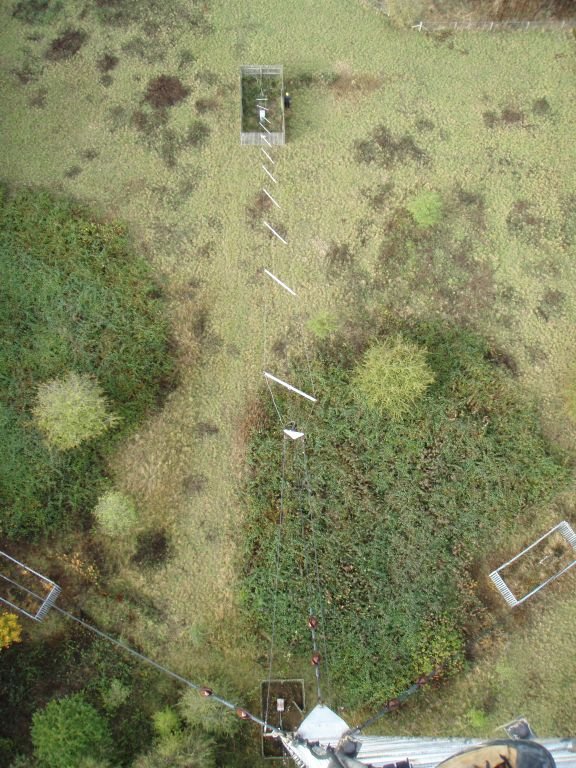

...and a view of the ladder reflector

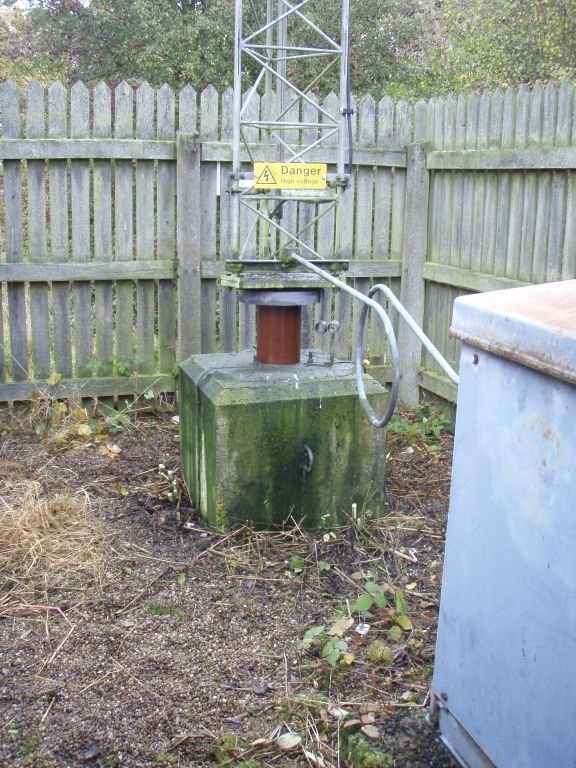

The base insulator and feed for the mast

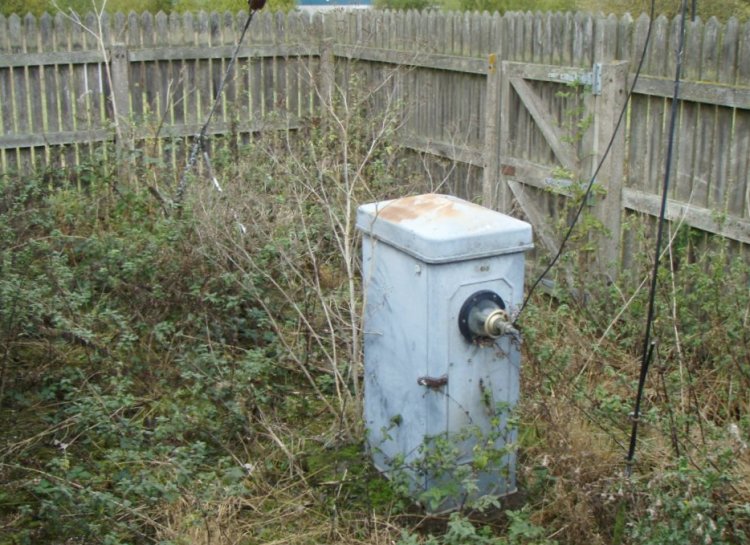

...and the tuning unit for the reflector

Please let us know if the photographs for this site need updating or improved detail.
