Rayleigh (Southend MF) Essex NGR: TQ830904 Maps: Google  Bing (Ord Surv)   Site Height: 33m       Structure Height: 21.3m Digital TV: National Radio: Local Radio: Digital Radio: Comments: Transmitted BBC Essex on 1530 kHz until January 2018 and Smooth Radio on 1431kHz until 28-Jun-2023.

Show historic services

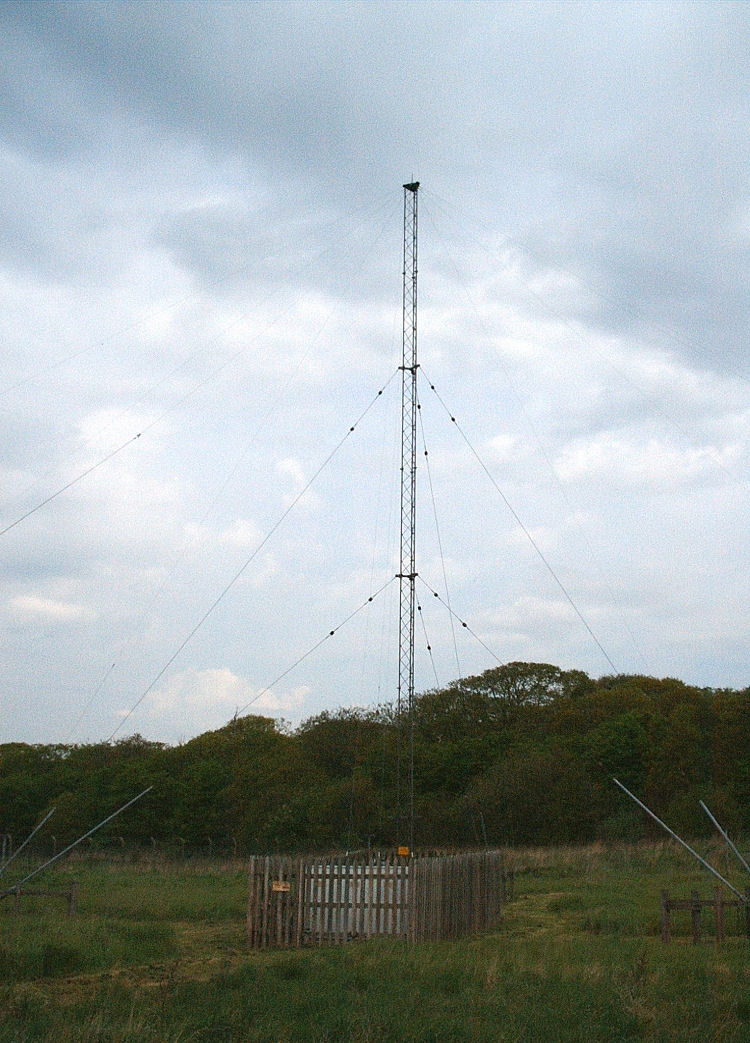

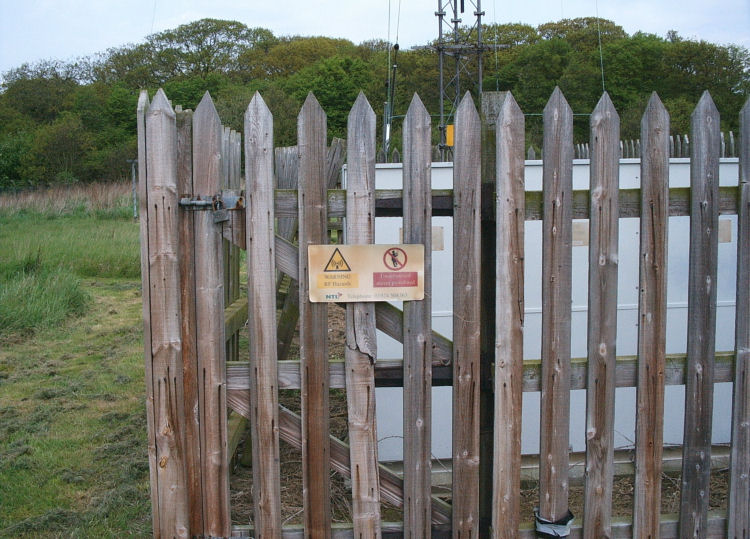

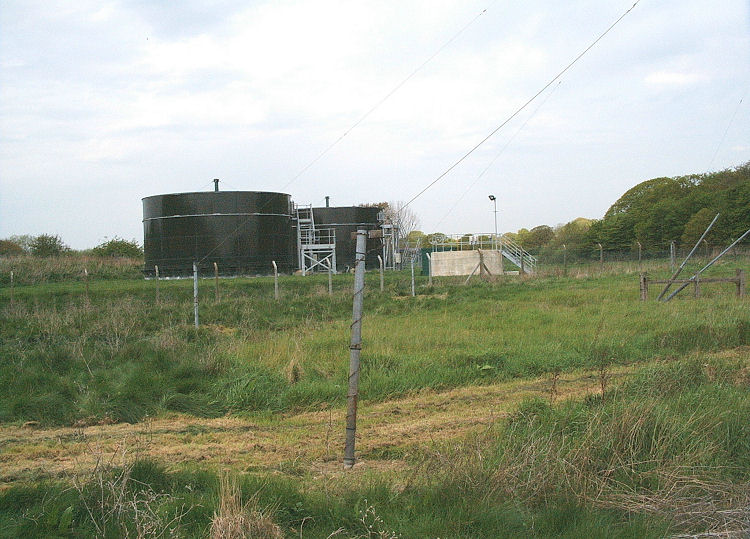

I can remember when Essex Radio went on air on the 12th September 1981, and at the age of 11 being excited at the thought of a local radio station with the transmitter just down the road. I never got as close as I did when I took these pictures, though. The site is located at the far end of Rayleigh East water treatment works, presumably using the water as a ground plane.

BBC Essex coverage area map
