Windsor Berkshire NGR: SU968770 Maps: Google  Bing (Ord Surv)   Site Height: 38m       Structure Height: 25m Digital TV: National Radio: Local Radio: Radio Berkshire: 95.4   Digital Radio: Comments:

Show historic services
May 2014

Radio Berkshire's Windsor site is on Windsor Castle. It consists of a dipole within the flagpole on the top of the Garter Tower. The station was available from the launch of Radio Berkshire on 21st January 1992 and is line fed.

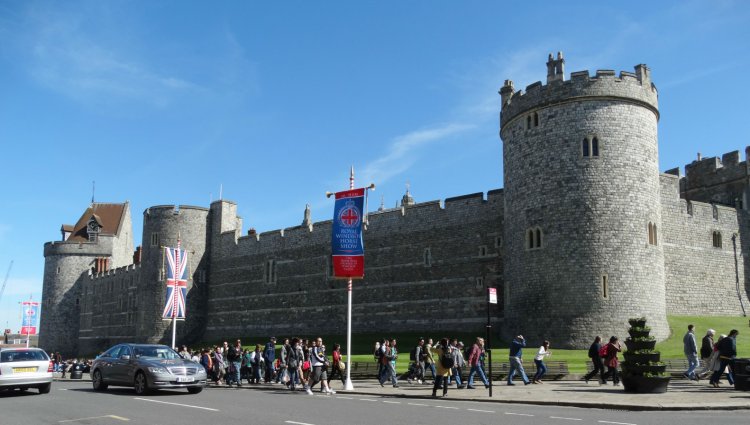

Western end of Windsor Castle. The Garter tower is the middle of the three towers in this picture.

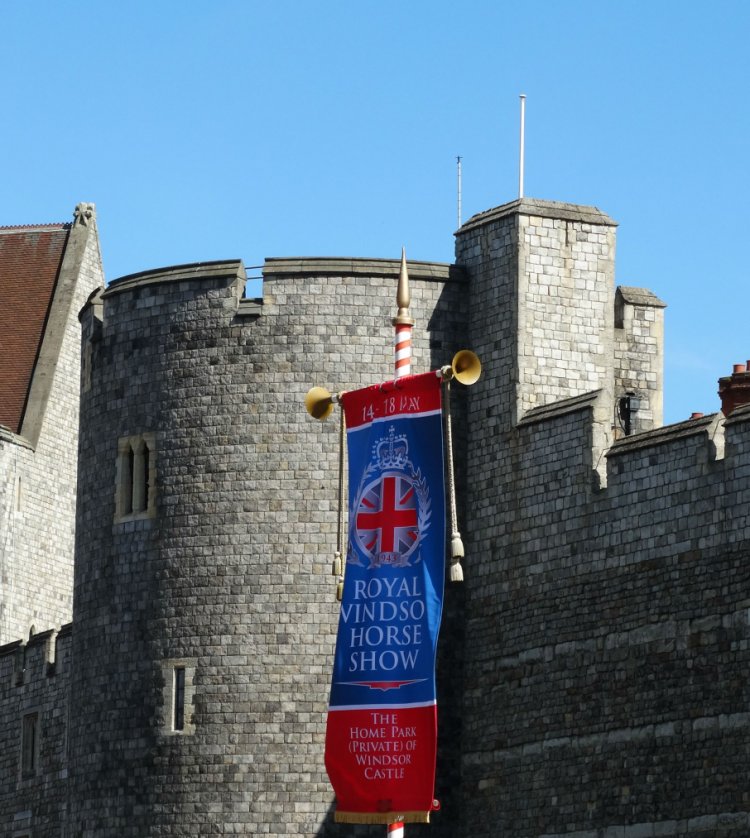

The Garter tower.

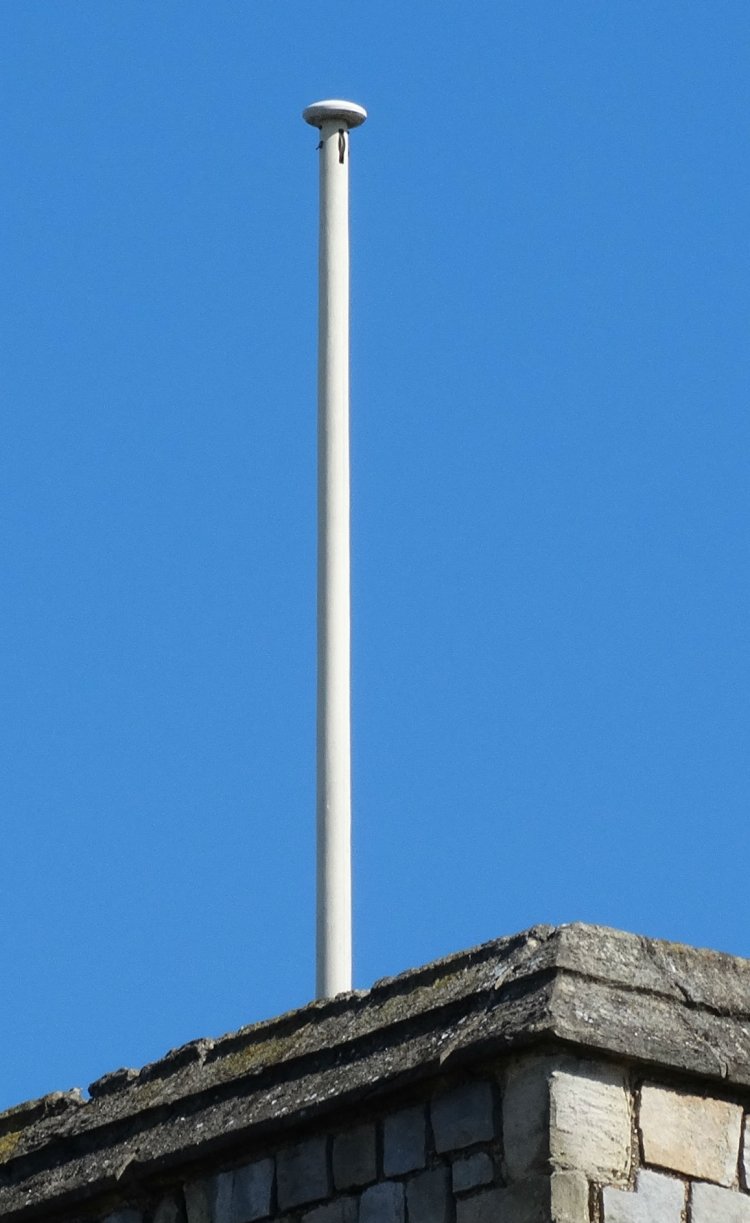

The flagpole containing the band II dipole for Radio Berkshire.

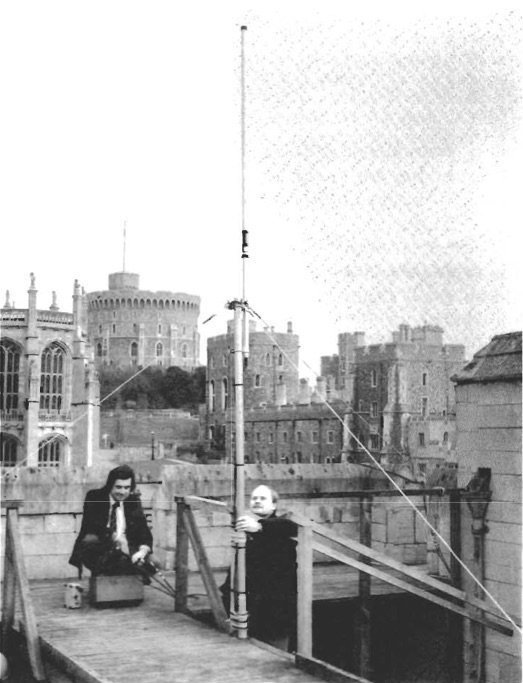

A temporary end fed dipole being erected which was used to assess the coverage prior to the permanent installation within the flagpole. [BBC Engineering Research 1987]

Radio Berkshire coverage area map
