UK Broadcast Transmission

THE TRANSMISSION GALLERY

Windmill Business Centre Greater London NGR: TQ142801 Maps: Google  Streetmaps (Ord Surv)   Site Height: 23m       Structure Height: Digital TV: National Radio: Local Radio: Digital Radio: Comments: Used to transmit ILR on 89.6 MHz, service moved to Rutherford Tower August 2019.

Show historic services
April 2008

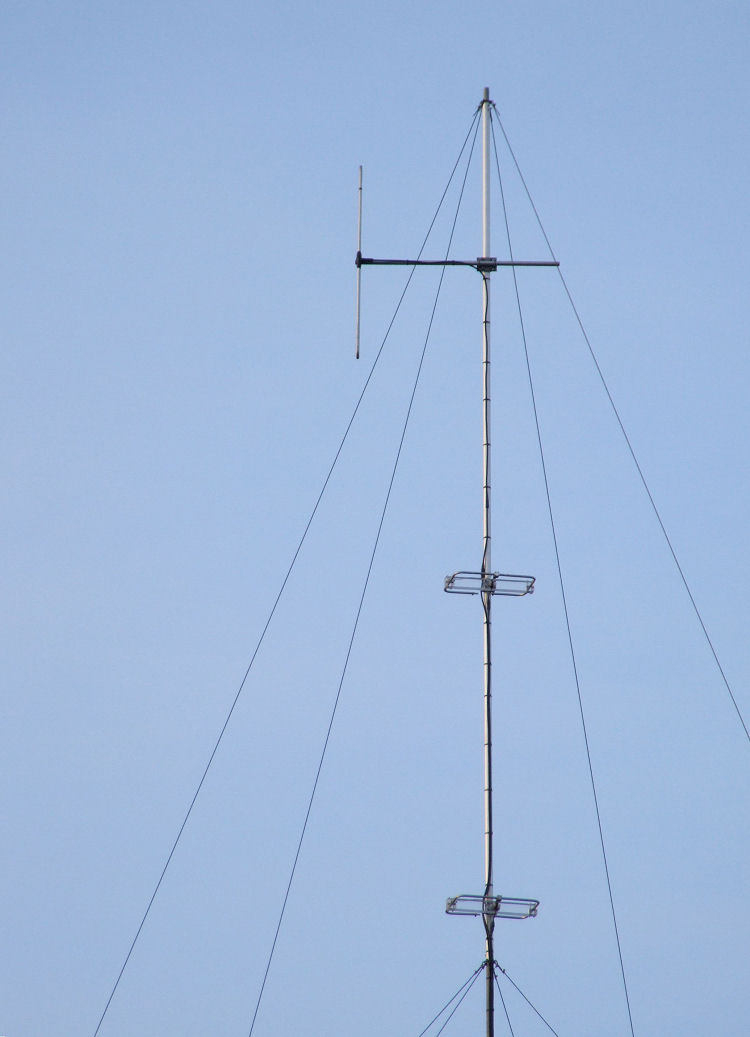

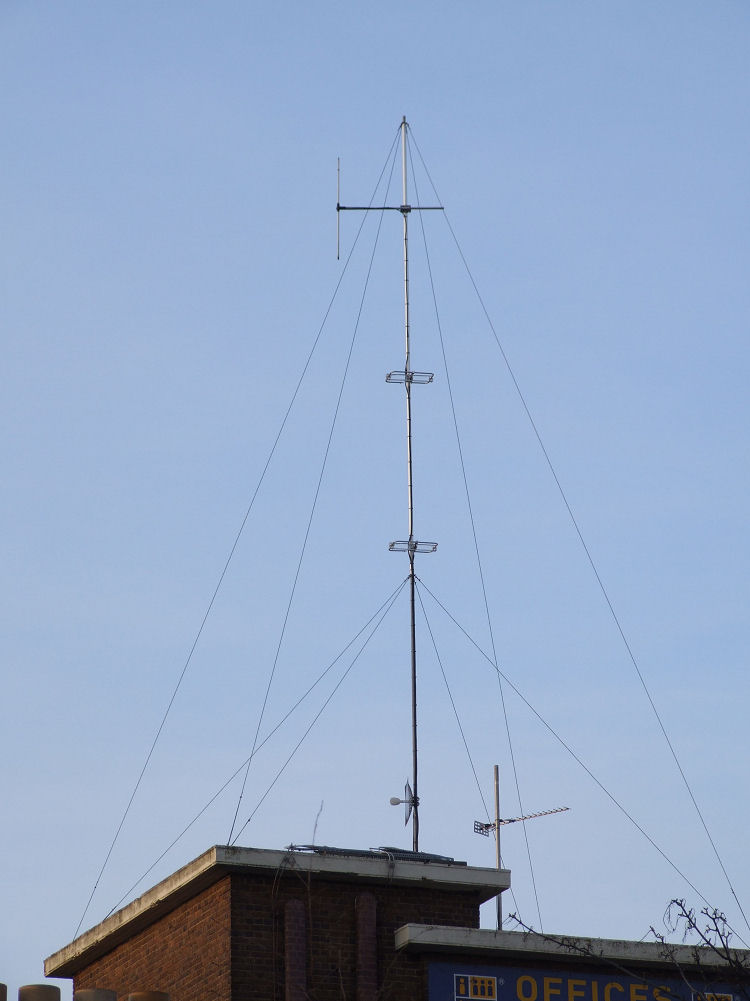

Properly known as Windmill Place Business Centre the antennas for this Community Radio station serving Southall are on the roof of Ironbridge House - named after the adjacent rail bridge which crosses the Uxbridge Road. Ofcom shows the site as operational since 20 August 2007 although other sources suggest Westside was on-air from 13 September. Originally the studios were in Southall but new facilities in Hanwell are now used - recent Google Street View images show an additional SHF dish near the bottom of the pole, with the transmit antennas unchanged. The square horizontal elements in practice give a not-quite omnidirectional pattern and the side-mounted dipole gives a reduction of about 6 dB towards the east.

Rutherford Tower

Please let us know if the photographs for this site need updating or improved detail. To do so, click here.
