THE TRANSMISSION GALLERY

Photos by Richard Berry and Paul Bainbridge Page last updated: 2017-01-22
Monkswearmouth Tyne & Wear
NGR: NZ400579 Maps: Google  Bing (Ord Surv) Site Height: 21m      Structure Height:
Digital TV:
BBC Radio:

Ind. National Radio:
Ind. Local Radio: Spark FM: 107.0
Digital Radio:
Comments:

October 2009, updated January 2017

Spark FM (formerly 107 Spark FM) launched in October 2009 and it appears from Paul's update that the transmission arrangements remain unchanged. Prior to being awarded a Community Radio licence the group responsible for the station completed a number of RSL operations as "Utopia FM" and similar names.

The transmit site is a block known as as Church Street North which is about half a mile to the north of the studios.

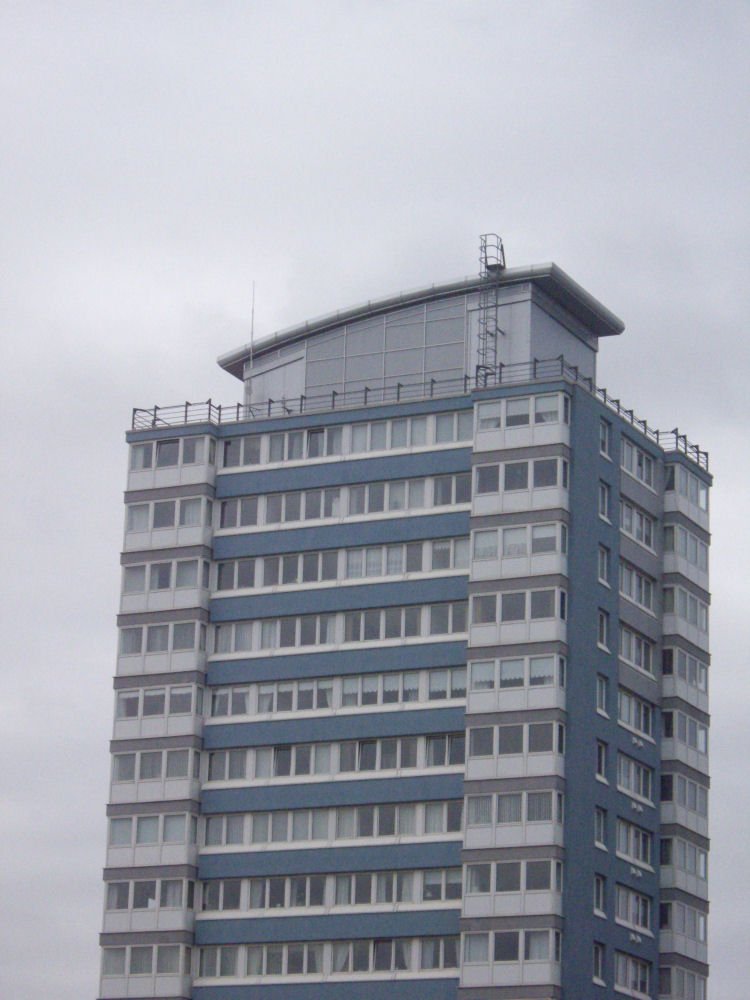

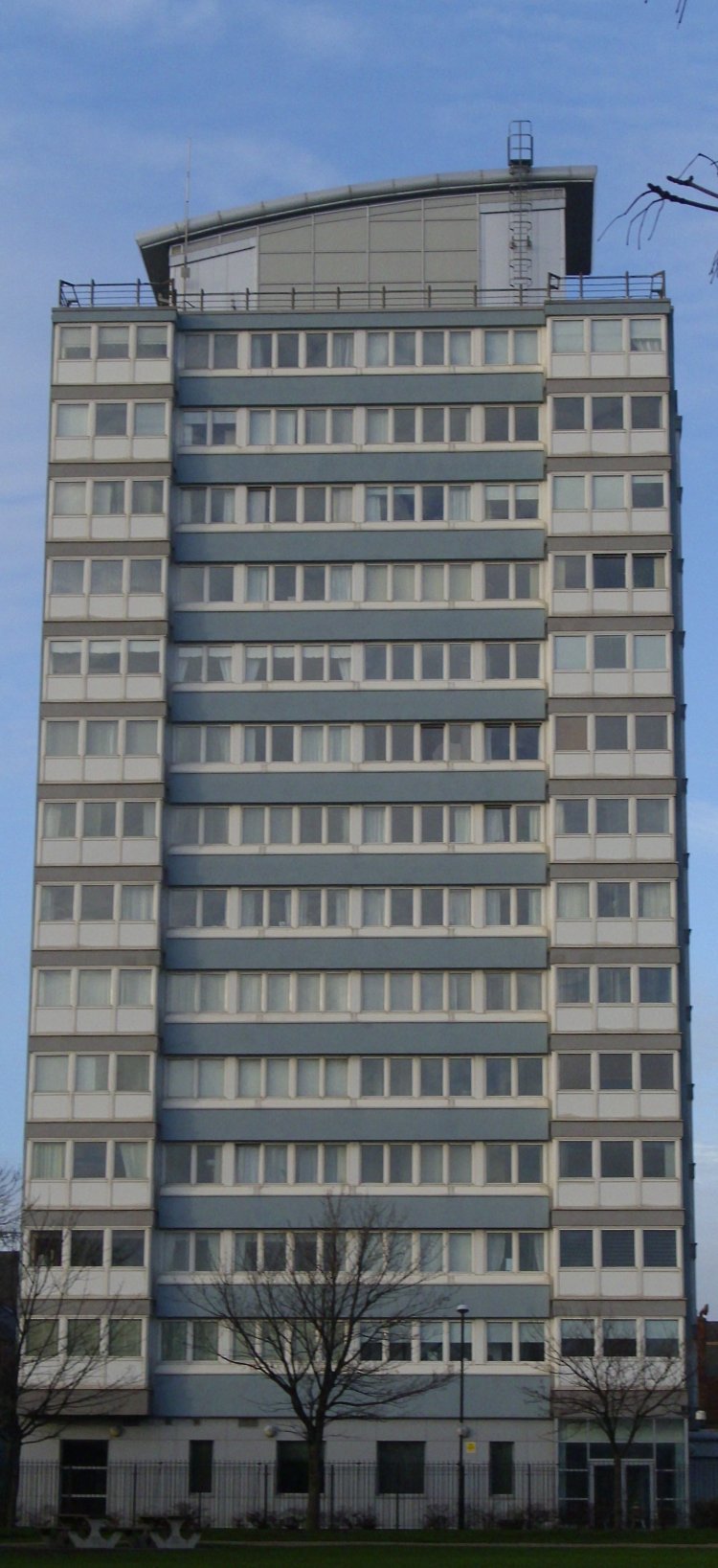

Above and below: Richard's photos show the installation at the time the station launched...

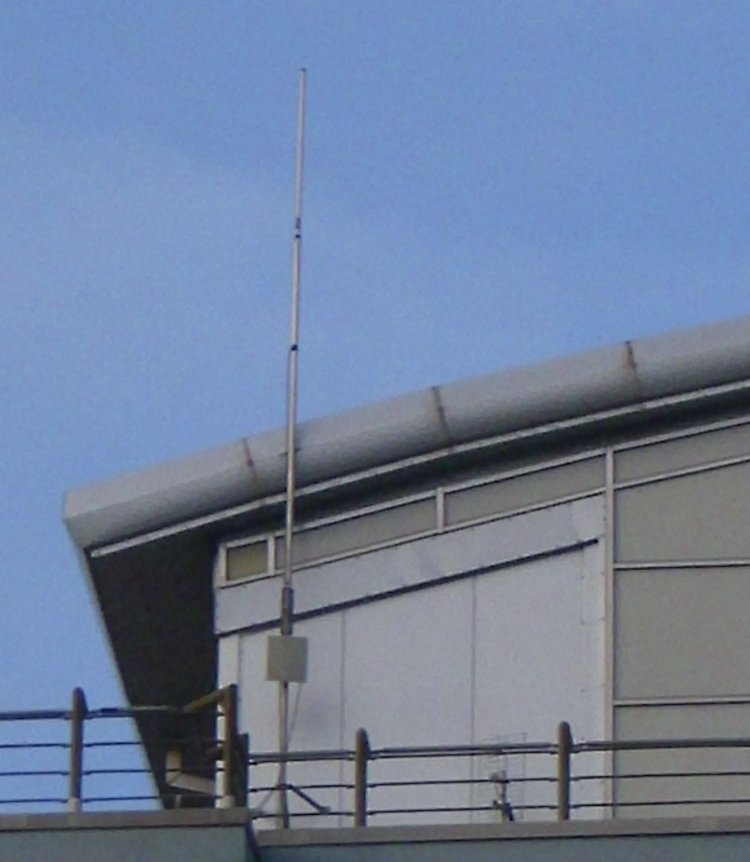

...from Paul's update we can confirm the station uses an end-fed vertical with an SHF panel providing the link from the studio.


As seen in January 2017 - no change to the arrangements - but seen in more detail.

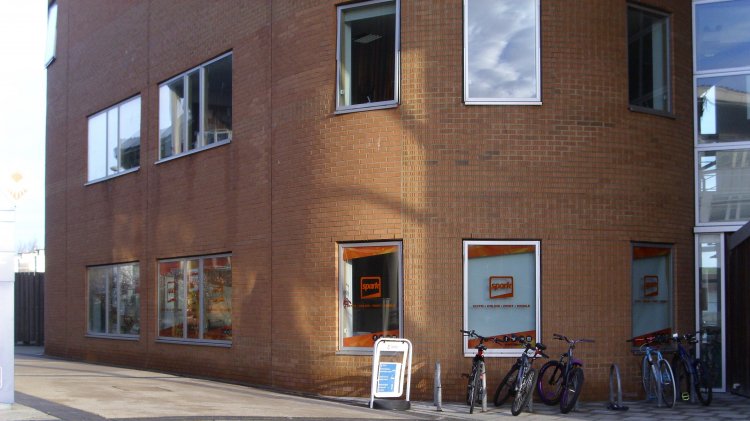

The Spark FM studios at the David Puttnam Media Centre which is part of the University of Sunderland.


Another view of the Sir David Puttnam Media Centre (from the rear). At the bottom right of the picture is the Spark studios. The building also hosts the studios used by the local TV service Made in Tyne & Wear which is transmitted from Pontop Pike.

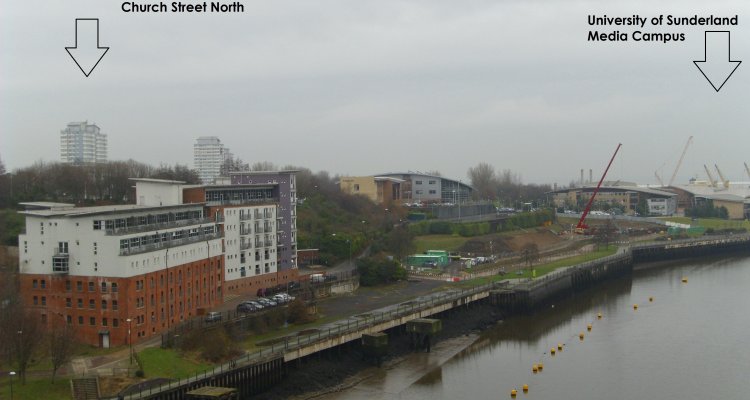

Taken from the Monkswearmouth Bridge, showing the transmitter and studio locations. (The block to the right of Church Street North is some distance away.)

Pontop Pike

Please let us know if the photographs for this site need updating or improved detail.
