Reigate Hill (Fort Lodge) Surrey NGR: TQ258521 Maps: Google  Streetmaps (Ord Surv)   Site Height: 226m       Structure Height: 15m Digital TV: National Radio: Local Radio: Susy Radio: 103.4   Digital Radio: Comments:

Show historic services
February 2014

Went in search of this community radio station aerial. (Susy Radio). The OFCOM Tx parameters quoted south facing, mixed polarisation at 15m agl. I spent some time looking at about 1/4 the way up the two Reigate towers, without finding anything. Then on the way back to the car park I spotted this aerial on the side of a house. A closer study of the OFCOM data revealed a grid reference 200m east of the Arqiva site.

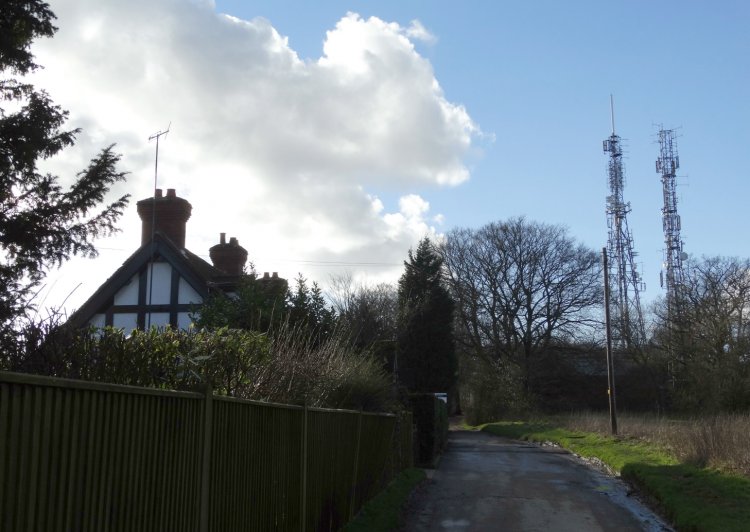

Community radio aerial on house, to the left. Reigate towers to the right.

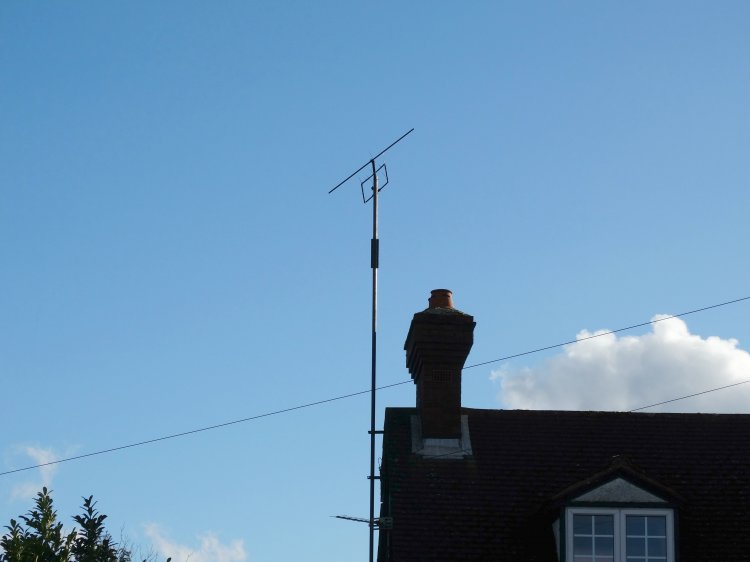

Are the bird spikes fundamental to the RF design?

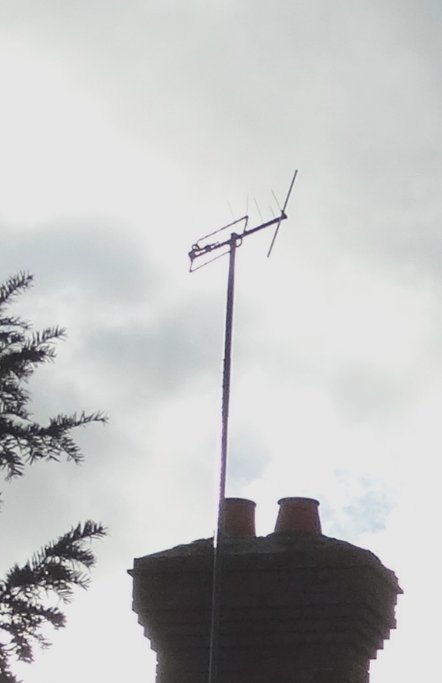

The aerial is tilted to point down the hill towards the town of Reigate.

Reigate
