Galashiels Golf Club Borders
NGR: NT494366 Maps: Google  Bing (Ord Surv)   Site Height: 192m      Structure Height:
Digital TV:
National Radio:
Local Radio: TD1 Radio: 106.5
Digital Radio:
Comments:

Show historic services

Building and installation of transmitter for TD1 Radio, March 20th 2015.

Transmitter installation for TD1 Radio - community radio in Galashiels - broadcasting on 106.5FM from Galashiels Golf Club. 50 watts e.r.p. with mixed polarisation.

Geoff Ruderham from Black Diamond FM (Newtongrange) and local engineer Jim Keddie assisted with the build.

Installation carried out by Alastair Kirk from A1 Aerails


Geoff Ruderham and Jim Keddie start to assemble the Lindenblad




Almost complete!

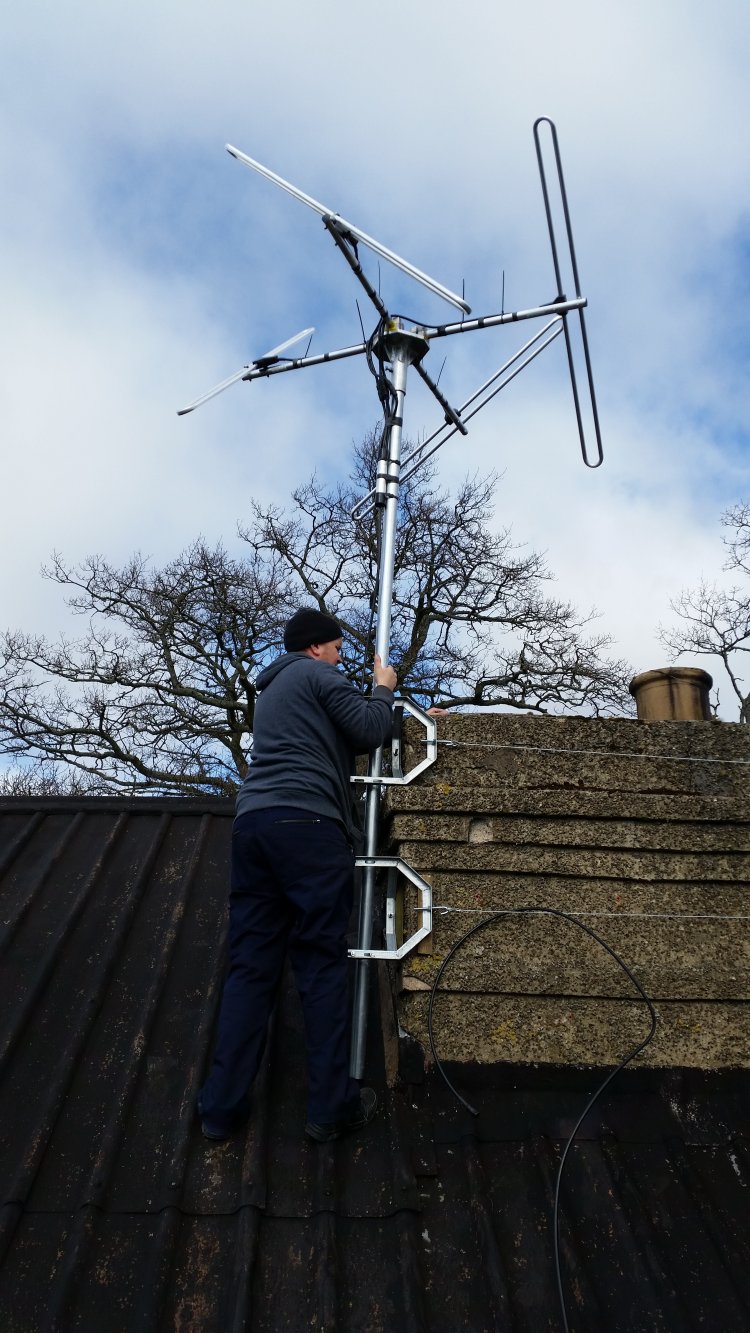

Ready to mount on the chimney with Alastair Kirk from A1 Aerials


In place and transmitting on 106.5 FM in Galashels and the surrounding area


Distance shot of the antenna at Galashiels Golf Club


Top to bottom: Denon FM Tuner (for off air monitoring) Broadcast Warehouse RDS Encoder and TX50v2 FM Transmitter. Satellite receiver for IRN + NAS Raid Storage unit for studio backups. Audio processing and ex-BBC on air switching/monitoring unit. Internet encoding / audio logger / silence detection and streaming monitor.
