Leicester Cardinal Leicestershire NGR: SK592047 Maps: Google  Streetmaps (Ord Surv)   Site Height: 57m       Structure Height: Digital TV: National Radio: Local Radio: Digital Radio: BBC National: 12B   Digital One: 11D   Leicestershire: 11B   Comments:

Show historic services
February 2016

"Cardinal" is the name of a BT exchange in central Leicester and the tallest building in the city at 84 m to roof level Ofcom data shows DAB at 95 m with omnidirectional coverage - after a bit of discussion of possible vantage points Neil set off one lunchtime...would it be possible to identify the DAB antenna(s)? BBC, Digital One and the local Leicestershire multiplex all started service on 29 September 2015. We understand the services are likely to be fed via SHF link from Houghton-on-the-Hill

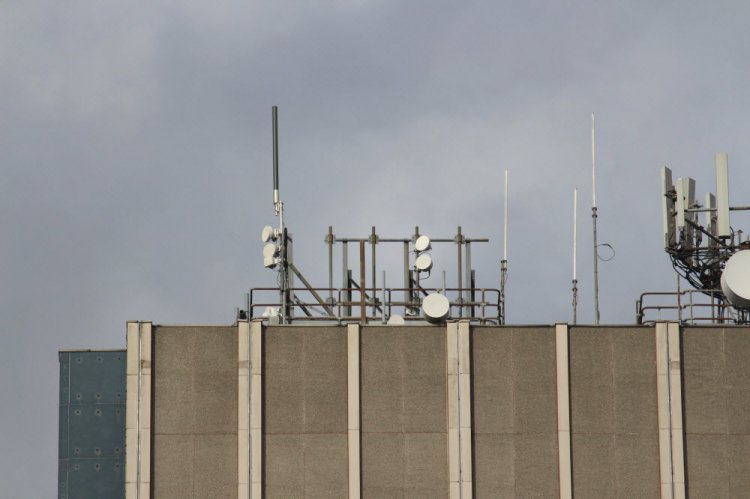

Seen from a position to the south east. The roof is heavily populated with antennas for the mobile networks and other communications...

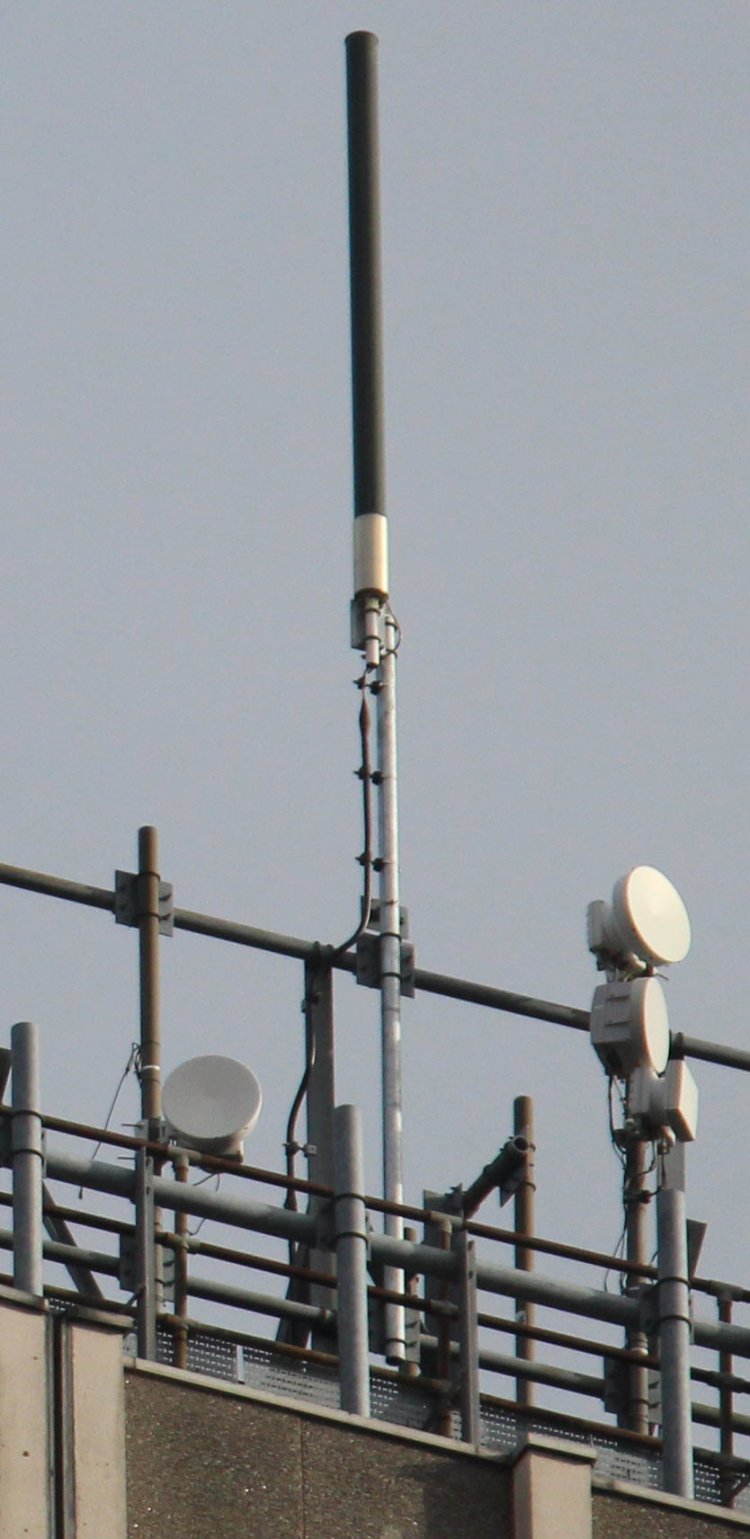

...at the western end one antenna stands out as different and new. It's similar to the type installed at Kenley and more recently Brixham

As seen from the west. This type of antenna may be a Skymasts model 470.34.33.00 - data sheet linked below

Brixham

Skymasts Data Sheet
