Caterham (Old Park Wood) Surrey NGR: TQ335533 Maps: Google  Streetmaps (Ord Surv)   Site Height: 236m       Structure Height: 48m Digital TV: National Radio: Local Radio: Digital Radio: BBC National: 12B   Digital One: 11D   London 1: 12C   London 2: 12A   London 3: 11B   Surrey: 10C   Comments:

Show historic services
July 2016

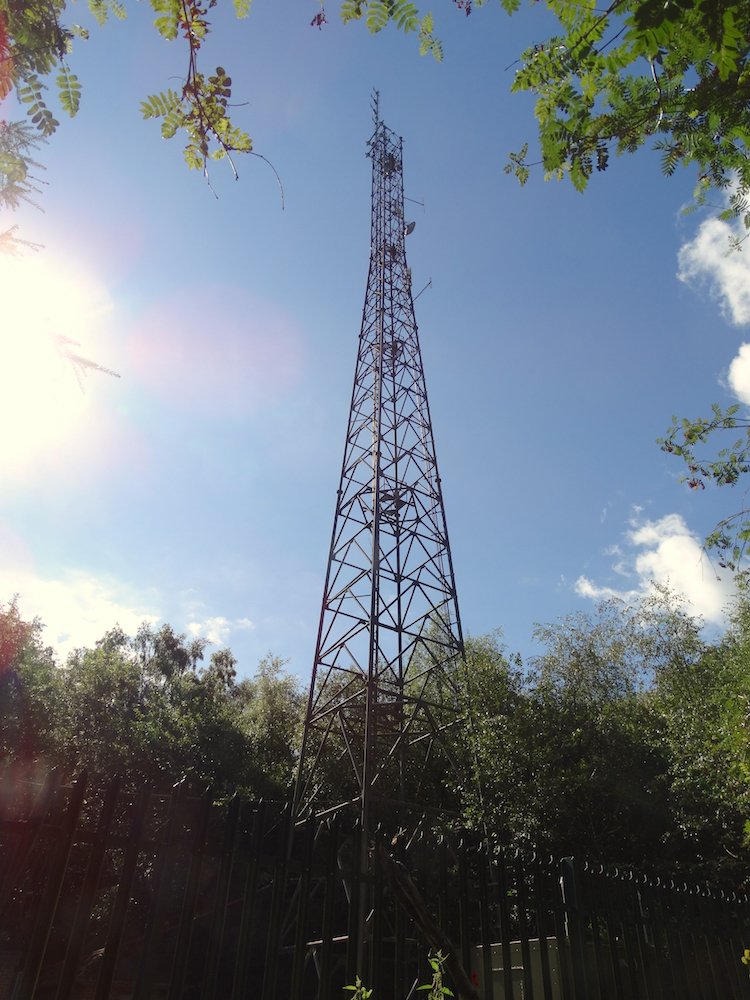

This Surrey Police site is a tricky one to photograph, being surrounded by woodland. The best time to take pictures would be in the afternoon as the only unobstructed views are by the west perimeter fence. I was there in the morning with the camera pointing towards the bright sunshine. The surrounding Old Park Woods are now owned by Caterham School. See the link at the foot of this page about their plans. This sites about 1.5 miles south of the Caterham UHF TV site, close to junction 6 of the M25. All six DAB multiplexes entered service on 27-May-2016.

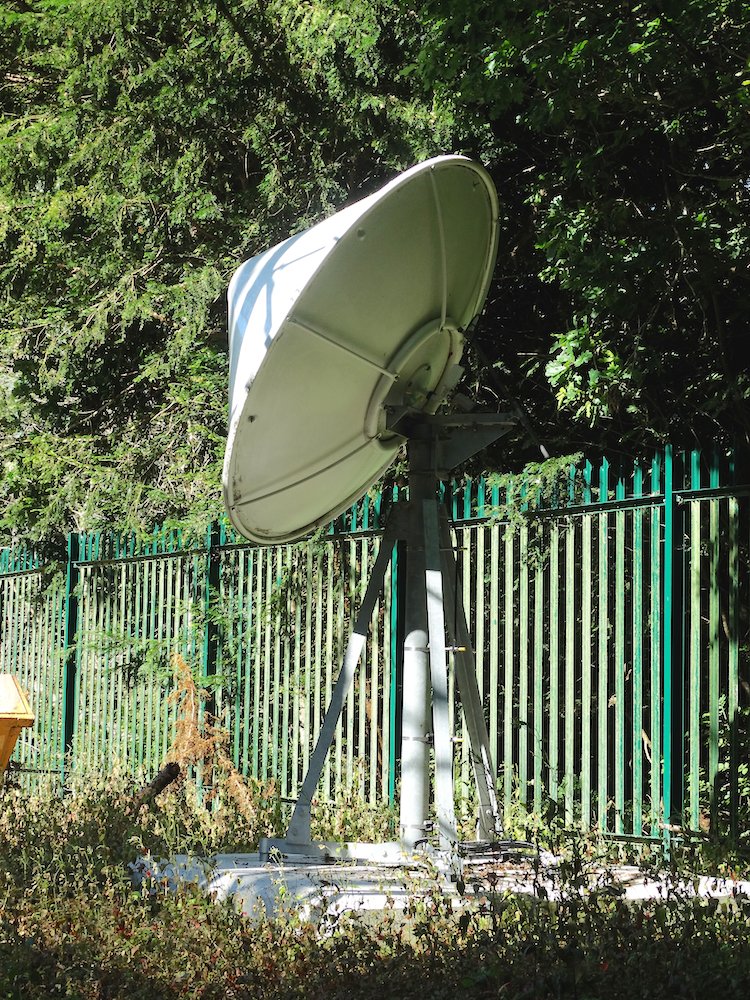

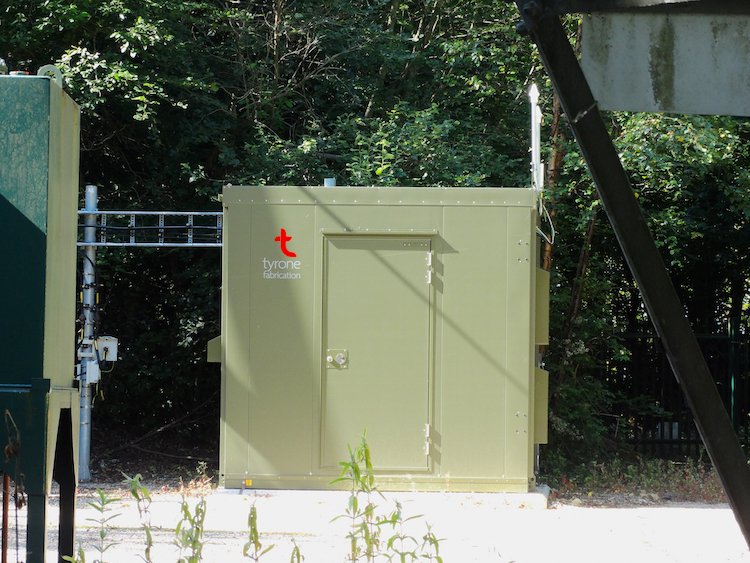

Planning application still attached to the gate. Reads " Installation of 1no. dipole antenna, a 1.8m diameter satellite dish, an equipment cabinet, etc.".

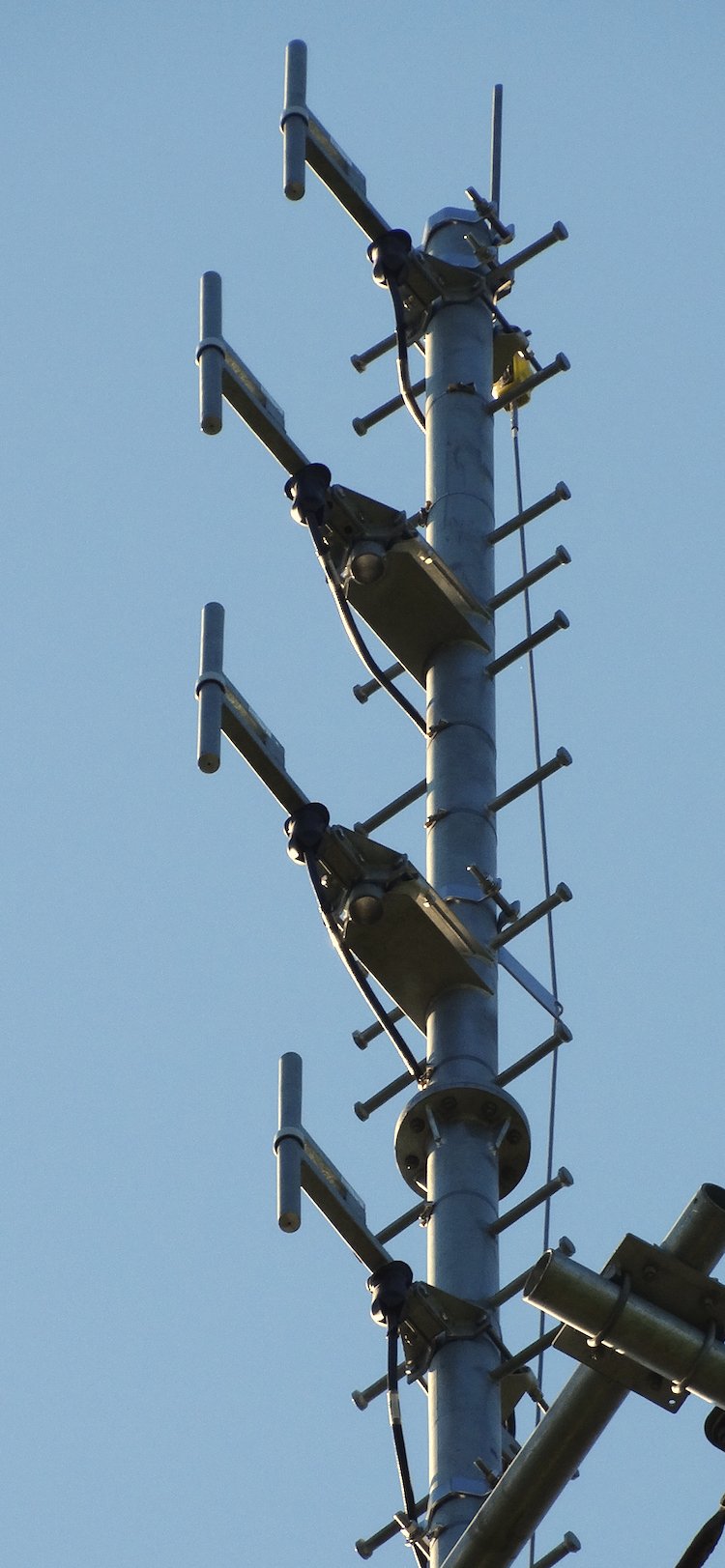

Four tiers of band III dipoles for DAB transmit.

Caterham

Caterham School on Old Park Woods
