Blackpool (Princess Street) Lancashire NGR: SD309352 Maps: Google  Streetmaps (Ord Surv)   Site Height:       Structure Height: Digital TV: National Radio: Local Radio: Digital Radio: BBC National: 12B   Digital One: 11D   Lancashire: 12A   Comments:

Show historic services
June 2017

BBC, Digital One and Lancashire DAB entered service on 31st June 2016.

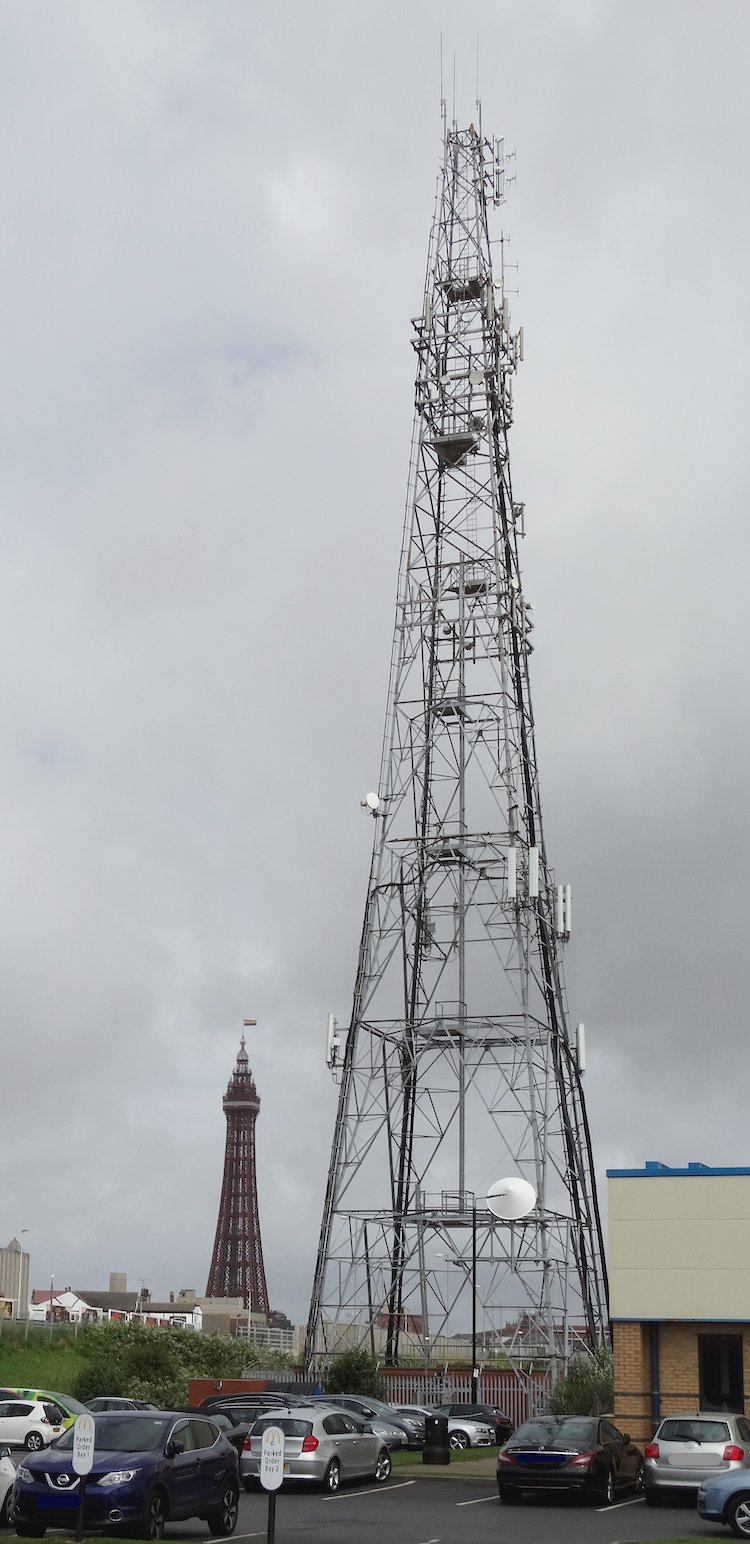

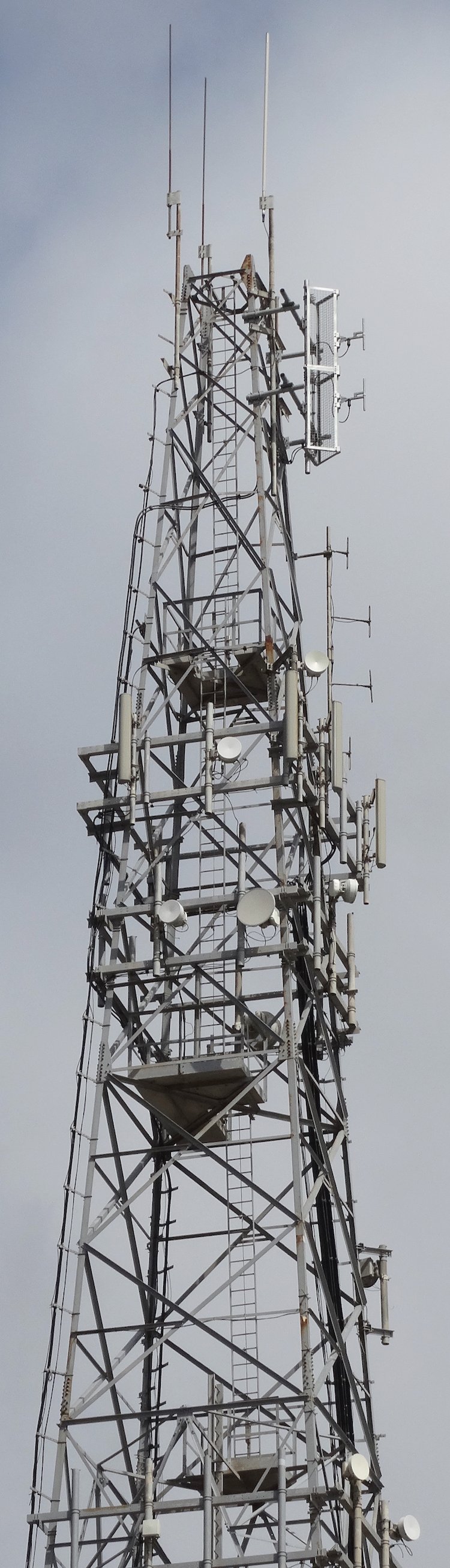

The Blackpool towers. One more familiar than the other.

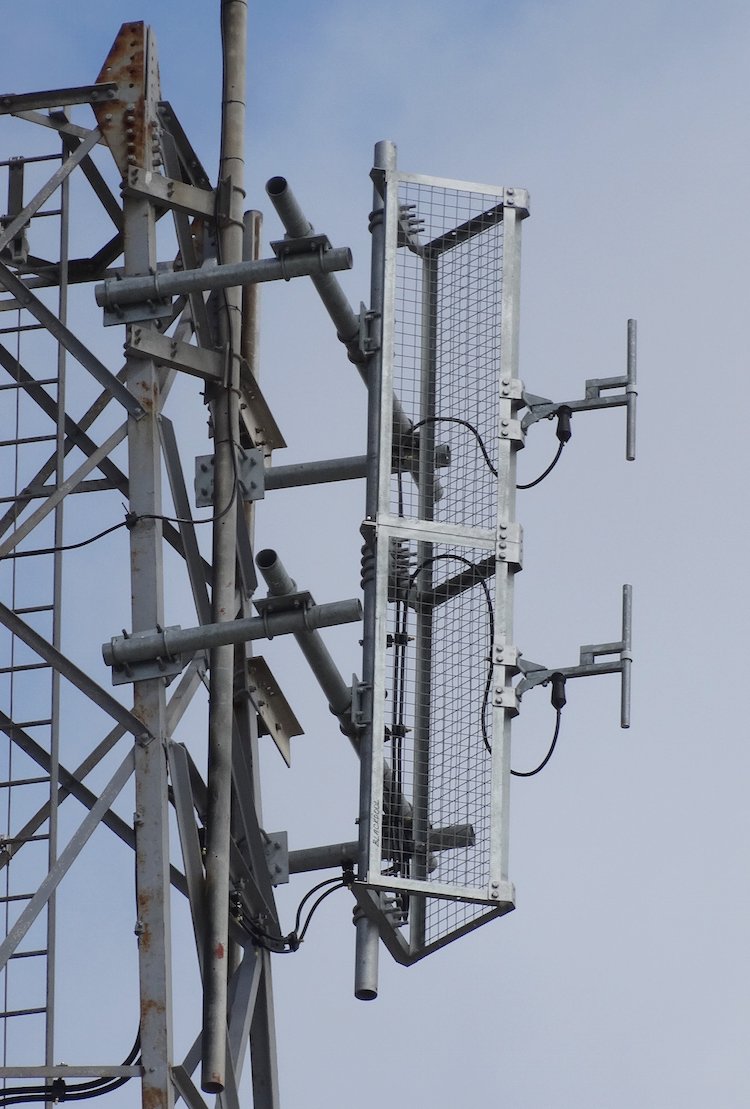

Two tiers of band III dipoles in front of a screen for DAB transmit. The tower looks like it could do with a bit of rust treatment. Coastal locations can be quite a corrosive environment.

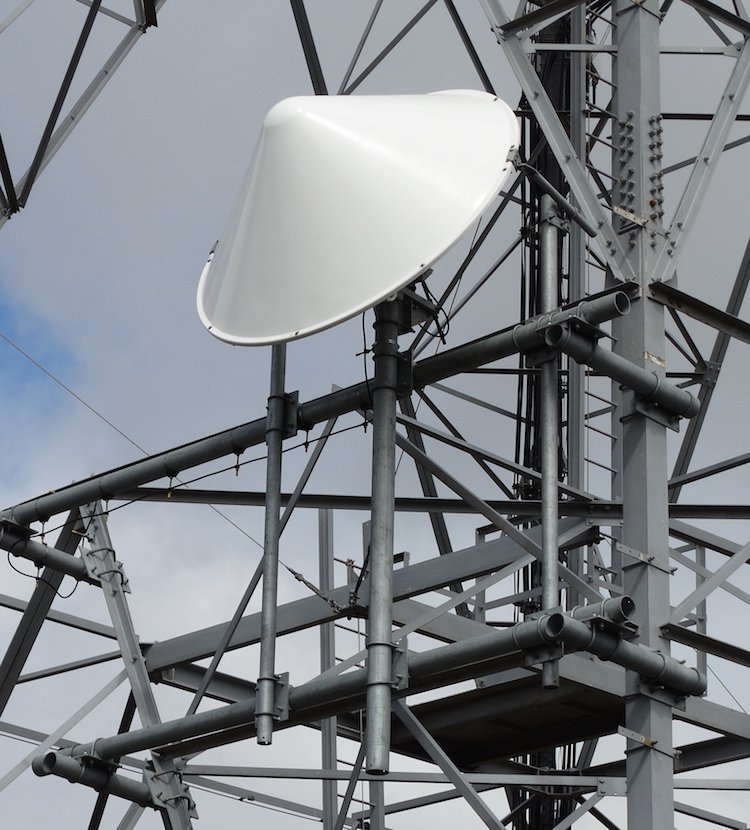

Satellite dish providing the programme feed for the two national DAB multiplexes.

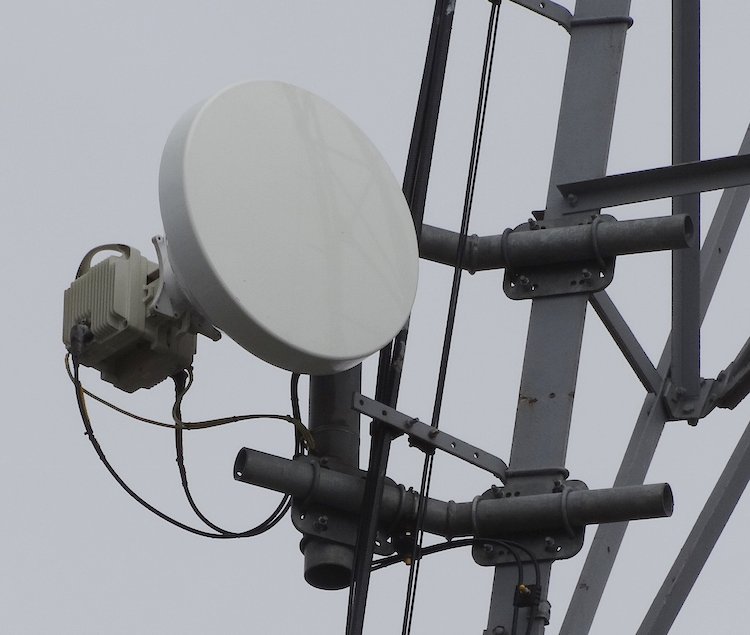

Winter Hill facing SHF antenna providing the Lancashire DAB programme feed.

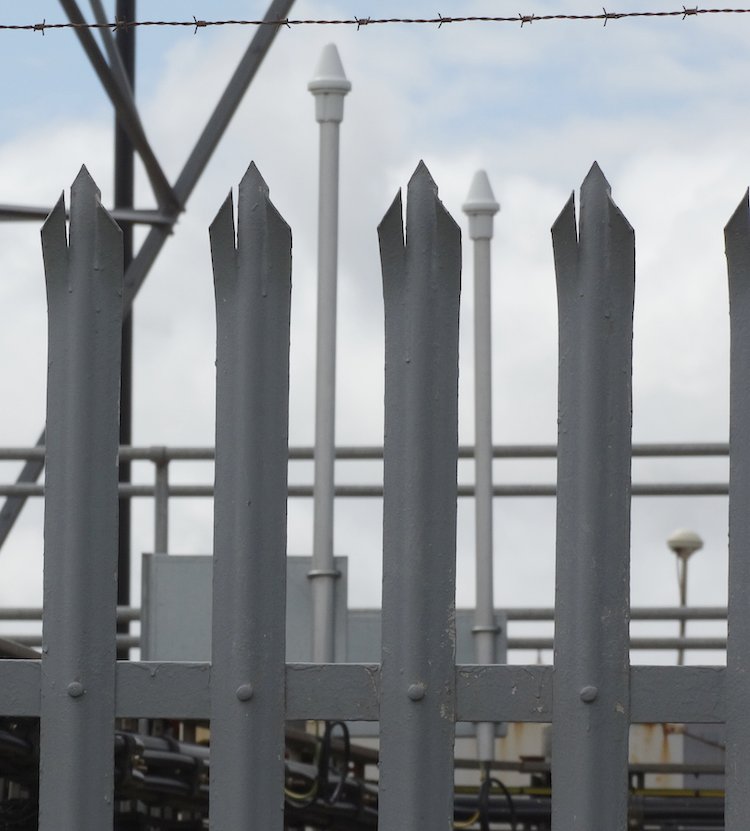

GPS cone receive aerials, just visible through the fencing. My camera has unfortunately auto focused on the fence.

Blackpool Tower

Please let us know if the photographs for this site need updating or improved detail. To do so, click here.
