| Paul first visited in September 2016 but unfortunately the DAB antenna wasn't very apparent from close to the tower. A follow-up in June 2017 means we now have a clear view. The site entered service on 30 June 2016 carrying BBC, D1 and the Tyne & Wear local multiplex. We understand this site is fed via SHF link from Morpeth. |

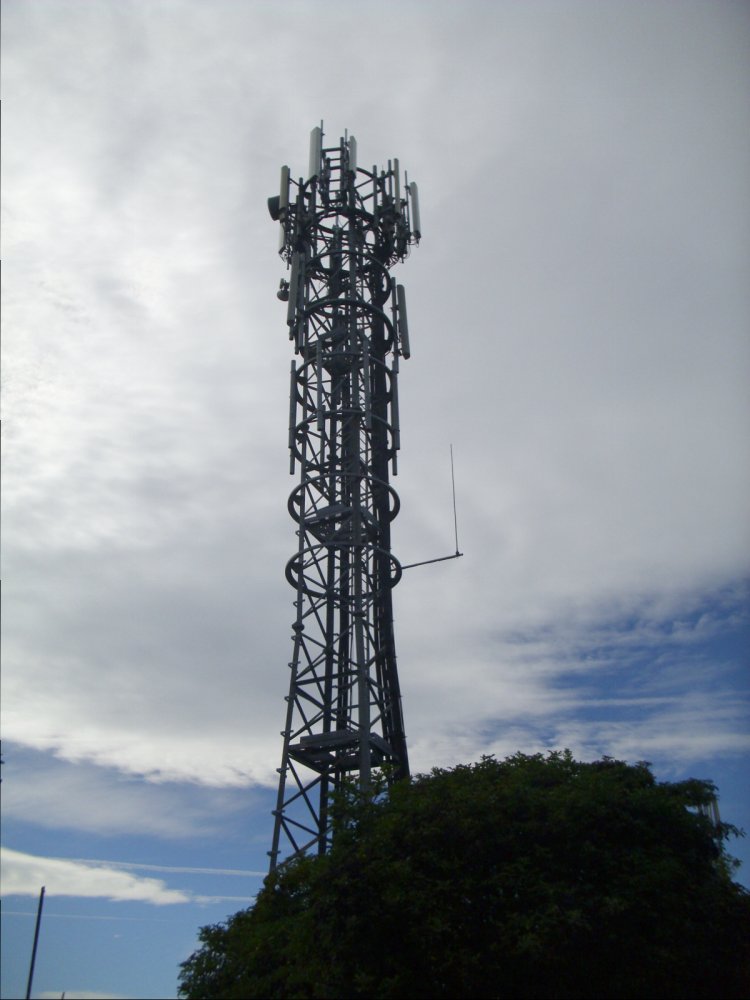

| Above and below: September 2016. The DAB antenna is a colinear, mounted at the top of the structure, but when seen from this angle it disappears amongst the mobile phone antennas... |
| ...it's mounted on a pole and is above everything else, but not when seen from here. |

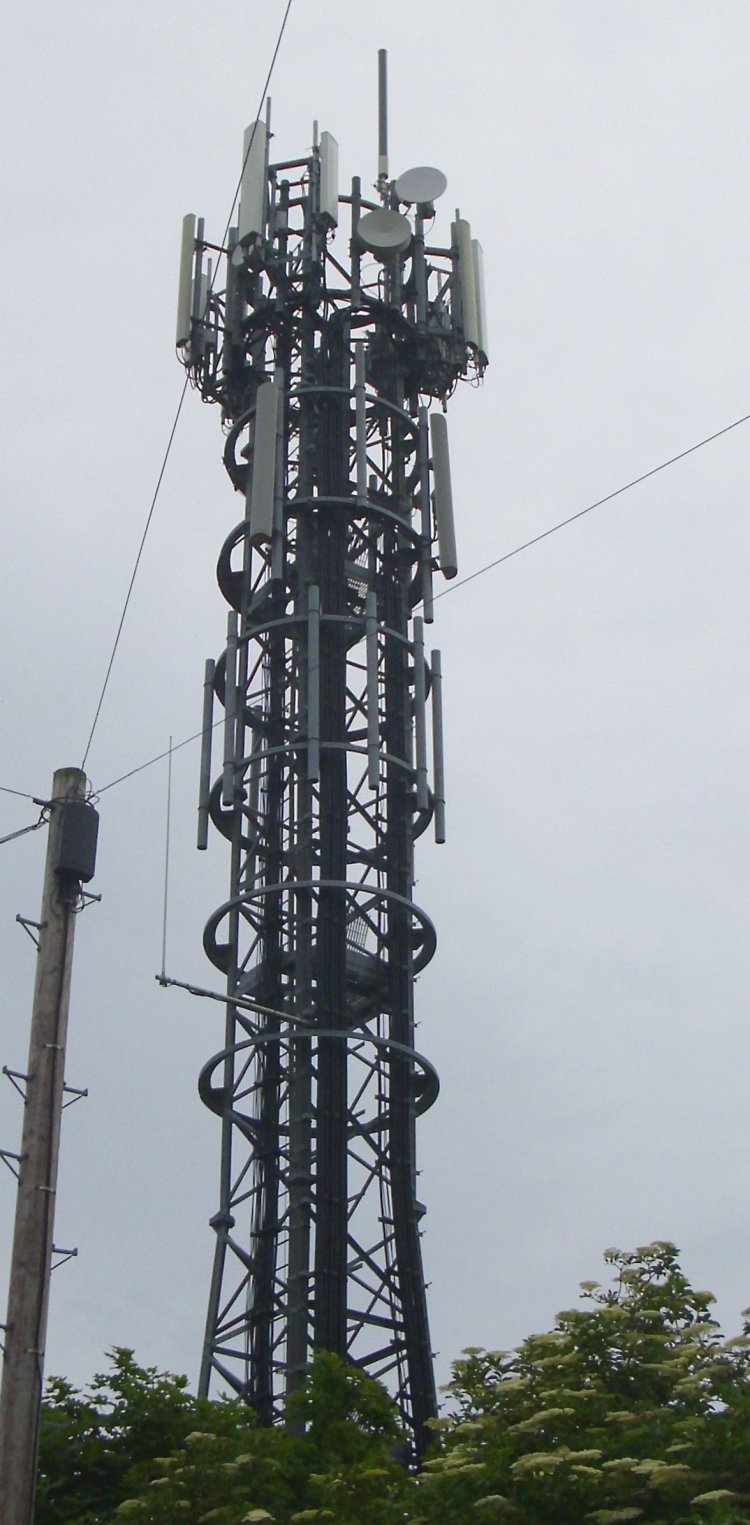

| June 2017 - Paul comments: "If I'd moved a few feet on the other side of the tower, I could have saved myself a second trip!" |

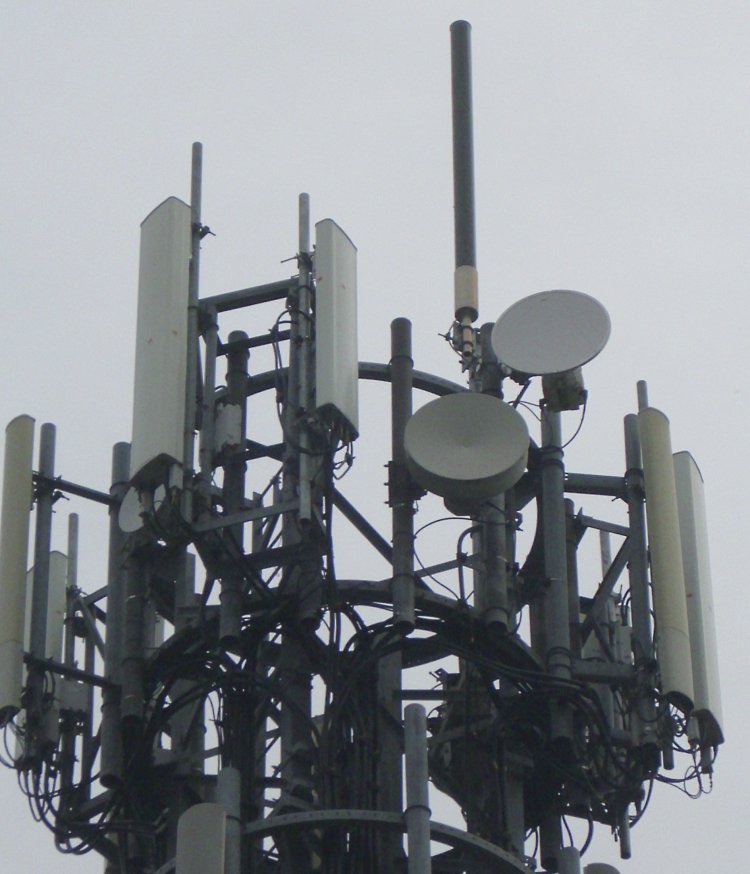

| This is primarily a mobile phone site. The DAB antenna is the black colinear. |

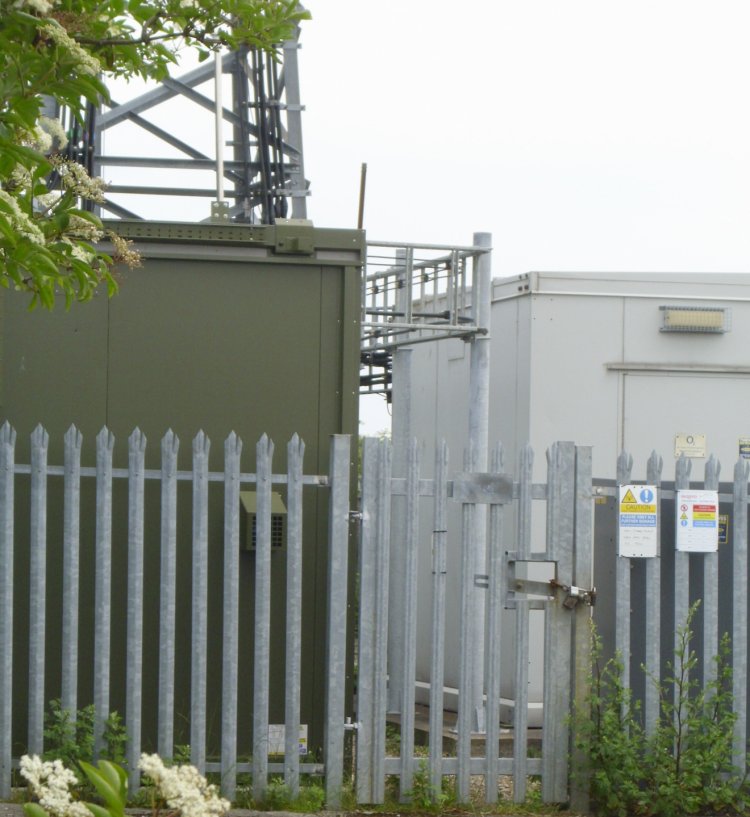

| Paul reports the site being within the football ground therefore this photo is taken through the outer fence. Editor's note: I think there is a GPS "cone" on the white tube above the green cabinet on the left. |

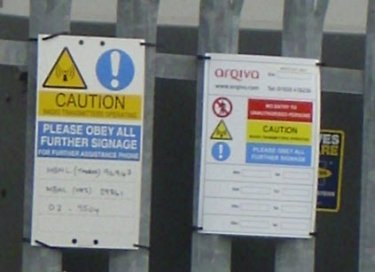

| Editor's note: in the full-size version of this image it's just possible to see "WHITLEY BAY" on the Arqiva sign. |
| |
