THE TRANSMISSION GALLERY

Photos by Martin Brown Page last updated: 2021-09-01
Ashbourne House
NGR: SE394935 Maps: Google  Streetmaps (Ord Surv)   Site Height: 101m      Structure Height: 22m
Digital TV:
National Radio:
Local Radio:
Digital Radio: Teesside: 11B
Comments: North Yorkshire DAB added on 1-Sep-2021 following the fire at Bilsdale. Closed January 2024.

Show historic services

August 2017

Ashbourne House is about 1.5 miles east of Northallerton in North Yorkshire. The tower is in the corner of a farmyard. Ofcom data gives a service date of 28th September 2016 for Teesside local DAB.

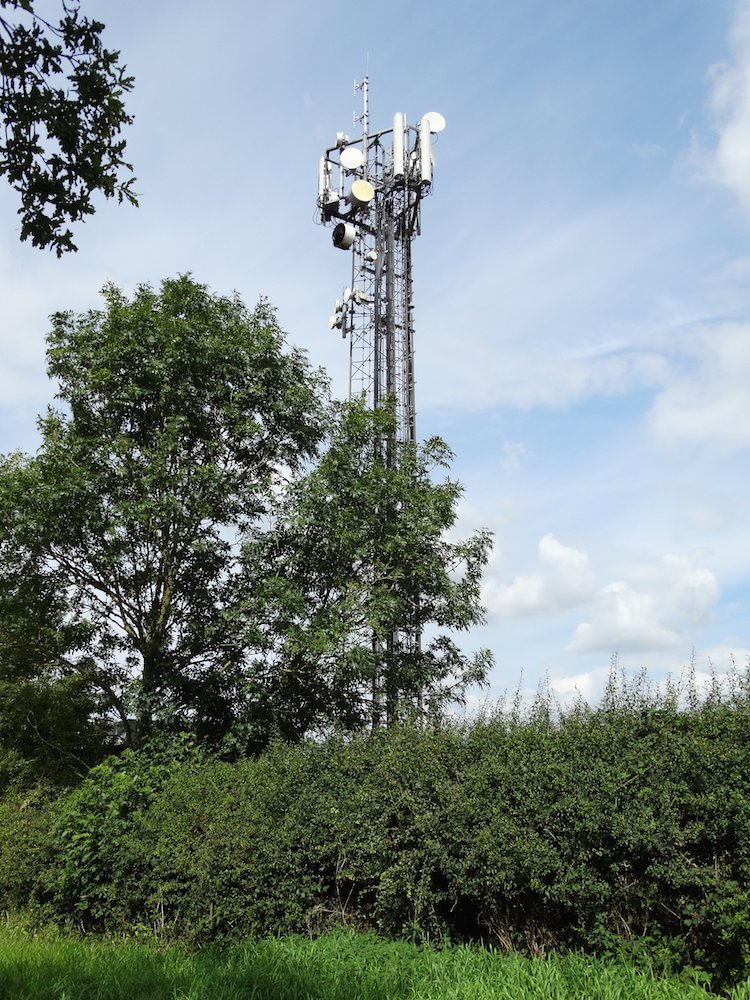

The DAB aerials have been added at the top of this mobile phone tower.

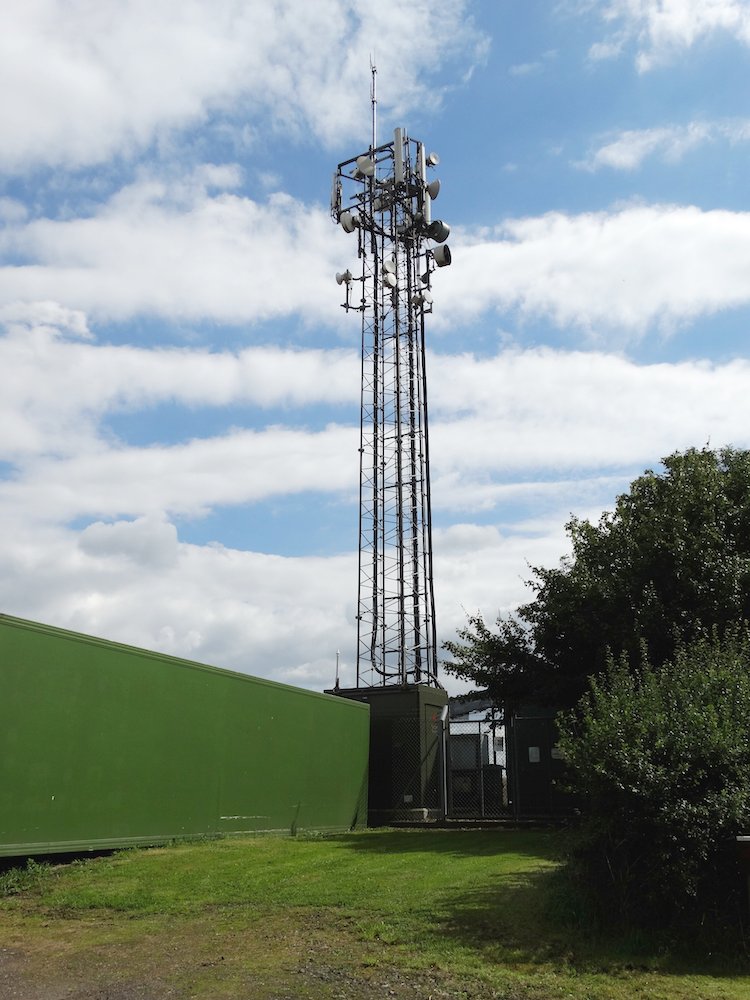

Walk a bit further along the lane and the band III DAB aerials can be seen more clearly.

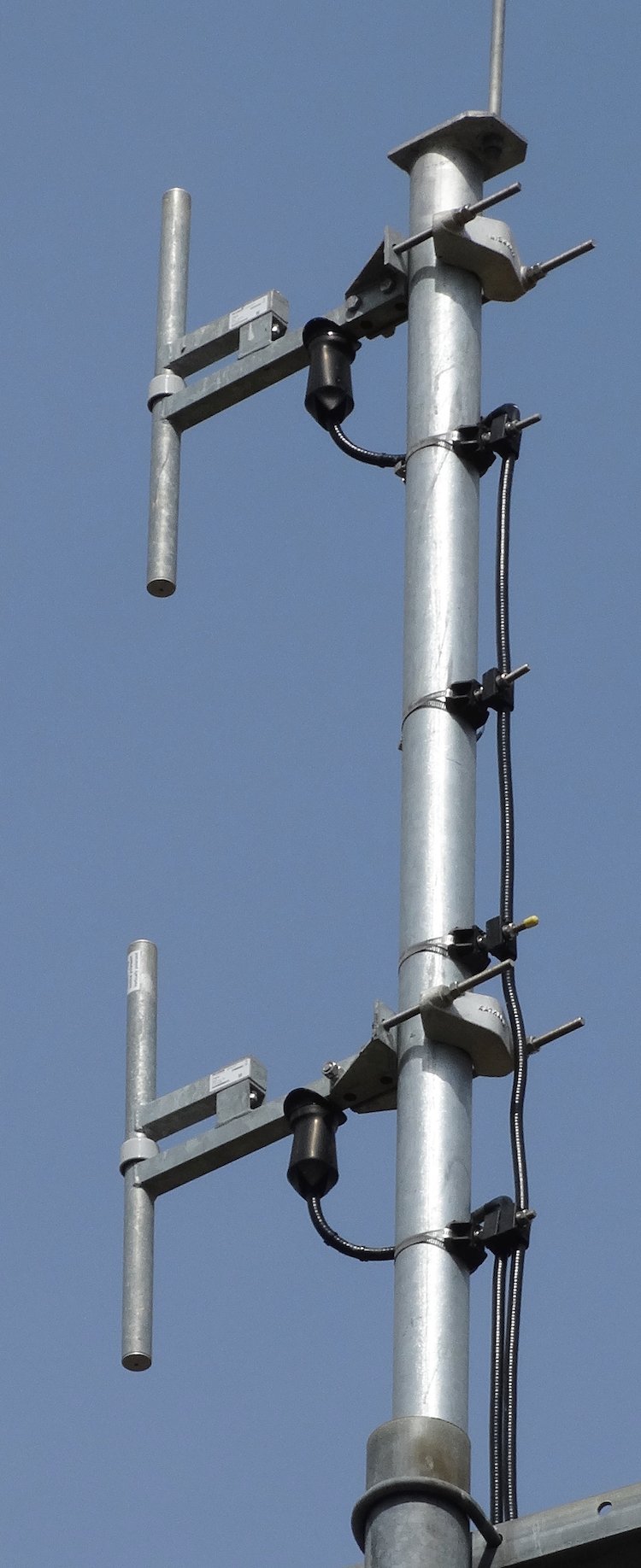

Two tiers of band III dipoles for DAB transmit.


Teeside DAB is fed via an SHF link from Bilsdale. Probably the lowest antenna on the left.

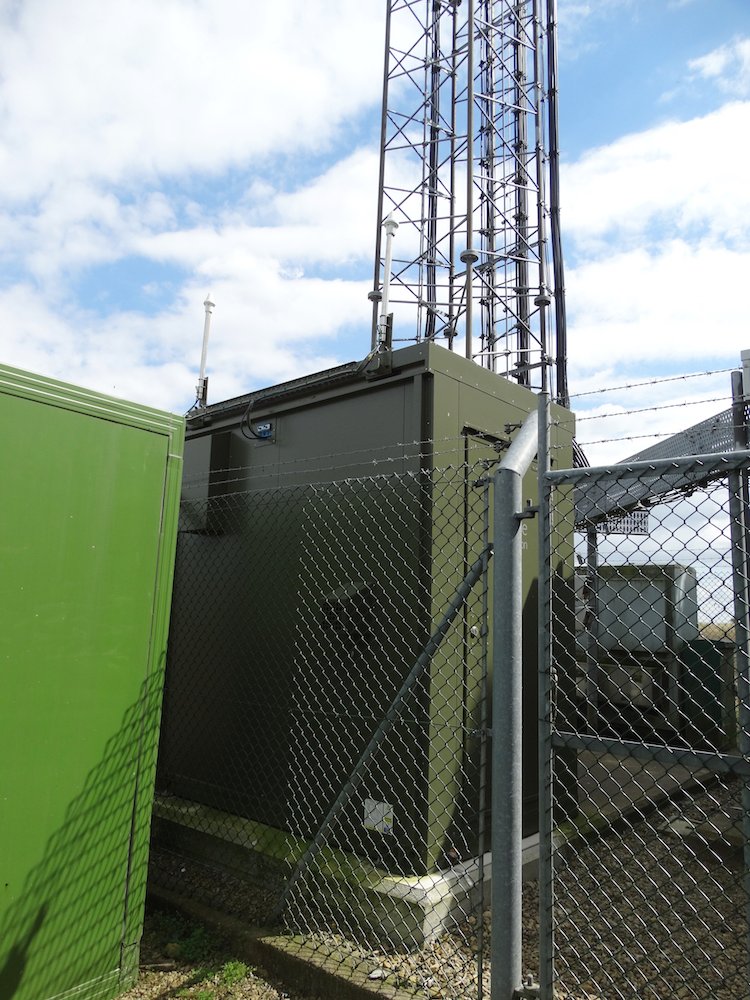

Transmitter cabin with GPS cone aerials.
