THE TRANSMISSION GALLERY

Photos by Jack Bromby Page last updated: 2020-08-27
Middlestone Durham
NGR: NZ251315 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height:
Digital TV:
BBC Radio:

Ind. National Radio:
Ind. Local Radio: Sun FM: 106.8
Digital Radio:
Comments: Replaced Brusselton Feb 2018

Photos taken August 2020

The broadcast antenna for 106.8 FM is at the top of a 30 foot pole located on a barn. At 25 watts, this extends Sun FM into the towns of Bishop Auckland and Spennymoor. On the day of my visit, I noticed that the signal did not broadcast RDS. The yagi at the bottom points towards Haining to receive the 103.4 FM signal, which is then rebroadcast via the two vertical dipoles further up the pole.

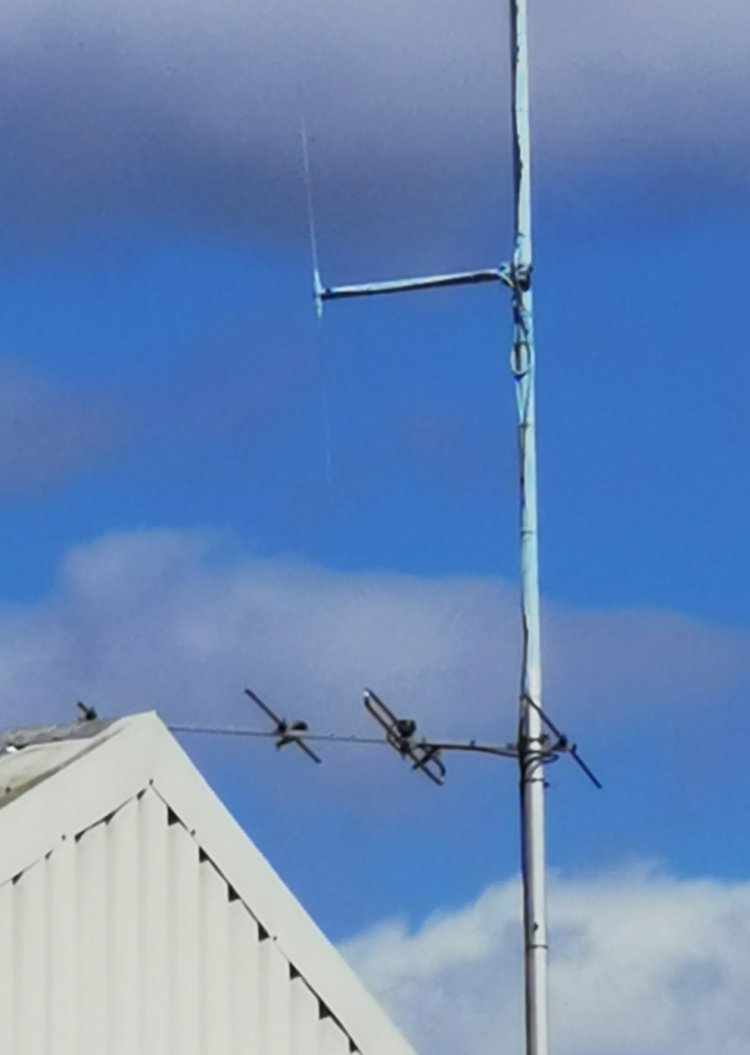

The yagi to receive 103.4 FM from Haining.

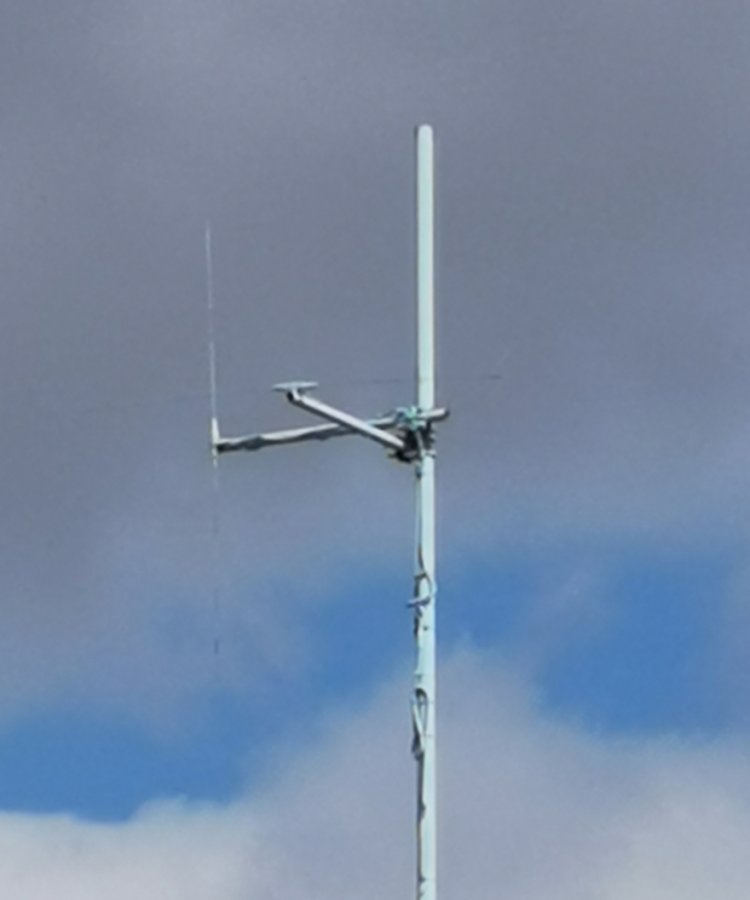

The upper transmit dipole.

Haining
