UK Broadcast Transmission

THE TRANSMISSION GALLERY

Keynsham (Burnett Business Park) Somerset NGR: ST668660 Maps: Google  Streetmaps (Ord Surv)   Site Height: 98m       Structure Height: Digital TV: National Radio: Local Radio: KTCRfm: 105.8   Digital Radio: East Bristol & Keynsham SS: 9B   Comments:

Show historic services
August 2026

On high ground to the south east of the town of Keynsham, this site was first commissioned for Keynsham community FM radio in January 2020. DAB was then added later in November 2022. The white end-fed colinear is for the KTCRFM service. The vertical Band III log periodic is for the East Bristol and Keynsham SSDAB service, which forms a single frequency network with Jubilee Pool and Clifton Heights.

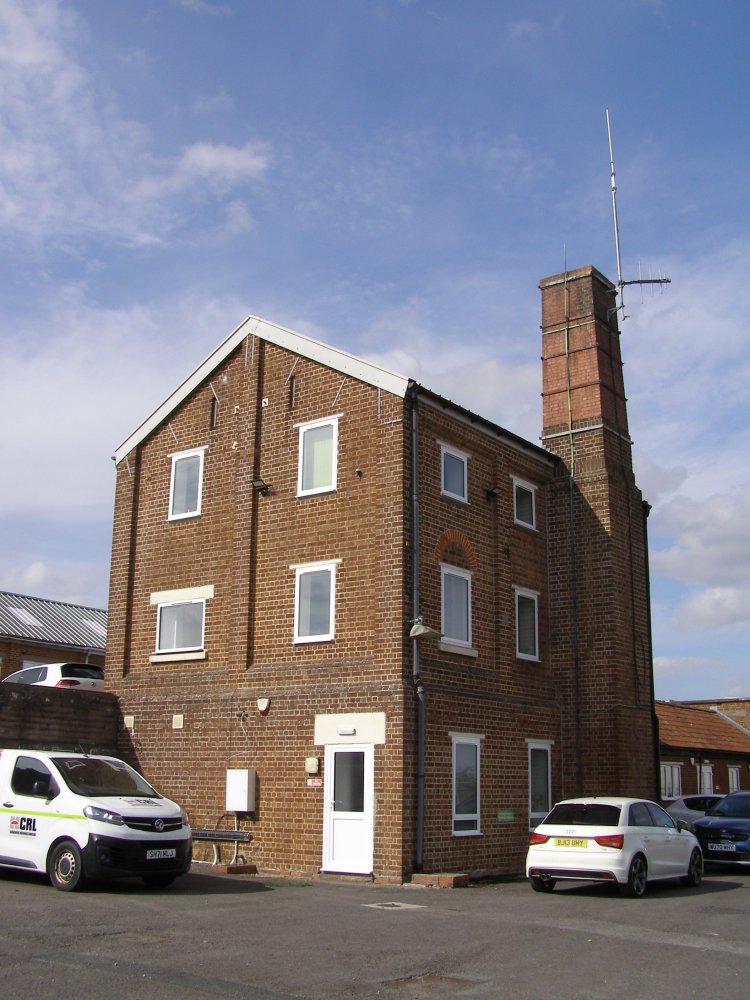

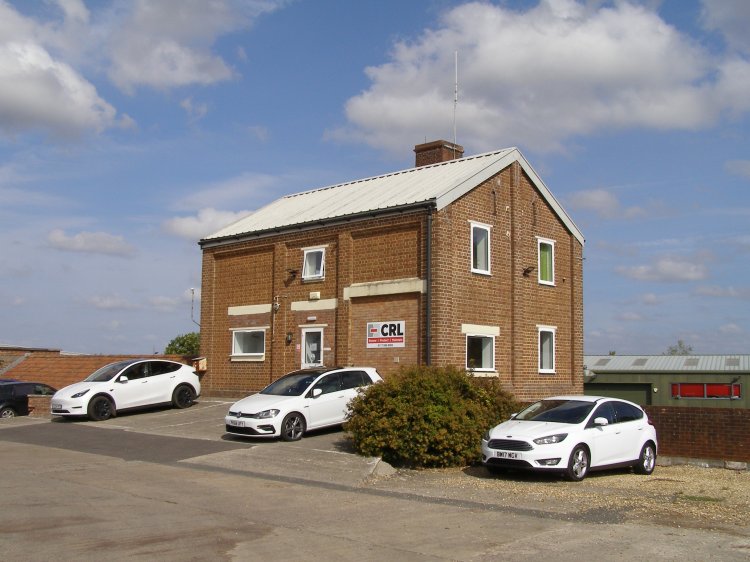

Sited at the CRL offices, which is a structural refurbishment company.

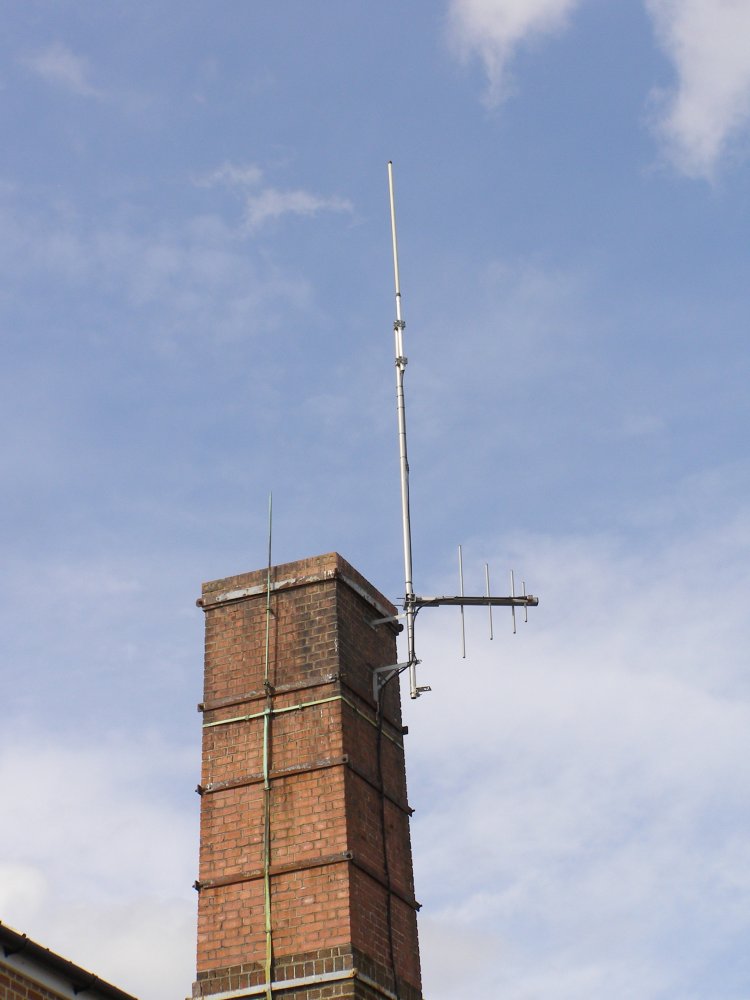

The antennas are bolted to the chimney at the back.

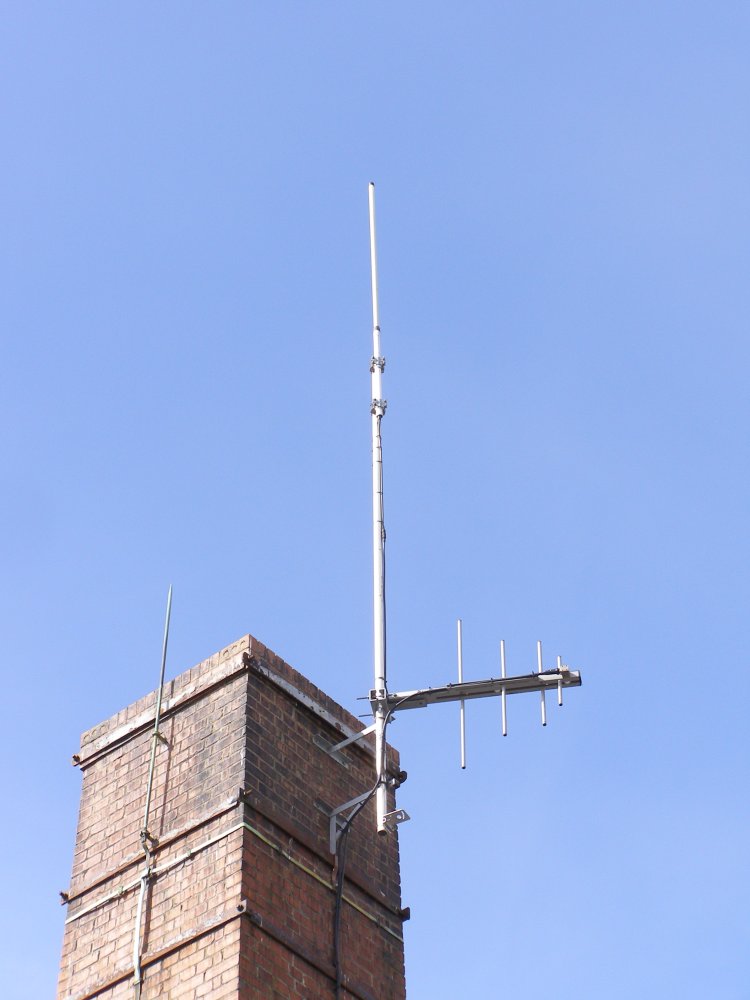

End-fed colinear for band II, vertical log periodic for band III.

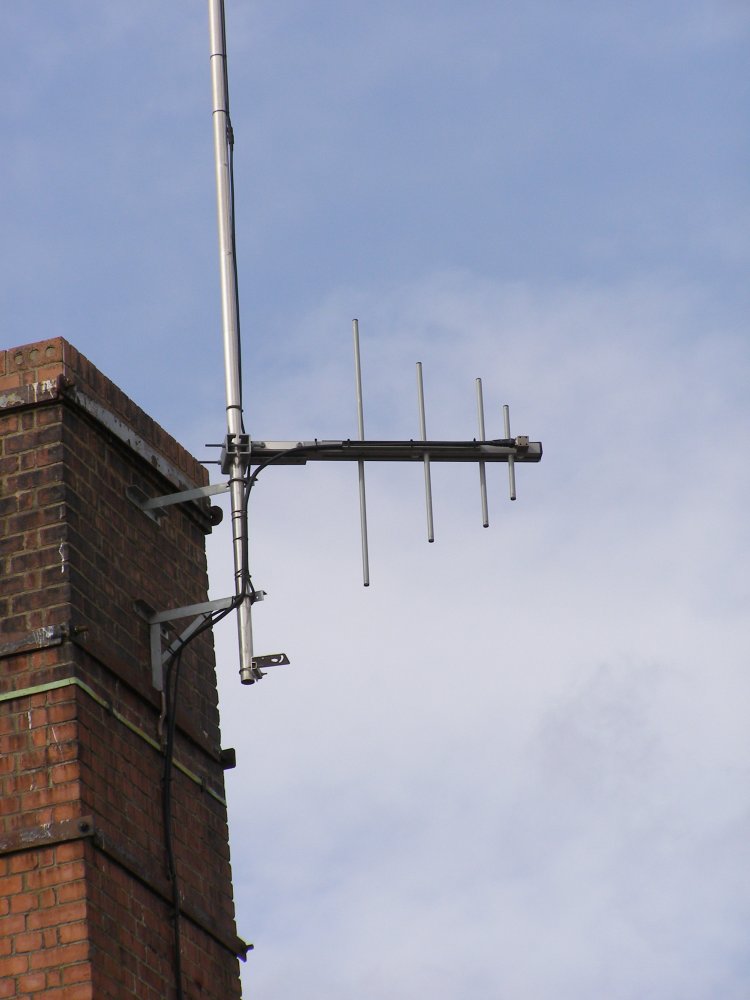

Close up of the band III log periodic. It's pointing approximately NNW (310°) towards Keynsham town.

GPS receiver for DAB multiplex synchronisation?

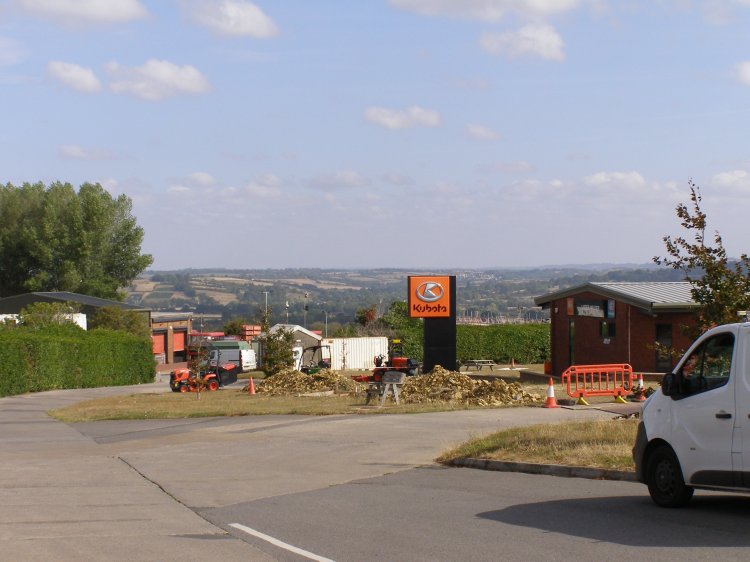

View looking north across the vale towards the service area.
