UK Broadcast Transmission

THE TRANSMISSION GALLERY

Brailes Oxfordshire NGR: SP319379 Maps: Google  Streetmaps (Ord Surv)   Site Height: 190m       Structure Height: 30m Digital TV: BBC A: 24   D3&4: 21   BBC B: 27   National Radio: Local Radio: Digital Radio: Comments: Brailes is a relay of Sutton Coldfield

Show historic services

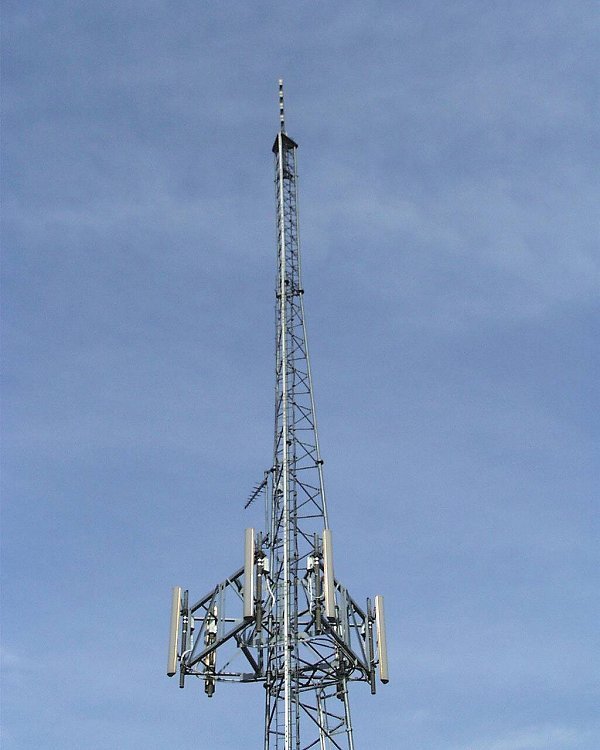

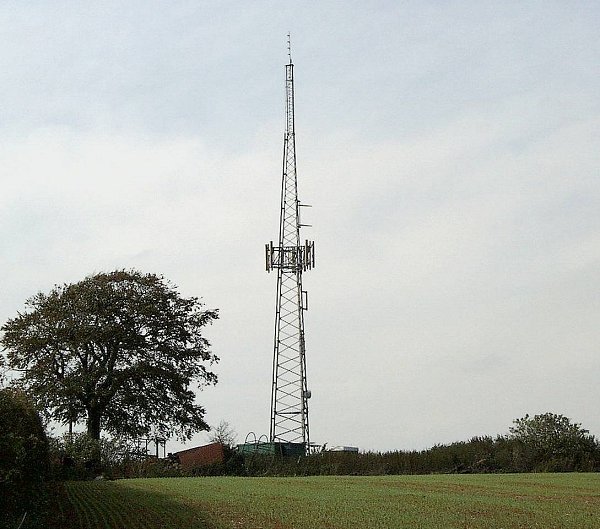

The first set of pictures were taken by Peter, while the relay was an analogue only site

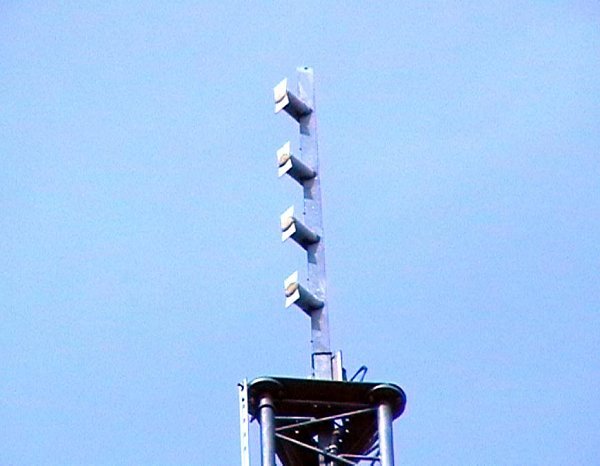

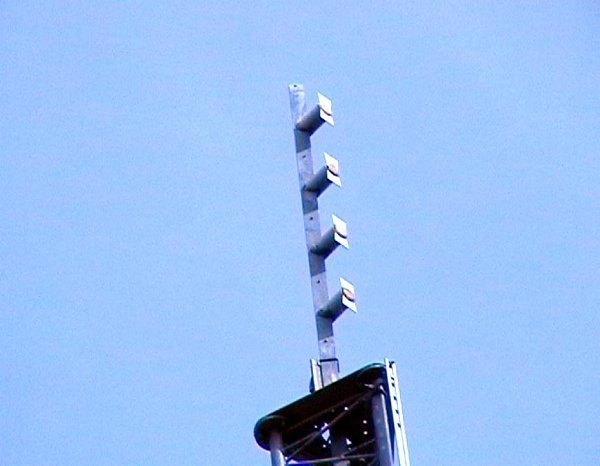

Four tier 'batwing' Tx aerial,

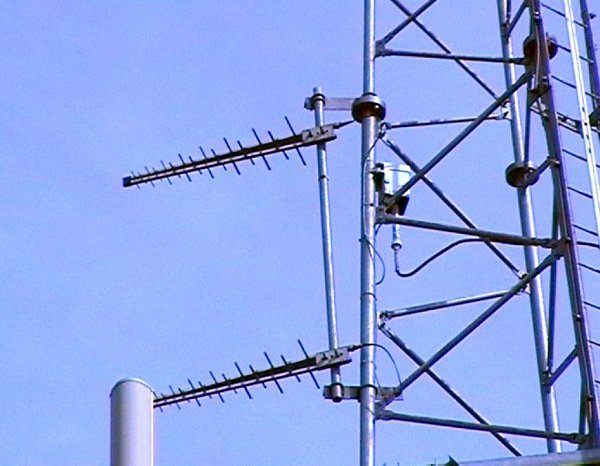

RBL logs looking at feed station, Sutton Coldfield

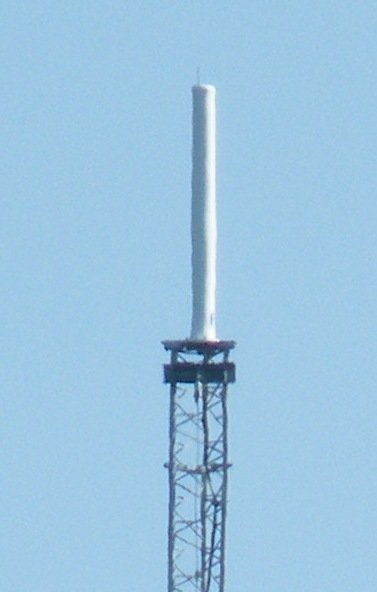

UPDATE: April 2012. Mark Carver found himself on a walk, about half a mile from the site, and it looks as if the Tx aerial has been totally replaced, and/or had a GRP shroud fitted. Almost certainly connected with DSO, that happened in Sept 2011.

Lower Brailes, and its church

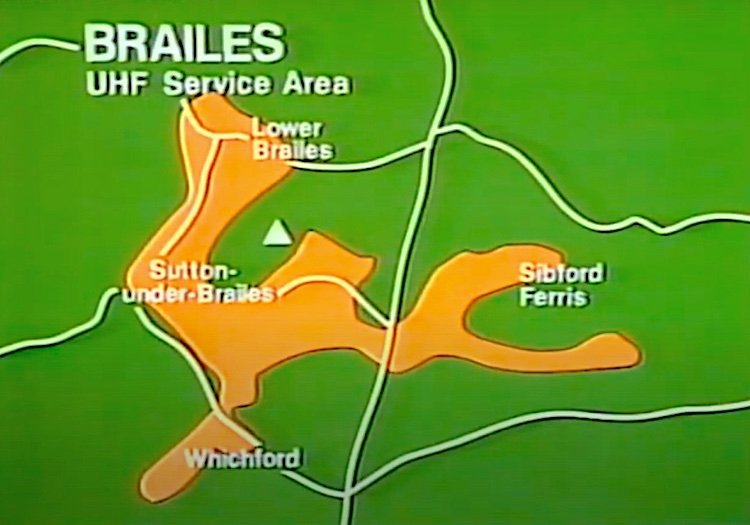

Brailes was originally an IBA landlord site which entered service on 6-Dec-1985. It was built to serve about 660 people in Lower Brailes, Sutton-under-Brailes, Sibford Ferris and parts of Whichford.

Please let us know if the photographs for this site need updating or improved detail. To do so, click here.
