THE TRANSMISSION GALLERY

Photos by Martin Brown Page last updated: 2024-09-03
Aberdare (Leisure Centre)
NGR: SO005025 Maps: Google  Bing (Ord Surv)   Site Height: 121m      Structure Height: 18m
Digital TV:
National Radio:
Local Radio: GTFM: 107.1
Digital Radio:
Comments:

Show historic services

September 2024

Ofcom Tx Parameters give a service date of 25-Jun-2021 for GTFM's Aberdare transmitter.

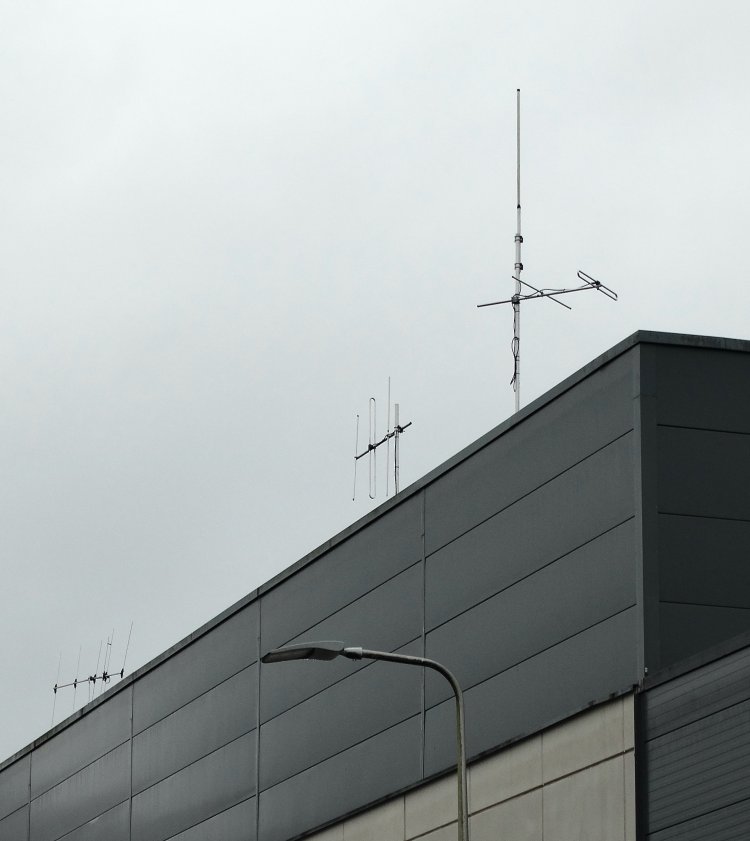

Aberdare Leisure Centre


Transmit is on the right of this picture. I suspect the other two Yagi aerials receive the programme feed. GTFM's Mountain Ash transmitter is only 3.9 km away in that direction (126 degrees).


The transmit arrangement agrees with Ofcom Tx Parameters. Omni directional VP, with the HP component directional to the northwest (300 degrees).

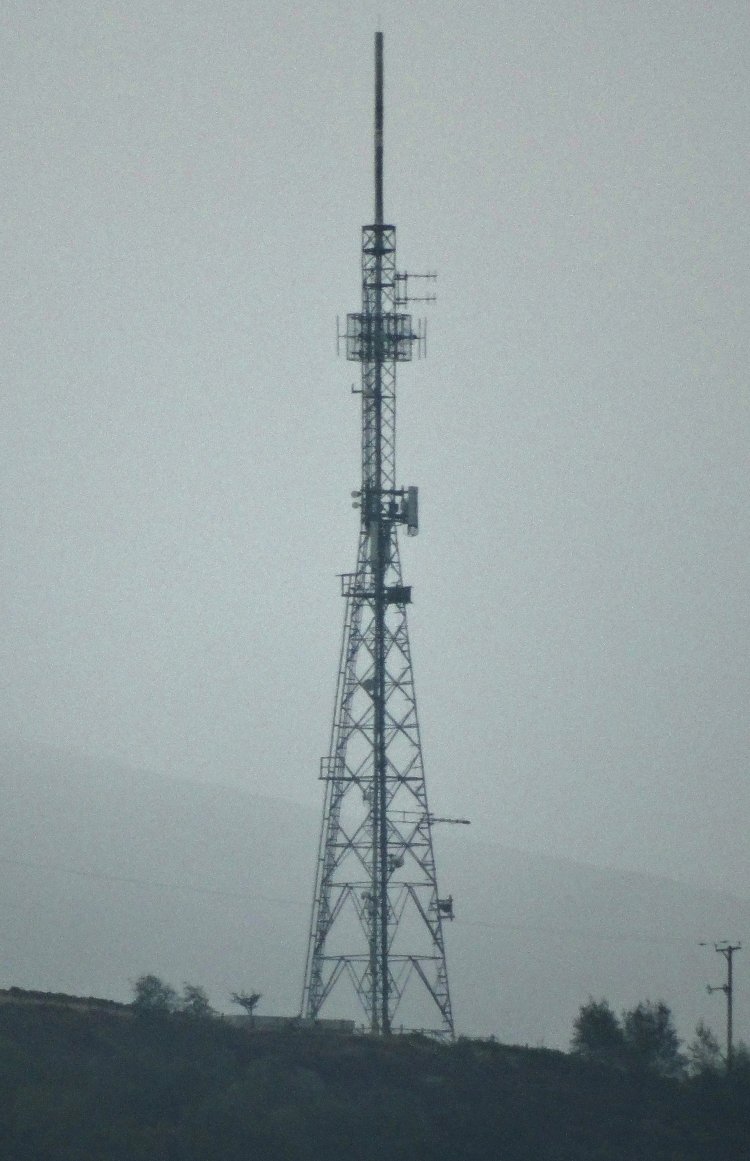

Even on this rather gloomy morning,(it had only recently stopped raining heavily), the Arqiva Aberdare tower is visible up on the hillside.


The main Aberdare Tx site

Aberdare

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
