EASDALE

Photos by Martin Briscoe Page last updated: 2012-11-20

2005 and before

Easdale is technically on an island but the Seil Island is joined to the mainland by the "Bridge over the Atlantic" over a narrow strip of water more like a river

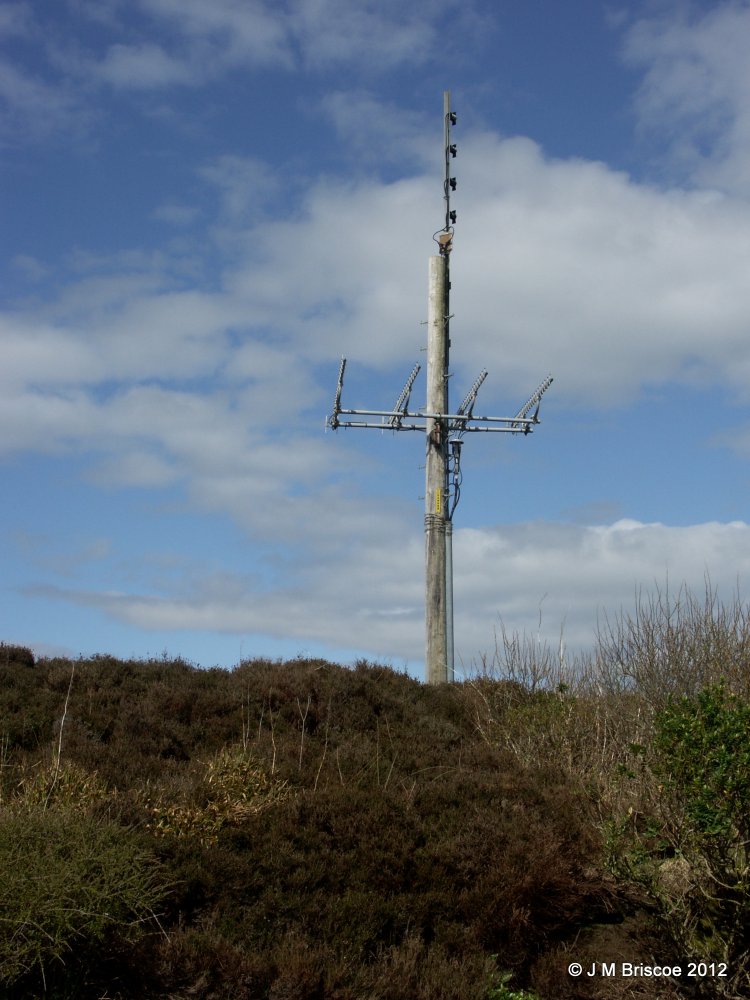

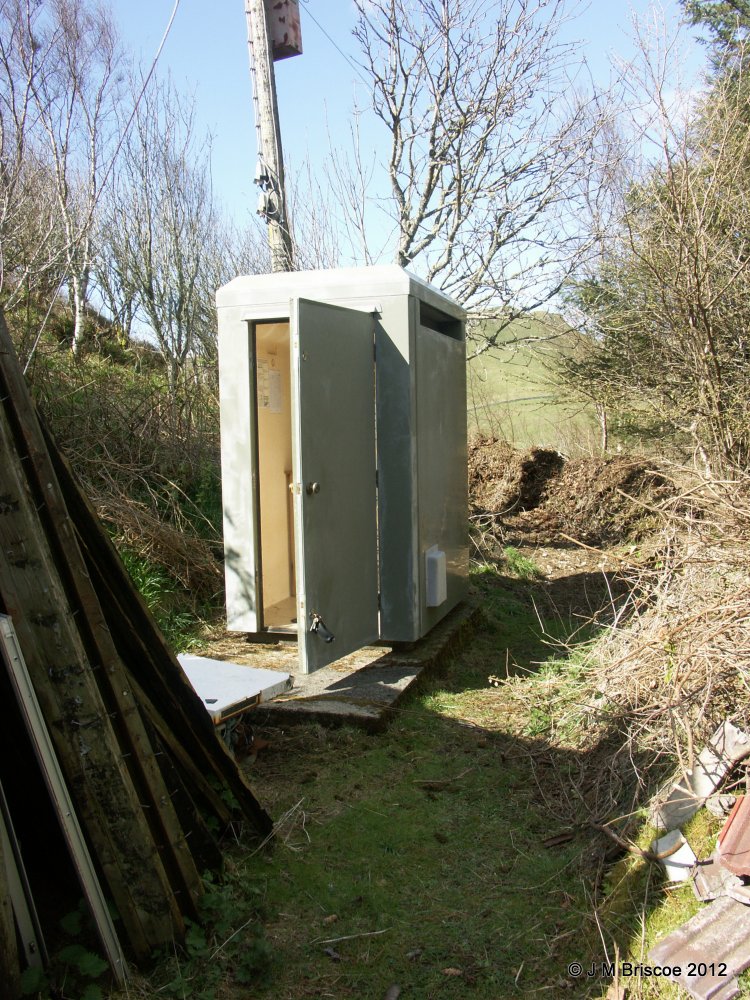

The transmitter is in the grounds of a private house with the antenna on a small hill above the cabin

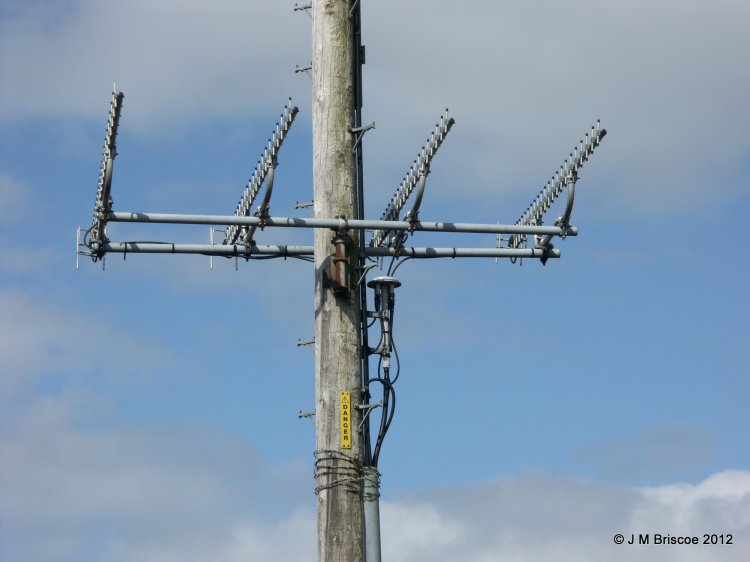

There were originally two receive yagis but these were replaced by four higher gain antennas at some point before 2005


An earlier picture on a transparency. Date unknown but could be 1980s or 1990s. There were two 18-element yagis at that point

The rest of Martin's photos are from 2005

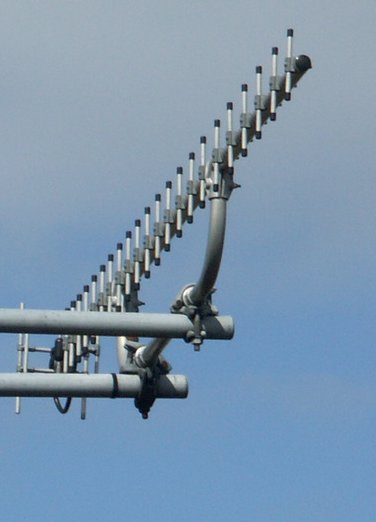

Editor's note: I counted 22 end caps along the top edge of the director elements so this is probably a 24-element yagi?
