THE TRANSMISSION GALLERY

Photos by Jez Timms Page last updated: 2023-09-09
Tayvallich Argyll and Bute
NGR: NR740866 Maps: Google  Bing (Ord Surv)   Site Height: 42m      Structure Height: 17m
Digital TV: BBC A: 46   D3&4: 43   BBC B: 40
National Radio:
Local Radio:
Digital Radio:
Comments: Tayvallich is a relay of Torosay. Pre B700 clearance channels: 46/43/50

Show historic services

April 2012

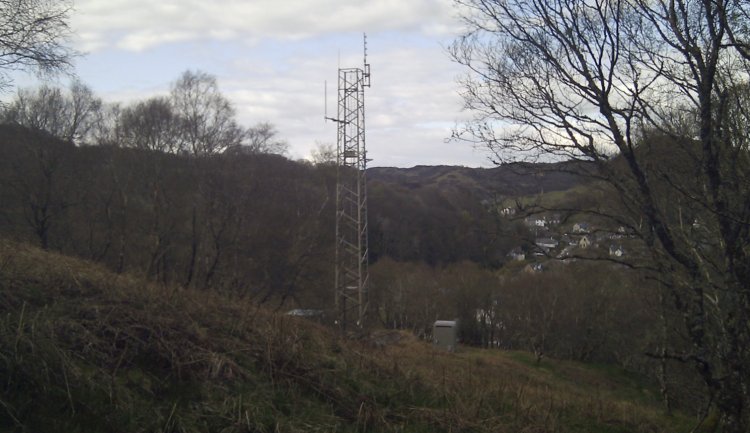

Tayvallich is a small fishing village on the shore of Loch Sween. The relay is on higher ground just to the south of the service area.

This site entered service on 31-Jul-1987 to serve 200 people. The original structure was a 17m wooden pole. DSO was on the 13th and 27th July 2010.

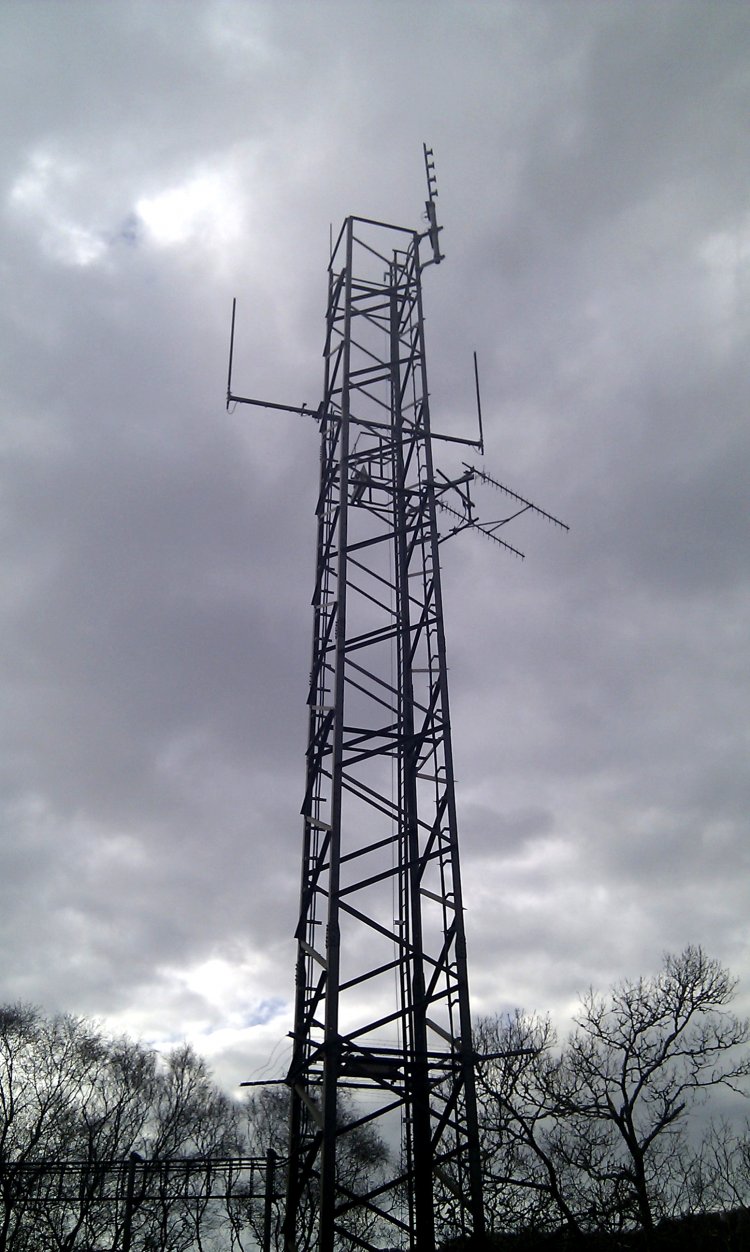

The tower is quite a substantial structure and probably not the original for the relay...

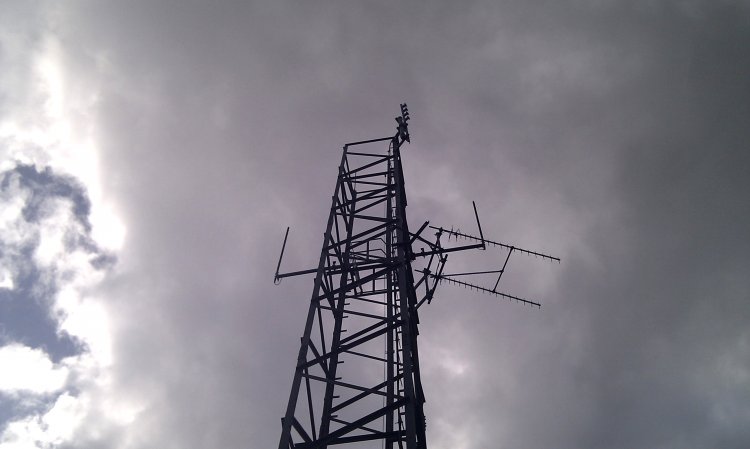

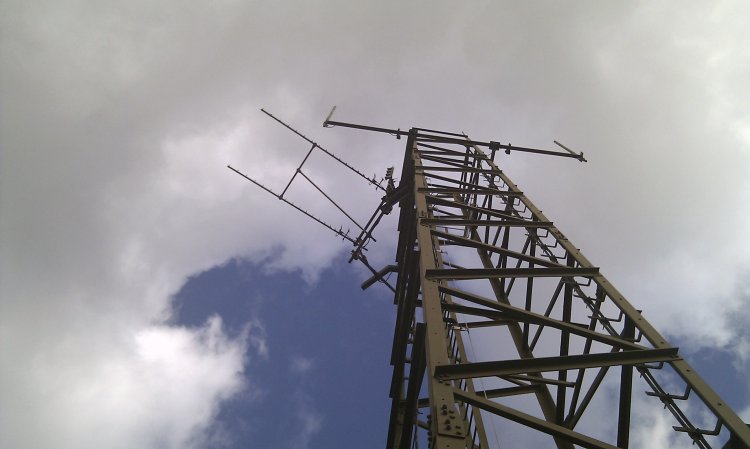

For transmit, the stack of "bow tie" dipoles. Reception is possibly a bit of a challenge, hence the bayed 18-element yagis.

A 2008 planning application for DSO sought approval for a satellite dish and replacement of the transmit antenna - but it doesn't appear that these changes were made






The relay equipment sits to one side of the tower base. Planning documents show there was originally a wooden pole next to this enclosure, with permission for the tower granted in 1999.



Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
