THE TRANSMISSION GALLERY

Photos by Will Duncan Page last updated: 2014-01-07
Strathyre Link Stirling
NGR: NN581171 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height:
Digital TV: BBC A: 46 D3&4: 43 BBC B: 40
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Strathyre Link is a relay of Black Hill

15 September 2011

This is in continuation of Bill Wright's article on Strathyre. I was able to get up to the top of the mountain to take closer photos.

Unfortunately, the weather was nasty that day (and most of the week I was in the locality), but it was the only day I could go up.

Strathyre Link went into service in the mid 1990's. DSO was on the 8th and 22nd June 2011.

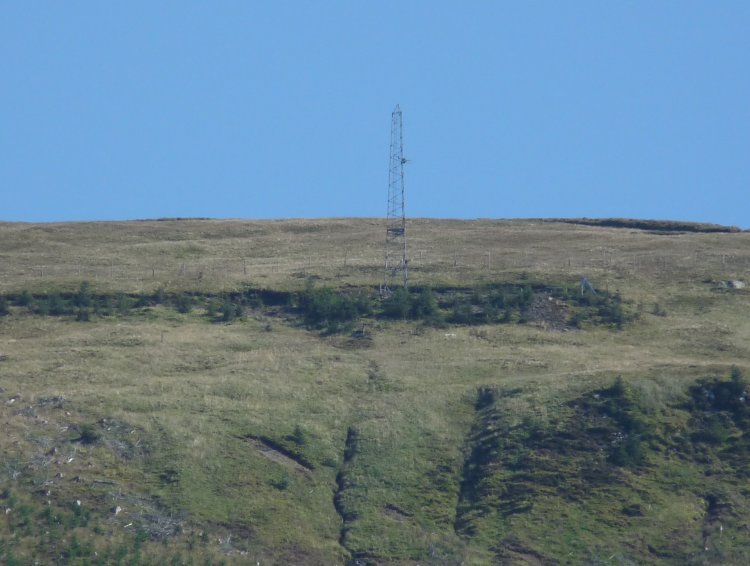

The Strathyre Link in the distance from the village.

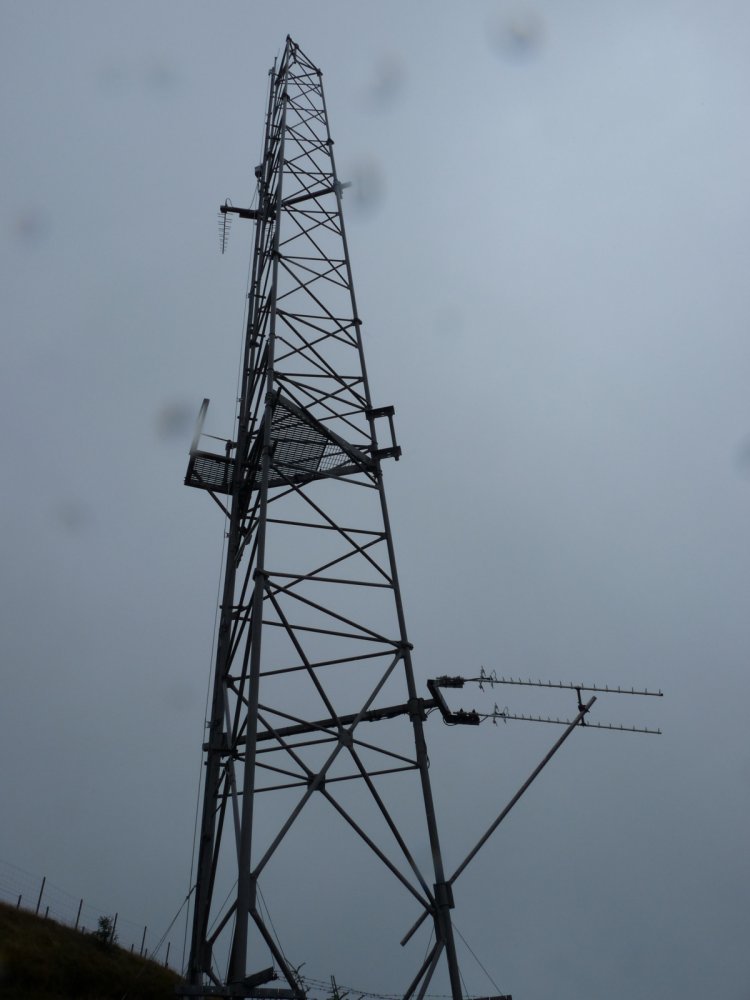

This is the mast close-up.

Top array aimed at Black Hill, bottom array aimed down towards the village transmitter.


The antennas on the top pulling in signal from Black Hill.

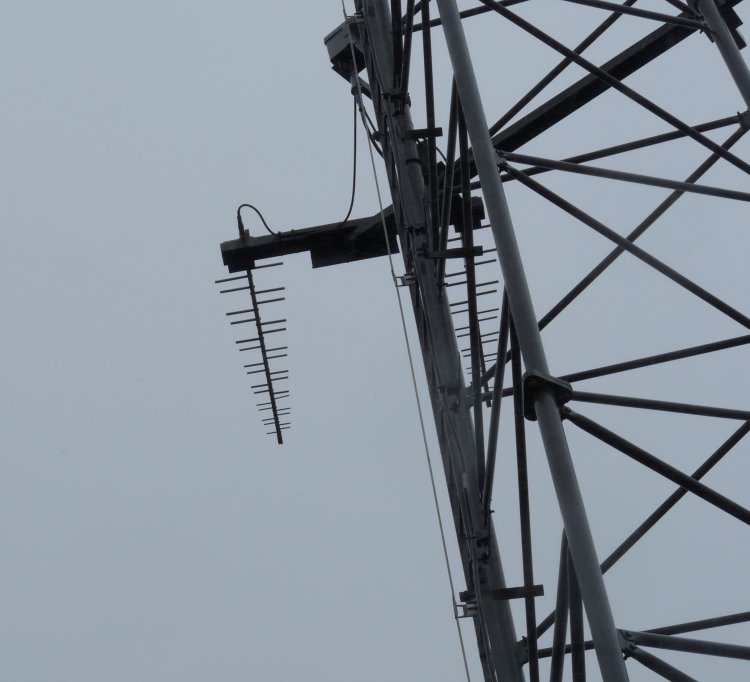

The array aimed back down towards the Strathyre Tx.

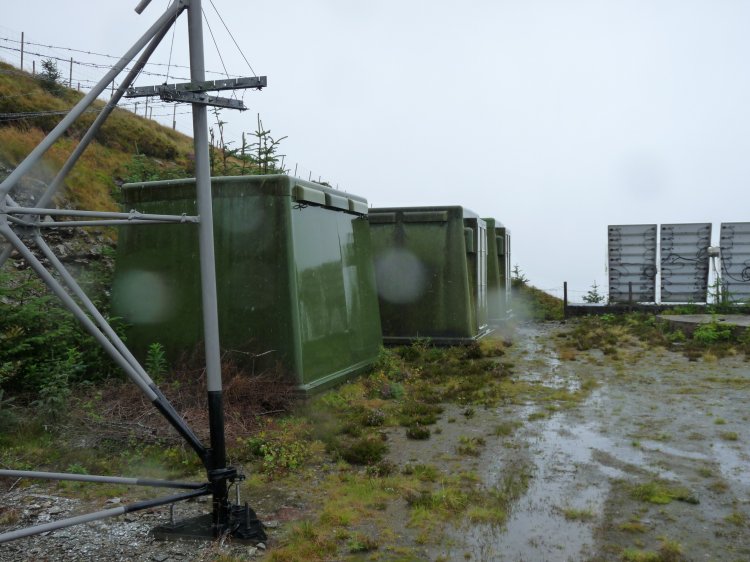

Bottom of the mast - some plastic huts and an array of solar panels on the right.

I was reliably informed that there is a diesel generator and tank in one/some of those "huts"

Strathyre

Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
