THE TRANSMISSION GALLERY

Photos by Robert Whittaker Page last updated: 2013-11-26
Aberbeeg Blaenau Gwent
NGR: SO217030 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height: 12m
Digital TV: D3&4: 50 BBC B: 46 BBC A: 43
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Aberbeeg is a relay of Wenvoe (via Abertillery)

Aberbeeg is a low power station designed to fill in the gap between the neighbouring Abertillery and Llanhilleth relays. Abertillery is located on the opposite hillside, less than ūmi away, but the valleys are very steep in this area which has left a pocket of poor reception at the base of the valley below.

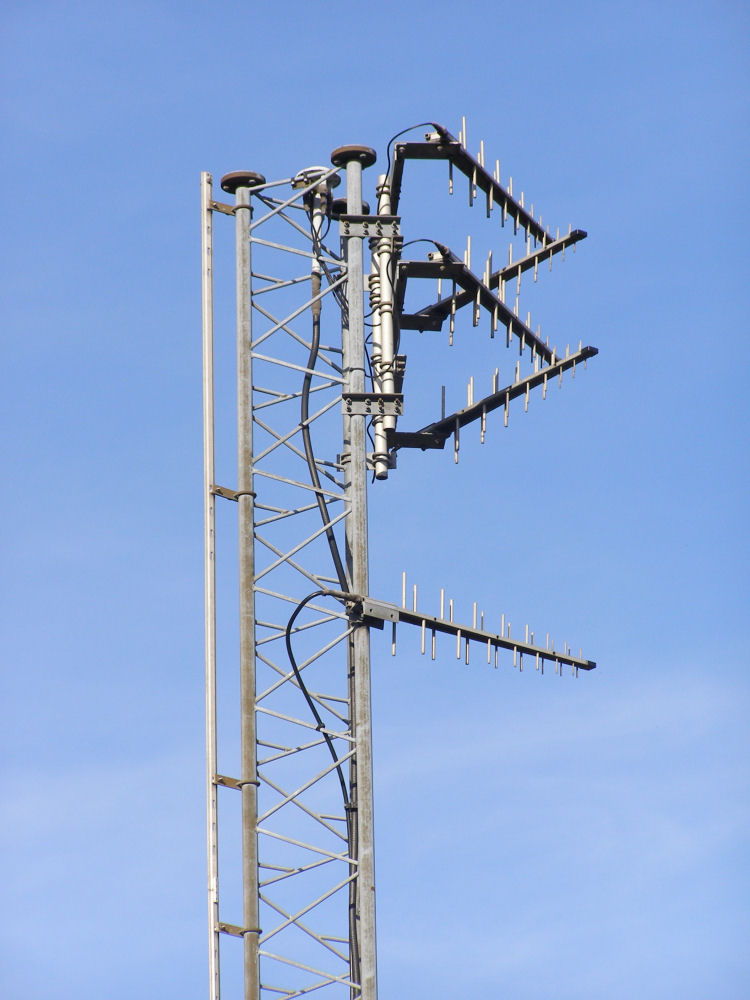

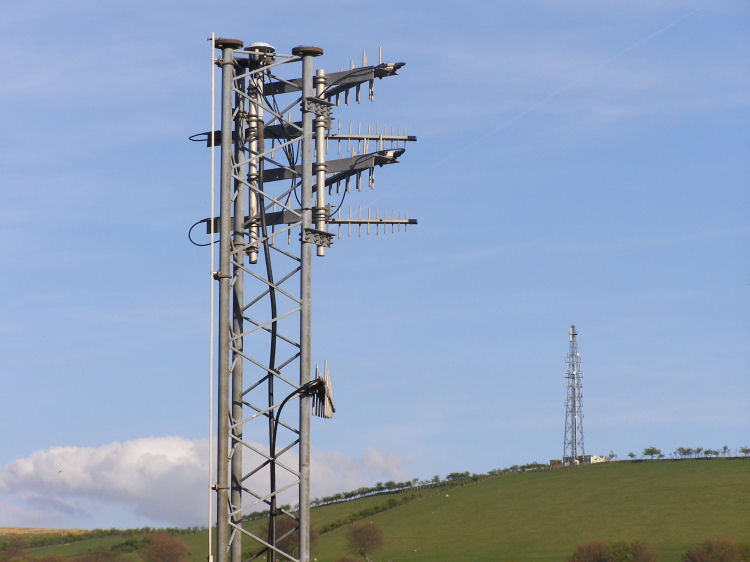

Transmit antennas are two pairs of crossed vertically polarised log periodics pointing nominally south and east to the target area. RX is one vertical log on Abertillery.

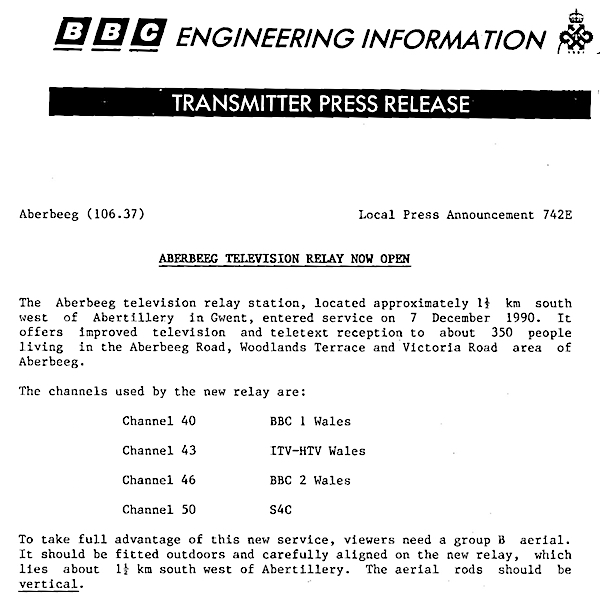

Service date 7th December 1990.

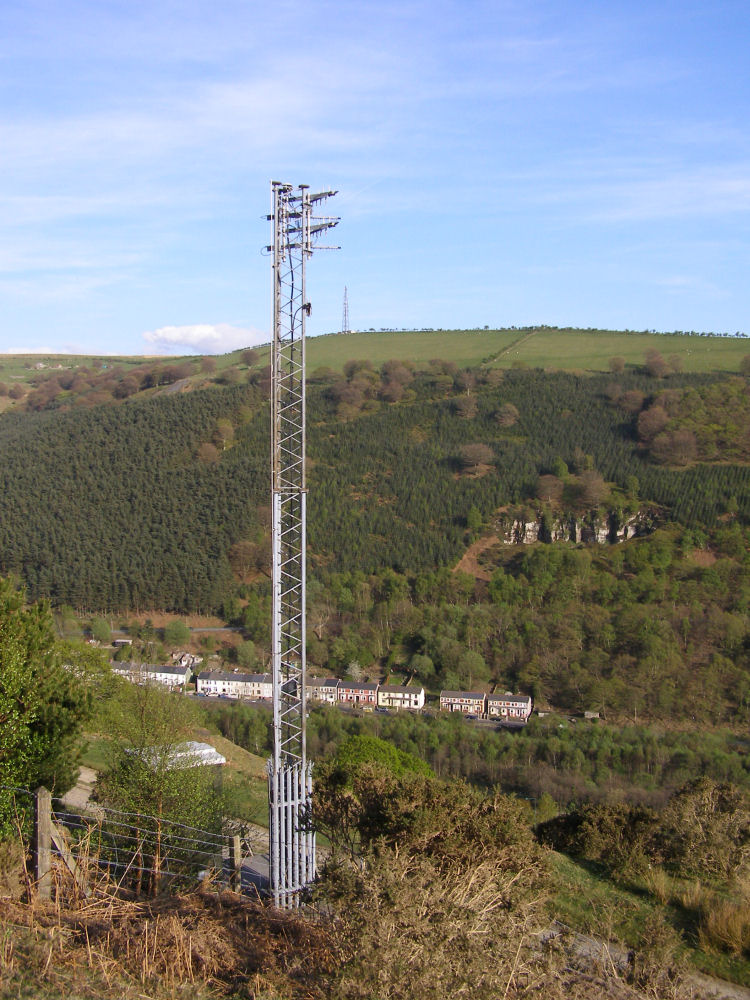

Looking south east, Abertillery visible on the opposite hillside

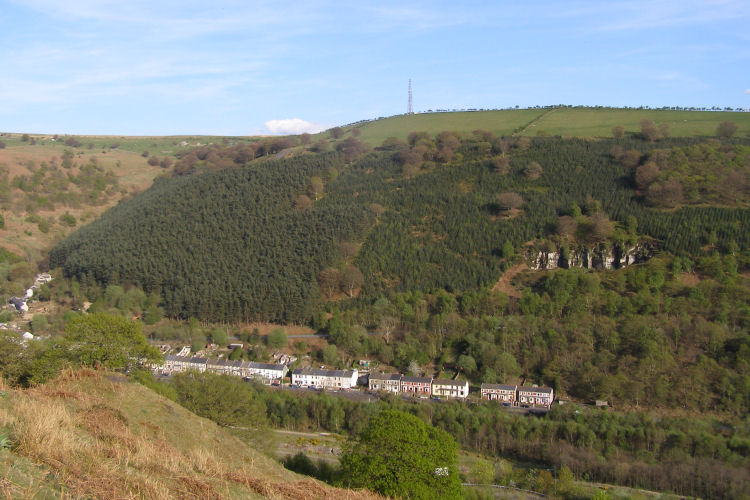

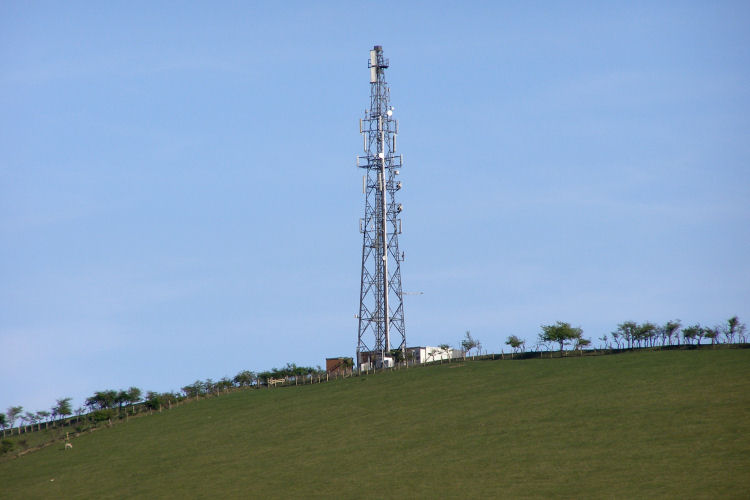

Abertillery as seen from the site


Looking south towards Aberbeeg village, Llanhilleth round the valley to the left

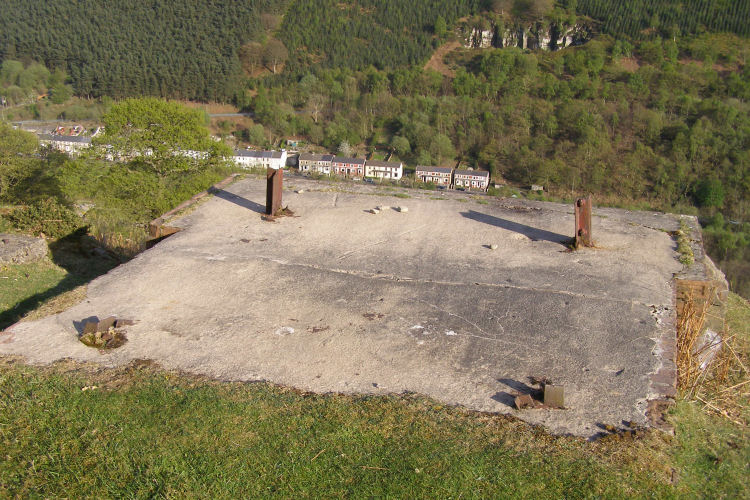

The remains of an old tower, right next to the site
