PENNAR

Photos by Robert Whittaker Page last updated: 2023-10-17

June 2006

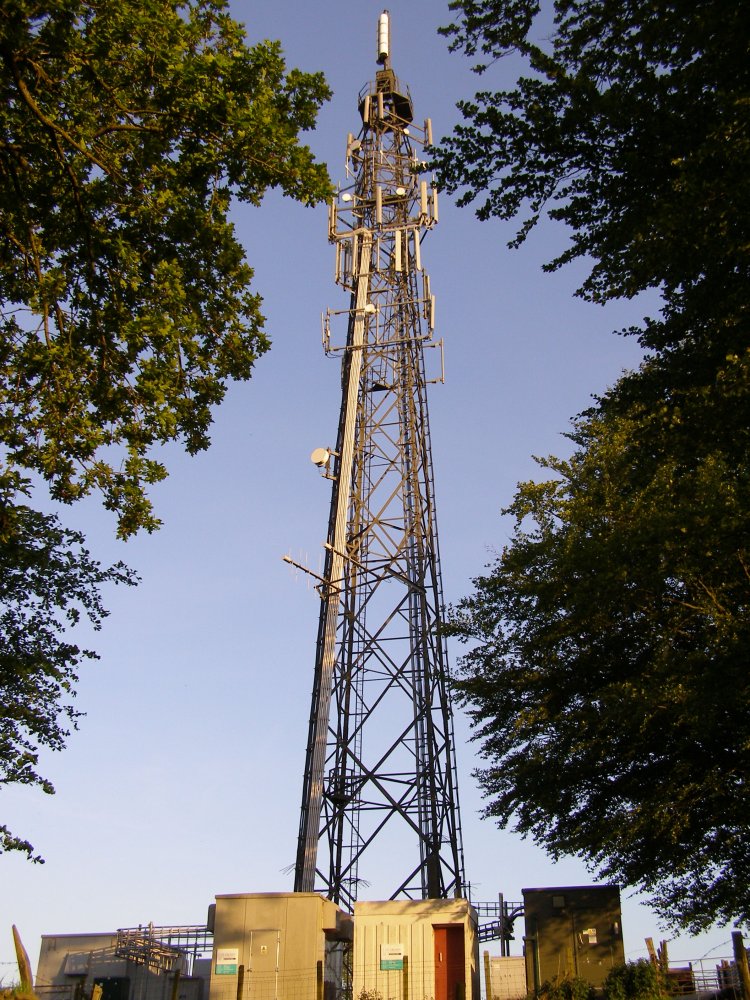

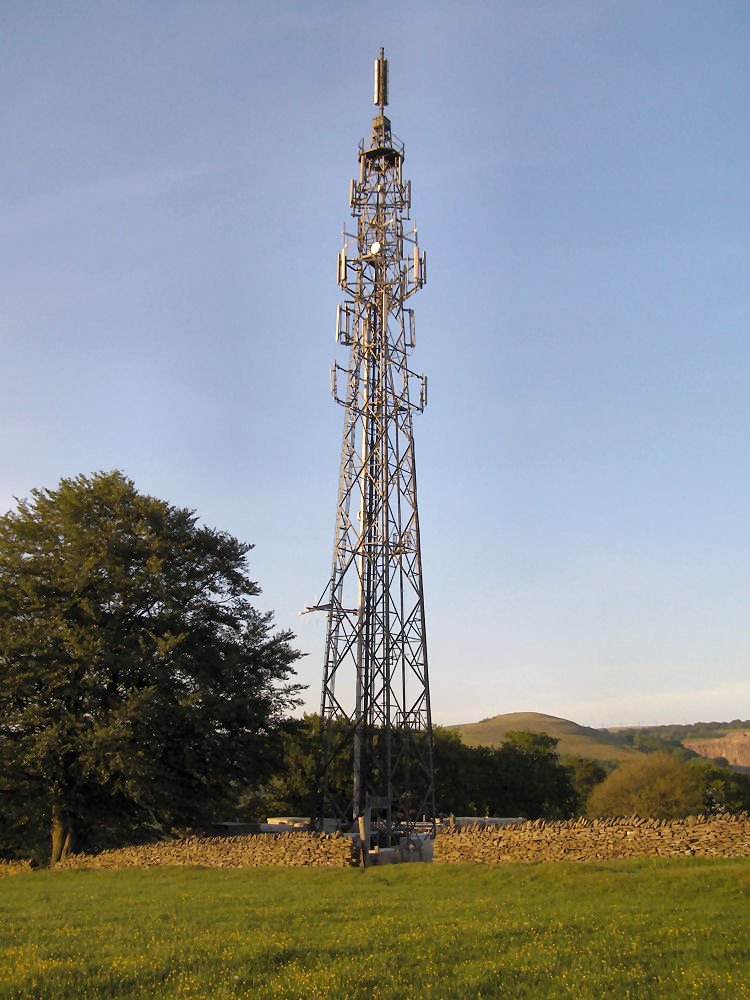

Pennar stands on a hill just to the south of Newbridge, in Ebbw Vale. It employs two stacks of four panel antennas for UHF TV, one stack pointing roughly north, the other roughly south-east. This should produce a broadly semicircular radiation pattern covering areas along Ebbw Vale including Abercarn, Newbridge and Crumlin, and west towards Pontllanfraith. The RX antenna is a vertical log periodic pointing south towards Mynydd Machen, which is clearly visible from the site.

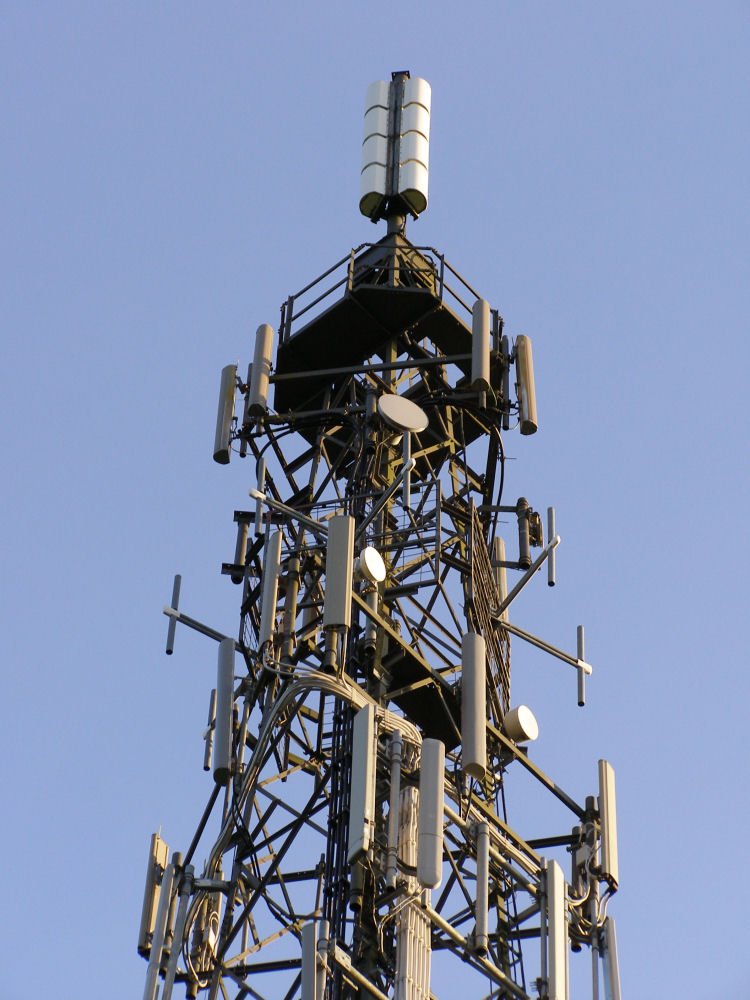

Pennar is also an FM filler for BBC Network Radio. Mounted just under the UHF stack is an omnidirectional VHF array comprising four panels, one on each face of the tower. Each panel consists of two vertical dipoles side by side. The RX antennas are two vertical log periodics, pointing just east of north. The station uses Abertillery for its programme feed.














Vertical log periodic UHF receive antenna pointing at Mynydd Machen


Two vertical bayed log periodic VHF receive antennas pointing at Abertillery


Looking south down Ebbw Vale towards Mynydd Machen


Mynydd Machen as taken from the site


Looking north towards Newbridge


Looking north east towards Pantside

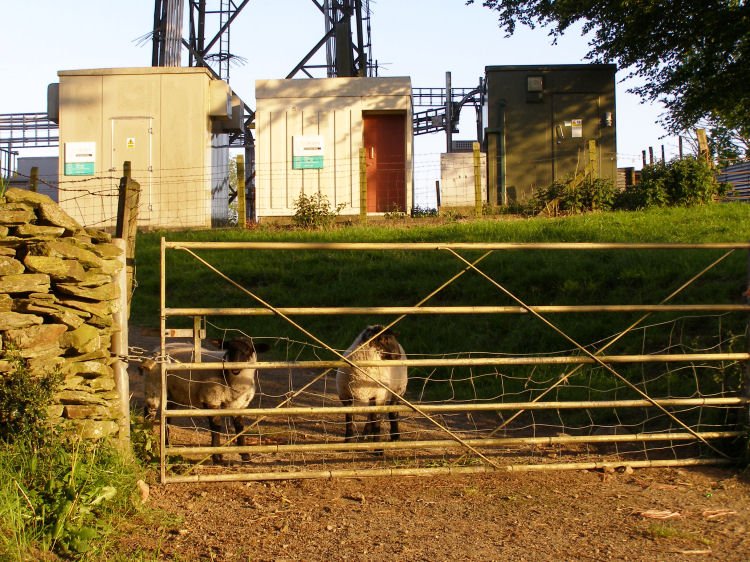

NGW appear to be employing a couple of very bold guard sheep, both of whom followed me
round as I was trying to take pictures, constantly nibbling at my feet and legs!

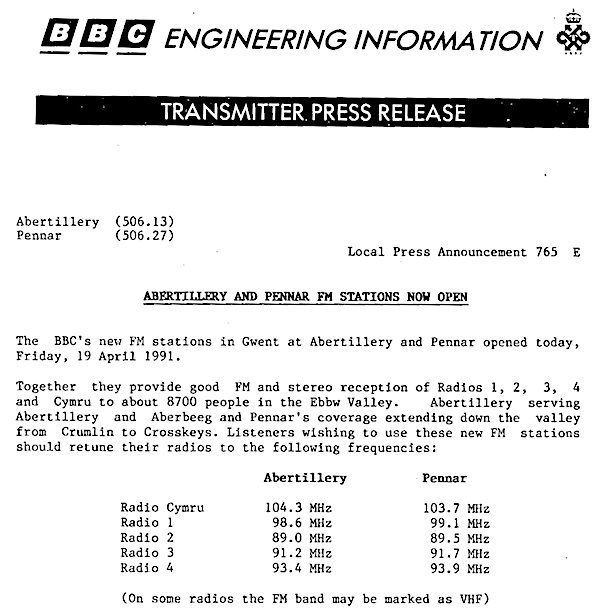

Radio Cymru frequency was changed to 94.7 MHz in 1999.
