THE TRANSMISSION GALLERY

Photos by Robert Whittaker Page last updated: 2014-01-07
Sutton Surrey
NGR: TQ254647 Maps: Google  Bing (Ord Surv) Site Height: 36m      Structure Height:
Digital TV: BBC A: 59 D3&4: 55 BBC B: 50
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Sutton is a relay of Crystal Palace

July 2007

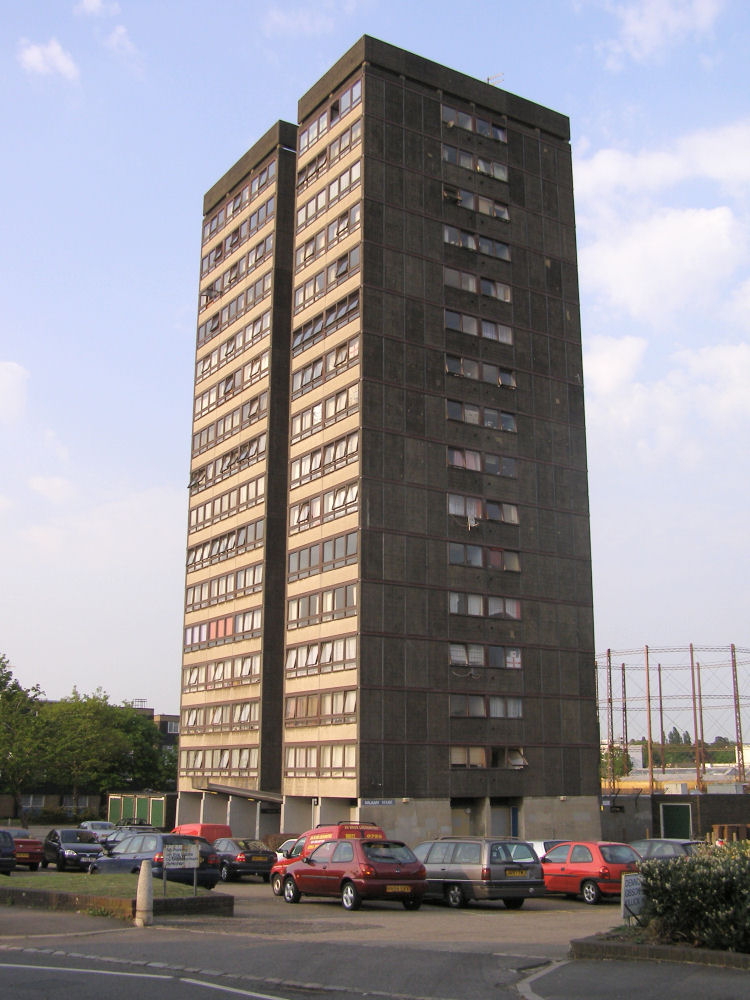

Sutton is a low power suburban relay typically located on top of a block of flats in Sutton, south London.

The installation consists of a stack of four vertical dipoles pointing nominally north east. There is also a horizontally polarised service, provided from two log periodics pointing south.

The area isn't hilly, so it is likely that the signal from Crystal Palace is degraded in some way, perhaps by ghosting from the nearby gas works. The receive aerial is a log periodic pointing north east at Crystal Palace.

Sutton entered service in 1993. DSO was on the 4th and 18th April 2012.









Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
