THE TRANSMISSION GALLERY

Photos by Dan Glover Page last updated: 2017-10-24
Ramsgate Kent
NGR: TR385651 Maps: Google  Bing (Ord Surv) Site Height:       Structure Height: 5m
Digital TV: BBC A: 26 D3&4: 23 BBC B: 30
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Ramsgate was a relay of Dover; however since 7th August 2014 BBC MUXs A and B are line fed.

July 2009, updated July 2012

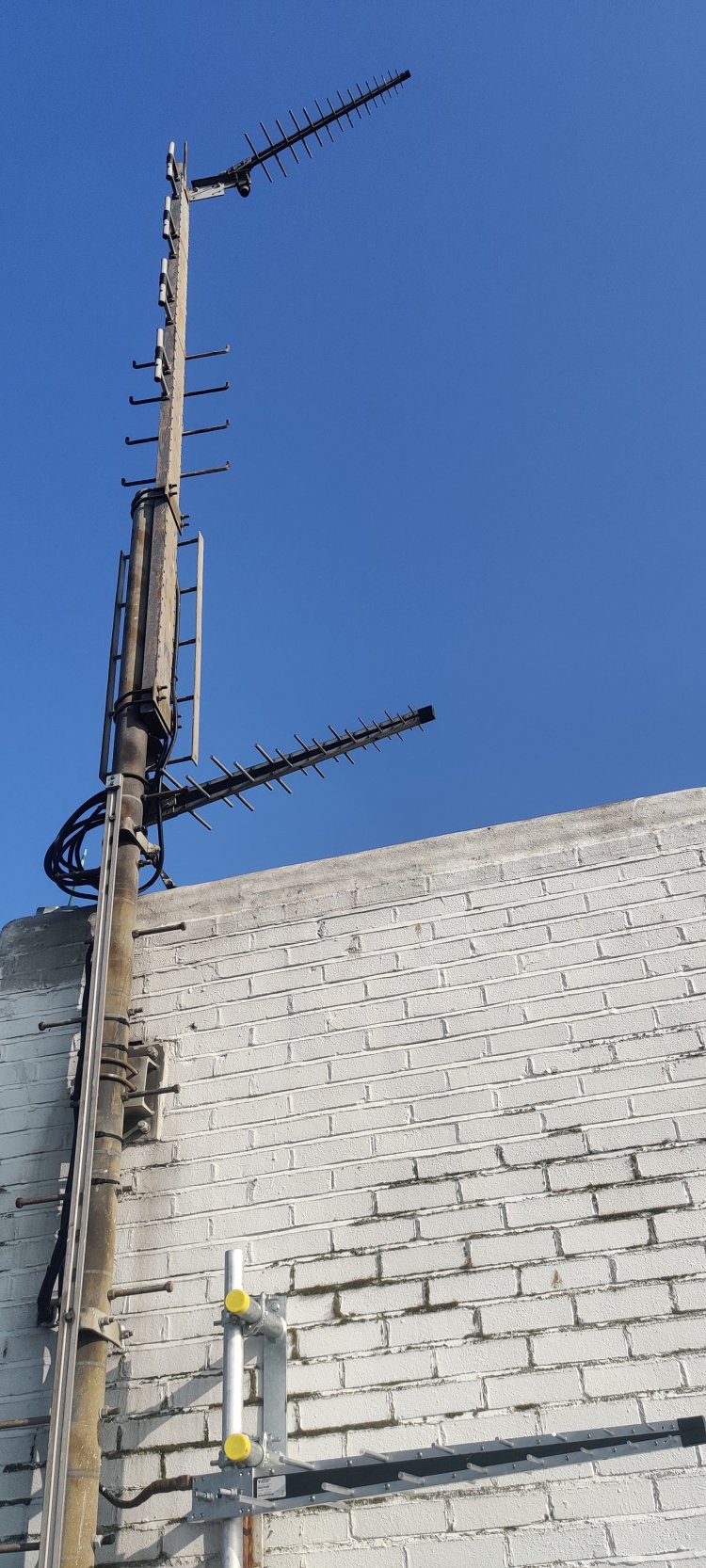

Easy to find the site and identify the broadcast antennas. The multiple log periodics for reception are probably due to Dover being received over a sea path.

This site was at one stage planned to be SFN with Dover at DSO but it has now remained as a conventional relay. As has happened at other sites nearby there has been an ERP increase - from 8W to 50W.

DSO was on 13th and 27th June 2012.








July 2012 - blue sky this time, but initially it seemed nothing had changed


Was the third log always there?

(Why does this new camera not focus consistently across the image? Hope it's just a wrong setting, not a mis-aligned lens...)




The year was 1991

Please let us know if the photographs for this site need updating or improved detail.
