Balnaguard Perthshire and Kinross
NGR: NN956511 Maps: Google  Bing (Ord Surv) Site Height: 153m      Structure Height: 17m
Digital TV: BBC A: 39 D3&4: 45 BBC B: 42
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Balnaguard is a relay of Angus (via Pitlochry)

May 2017

This TV relay is very well hidden from view by trees. In fact I wonder whether the transmit aerials are not obscured by these trees from the intended service area. Time for Arqiva to break out the chain saw?

Balnaguard was originally a BBC landlord site which entered service in September 1988 using a 17m wooden pole. This has subsequently been replaced with a triangular tower for site sharers.

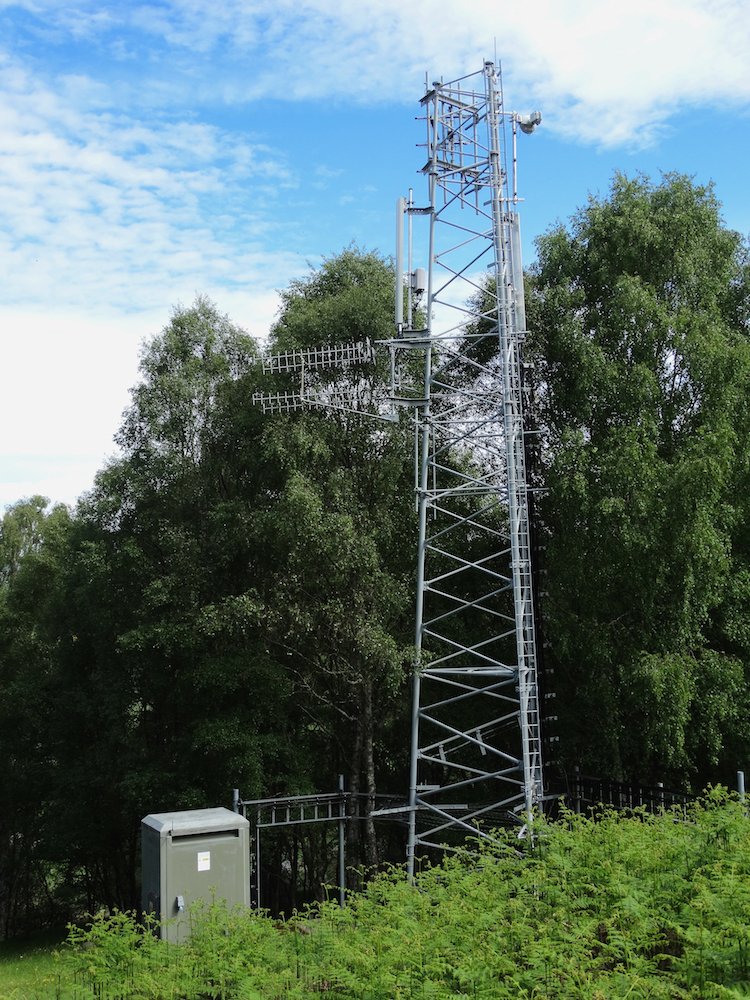

OK. The Balnaguard TV relay is supposed to be around here somewhere according to the map grid reference.

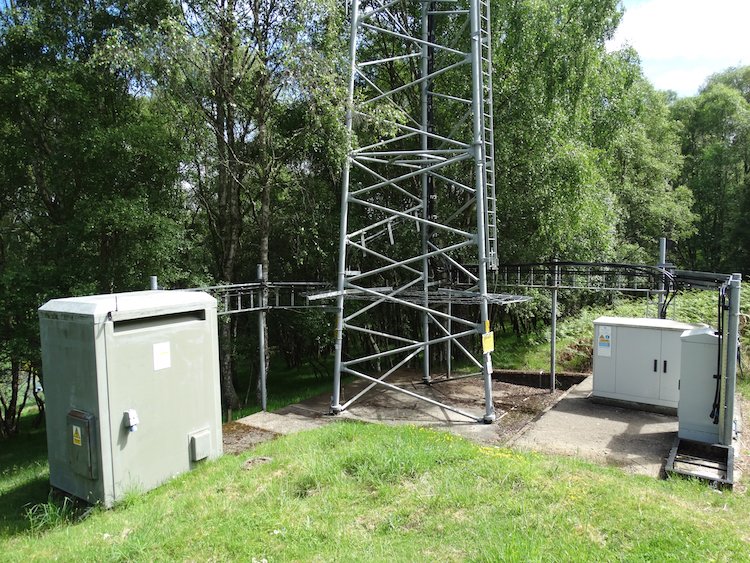

About another 100m up the hill and here it is.

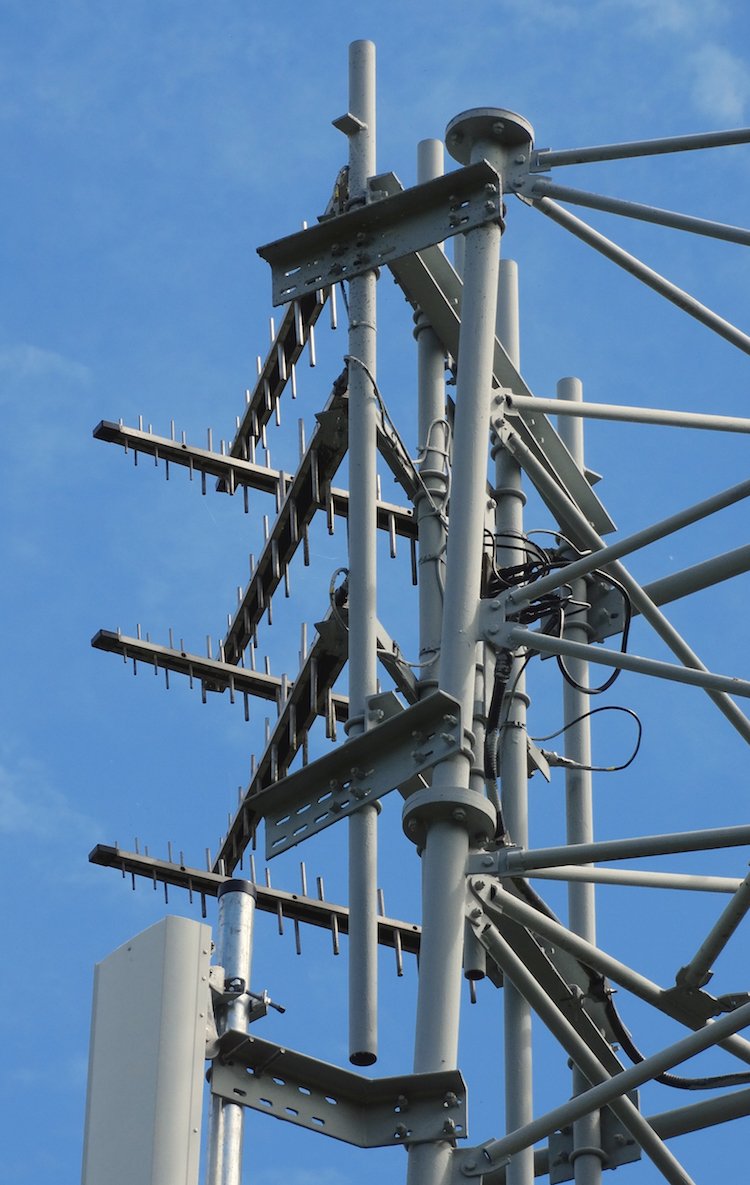

Three tiers of crossed UHF log periodics used for transmit.

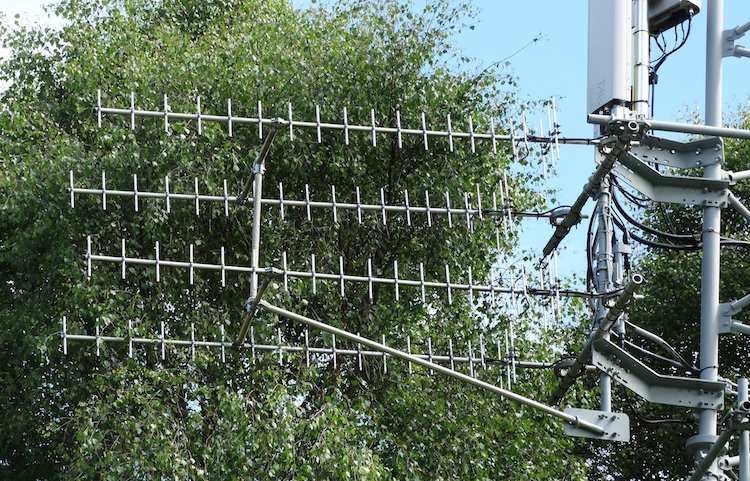

Four 18 element Yagis used to receive the programme feeds from Pitlochry.

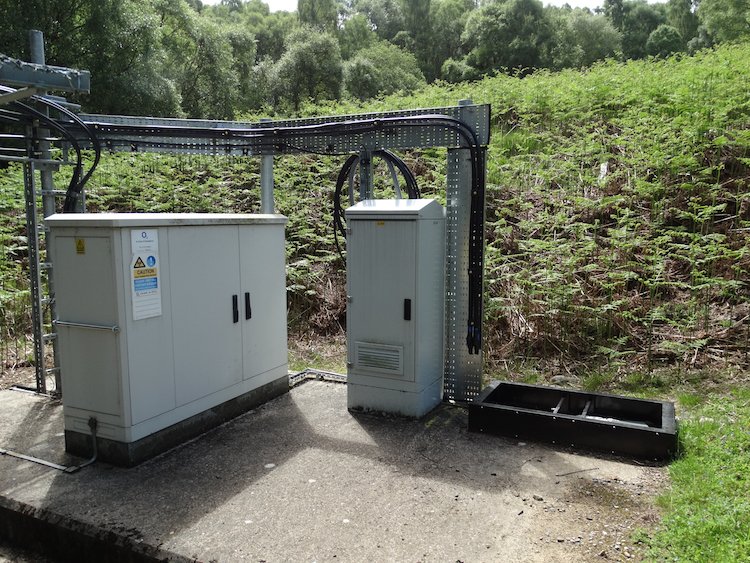

A new plinth with feeders cables awaiting another cabin.




Ballinloan in the valley below.

Pitlochry
