THE TRANSMISSION GALLERY

Photos by Ben Smith Page last updated: 2018-11-04
Pencader Carmarthenshire
NGR: SN451370 Maps: Google  Bing (Ord Surv) Site Height: 190m      Structure Height: 30m
Digital TV: BBC A: 30 D3&4: 31 BBC B: 37
BBC Radio:

Ind. National Radio:
Ind. Local Radio:
Digital Radio:
Comments: Pencader is a relay of Presely. Pre B700 allocations: 23/26/29.

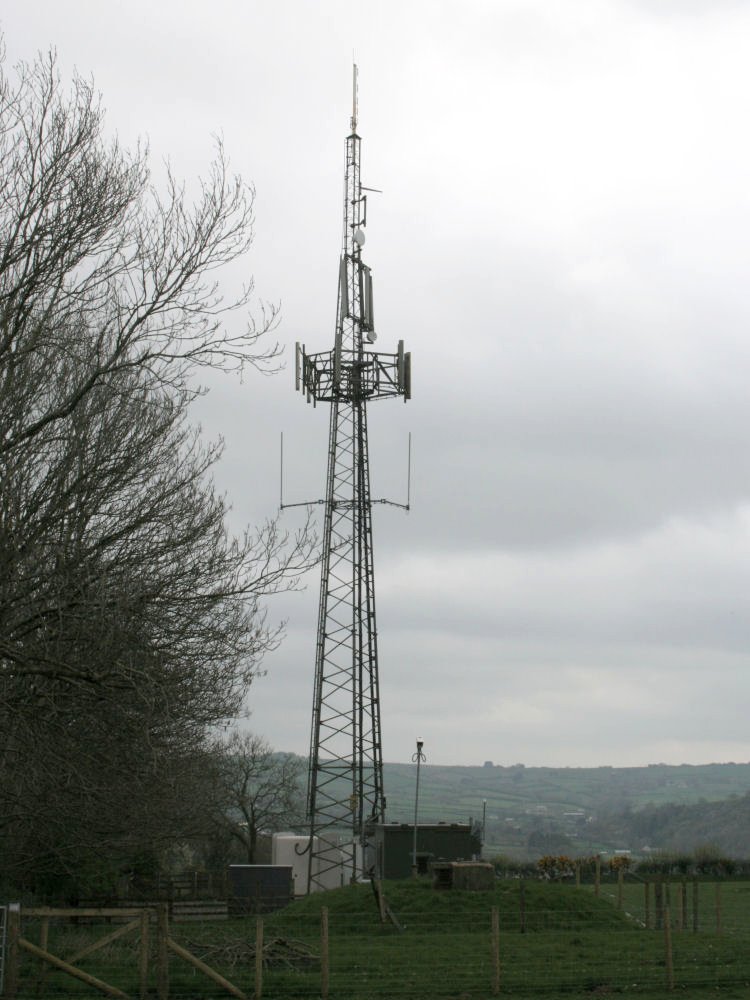

The Pencader UHF relay is located to the North-North-East of the town of the same name.

There is a footpath across the field past the site, and an access track to the side of this Tx. I choose the footpath first, but quickly had to jimmy over the fence rather sharpish - some very angry rams soon saw to that! Hmmmm... got me thinking of new film titles.... "Ewe go mad", "Sheep on a plane", "Shawn of the dead"... anyway.... I used the access track.

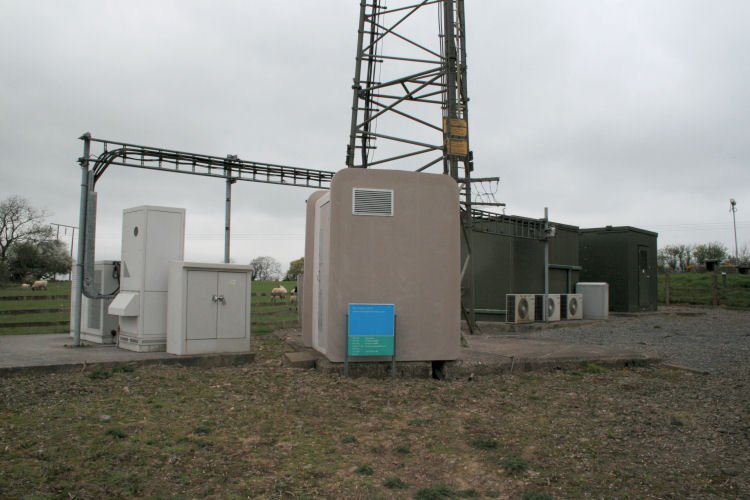

Pencader was originally a BBC landlord site which entered service on 7th September 1979. S4C was available from the November 1982 launch.


Corporate branding seems to have gone somewhat astray here.

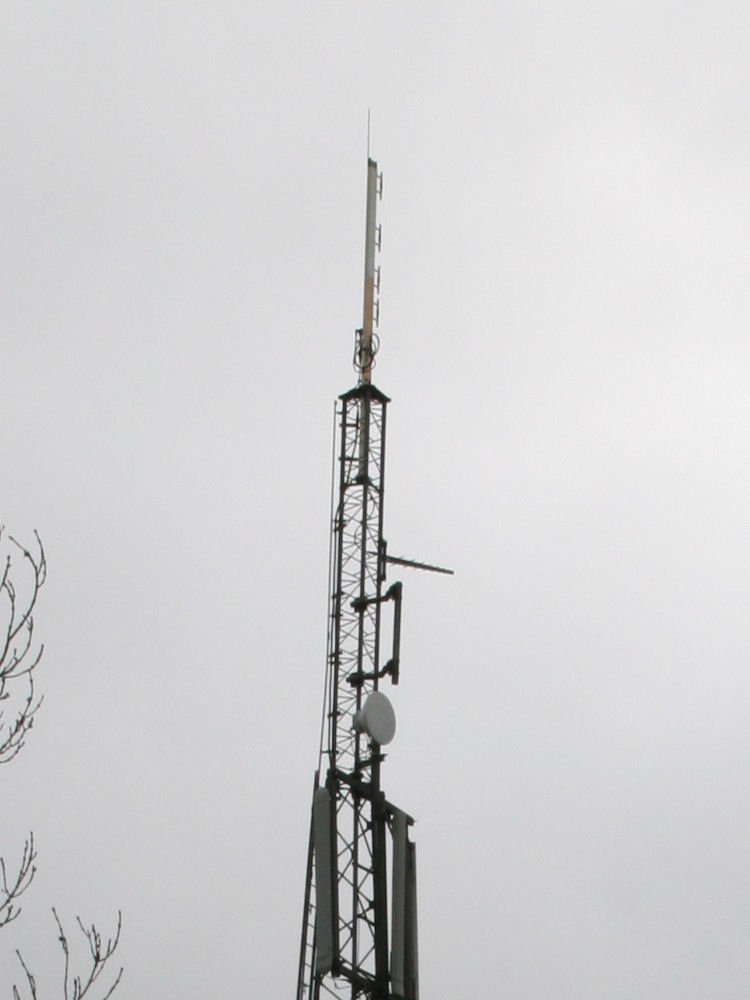

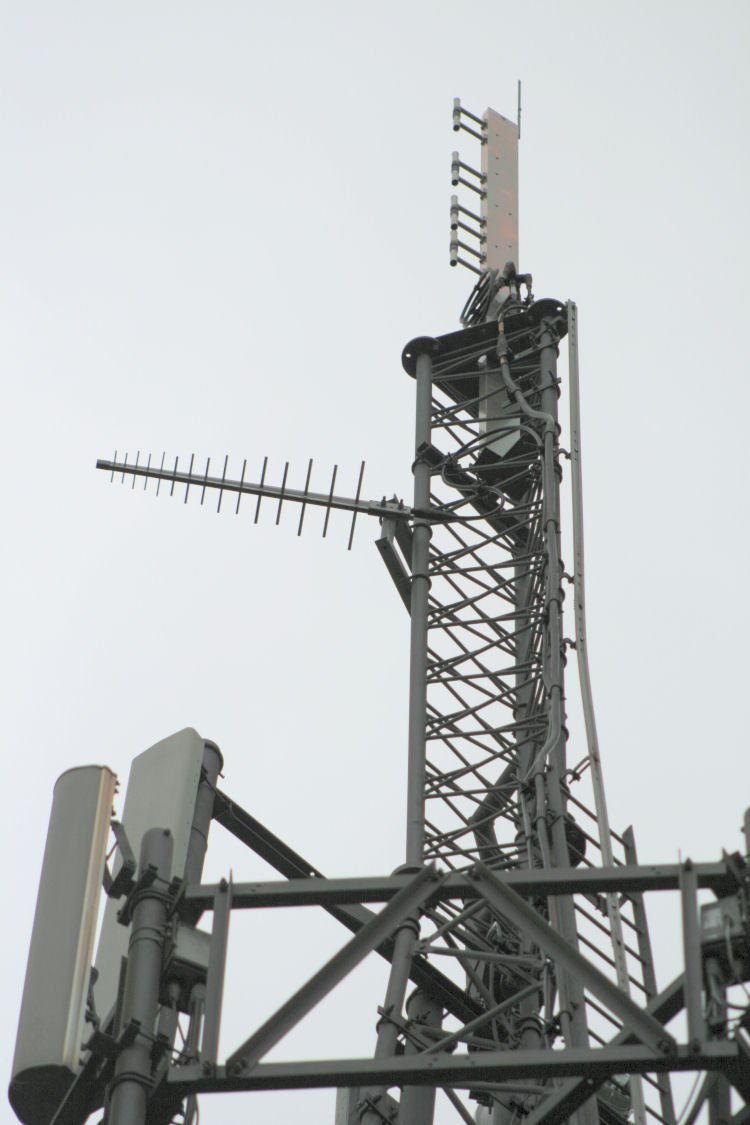

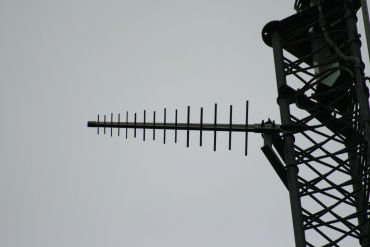

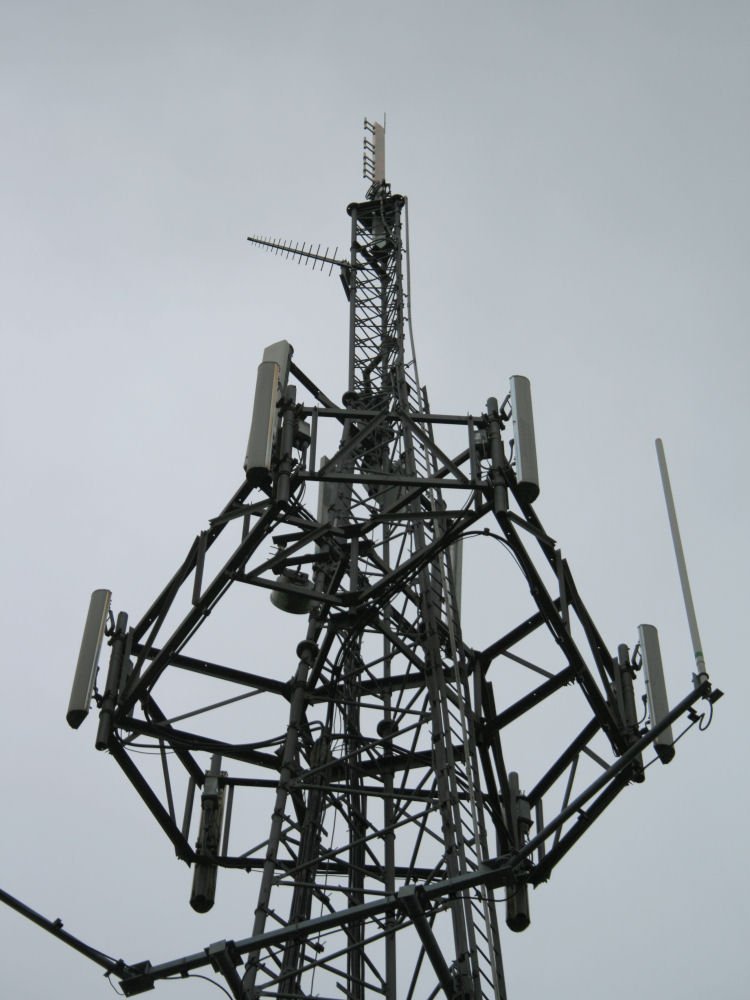

The TX provides broadcasts to the area from a 4 cardoid stack at the very top of the tower. RX is achieved by a single log periodic.







Please let us know if the photographs for this site need updating or improved detail.
To do so, click here.
