BEECROFT HILL
| Photos by Martin Brown | Page last updated: 2016-09-15 |

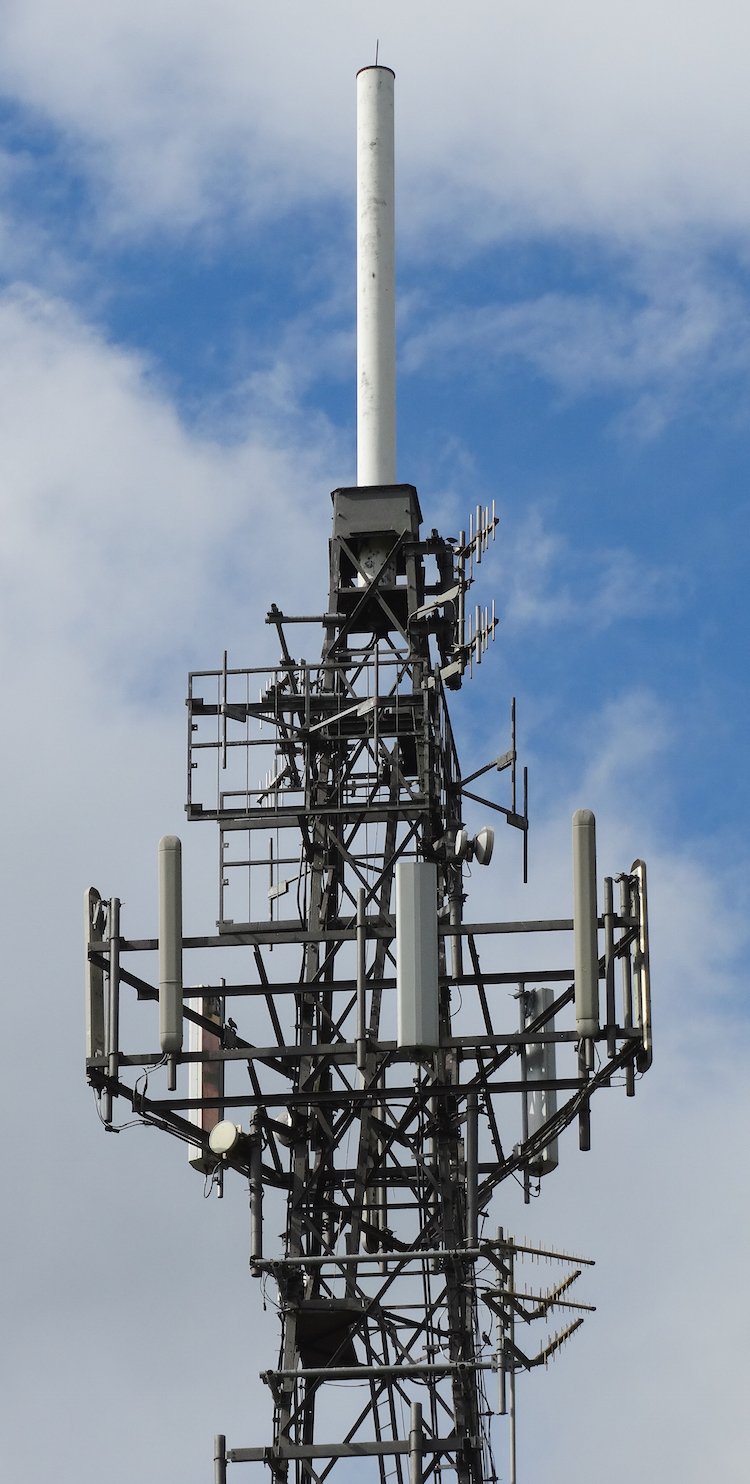

| Two tiers of crossed UHF log periodics have been added just below the mobile phone panels at Beecroft Hill for local TV. Leeds local TV launched on 27th February 2014. |
| Gold coloured local TV log periodics. They really are that colour. It's not just the light. |

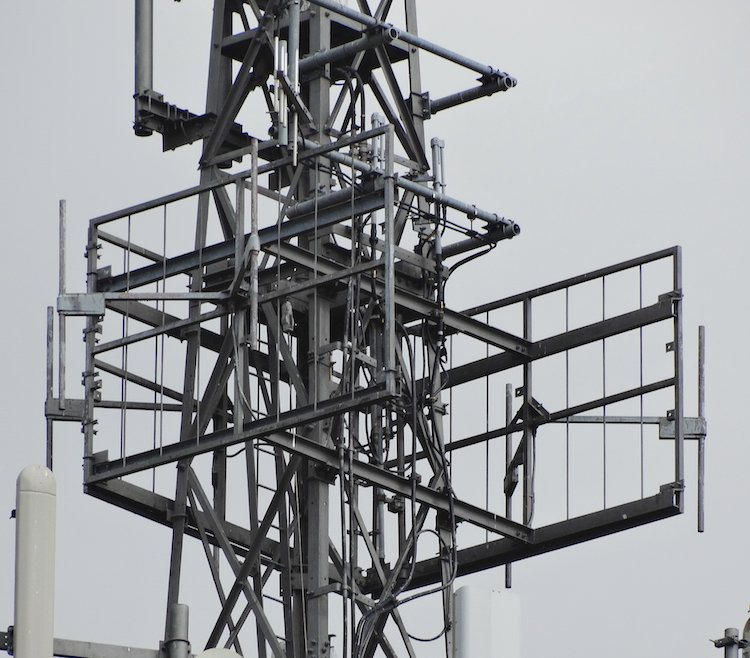

| The band II FM radio transmit panels are only on three sides of the tower. The missing panel is on the south side. |

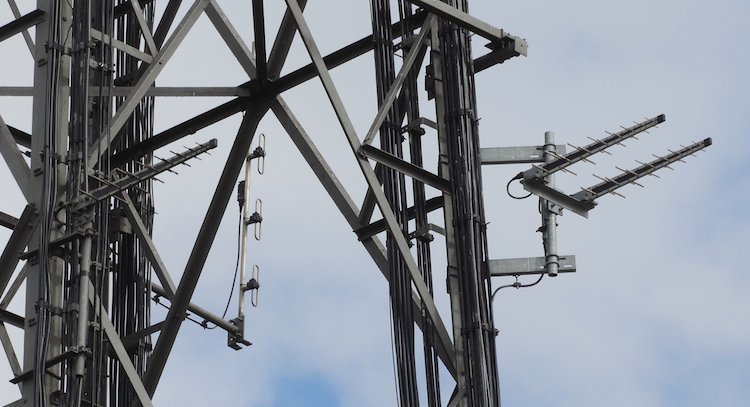

| Twin UHF receive logs have been added since the May 2011 pictures were taken. |
| Emley Moor is visible, 22 km away in the haze. |
| Holme Moss band II receive log, with the end cap coming away. |

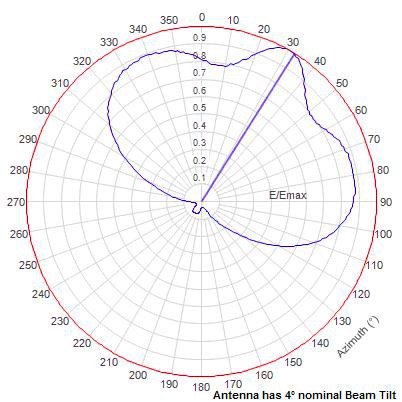

| Ofcom local TV polar diagram for Beecroft Hill. |
| |
