LISNAGARVEY
| Photos by Martin Brown | Page last updated: 2026-07-14 |
| Only one service still being transmitted from Lisnagarvey |

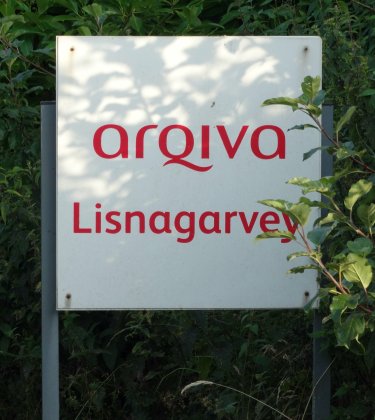

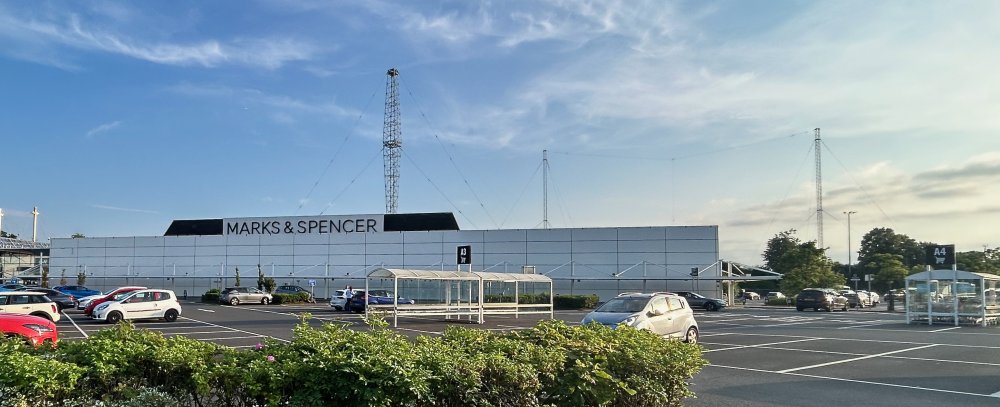

| The Lisnagarvey Tx site is next to the Sprucefield Shopping Centre. |

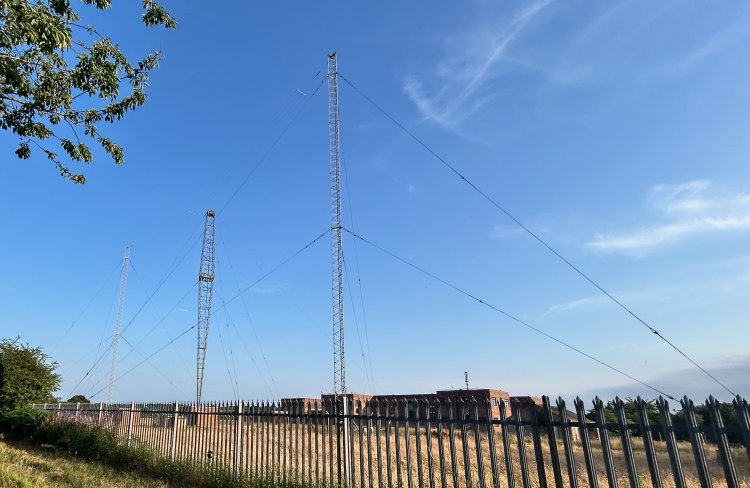

| The three structures at Lisnagarvey. The northwest T-mast is closest to the camera, then the Blaw-Knox mast and finally the southeast T-mast.. |

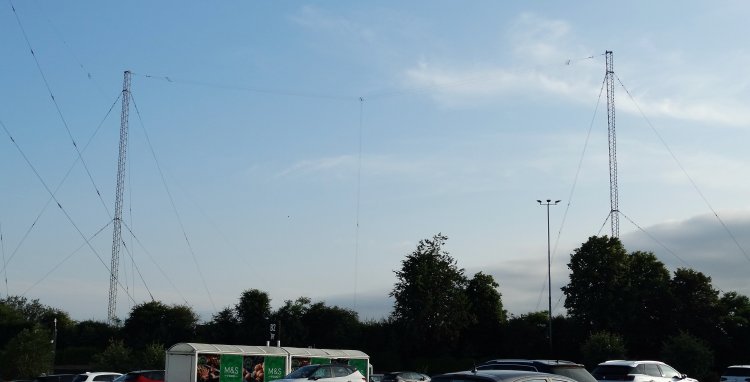

| The two masts supporting the Tee antenna. |

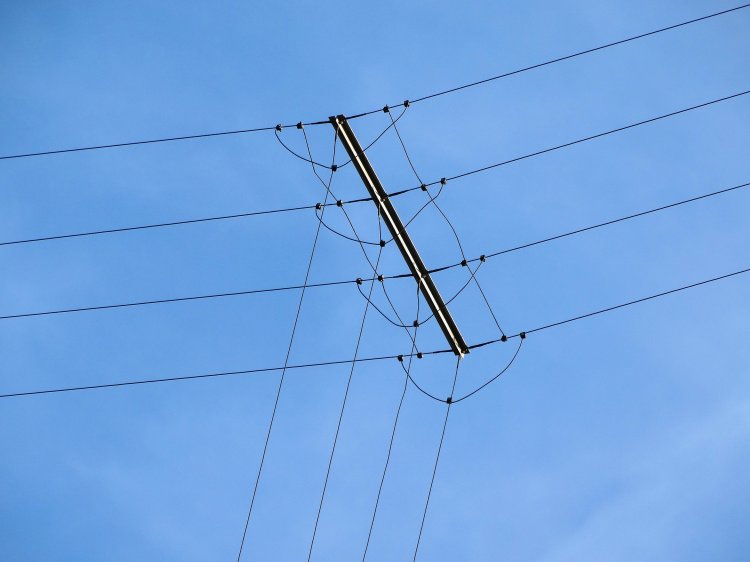

| Centre of the Tee wires. |

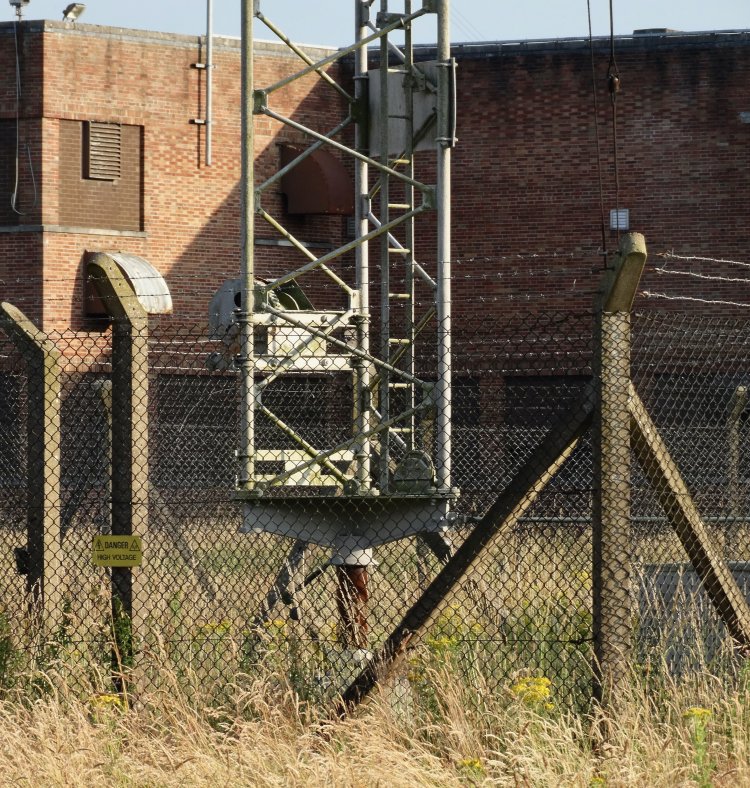

| Base of the southeast mast. As can be seen this mast has an ATH, and I understand could be used as a reserve for the 1341 kHz service (R. Ulster). |

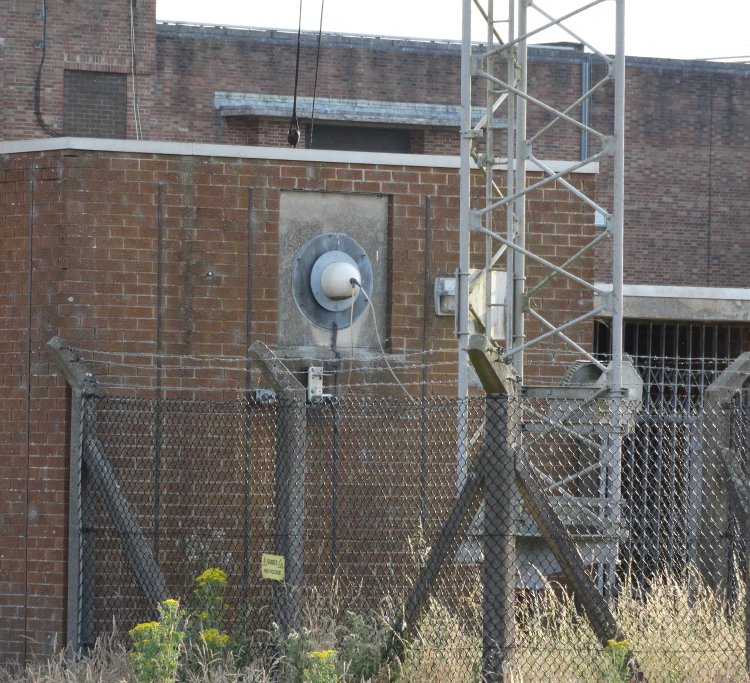

| Base of the northwest mast |

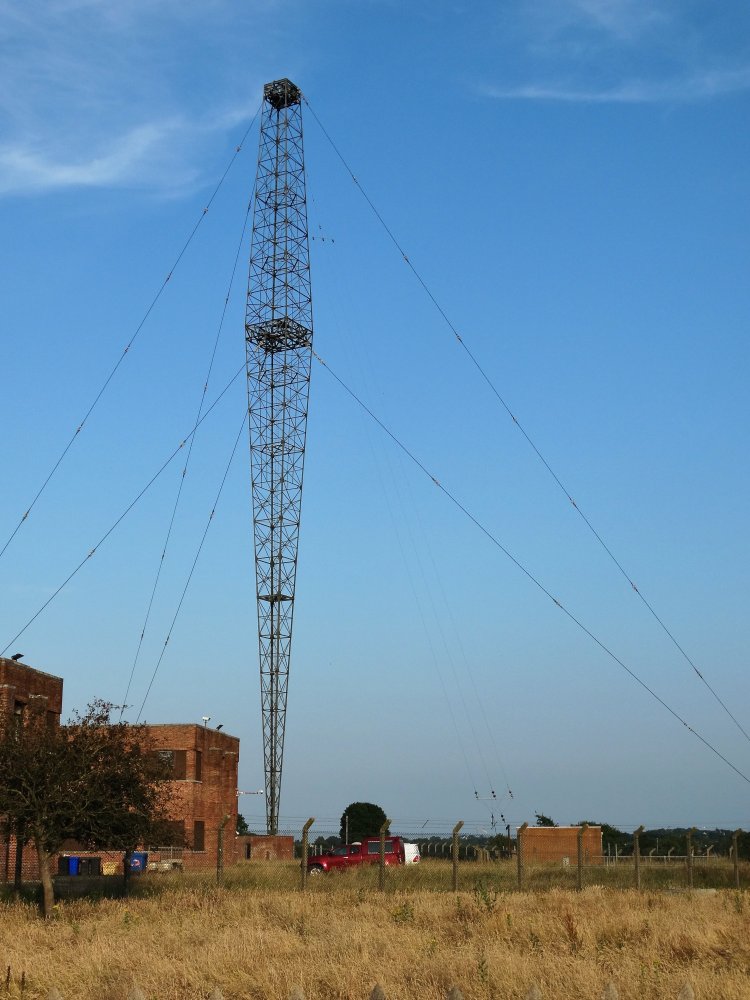

| The Blaw-Knox mast. Note that there is a three wire sloping antenna on the right. |

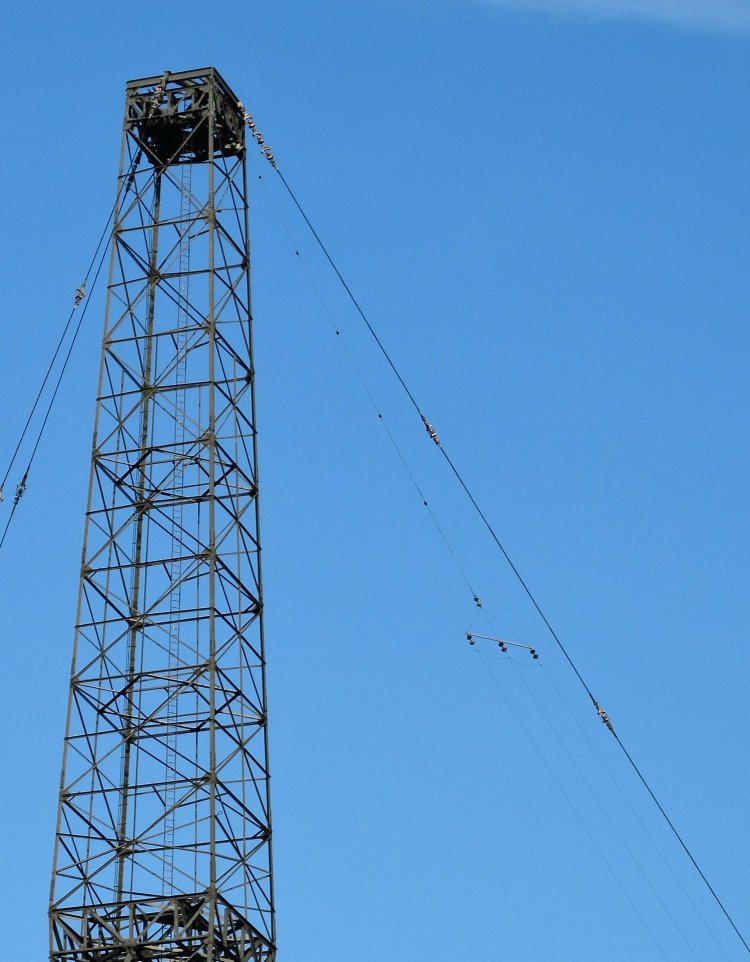

| Close-up of the top of the Blaw-knox showing the sloping wires. I understand that this is used as a reserve for the Tee antenna. |

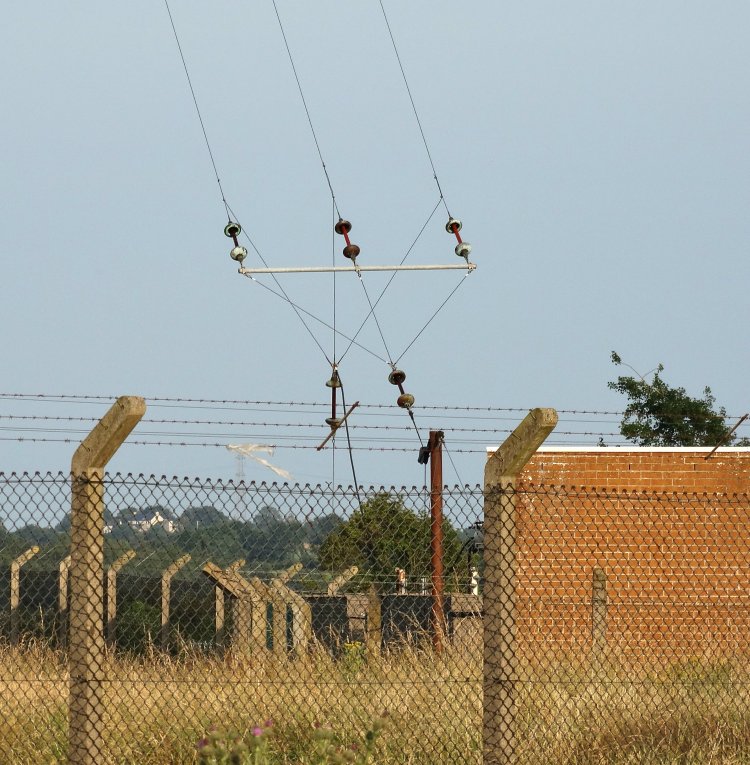

| Base of the sloping wires |
| |
